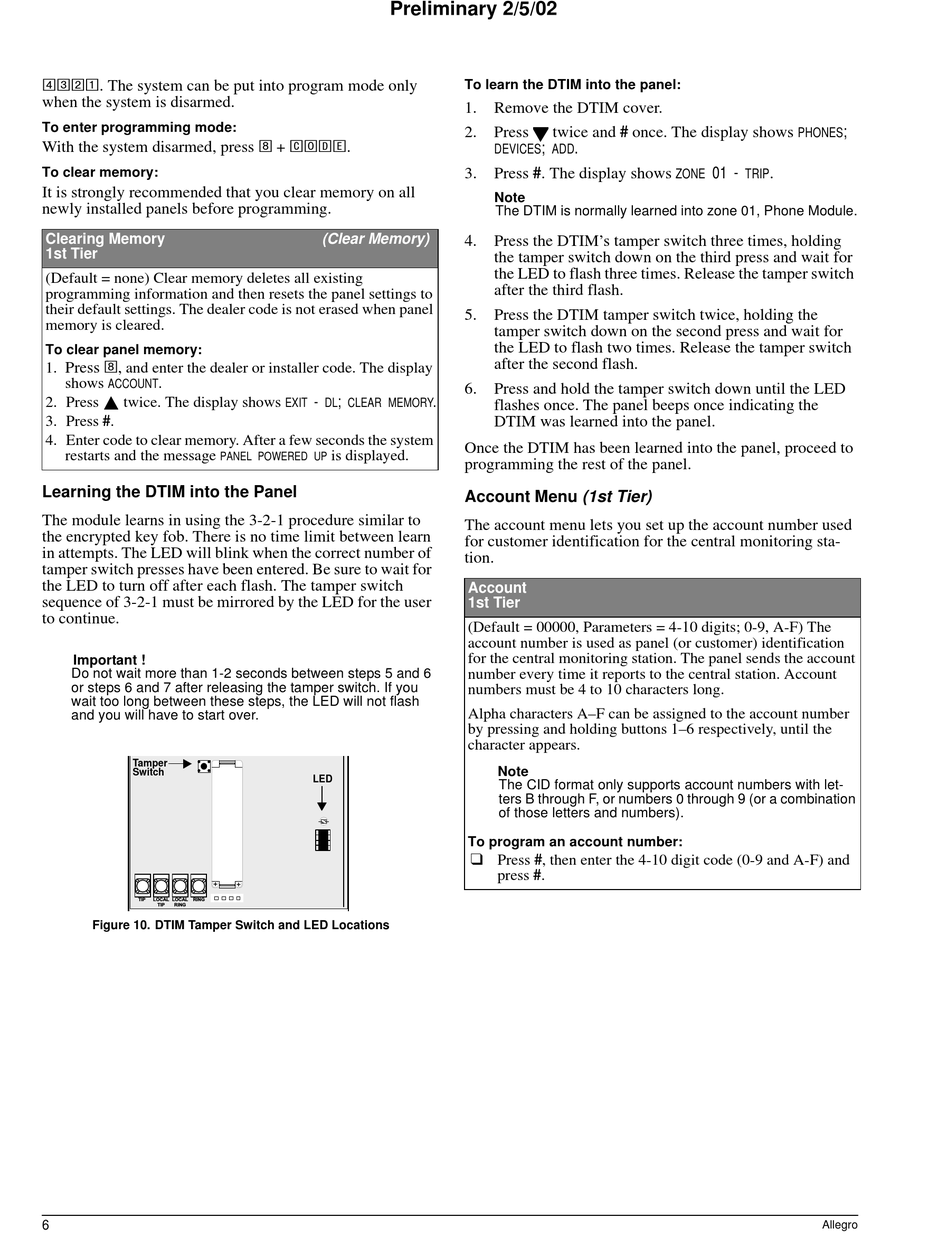

Clearing Memory; Learning The Dtim Into The Panel; Account Menu; Account - Interlogix Allegro Installation Manual

4321 . The system can be put into program mode only
when the system is disarmed.
To enter programming mode:
With the system disarmed, press 8 + CODE .
To clear memory:
It is strongly recommended that you clear memory on all
newly installed panels before programming.

Clearing Memory

1st Tier
(Default = none) Clear memory deletes all existing
programming information and then resets the panel settings to
their default settings. The dealer code is not erased when panel
memory is cleared.
To clear panel memory:
Press 8 , and enter the dealer or installer code. The display
1.
shows .

ACCOUNT

2. Press twice. The display shows
3. Press #.
4. Enter code to clear memory. After a few seconds the system
restarts and the message
PANEL POWERED UP

Learning the DTIM into the Panel

The module learns in using the 3-2-1 procedure similar to
the encrypted key fob. There is no time limit between learn
in attempts. The LED will blink when the correct number of
tamper switch presses have been entered. Be sure to wait for
the LED to turn off after each flash. The tamper switch
sequence of 3-2-1 must be mirrored by the LED for the user
to continue.
Important !
Do not wait more than 1-2 seconds between steps 5 and 6
or steps 6 and 7 after releasing the tamper switch. If you
wait too long between these steps, the LED will not flash
and you will have to start over.
Tamper
Switch
+
T I P L O C A L L O C A L R I N G
T I P R I N G
Figure 10. DTIM Tamper Switch and LED Locations
6
Preliminary 2/5/02
(Clear Memory)
- ; .
EXIT DL CLEAR MEMORY
is displayed.
LED
To learn the DTIM into the panel:
1. Remove the DTIM cover.
2. Press twice and # once. The display shows
; .
DEVICES ADD
3. Press #. The display shows
Note
The DTIM is normally learned into zone 01, Phone Module.
4. Press the DTIM's tamper switch three times, holding
the tamper switch down on the third press and wait for
the LED to flash three times. Release the tamper switch
after the third flash.
5. Press the DTIM tamper switch twice, holding the
tamper switch down on the second press and wait for
the LED to flash two times. Release the tamper switch
after the second flash.
6. Press and hold the tamper switch down until the LED
flashes once. The panel beeps once indicating the
DTIM was learned into the panel.
Once the DTIM has been learned into the panel, proceed to
programming the rest of the panel.
Account Menu (1st Tier)
The account menu lets you set up the account number used
for customer identification for the central monitoring sta-
tion.
Account
1st Tier
(Default = 00000, Parameters = 4-10 digits; 0-9, A-F) The
account number is used as panel (or customer) identification
for the central monitoring station. The panel sends the account
number every time it reports to the central station. Account
numbers must be 4 to 10 characters long.
Alpha characters A–F can be assigned to the account number
by pressing and holding buttons 1–6 respectively, until the
character appears.
Note
The CID format only supports account numbers with let-
ters B through F, or numbers 0 through 9 (or a combination
of those letters and numbers).
To program an account number:
Press #, then enter the 4-10 digit code (0-9 and A-F) and
press #.
;
PHONES
01 - .
ZONE TRIP
Allegro
