Chauvet Professional Ovation F-55FC User Manual

Full color led fesnel
Hide thumbs Also See for Ovation F-55FC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet Professional Ovation F-55FC

Summary of Contents for Chauvet Professional Ovation F-55FC

  • Page 1 User Manual...
  • Page 2 Edition Notes The Ovation F-55FC User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation F-55FC as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and Ovation F-55FC are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Manual Conventions ..................Symbols ......................Safety Notes....................Personal Safety......................Mounting and Rigging ....................Power and Wiring......................Operation ...................... Expected LED Lifespan................. 2. Introduction ................Description ....................
  • Page 4 Table of Contents System Information ......................15 Factory Reset......................... 15 5. Technical Information ..............Product Maintenance ..................6. Technical Specifications ............Photometrics Charts..................7. Returns..................8. Contact Us .................. Ovation F-265WW User Manual Rev. 1...

  • Page 5: Before You Begin

    Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation F-55FC User Manual Rev. 1 Page 1 of 20...

  • Page 6: Safety Notes

    40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Page 2 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 7: Introduction

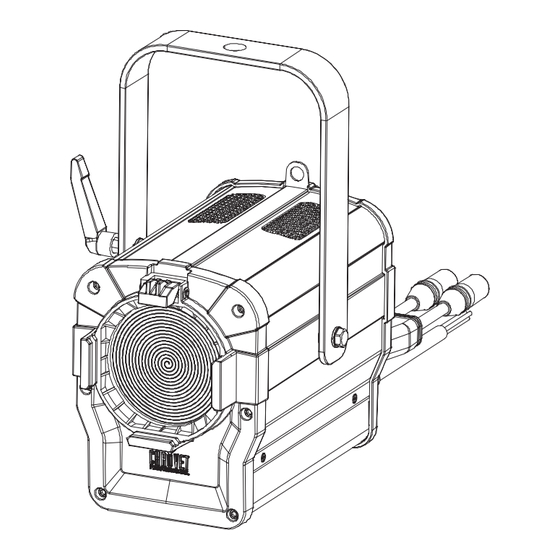

    2. Introduction Description The Ovation F-55FC is a full color RGBAL LED inkie Fresnel-style fixture. The Virtual Color Wheel and Color Temperature presets are shared from our other full color Ovation fixtures. A manual zoom with a 32° – 87° field angle allows the product to have a soft field of light when needed.

  • Page 8: Product Dimensions

    Introduction Product Dimensions 6.79 in 172.6 mm 4.64 in 118.4 mm 6.53 in 166.3 mm 9.64 in 245 mm 3.3 in 84 mm Page 4 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 9: Setup

    The Ovation F-55FC will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com. DMX Personalities The Ovation F-55FC uses a 5-pin DMX for its DMX personalities: 3, 5, 7, 10, 12, 13, 15, or HSV. Refer to Introduction chapter for a brief description of each DMX personality. •...

  • Page 10: Color Temperature Chart

    Note: The color temperatures above are simulated renditions of the color output produced as compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy. Page 6 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 11: Mounting

    Procedure The Ovation F-55FC comes with a bracket to which you can attach a mounting clamp directly. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. For the CHAUVET Professional line of mounting clamps, go to http://www.trusst.com/products.

  • Page 12: Operation

    Knob 1 Push then turn to increase or decrease the dimmer Knob 2 Push then turn to increase or decrease the zoom Control Options Set the Ovation F-55FC starting address in the 001–512 DMX range. This enables control of up to 34 products in the 15-channel personality. Programming Refer to the Menu Map to understand the menu options.
  • Page 13 Amber (0–100%) Lime Auto 1 Auto 2 Selects automatic Auto Show Auto 3 1-100 programs and auto program speed Auto 4 Auto 5 Master Master mode Master/Slave Slave Slave mode Ovation F-55FC User Manual Rev. 1 Page 9 of 20...

  • Page 14: Configuration (Dmx)

    This setting allows you to choose a particular control personality. Go to the DMX Personality main level. Select the desired personality (see table below). Personality Channels dimmer, 3Ch: virtual color wheel, color temperature RGBAL 5Ch: RGBAL, 7Ch: dimmer, strobe Page 10 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 15: Starting Address

    Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: Personality Address 15 Ch 13 Ch 12 Ch 10 Ch 7 Ch 5 Ch 3 Ch Ovation F-55FC User Manual Rev. 1 Page 11 of 20...

  • Page 16: Dmx Values

    Virtual Color Refer to the Virtual Color Wheel Chart section for  Wheel 1 specific values Color Refer to the Preset Color Temperature Chart section for  Temperature specific values Page 12 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 17: 10Ch

    Lime 0-100%  No function  Strobe Strobe, slow to fast  Channel Function Value Percent/Setting 0-100%  Green 0-100%  Blue 0-100%  Amber 0-100%  Lime 0-100%  Ovation F-55FC User Manual Rev. 1 Page 13 of 20...

  • Page 18: 3Ch

    Auto programs allow for dynamic blinder effects without a DMX controller. Go to the Auto Show main level Select the desired auto program (Auto 1–5). Select the desired speed (1–100) The auto programs cannot be edited. Page 14 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 19: Master/Slave

    The master should be the first product in the daisy chain. Dimmer Profiles This setting determines how fast the output of the Ovation F-55FC changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.

  • Page 20: Technical Information

    Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fan using compressed air because you could damage it. Page 16 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 21: Technical Specifications

    Maximum External Temperature 113 °F (45 °C) I/O Connector Channel Range 5-pin XLR 3,5,7,10,12,13,15, or HSV Ordering Product Name Item Name Item Code UPC Number Ovation F-55FC OVATIONF55FC 03031388 781462217365 Ovation F-55FC User Manual Rev. 1 Page 17 of 20...

  • Page 22: Photometrics Charts

    6.34 m 11.47 m 26.48 m 37.96 m 25 m 7.92 m 14.34 m 33.09 m 47.45 m 30 m 9.50 m 17.20 m 39.71 m 56.94 m Field Beam Field Page 18 of 20 Ovation F-55FC User Manual Rev. 1...

  • Page 23: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Ovation F-55FC User Manual Rev. 1 Page 19 of 20...

  • Page 24: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Page 20 of 20 Ovation F-55FC User Manual Rev. 1...
