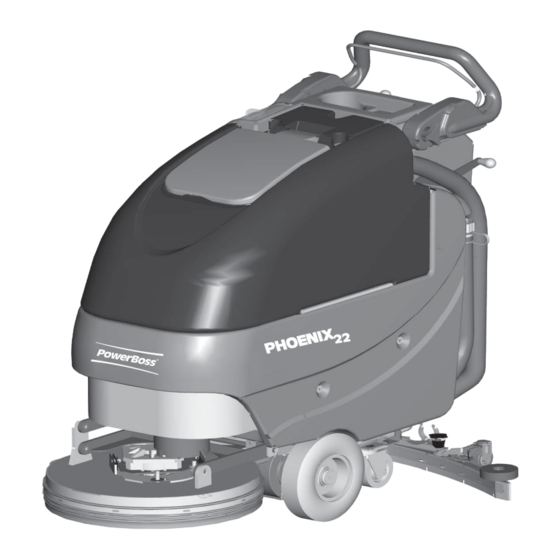

- Page 1 Phoenix 22 Floor Scrubber Disc Traction Drive PowerBoss, Inc. A Member of The Hako Group...
-
Page 2: Technical Specifications
Remove metal jewelry. Do not lay tools or metal objects on top of batteries. • Do not clean machine with a pressure washer. • Authorized personnel must perform repairs and maintenance. Use PowerBoss supplied replacement parts. Parts Manual - Phoenix 22 Floor Scrubber - Traction Drive... -
Page 3: Table Of Contents
20” Brush Deck Assembly ......................19 20” Brush Deck Assembly BOM ....................20 Brush Hub Assembly ........................21 Rear Squeegee Assembly ......................22 Squeegee Mechanism Assembly ....................23 Wiring Diagrams ..........................24 WARRANTY ..........................27 Parts Manual - Phoenix 22 Floor Scrubber - Traction Drive... -
Page 4: Main Assembly
Main Assembly Parts Manual - Phoenix 22 Floor Scrubber Page 1 Traction Drive... -
Page 5: Main Assembly Bom
CHAIN, BEADED SS W/ EYELETS OPTIONAL BRUSHES ITEM PART NO. DESCRIPTION 172520-1 BRUSH, 20" NYLON 172520-2 BRUSH, 20" PAD DRIVER 172520-4 BRUSH, 20" STRATA GRIT 46GR 172520-5 BRUSH, 20" DYNASCRUB 500GR Parts Manual - Phoenix 22 Floor Scrubber Page 2 Traction Drive... -
Page 6: Traction Drive Base Assembly
Traction Drive Base Assembly Parts Manual - Phoenix 22 Floor Scrubber Page 3 Traction Drive... -
Page 7: Traction Drive Base Assembly Bom
NUT, PUSH-ON WSR CAP, 3/16 711379 NUT, FLANGED WIZZ 5/16-18 172069 ROD, SOL. CTRL, ES1720 711504 WSR-FLAT 1/4 ID SS 172062 YOKE, 3/16 CLEVIS, 10-32, LONG 711507 WSR-FLAT .37 X 1.12 X .06 Parts Manual - Phoenix 22 Floor Scrubber Page 4 Traction Drive... -
Page 8: Base Assembly
SCR-MC 1/4-20X.63 SS TR HD 712757 WSR - HELICAL #10 SS 712758 WSR-HELICAL 1/4 SS 712812 SCR-MC 10-24 X .62 PPH ST PL 712822 SCR-MC TR HD 10-24 X .50 SS Parts Manual - Phoenix 22 Floor Scrubber Page 5 Traction Drive... -
Page 9: Chassis Assembly
Chassis Assembly Parts Manual - Phoenix 22 Floor Scrubber Page 6 Traction Drive... -
Page 10: Chassis Assembly Bom
712772 WSR-FLAT .344 x .75 x .06 SS 713006 BLT-HH 1/4-20 X 1 3/4 #5 717026 SCR-SC SHCS M6X1.0 X 25 STL Z 747606 TRANSAXLE, ES1720 24V 809444 CLIP-CORD Parts Manual - Phoenix 22 Floor Scrubber Page 7 Traction Drive... -
Page 11: Solenoid Assembly
CRIMP CLAMP 1/2 HOSE SS 185R 711512 W SR-FLAT .75X1.37X.08 711513 W SR-FLAT .69 X 1.06 X .03 SS 809415 VALVE, 3/8 FPT, 45 OPEN/CLOSE 827008 FITTING, 3/8 MPT 1/2 HOSE Parts Manual - Phoenix 22 Floor Scrubber Page 8 Traction Drive... -
Page 12: Solution Tank Assembly
711550 WSR NYLON .25 ID X .75 OD 712146 SCR-SC BHCS 1/4-20 X .37 SS 712822 SCR-MC TR HD 10-24 X .50 SS 713041 BLT-HH 3/8-16 X 3/4 #5 Parts Manual - Phoenix 22 Floor Scrubber Page 9 Traction Drive... -
Page 13: Lift Pedal Stop Assembly
CLIP, FOR 1/2" ID HOSE 710495 SCR-MC 4-40 X 1.25 STL Z 710530 SCR-MC FL HD 8-32 X .50 BRS 711428 NUT-HEX 4-40 712326 WSR-INT LOCK #4 747603-2 SWITCH ASY, MICRO ROLLER W/PACK/CONDUIT Parts Manual - Phoenix 22 Floor Scrubber Page 10 Traction Drive... -
Page 14: Recovery Tank Assembly
Recovery Tank Assembly Parts Manual - Phoenix 22 Floor Scrubber Page 11 Traction Drive... -
Page 15: Recovery Tank Assembly Bom
BLT-HH 1/4-20 X 1.50 STPL 711379 NUT, FLANGED WIZZ 5/16-18 711519 WSR- FLAT .25 X 1.01 X .06 711544 WSR-HELICAL 1/4 712565 SCR-MC 1/4-20X.63 SS TR HD 712758 WSR-HELICAL 1/4 SS Parts Manual - Phoenix 22 Floor Scrubber Page 12 Traction Drive... -
Page 16: Handle Assembly
SCR-MC RD HD 10-32 X .37 STL 747603-1 SWITCH ASY, MICRO ROLLER W/PACK/CONDUIT 710495 SCR-MC 4-40 X 1.25 STL Z 747632-1 CABLE ASY, 5 COND 18G CONSOLE 711310 NUT, HEX 10-32 ST PL Parts Manual - Phoenix 22 Floor Scrubber Page 13 Traction Drive... -
Page 17: Battery Tray Assembly
O RING 2-113 260224 18" HOSE 320271 NOZZLE BODY-ELBOW 320272 NOZZLE BODY LOCKNUT 320273 HOSE SHUT-OFF CLAMP 710178 SCR-MC 1/4-20 X .50 TRUSS STPL 711575 WSR-FLT .31x.75x..06ST 828490 CRIMP CLAMP 140R Parts Manual - Phoenix 22 Floor Scrubber Page 14 Traction Drive... -
Page 18: Electrical Box Assembly
Electrical Box Assembly Parts Manual - Phoenix 22 Floor Scrubber Page 15 Traction Drive... -
Page 19: Electrical Box Assembly Bom
SPRING-EXT .25OD X 2" F.L. MUSIC 762400 HEYCO BUSHING 2.00" 828062 CABLE TIE LARGE 957745 CHARGER,24VDC 12A ON-BOARD 120VAC 15592033 CAP, SAFETY NUT COVER M8 90508391 BUSHING, CABLE GUIDE, HAKO Parts Manual - Phoenix 22 Floor Scrubber Page 16 Traction Drive... -
Page 20: Electrical Box Cover Assembly
GA S K E T-FOR 2 P OLE ROCK E R S W ITCHE S 715678 DE CA L. DIA GNOS TIC CODE S E 1720TD 809874 K NOB , S P E E D CONTROL Parts Manual - Phoenix 22 Floor Scrubber Page 17 Traction Drive... -
Page 21: Vac Motor Assembly
FOA M COV E R, FRONT 2 747607-1 V A C M OTOR A S Y , E 1720 172188 FOA M TA P E , 1/2" S Q X 16.5" Parts Manual - Phoenix 22 Floor Scrubber Page 18 Traction Drive... -
Page 22: 20" Brush Deck Assembly
20” Brush Deck Assembly Parts Manual - Phoenix 22 Floor Scrubber Page 19 Traction Drive... -
Page 23: 20" Brush Deck Assembly Bom
SCR-MC TR HD 10-24 X .50 SS 717024 BOLT-HH M8X1.25 X 20 717025 WSR-FLAT 13/16ID X 1.25 X .08 747600 MOTOR, OFFSET PM GEAR, 550W 90311663 HAKO SOL FEED NOZZLE Parts Manual - Phoenix 22 Floor Scrubber Page 20 Traction Drive... -
Page 24: Brush Hub Assembly
REQ'D DESCRIPTION 172097 ES1720 BRUSH HUB BASE 172133 BRUSH HUB SPACER 711554 WSR-INTERNAL LOCK 1/4 ID 717026 SCR-SC SHCS M6X1.0 X 25 STL Z 172096MCH BASE, DRIVE HUB WITH KEYWAY Parts Manual - Phoenix 22 Floor Scrubber Page 21 Traction Drive... -
Page 25: Rear Squeegee Assembly
W H E E L , 3 . 1 5 O D 9 0 5 1 3 6 3 1 P IN , T H D 9 0 5 1 3 6 3 1 Parts Manual - Phoenix 22 Floor Scrubber Page 22 Traction Drive... -
Page 26: Squeegee Mechanism Assembly
W SR-W AVE .37X .68 X .08 712772 W SR-FLAT .344 x .75 x .06 SS 711592 W SR-FLAT .50 X .9 X .075 NYL 3400125 PIN-COTTER 3/8 RUE RING Parts Manual - Phoenix 22 Floor Scrubber Page 23 Traction Drive... -
Page 27: Wiring Diagrams
Wiring Diagrams... -
Page 30: Warranty
All warranty claims must be submitted through and approved by factory authorized repair stations. This warranty does not apply to normal wear, or to items whose life is dependent on their use and care. Parts not manufactured by PowerBoss are covered by and subject to the warranties and/or guarantees of their manufacturers. - Page 31 PowerBoss Is A Full Line Manufacturer Of Sweepers and Scrubbers For Industrial Facilities. PowerBoss Inc. 175 Anderson Street P.O. Box 1227 - Aberdeen North Caroline 28315 Phone: 800-982-7141 - Fax: 1-800-277-7141 Local: 910-944-7409 e-mail:techsupport@powerboss.com A Member Of The Hako Group...
