PowerBoss 3880 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL: 3880
DOCUMENTED BY: POWERBOSS
PAGE NUMBER: 1
DATE: JULY 10, 2003
400420
400102
3333202
400088
833214
4333131
333165
333166

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3880 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBoss 3880

Summary of Contents for PowerBoss 3880

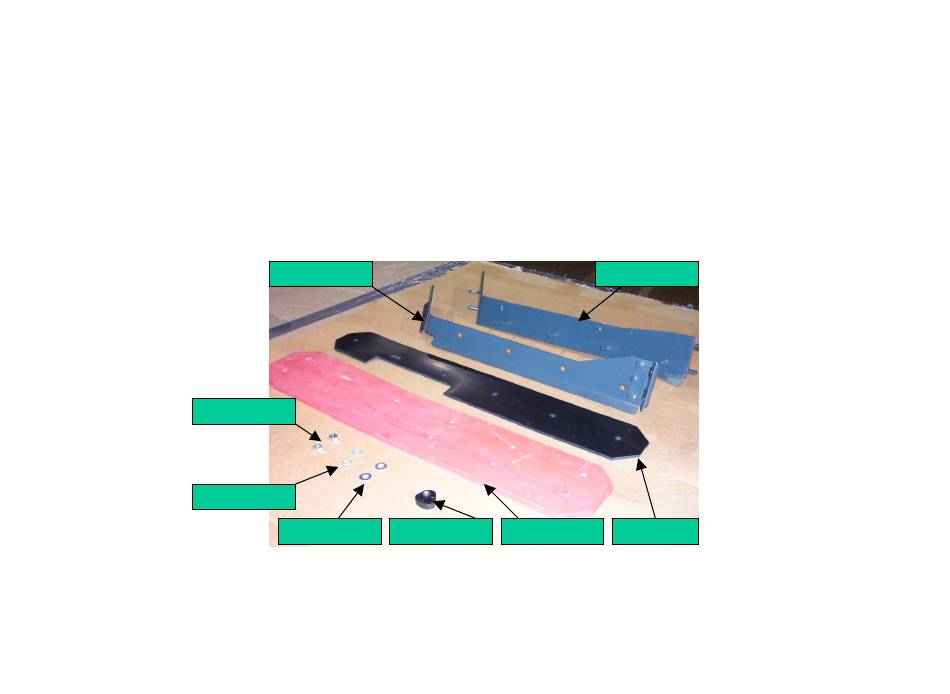

  • Page 1 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 1 DATE: JULY 10, 2003 3333202 4333131 400420 400102 400088 833214 333165 333166...
  • Page 2 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 2 DATE: JULY 10, 2003 ATTACH WELD SQUEEGEE BLADE RH (3333131) TO WELD-RETAINER RH (3333202) USING: 3400420: NUT-HEX 5/16-24 ES 3400102: WASHER-LOCK 3400088: WASHER-FLAT DO NOT TIGHTEN HARDWARE MAKE SURE THAT IT CLOSES TOGETHER PROPERLY BEFORE PROCEEDING.
  • Page 3 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 3 DATE: JULY 10, 2003 ATTACH BLADE-SIDE SQUEEGEE (333165) TO WELD SQUEEGEE BLADE RH (3333131).
  • Page 4 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 4 DATE: JULY 10, 2003 ATTACH STIFFNER-SQUEEGEE BLADE (333166) TO WELD SQUEEGEE BLADE RH (3333131).
  • Page 5 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 5 DATE: JULY 10, 2003 CLOSE WELD-RETAINER RH (3333202) OVER THE SQUEEGEE BLADES. (MAKE SURE THE PINS ARE CENTERED IN THE HOLES. TIGHTEN SCREWS WITH ½ INCH 833214 WRENCH. ATTACH KNOB-3 SIDED (833214).
  • Page 6 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 6 DATE: JULY 10, 2003 3333084 3333139 3333138 3300414 3333105 3400342 333167 3400063 400041...
  • Page 7 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 7 DATE: JULY 10, 2003 TOOLS: HAMMER ATTACH 2EA. BUSHING-3/8 NYLON (3333105) TO WELD-SQEEGEE ARM RH (333084). ATTACH 1EA. BUSHING- NYLON 3/8 TO WELD-ARM (333139) AND 1EA. BUSHING-NYLON 3/8 TO WELD-ARM ( 333138).
  • Page 8 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 8 DATE: JULY 10, 2003 ATTACH 333138 AND 333139 TO 333131 AND SECURE WITH 2EA. NUT-HEX 3/8-24 (400342).
  • Page 9 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 9 DATE: JULY 10, 2003 ATTACH WELD-SQUEEGE ARM RH (333084) TO THE END OF 333138 & 333139 AND SECURE WITH 2EA NUTS (400342).
  • Page 10 MODEL: 3880 DOCUMENTED BY: POWERBOSS PAGE NUMBER: 10 DATE: JULY 10, 2003 ATTACH SPRING-EXTENSION SIDE SQUEEGEE (333167) TO WELD ARM (333138) AND WELD-SQUEEGEE ARM (333084). SECURE WITH SCR-HEX,1/4-20X0.88 ZP (3400041) AND 2EA. NUT-FLANGE LOCK 1/4-20 ZP (3400063). COMPLETE...
