Programming the MODIG AIR

The programming of the device is through the "Fte Pro Air" App.
When the "Fte Pro Air" app will be initialized, and once is connected to a modulator, the status indicator will turn red and
the main screen will be displayed.
App guidelines:
Tapping on the "left arrow" icon on the top-left corner returns to previous menu. Tapping on this icon
while on the main menu causes the app to disconnect from MODIG AIR and return to scanning for nearby
devices. The icon is not available while the app applies settings to the MODIG AIR.
While connected to a MODIG AIR, the app shows a colored "signal"
indicator on the top-right corner of the screen. This indicator shows the
status of the Bluetooth connection through a color:
•
Green: It is good or optimal..
•
Yellow: It is regular.
•
Red: It is low.
•
Flashing red: It is too low and is about to get lost.
By tapping on the indicator, a new window will appear on screen showing a bluetooth power
graphic. By tapping on the "Disconnect" button, the app immediately disconnects from the
currently connected MODIG AIR and goes back to scanning for nearby devices. In this
window the "Apply button time" can also be set (allows configuring the delay after applying
settings. It can be set from 1 to 5 seconds)
The "singnal" indicator is not tappable while the app applies settings to the MODIG AIR.
Important note:The first time you connect a mobile phone or a tablet with a MODIG AIR it is recommended that
before proceeding with the configuration make a calibration of this Bluetooth signal indicator. To do this, follow
the following steps:
Step 1. Position your mobile phone or tablet at a distance between 0.5m and 1m from the modulator.
Step 2. Select the "INFO" option from the main menu. At the bottom of the "System Info" screen, there are 3
boxes with Bluetooth power values expressed in dBm.
Step 3. Calibrate the point of maximum power of bluetooth signal: without moving your position, wait until the
value in the box "?" is the highest value or the closest to the value indicated in the box "max".
Step 4. Calibrate the point of minimum power of bluetooth signal: slowly move your mobile phone or tablet away
from the MODIG AIR until the value indicated in the "min" box reach the minimum value, before losing the
connection. Approximately this value should be less than -90dBm.
Step 5. Return to the main menu by pressing the
These steps should only be repeated in these cases:
•
If you uninstall and reinstall the Fte Pro Air application on the same mobile or tablet.
•
When using the application on a different mobile phone or tablet.
Reserved for technical modifications and/or errors
User's manual · MODIG AIR

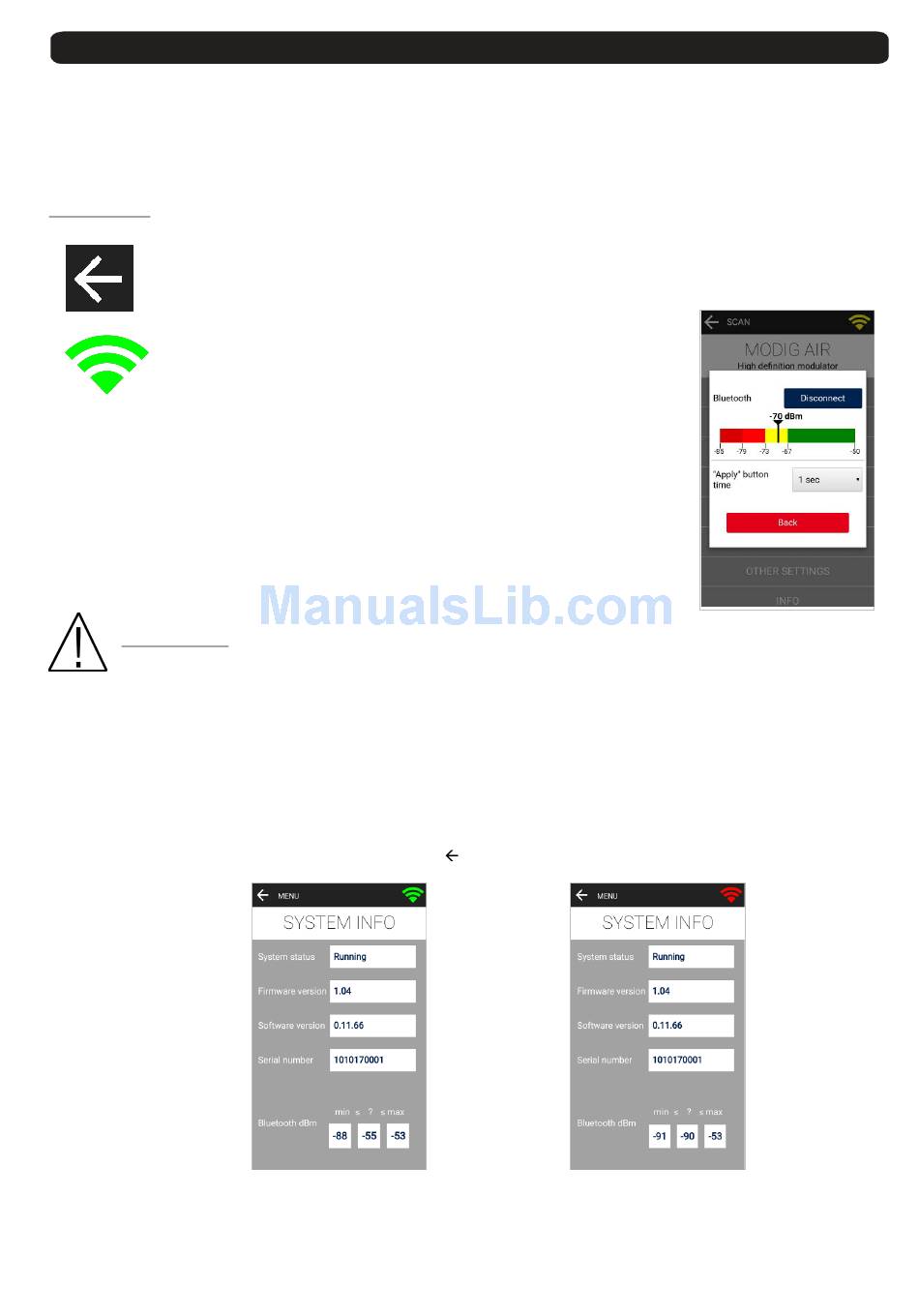

Maximum power (step 3)
