1.2. Content of the box

When you open the box or the first time, you will find the following content:
Quick start guide MODIG AIR External Power supply
2.

Description and connections

2.1. Introduction

The MODIG AIR is a high quality DVB-T indoor modulator which receives one HDMI input and converts it into one RF
DVB-T channel on its output. The excellent picture (Full HD 1920*1080-30p) and modulation quality (MER~35dB) renders
the MODIG AIR an ideal solution for distributing SD/HD digital signals received from any device with an HDMI output (e.g.
a DVD player, STB or camera in a CATV network using the DVB-T technology).
The user has the ability to control the device remotely using a Bluetooth interface by downloading and using the "Fte Pro
Air" application from Google Play or App store for free.
Finally, the MODIG AIR's small size and metal case provides excellent electromagnetic shielding as well as great
temperature dissipation and rigidness.

2.2. Installation example

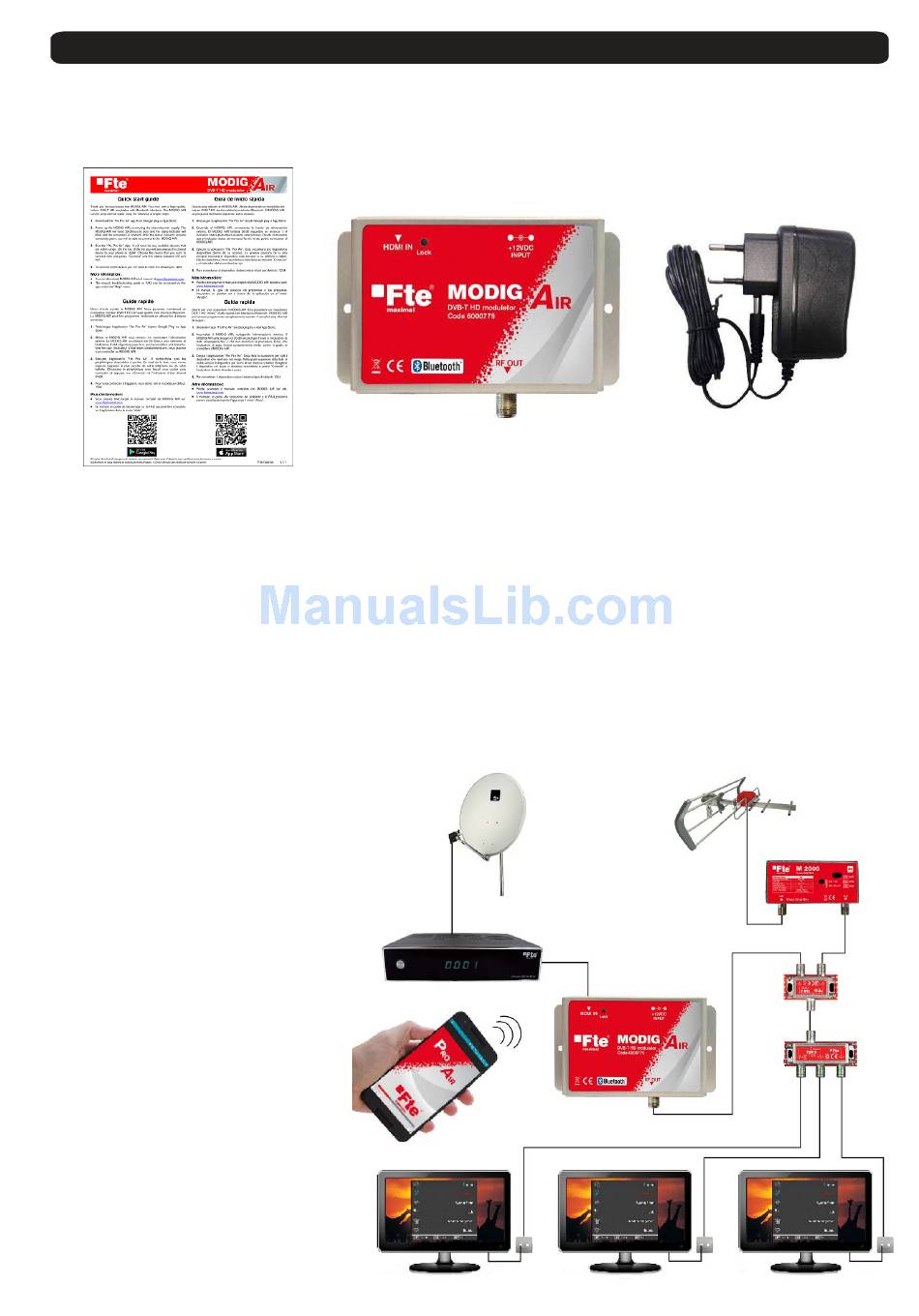

In the example, the MODIG AIR is shown
receiving the signal from the satellite
receiver Fte eXtreme HD Flex Plus and
modulating it in a terrestrial RF output
channel.
The DVB-T output channel is mixed with
the other channels of the installation, in
this case by a TER 2 splitter / mixer.
The MODIG AIR programming is done
through a mobile phone via Bluetooth with
the free application Fte Pro Air.
