Once the DVB-T parameters have been selected, press the "APPLY" button to set them to the
MODIG AIR. One countdown will appear on the screen while the settings are applying to the
modulator.

4.1.4. Output Attenuator

In the "Output attenuator" menu, "Fte Pro Air" app provides the ability to increase/decrease the
output level in steps of 10dB.
Step 1. Select the desired attenuator value:
•
Set to 0dB: Set the output level to approximately 92 dBμV
• Set to -10dB: Set the output level to approximately 82 dBμV
•
Set to -20dB: Set the output level to approximately 72 dBμV
Step 2. One countdown will appear on the screen while the value is setting.
Step 3. The message "Success" appears on screen once the attenuator value is set.

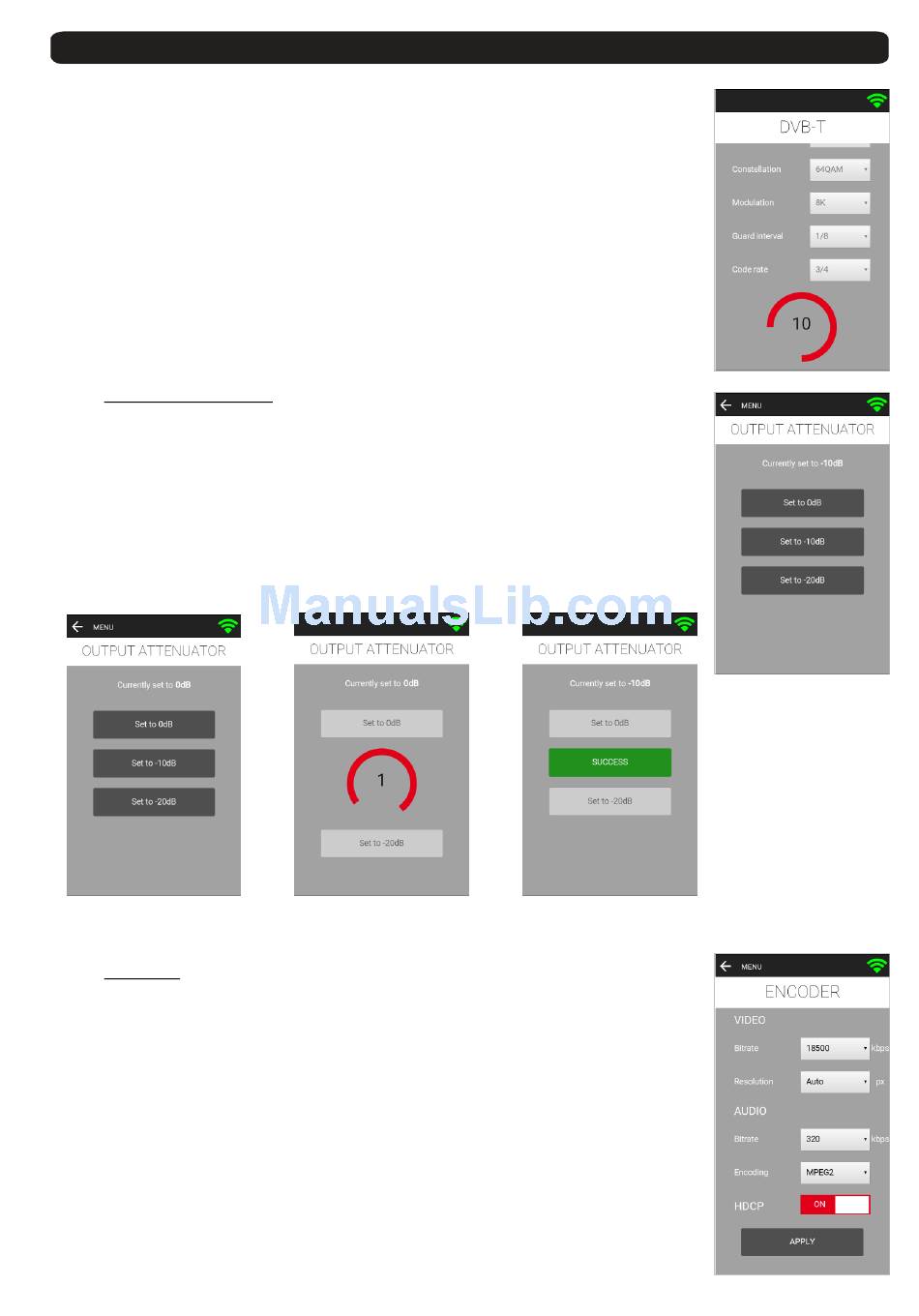

Step 1

4.1.5. Encoder

"Fte Pro Air" app provides the ability to set manually all the encoder parameters.
•
Video Bitrate: Select the video bitrate of the encoder. Value in kbps.
•
Video Resolution: Select the output resolution of the modulator between Auto,
1920x1080, 1280x720, 704x576 and 640x480.
•
Audio Bitrate: Select the audio bitrate of the encoder. Options: 64, 96, 128, 192,
256, 320 kbps.
•
Audio encoding: Select the audio encoding of the encoder. You can select AAC,
AC3 or MPEG-2.
•
HDCP: Enable (ON) or disable (OFF) the HDCP function.
