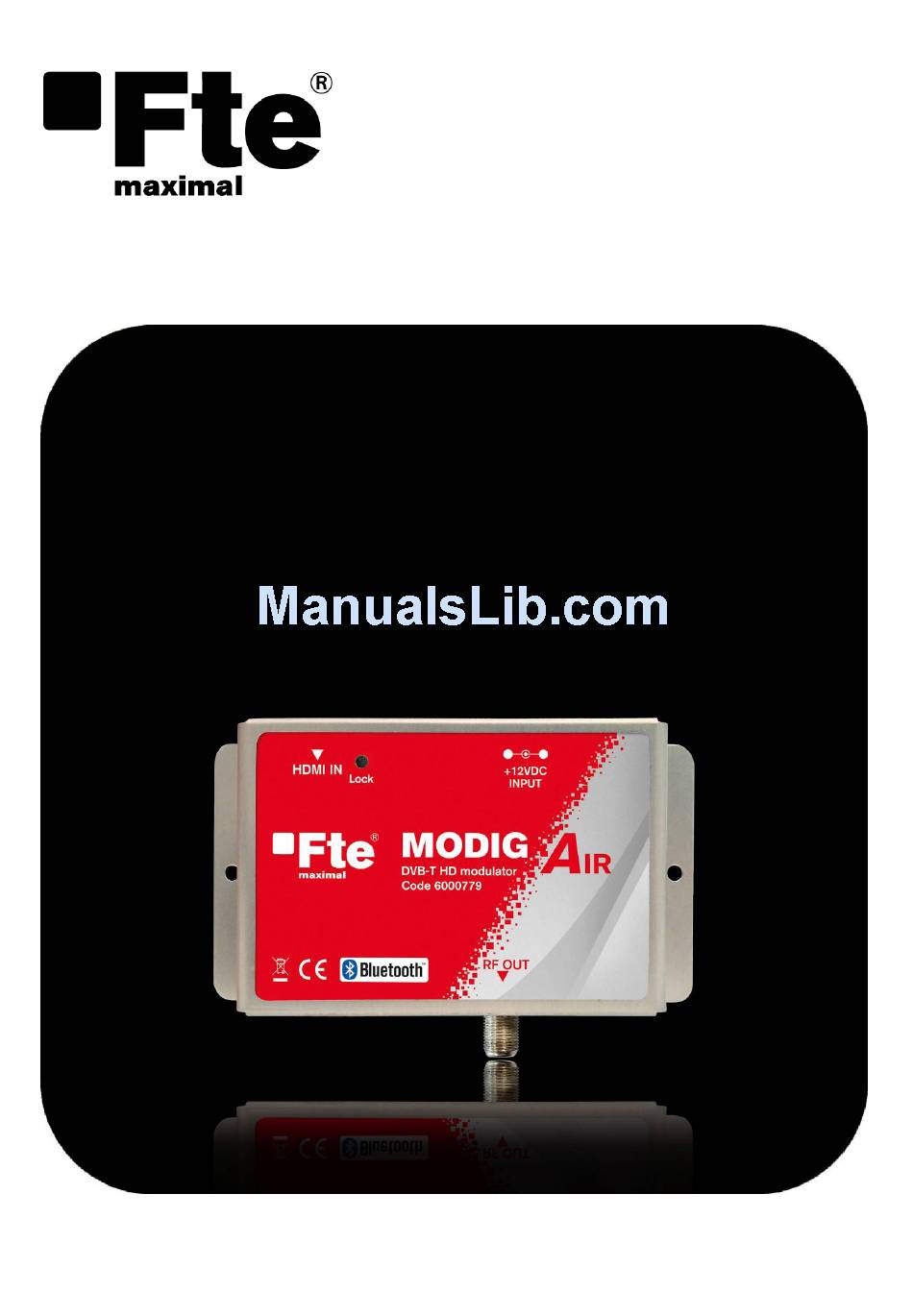

- Page 1 MODIG AIR User’s manual v.1.1...
-
Page 3: Table Of Contents
6.2. After-Sales Technical Service ........................18 Thank you for buying the encoder modulator Modig Air. You now own a high quality, indoor DVB-T HD modulator with Bluetooth interface. Please read this manual carefully to install, use and maintain the encoder modulator in the best conditions of performance. -
Page 4: Product Introductions
Air humidity: When you take the device from a cold to a warm place, please wait until the device gets the same temperature as the new environment, in order to avoid problems of humidity condensation. Maintenance / Repairing: Within the warranty time all the repairing processes should be done by Fte Maximal technical staff. Otherwise, the warranty will be lost. -
Page 5: Content Of The Box
Description and connections 2.1. Introduction The MODIG AIR is a high quality DVB-T indoor modulator which receives one HDMI input and converts it into one RF DVB-T channel on its output. The excellent picture (Full HD 1920*1080-30p) and modulation quality (MER~35dB) renders the MODIG AIR an ideal solution for distributing SD/HD digital signals received from any device with an HDMI output (e.g. -
Page 6: Connections
User’s manual · MODIG AIR 2.3. Connections HDMI IN: HDMI input. Lock: Status indicator led. +12VDC INPUT: Connector for the external power supply. RF OUT: RF modulated signal output. Reserved for technical modifications and/or errors MODIG AIR Version en_1.1 FTE maximal... -
Page 7: Setup
User’s manual · MODIG AIR Setup 3.1. First installation The MODIG AIR can be programmed easily using the following 4 simple steps: 1. Download the “Fte Pro Air” app from Google play or App Store. 2. Power up the MODIG AIR, connecting the external power supply. -
Page 8: Programming The Modig Air
The “singnal” indicator is not tappable while the app applies settings to the MODIG AIR. Important note:The first time you connect a mobile phone or a tablet with a MODIG AIR it is recommended that before proceeding with the configuration make a calibration of this Bluetooth signal indicator. To do this, follow the following steps: Step 1. -
Page 9: Main Menu
User’s manual · MODIG AIR 4.1. Main menu The main menu consists of the following options: • Quick Settings • Custom profiles • DVB-T • Output attenuator • Encoder • Transport Stream • Other settings • Info • Help 4.1.1. Quick Settings This menu provides the ability to program several modulators easily and quickly. -
Page 10: Custom Profiles
By clicking the “+” icon you are able to save the current configuration in your mobile device for future use. You are able to create as many customs profiles as you need, erase them or clone them. To apply an existing custom profile to the connected MODIG AIR, simply tap on the name of the desired custom profile. ... -
Page 11: Dvb-T
User’s manual · MODIG AIR View Clone Rename Delete 4.1.3. DVB-T In the “DVB-T” menu, “Fte Pro Air” app provides the ability to setup all the necessary DVB-T parameters according to the standards, as follows: • Channel: Select the desired output RF channel. Click and select the output channel from CH21 to CH69. -
Page 12: Output Attenuator
User’s manual · MODIG AIR Once the DVB-T parameters have been selected, press the “APPLY” button to set them to the MODIG AIR. One countdown will appear on the screen while the settings are applying to the modulator. 4.1.4. Output Attenuator In the “Output attenuator”... -
Page 13: Transport Stream
Audio bitrate Audio encoding Once the encoder parameters have been selected, press the “APPLY” button to set them to the MODIG AIR. One countdown will appear on the screen while the settings are applying to the modulator. 4.1.6. Transport Stream …... -
Page 14: Other Settings
Bluetooth interface. • Factory defaults: Click this option in order to charge the default values to the MODIG AIR. By clicking “APPLY” button, a countdown will appear on the screen during the process. - Page 15 User’s manual · MODIG AIR • Device name: The name of the modulator can be changed by user in this option. This is useful for identifying the modulators easily in the scanning screen. Click on the name to access to the keyboard. Write the new name and press the “APPLY”...
-
Page 16: Info
“Fte Pro Air” app, in the “System Info” menu provides several details of the device: • System status • Firmware version of the Fte Pro Air app • Software version of the MODIG AIR • Serial number of the MODIG AIR • Bluetooth signal power in dBm 4.1.9. Help “Fte Pro Air”... -
Page 17: Technical Features Of The Equipment
Selecting a video output mode different than auto, the modulator scaling the input video to the selection output resolution. Some mobile phones or tablets could not be compatible with the MODIG AIR Bluetooth system. Reserved for technical modifications and/or errors MODIG AIR Version en_1.1... -
Page 18: Troubleshooting
Reboot your phone/tablet. Finally try uninstalling and reistalling the app. P: My MODIG AIR connects and disconnects immediately. S: Make sure you have not "paired" your phone/tablet and the MODIG AIR through the phone/tablet's settings. If you have already paired them, try un-pairing them and restart the app. -
Page 19: Warranty
User’s manual · MODIG AIR Warranty 6.1. Wararnty period All the products sold by BCN Distribuciones, S.A.U. enjoy a 2 year warranty from the date of the purchase invoice. The warranty will not apply if the product has been submitted, by the buyer or third parties, to an improper firmware loading, to an improper installation, maintenance, repair or use or ti has been exposed to environmental conditions not corresponding with the installation requirements. - Page 20 ESPAÑA UNITED ARAB EMIRATES Agustí Pi i Sunyer, 15 P.O.Box 262442 08192 Sant Quirze del Vallès BOUTIQUE VILLA #06, (Barcelona) España 2nd Floor Tel. +34 93 729 27 00 BEHIND KNOWLEDGE Fax. +34 93 729 30 73 VILLAGE MEDIA CITY info@ftemaximal.com Dubai - UAE www.ftemaximal.com...
