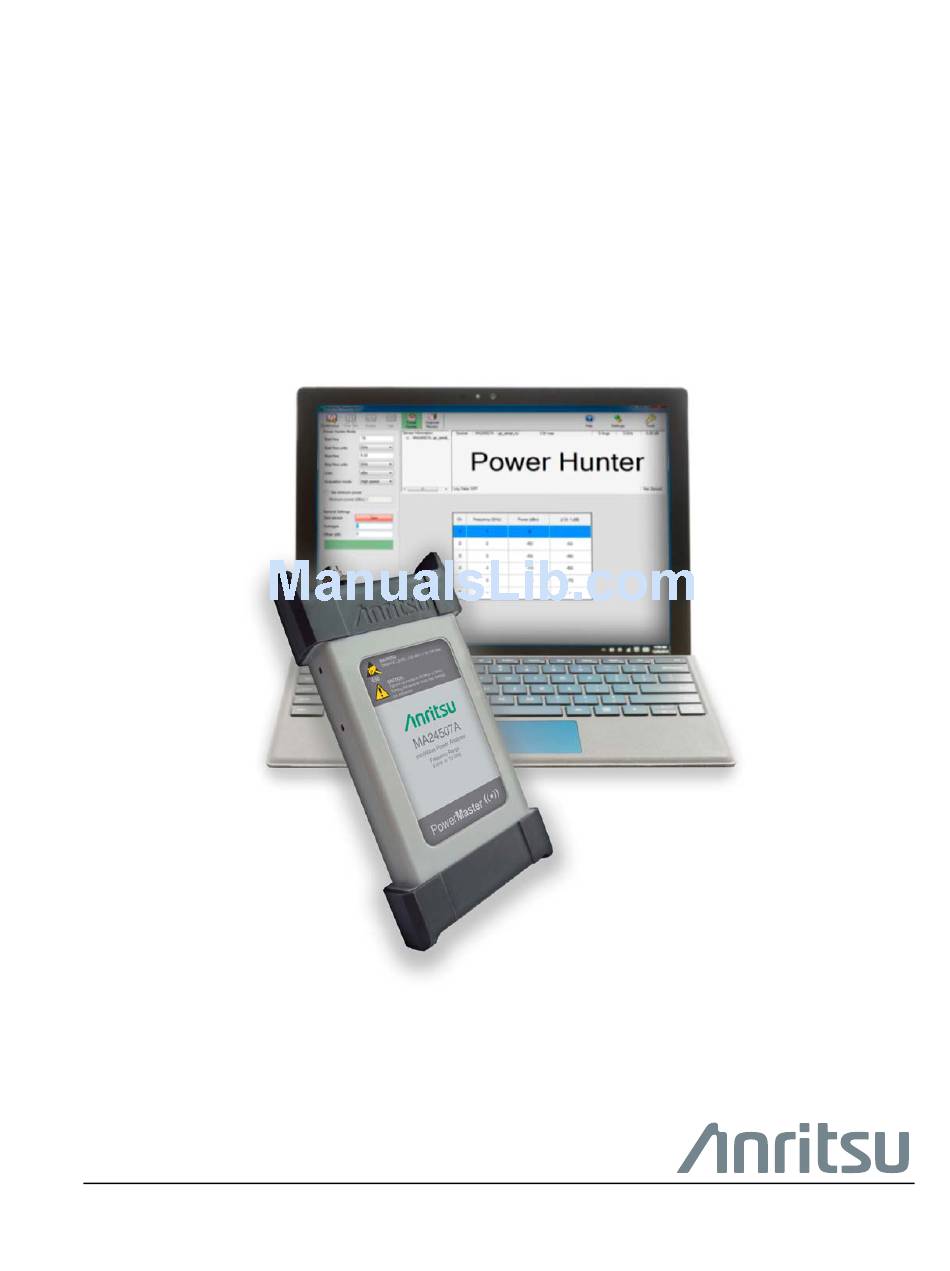

User Guide
Anritsu Power Master™ Using
PowerXpert™
MA24507A, Frequency Selectable mmWave Power Analyzer, 9 kHz to 70 GHz
Anritsu Company
PN: 10585-00029
490 Jarvis Drive
Revision: A
Morgan Hill, CA 95037-2809
Published: October 2016
USA
Copyright 2016 Anritsu Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Master MA24507A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anritsu Power Master MA24507A

Summary of Contents for Anritsu Power Master MA24507A

  • Page 1 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com User Guide Anritsu Power Master™ Using PowerXpert™ MA24507A, Frequency Selectable mmWave Power Analyzer, 9 kHz to 70 GHz Anritsu Company PN: 10585-00029 490 Jarvis Drive Revision: A Morgan Hill, CA 95037-2809 Published: October 2016...
  • Page 2 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Title-2 PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 3: Table Of Contents

    Contacting Anritsu ........
  • Page 4 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Table of Contents (Continued) Power Hunter Settings ............3-9 Start/Stop Frequency.
  • Page 5 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Table of Contents (Continued) RF Connector Precautions ........... . 4-2 Handle With Care .
  • Page 6 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Table of Contents (Continued) Command Requirements ........... . . 7-2 Query Commands .

  • Page 7: Chapter 1-General Information

    • Preparation for storage and shipment Description The Anritsu MA24507A Power Master is a frequency selectable mmWave power analyzer that connects and communicates with a PC via USB. It can accurately measure signals as low as 9 kHz and up to 70 GHz. It is ideal for testing many mmWave applications, like 802.11ad, wireless backhaul, and other future 5G...

  • Page 8: Powerxpert Program

    All Anritsu power analyzers are assigned a unique seven digit serial number, such as “1601015”. The serial number is printed on a label that is affixed to the unit. When ordering parts or corresponding with Anritsu Customer Service, please use the correct serial number with reference to the specific instrument's model number.

  • Page 9: Customer Asset Tag Placement

    To provide maximum protection against damage in transit, the power analyzer should be repackaged in the original shipping container. If this container is no longer available and the unit is being returned to Anritsu for repair, please advise Anritsu Customer Service and use the following process to package the USB power...

  • Page 10: Contacting Anritsu

    From here, you can select the latest sales, service and support contact information in your country or region, provide online feedback, complete a “Talk to Anritsu” form to get your questions answered, or obtain other services offered by Anritsu.

  • Page 11: Chapter 2-Installation (Pc Only)

    Контрольно-измерительные приборы и оборудование www.tehencom.com Chapter 2 — Installation (PC Only) Introduction ™ This chapter provides information on installing the Anritsu PowerXpert application and the MA24507A Power Master backend software, • “Hardware and Software Requirements” for the Anritsu PowerXpert application •...

  • Page 12: Installing Powerxpert

    Once the file is opened, the Installation begins. You see a Preparing Setup screen with a progress bar indicating the status of the Preparation Setup. Figure 2-1. Anritsu Preparing Setup 4. Select Next on the Welcome screen. Figure 2-2. Anritsu Welcome Screen PN: 10585-00029 Rev.

  • Page 13: Ma24507A Powerxpert Ug Pn: 10585-00029 Rev. A

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Installation (PC Only) 2-4 Installing PowerXpert 5. Read the license agreement and select “I Agree”. 6. Select Next. Figure 2-3. PowerXpert License Agreement 7. Select the Complete (Recommended) button. 8. Select Next. Figure 2-4. Select Setup Type MA24507A PowerXpert UG PN: 10585-00029 Rev.
  • Page 14 2-4 Installing PowerXpert Installation (PC Only) 9. Select Install. Figure 2-5. Installing Anritsu PowerXpert Application The software loads and installs to the selected location. Figure 2-6. Installing Anritsu PowerXpert Application 10. Select Finish to complete the installation. Figure 2-7.

  • Page 15: Setting Powerxpert To Run In Windows Xp Compatibility Mode

    Setting PowerXpert to Run in Windows XP Compatibility Mode Figure 2-8. Setting PowerXpert to Run in Windows XP Compatibility Mode The PowerXpert application can be launched from the Windows Start menu from the Anritsu program group. Select Install the software automatically (Recommended), and then click Next. Figure 2-9.
  • Page 16 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 2-5 Setting PowerXpert to Run in Windows XP Compatibility Mode Installation (PC Only) PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 17: Chapter 3-Using Ma24507A Power Master™ With Powerxpert

    ™ PowerXpert . PowerXpert is a data analysis and control software for use with Anritsu’s USB power sensors and USB power analyzers. PowerXpert provides a graphical user interface (GUI), making the PC appear like a traditional power meter. Using PowerXpert, the MA24507A Power Master power analyzer operates in three modes: •...

  • Page 18: Powerxpert ™ Overview

    These lower task bar parameter settings are available to select and change manually. Changes to these settings are applied by pressing the Enter key. (The lower task bar parameter settings are used in Continuous mode only) Figure 3-1. Anritsu PowerXpert Application GUI Overview (1 of 2) PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 19: Powerxpert Settings

    Information Area”. Figure 3-1. Anritsu PowerXpert Application GUI Overview (2 of 2) PowerXpert Settings Connect Power Analyzer Connect the USB connector side of the Power Analyzer Cable to the PC. Once connected, you see the sensor model number and serial number appear in the “Sensor Information Area”...

  • Page 20: Continuous Mode

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-4 Continuous Mode Using MA24507A Power Master™ with PowerXpert™ Continuous Mode Continuous Mode is the default mode in which the MA24507A Power Master starts and displays the peak or average power of the input signal. In this mode, the USB power analyzer is “continuously triggered” and collects data at all times.

  • Page 21: Continuous Mode Settings

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-5 Continuous Mode Settings Continuous Mode Settings Changing the settings in Continuous Mode requires that the “Apply Above Settings Button” to be Note selected to activate any changed settings. Measurement –...

  • Page 22: Measurement Hold

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-5 Continuous Mode Settings Using MA24507A Power Master™ with PowerXpert™ Measurement Hold When set to On, holds the last sensor readings. When set to Off, the sensor continues to sample measurements. Graticule Display Settings The parameter settings available below the display screen provide control of the graticule power vs time settings.

  • Page 23: Continuous Mode Numerical Display Area

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-5 Continuous Mode Settings Continuous Mode Numerical Display Area The Continuous Mode numerical display window contains the following information: 1601015 Index Description Communications port to which the sensor is connected Model number of the connected power sensor Serial number of the connected power sensor Channel power or CW max mode...

  • Page 24: Power Hunter Mode

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-6 Power Hunter Mode Using MA24507A Power Master™ with PowerXpert™ Power Hunter Mode Power Hunter Mode allows the user to search for up to six CW amplitude peaks within a user-defined frequency span. The Power Hunter Mode display window contains the following information. Power Hunter Mode Setting Options/Range...

  • Page 25: Power Hunter Settings

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-7 Power Hunter Settings Power Hunter Settings Power Hunter mode only supports CW max mode. Start/Stop Frequency Start and stop frequencies define the frequency window in which power analyzer will search for CW “peaks”. If six sensors are connected, PowerXpert will return the six highest CW values and the associated frequencies.

  • Page 26: Power Hunter Mode Numerical Display Area

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-7 Power Hunter Settings Using MA24507A Power Master™ with PowerXpert™ Power Hunter Mode Numerical Display Area The Power Hunter mode numerical display window contains the following information: Index Description Communications port to which the sensor is connected Model number of the connected power sensor Serial number of the connected power sensor CW mode setting (always CW max in Power Hunter mode)

  • Page 27: Power Reading Display

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-7 Power Hunter Settings Power Reading Display The power reading window displays the frequency and power for each of the six highest CW peaks within the start and stop frequency range. The delta channel 1 column displays the power difference in dB between each channel and channel 1.

  • Page 28: Channel Monitor Mode

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-8 Channel Monitor Mode Using MA24507A Power Master™ with PowerXpert™ Channel Monitor Mode Channel Monitor Mode allows the user to enter up to six different frequencies and monitor power at those frequencies simultaneously. The Channel Monitor display window contains the following information. Channel Monitor Mode Setting Options/Range...

  • Page 29: Channel Monitor Mode Settings

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-9 Channel Monitor Mode Settings Channel Monitor Mode Settings Measurement – CW/Channel Mode The CW/Channel mode pull down lets you select between Channel Power and CW Max mode. In Channel Power mode, the sensor will calculate the average integrated power across the entire user-defined span.

  • Page 30: Channel Monitor Mode Numerical Display Area

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-9 Channel Monitor Mode Settings Using MA24507A Power Master™ with PowerXpert™ Channel Monitor Mode Numerical Display Area The Channel Monitor mode numerical display window contains the following information: Index Description Communications port to which the sensor is connected Model number of the connected power sensor Serial number of the connected power sensor Channel/CW mode setting...

  • Page 31: Channel Monitor Display

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-9 Channel Monitor Mode Settings Channel Monitor Display The Channel Monitor readings display window is where the user enters the center frequencies. To monitor a frequency, simply click on one of the channels, type in the center frequency in GHz, and press enter or click out of the channel.

  • Page 32: 3-10 Graticule Settings And Graphical Display Area

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-10 Graticule Settings and Graphical Display Area Using MA24507A Power Master™ with PowerXpert™ 3-10 Graticule Settings and Graphical Display Area This section provides a brief overview of the graticule settings and graphical display areas that are presented in the different operating modes of PowerXpert.

  • Page 33: Sensor Information Area

    For detailed information on Zeroing the USB power Sensors, refer to the latest USB Power Sensor with PowerXpert User Guide – 10585-00020, available at:.http://www.anritsu.com. Averages The Averages setting allows you to specify the number of measurements that are averaged to calculate the displayed power.

  • Page 34: 3-12 Tools Menu

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-12 Tools Menu Using MA24507A Power Master™ with PowerXpert™ 3-12 Tools Menu The Tools menu provides the option of zeroing all sensors, capturing the PowerXpert screen display, enabling the log data. The grayed out selections are not available with the MA24507A Power Master, but become available when a MA24208A, MA24218A, MA24330A, MA24340A, or MA24350A power sensor is connected and selected.

  • Page 35: Capture Screen

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-12 Tools Menu Capture Screen The Capture Screen utility captures a PowerXpert screenshot and launches the Save image dialog that allows you to save the image in BMP, JPEG, PNG, or GIF file formats. Figure 3-14.
  • Page 36 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-12 Tools Menu Using MA24507A Power Master™ with PowerXpert™ Sample log data is shown in a Microsoft Excel spreadsheet file below: Figure 3-16. Log Data Enhanced Modulation On Data logging is stopped by accessing the Tools | Log Data toolbar and pressing Stop in the Log data dialog. Figure 3-17.

  • Page 37: Show Multiple Sensor Display

    Only one MA24507A Power Master power analyzer can be connected to a PC at a time, but one MA24507A Power Master power analyzer can be used with multiple other Anritsu USB power sensors, such as the MA241xxA, MA242xxA and MA243xxA USB power sensors.

  • Page 38: 3-13 Settings Menu

    If this occurs: 1. Close the application and disconnect the power analyzer or sensor. 2. Open the PowerXpert application and reconnect the power analyzer or power sensor. 3. If the problem persists, contact an Anritsu service center. 3-22 PN: 10585-00029 Rev. A...

  • Page 39: 3-14 Help

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using MA24507A Power Master™ with PowerXpert™ 3-14 Help 3-14 Help The Help menu provides options to launch the online documentation and provides an informational About dialog. V 1.0 Figure 3-22. About PowerXpert MA24507A PowerXpert UG PN: 10585-00029 Rev.
  • Page 40 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 3-14 Help Using MA24507A Power Master™ with PowerXpert™ 3-24 PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 41: Chapter 4-Power Analyzer Care

    Complying with these precautions will guarantee longer component life and less equipment downtime due to connector or device failure. This will ensure that USB power sensor and USB power analyzer failures are not due to misuse or abuse – two failure modes not covered under the Anritsu warranty. Warning Beware of destructive pin depth of mating connectors.

  • Page 42: Clean The Connectors

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 4-3 RF Connector Precautions Power Analyzer Care Clean the Connectors The precise geometry that makes the RF component’s high performance possible can easily be disturbed by dirt and other contamination adhering to the connector interfaces. When not in use, keep the connectors covered. Connectors must be cleaned using a lint-free cotton swab that has been dampened with Isopropyl alcohol (IPA).

  • Page 43: Connection Techniques

    Connection Techniques Connection Procedure Table 4-1 lists the Anritsu Company torque wrench and open end wrench part numbers for connectors used on USB power sensors and power analyzers. Table 4-1. Connector Wrench Requirements – Torque Wrenches and Settings – Open End Wrenches...

  • Page 44: Disconnection Procedure

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 4-5 RF Connector Preventive Care Power Analyzer Care Disconnection Procedure 1. Use an open end wrench to prevent the connector body from turning. 2. Use another wrench to loosen the connector nut. 3. Complete the disconnection by hand, turning only the connector nut. 4.

  • Page 45: Pin Depth Measurement

    There are some dimensions that are critical for the mechanical integrity, non-destructive mating and electrical performance of the connector. Connector gauge kits are available for many connector types. Please refer to Anritsu Application Note 10200-00040. The mechanical gauging of coaxial connectors will detect and prevent the following problems:...

  • Page 46: Pin Depth Dimensions

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 4-5 RF Connector Preventive Care Power Analyzer Care Pin Depth Dimensions Based on RF components returned for repair, destructive pin depth of mating connectors is the major cause of failure in the field. Before mating, measure the pin depth of the device that will mate with the RF component. The dimensions measured are shown in Figure 4-1.

  • Page 47: Pin Depth Gauge

    Power Analyzer Care 4-5 RF Connector Preventive Care Pin Depth Gauge Use an Anritsu Pin Depth Gauge or equivalent as shown in Figure 4-2 to accurately measure pin depths. Note A destructive pin depth has a center pin that is too long in respect to the connector’s reference plane.

  • Page 48: Connector Cleaning

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 4-6 Connector Cleaning Power Analyzer Care Connector Cleaning Connector interfaces should be kept clean and free of dirt and other debris. Clean connectors with lint-free cotton swabs. Isopropyl alcohol is the recommended solvent. Figure 4-3 on page 4-9 illustrates the cleaning procedures for male and female connectors.
  • Page 49 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Power Analyzer Care 4-6 Connector Cleaning Do NOT use Industrial Solvents or Water on connector. Use only Isopropyl Alcohol. Dampen only, DO NOT saturate. FEMALE MALE Use only isopropyl alcohol and the proper size of cotton swab. Gently rotate the swab around the center pin being careful not to stress or bend the pin or you will damage the connector.
  • Page 50 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 4-6 Connector Cleaning Power Analyzer Care 4-10 PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 51: Chapter 5-Using The Ma24507A Power Master

    This section presents common procedures for using the MA24507A Power Master with a PC. These procedures refer to the MA24507A Power Master and to the Anritsu PowerXpert PC application buttons and menus that were previously described. Before attempting these procedures, you should be familiar with the Anritsu PowerXpert PC application.

  • Page 52: Basic Power Measurement

    Do not turn the body of the power analyzer as this will cause excessive wear to the connector. 2. Back off the connection by turning the connector nut counter clockwise 1/4 turn. 3. Tighten the connection (clockwise) using a 8 in-lb torque wrench (Anritsu part number: 01-201). PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 53: Zeroing The Power Analyzer

    This section details some of the error messages that may appear on the application screen. In most cases, the error condition can be easily corrected. The status LED for MA24507A Power Master will blink green when an error state occurs. If the error condition cannot be corrected, note the error message and contact an Anritsu Service Center.
  • Page 54 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 5-3 Error States Using the MA24507A Power Master PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 55: Chapter 6-Ma24507A Power Master Operational Testing

    25 ºC to 30 ºC. For calibration, verification, and to maintain the factory specifications of your power analyzer, please Note send the power analyzer to qualified Anritsu Customer Service Centers. Refer to the following sections for required equipment and test procedures: •...

  • Page 56: Required Equipment

    Required Equipment for MA24507A Power Master Manufacturer and Equipment Description Model Critical Specifications Vector Network Anritsu Reflection Coefficient UNC  0.012, 50 MHz to 26.5 GHz MS4644B (40 GHz) UNC  0.018, 26.5 to 40 GHz MS4645B (50 GHz) UNC  0.026, 40 to 50 GHz MS4647B (70 GHz) UNC ...

  • Page 57: Vswr Pretest

    Table 6-2, then the power analyzer is damaged and it is not necessary to perform further testing. There are no user-serviceable parts inside the power analyzer. Contact your local Anritsu Service Note Center and return defective power analyzer with a detailed description of the observed problem.

  • Page 58: Frequency Response Test

    Synthesizer 10 dB Attenuator Adapter MA24507A Power Master PC with Anritsu PowerXpert Application Figure 6-1. MA24507A Power Master Frequency Response Setup 2. Set synthesizer power to 5 dBm and frequency to 50 MHz CW. Turn On RF output. 3. Apply the Cal Factor to the reference sensor.
  • Page 59 14. Calculate the absolute difference between the Reference power and MA24507A Power Master measurement. 15. Compare the power difference to the maximum allowed difference specified. If the difference exceeds the maximum allowed difference, contact Anritsu Customer Service. Table 6-3. MA24507A Power Master Test Measurement Results ...
  • Page 60 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 6-5 Frequency Response Test MA24507A Power Master Operational Testing PN: 10585-00029 Rev. A MA24507A PowerXpert UG...

  • Page 61: Chapter 7-Remote Operation

    10. Click yes. 11. Run Anritsu Device Monitor to automatically load the firmware. You will see a Windows error message stating that the backendloader is incomplete. This is to be expected. At this point, the device will re-enumerate as a different device. The drivers will need to be installed again for this new device. Repeat...

  • Page 62: Remote Programming Interface

    SCPI commands. In order to provide the SCPI interface via TCPIP socket, the Anritsu Device Monitor must be running on the PC where the device is connected. The Anritsu Device Monitor will recognize when the device is plugged in and launch the necessary background software automatically.

  • Page 63: Data Parameter Notations

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Remote Operation 7-3 Command Requirements Extended Numeric Extended numeric parameters include values such as MAXimum and MINimum. Discrete Discrete parameters, such as INTernal and EXTernal, are used to control program settings to a predetermined finite value or condition.

  • Page 64: Notational Conventions

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 7-4 Notational Conventions Remote Operation Notational Conventions The SCPI interface standardizes command syntax and style that simplifies the task of programming across a wide range of instrumentation. As with any programming language, the exact command keywords and command syntax must be used.

  • Page 65: Default Power Analyzer Settings

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Remote Operation 7-5 Programming the MA24507A Power Master Default Power Analyzer Settings The power analyzer settings in Table 7-4 apply to the MA24507A Power Master. Table 7-4. General Default Settings Setting Command Default Value Average Count [:SENSe]:AVERage:COUNt Average State [:SENSe]:AVERage:STATe Center Frequency [:SENSe]:FREQuency:CENTer...

  • Page 66: System Common Commands

    Title: Identification Query Description: This command returns the following information in <string> format separated by commas: manufacturer name (“Anritsu”), model number, serial number, firmware package number. The model number and options are separated by a “/” and each option is separated by a “/”.
  • Page 67 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Remote Operation 7-6 System Common Commands *RST Title: Reset Description: This command restores most application and system settings to their factory default value. System settings affected by this command are Ethernet configuration. Note that the unit will power-cycle after this command is executed.

  • Page 68: System Commands

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 7-7 System Commands Remote Operation System Commands System commands control instrument functions and some general purpose functions.These commands affect instrument functionality that does not directly relate to data collection, display or transfer. :SYSTem:ERRor[:NEXT]? Title: System Error Queue Description: If an error occurs, the error number and message are placed in the error queue, which can be read by this query command.

  • Page 69: Ma24507A Power Master Commands

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Remote Operation 7-8 MA24507A Power Master Commands MA24507A Power Master Commands General purpose commands for the MA24507A Power Master are used to set/read the general settings of the power analyzer. These commands are not mode or trigger dependent. The following considerations must also be observed: •...
  • Page 70 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 7-8 MA24507A Power Master Commands Remote Operation :CALCulate:CWMax:THReshold:STATe <0|1|ON|OFF> :CALCulate:CWMax:THReshold:STATe? Title: CW Max Threshold State Description: Turn ON|OFF the threshold that the power must exceed to be reported by a :FETch:CWMax? query. Parameters: <0|1|ON|OFF> Query Output: 0|1 Default Value: OFF :FETCh:CWMax?
  • Page 71 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Remote Operation 7-8 MA24507A Power Master Commands :INITiate:CONTinuous <0|1|ON|OFF> :INITiate:CONTinuous? Title: Sweep Type Description: Specifies whether the sweep/measurement is triggered continuously. If the value is set to ON or 1, another sweep/measurement is triggered as soon as the current one completes. If continuous is set to OFF or 0, the instrument remains initiated until the current sweep/measurement completes, then enters the “idle”...
  • Page 72 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 7-8 MA24507A Power Master Commands Remote Operation :STATus:OPERation[:EVENt]? Title: Get Operation Status Description: This command requests information about the current status of the instrument. Each bit of the return value represents some operation. Only a subset of the bits are implemented for each application.
  • Page 73 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Remote Operation 7-8 MA24507A Power Master Commands [:SENSe]:AVERage:COUNt <numeric_value> [:SENSe]:AVERage:COUNt? Title: Sense Average Count Description: Sets the effective number of averages. Parameters: <numeric_value> Query Output: <NR2> Default Value: 10 Range: 2 to 1000 [:SENSe]:AVERage:STATe <0|1|ON|OFF>...
  • Page 74 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 7-8 MA24507A Power Master Commands Remote Operation [:SENSe]:FREQuency:CHWidth <numeric_value>{HZ|KHZ|MHZ|GHZ} [:SENSe]:FREQuency:CHWidth? Title: Channel Width Description: Sets the channel width for power measurements. The measured channel is centered around the [:SENSe]:FREQuency:CENTer value. The center frequency plus half the channel width may not exceed the maximum measuring frequency of the instrument.
  • Page 75 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Remote Operation 7-8 MA24507A Power Master Commands [:SENSe]:RESolution HIGH|MEDium|LOW [:SENSe]:RESolution? Title: Power Resolution Mode Description: Specifies the resolution of the power measurement in CW max mode only. The resolution determines the relative precision of the frequency reported when getting the CW max power results with the :FETCh:CWMax? query.
  • Page 76 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Alphabetical Index of Programming Commands :ABORt ................. . 7-9 :CALCulate:CWMax:COUNt <integer>...
