Quick Start Guide
Installing and Using
Anritsu PowerXpert™

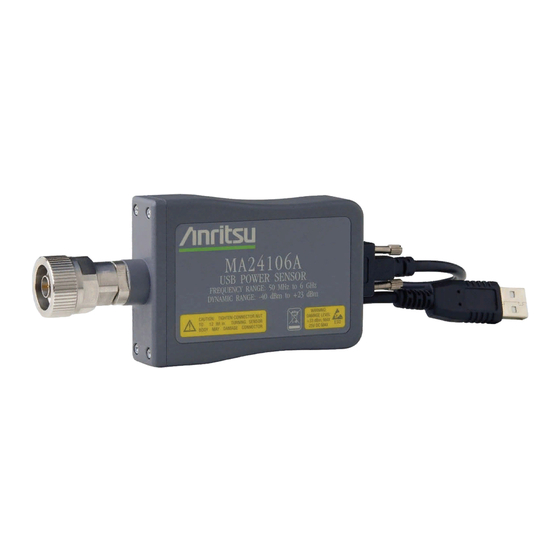

MA24105A, Inline Peak Power Sensor
350 MHz to 4 GHz
MA24106A, True-RMS Power Sensor
10 MHz to 6 GHz
MA24x08A, True-RMS Power Sensor
10 MHz to 8 GHz
MA24x18A, True-RMS Power Sensor
10 MHz to 18 GHz
MA24126A, True-RMS Power Sensor
10 MHz to 26 GHz
MA24330A, CW USB Power Sensor
10 MHz to 33 GHz
MA24340A, CW USB Power Sensor
10 MHz to 40 GHz
MA24350A, CW USB Power Sensor
10 MHz to 50 GHz
MA24507A, mmWave Power Master™ Analyzer
9 kHz to 70 GHz
MA24510A, mmWave Power Master Analyzer
9 kHz to 110 GHz
Anritsu Company
490 Jarvis Drive
Morgan Hill, CA 95037-2809
USA
Part Number: 10585-00021
Revision: L
Published: May 2020
Anritsu Company
Advertisement
Related Manuals for Anritsu PowerXpert MA24105A
Summary of Contents for Anritsu PowerXpert MA24105A
- Page 1 Quick Start Guide Installing and Using Anritsu PowerXpert™ MA24105A, Inline Peak Power Sensor 350 MHz to 4 GHz MA24106A, True-RMS Power Sensor 10 MHz to 6 GHz MA24x08A, True-RMS Power Sensor 10 MHz to 8 GHz MA24x18A, True-RMS Power Sensor...
- Page 2 Contacting Anritsu Sales and Service To contact Anritsu, visit the following URL and select the services in your region: http://www.anritsu.com/contact-us...
-
Page 3: Additional Documentation
PowerXpert™ Introduction This Quick Start Guide provides information on installing Anritsu PowerXpert and a basic set up and use of the instruments. PowerXpert provides a PC user interface for making power measurements with the USB power sensor and Power Master power analyzer. -
Page 4: Hardware And Software
3. PC Requirements PowerXpert™ PC Requirements Hardware and Software The following are the minimum PC requirements for installing and using PowerXpert: ® ® ® ® • Intel Pentium III with 1 GB RAM or Intel Pentium IV with 512 MB RAM, or equivalent ®... - Page 5 Both PowerXpert and the USB power sensor/Power Master power analyzer drivers must be installed before using these devices. Follow the steps below as a guide for proper installation. 1. Download PowerXpert from the Anritsu Website: https://www.anritsu.com/en-us/test-measurement/support/downlo ads/software/dwl19095 2. Click Install Anritsu PowerXpert.
- Page 6 5. Making an MA24105A Power Measurement PowerXpert™ Making an MA24105A Power Measurement This section describes how to perform a basic power measurement with the MA24105A using PowerXpert. Prevent connector damage and ensure quality measurements when connecting RF components. Refer to Caution the PowerXpert User Guide for applying connector maintenance and care.
- Page 7 USB Power Sensor RF In MA24105A USB Power Sensor RF Out Load or Antenna Power Measurement Window PC with Anritsu PowerXpert Continuous Mode (Default) USB Cable To PC USB Input Figure 2. Basic MA24105A Measurement Setup USB Power Sensors QSG...
- Page 8 6. Making an MA24xxxA Power Measurement PowerXpert™ Making an MA24xxxA Power Measurement This section describes how to perform a basic power measurement using PowerXpert with the following: MA24106A, MA24108A, MA24118A, MA24126A, MA24208A, MA24218A, MA24330A, MA24340A, and MA24350A. For making a power measurement with the MA24105A using PowerXpert, see “Making an MA24105A Power Measurement”...
- Page 9 Index Description RF Source Optional Attenuator USB Power Sensor RF In MA24xxxA Power Measurement Window PC with Anritsu PowerXpert Continuous Mode (Default) To PC USB input Figure 3. Basic MA24xxxA Measurement Setup USB Power Sensors QSG PN: 10585-00021 Rev. L...
- Page 10 7. Making an MA245xxA Power Measurement PowerXpert™ Making an MA245xxA Power Measurement This section describes how to perform a basic power measurement with the MA24507A and MA24510A using PowerXpert. Prevent connector damage and ensure quality measurements when connecting RF components. Refer to Caution the PowerXpert User Guide for applying connector maintenance and care.
- Page 11 Continuous Mode. Index Description RF Source Optional Attenuator Power Master RF In MA245xxA Power Measurement Window PC with Anritsu PowerXpert Continuous Mode (Default) To PC USB input Figure 4. Basic MA245xxA Measurement Setup USB Power Sensors QSG PN: 10585-00021 Rev. L...
- Page 12 Anritsu Company 490 Jarvis Drive Anritsu utilizes recycled paper and environmentally conscious inks and toner Morgan Hill, CA 95037-2809 http://www.anritsu.com...
