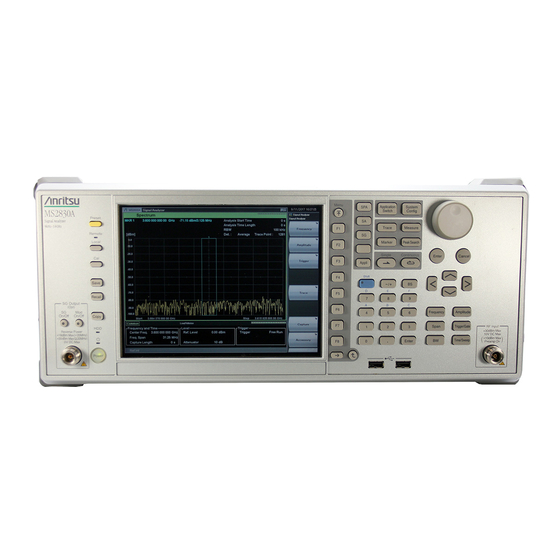

MS2830A/MS2840A/MS2850A
Signal Analyzer
Operation Manual
Spectrum Analyzer Function
Operation
34th Edition
● For safety and warning information, please read this
manual before attempting to use the equipment.
● Additional safety and warning information is provided
within the MS2830A Signal Analyzer Operation Manual
(Mainframe Operation)，MS2840A Signal Analyzer
Operation Manual (Mainframe Operation) or MS2850A
Signal Analyzer Operation Manual (Mainframe
Operation). Please also refer to this document before
using the equipment.
● Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W3336AE-34.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS2840A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anritsu MS2840A

Summary of Contents for Anritsu MS2840A

  • Page 1 ● Additional safety and warning information is provided within the MS2830A Signal Analyzer Operation Manual (Mainframe Operation)，MS2840A Signal Analyzer Operation Manual (Mainframe Operation) or MS2850A Signal Analyzer Operation Manual (Mainframe Operation). Please also refer to this document before using the equipment.

  • Page 2: Safety Symbols

    Ensure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following symbols may be used on all Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in this manual.
  • Page 3 Cautions against computer virus infection ● Copying files and data Only files that have been provided directly from Anritsu or generated using Anritsu equipment should be copied to the instrument. All other required files should be transferred by means of USB or CompactFlash media after undergoing a thorough virus check.

  • Page 5: About This Manual

    About This Manual  Operation manual configuration The operation manual configuration of the MS2830A, MS2840A, and MS2850A Signal Analyzer is shown below. MS2690A/MS2691A/MS2692A Signal Analyzer Operation Manual (Main Frame Operation) MS2830A Signal Analyzer Operation Manual (Main Frame Operation) MS2840A Signal Analyzer Operation Manual (Main Frame Operation)
  • Page 6 Phase Noise Measurement function Convention Used in This Manual Throughout this document, the use of MS2830A is assumed unless otherwise specified. If using MS2840A or MS2850A, change MS2830A to read MS2840A or MS2850A. In this document,...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Overview ........... 1-1 Overview of Spectrum Analyzer ........1-2 Features of Spectrum Analyzer ........1-3 Chapter 2 Basic Operation ........ 2-1 Display Description ............2-2 Single/Continuous Sweep ..........2-4 Setting Frequency ............2-5 Setting Level ............... 2-22 Setting RBW/VBW ............
  • Page 8 Chapter 6 Measure Function ......6-1 Selecting Measure Function ......... 6-2 Adjacent Channel Leakage Power Measurement (ACP) ................6-4 Burst Average Power Measurement ......6-12 Channel Power Measurement (Channel Power) ..6-14 Occupied Bandwidth Measurement (Occupied Bandwidth) ..........6-16 Spectrum Emission Mask Measurement (Spectrum Emission Mask) .........
  • Page 9 Displaying Information of Noise Floor Calibration ..9-9 Appendix A Specifications ......A-1 Appendix B MS2830A Default Value List ..B-1 Appendix C MS2840A Default Value List ..C-1 Appendix D MS2850A Default Value List ..D-1 Appendix E Standard Parameter List ....E-1 Index ..........

  • Page 11: Chapter 1 Overview

    Chapter 1 Overview This chapter provides an overview of the Spectrum Analyzer function. Overview of Spectrum Analyzer ........1-2 Features of Spectrum Analyzer ........1-3...

  • Page 12: Overview Of Spectrum Analyzer

    Chapter 1 Overview 1.1 Overview of Spectrum Analyzer The MS2830A, MS2840A, MS2850A Signal Analyzer is a spectrum analyzer to which options such as real-time signal analysis and vector modulation analysis can be added. The spectrum analyzer function (hereinafter “this application”) enables...

  • Page 13: Features Of Spectrum Analyzer

    Features of Spectrum Analyzer 1.2 Features of Spectrum Analyzer A spectrum analyzer is a measuring device for analyzing the frequency components of an input signal. The relative values of the various frequency components are displayed in graph form, with the horizontal axis representing the frequency and the vertical axis the signal level.
  • Page 14 Chapter 1 Overview The real-time method, which is characterized by a small time lag, is suitable for measurement in a narrow frequency range of several tens of MHz maximum. Compared to the real-time method, the sweep method requires a long time to draw a screen, but since it allows observation of a wide frequency range on the order of several GHz at one time, it is a powerful method for high-order harmonic level measurement and the detection of unknown frequency components.
  • Page 15 IF filter used to separate only the target frequency, an IF amplifier with a gain stabilized across a wide level range, and a logarithmic amplifier with excellent linearity. The MS2830A, MS2840A, MS2850A employs a digital IF method in its IF stage to obtain superior...
  • Page 16 Chapter 1 Overview 1-6.

  • Page 17: Chapter 2 Basic Operation

    Chapter 2 Basic Operation This chapter describes the basic operation of the Spectrum Analyzer function. Display Description ............2-2 Single/Continuous Sweep ..........2-4 Setting Frequency ............2-5 2.3.1 Setting center frequency ........ 2-10 2.3.2 Setting frequency span ........2-11 2.3.3 Setting start frequency........2-12 2.3.4 Setting stop frequency ........

  • Page 18: Display Description

    Chapter 2 Basic Operation 2.1 Display Description This section describes the main screen and main function menus of the Spectrum Analyzer function. Figure 2.1-1 Main screen of Spectrum Analyzer function...
  • Page 19 Display Description Pressing the when the Spectrum Analyzer function is selected in the Application Switch menu displays the main function menu. The main function menu consists of two pages, which can be toggled by pressing Table 2.1-1 Main function menu Function Menu Display Function...

  • Page 20: Single/Continuous Sweep

    Chapter 2 Basic Operation 2.2 Single/Continuous Sweep There are two types of sweep, single and continuous. (1) Single sweep Press to execute sweep once. When the trigger function or gate function is on, only 1 sweep is executed when the sweep start conditions are met.

  • Page 21: Setting Frequency

    Setting Frequency 2.3 Setting Frequency The Spectrum Analyzer function can set the following four measurement frequencies.  Center frequency  Frequency span  Start frequency  Stop frequency Pressing (Frequency) on page 1 of the main function menu, or pressing displays the Frequency function menu.
  • Page 22 Sets the frequency switching speed. Switching Speed 2.3.8 “Switching Speed” Auto-tunes preselector. This function is available with MS2830A-044/045, Preselector Auto Tune MS2840A-044/046, MS2850A. 7.8 “Preselector Tuning” Switches on/off the frequency offset function. Offset (On/Off) 2.3.5 “Setting frequency offset” Sets the frequency offset value.
  • Page 23 Chapter 8 “External Mixer” Opens the Ext Band Select menu. This function is available with MS2830A-044/045, External Mixer MS2840A-044/046. This function is available Band Select when External Mixer is turned On. 8.4 “Selecting External Mixer Band” Sets the External Mixer Bias. This function is available with MS2830A-044/045, MS2840A-044/046.
  • Page 24 Manual (Mainframe Operation), Preselector Bypass “ 1.3.13 MS2830A-067/167 ” , (On/Off) “ 1.3.14 MS2830A-007 ” , MS2840A Signal Analyzer Operation Manual (Mainframe Operation), “ 1.3.15 MS2840A-067/167 ” , or MS2850A Signal Analyzer Operation Manual (Mainframe Operation), “ 1.3.6 MS2850A-067 ” .
  • Page 25 Setting Frequency The display items related to the frequency parameters are described below. Figure 2.3-2 Display items related to frequency parameters Table 2.3-3 Display items related to frequency parameters Display Description Displays the center frequency or start Center or Start frequency.

  • Page 26: Setting Center Frequency

    100 MHz to 6.1 GHz* 100 MHz to 13.6 GHz* MS2830A-043: MS2830A-044: –100 MHz to 26.6 GHz* MS2830A-045: –100 MHz to 43.1 GHz* MS2840A-040: 100 MHz to 3.7 GHz* 100 MHz to 6.1 GHz* MS2840A-041: MS2840A-044: –100 MHz to 27 GHz* MS2840A-046: –100 MHz to 45 GHz*...

  • Page 27: Setting Frequency Span

    300 Hz to 6.2 GHz* MS2830A-043: 300 Hz to 13.7 GHz* MS2830A-044: 300 Hz to 26.7 GHz* MS2830A-045: 300 Hz to 43.2 GHz* MS2840A-040: 300 MHz to 3.8 GHz* MS2840A-041: 300 MHz to 6.2 GHz* MS2840A-044: 300 MHz to 27.1 GHz* MS2840A-046: 300 MHz to 45.1 GHz*...

  • Page 28: Setting Start Frequency

    100 MHz to 6.0999997 GHz* 100 MHz to 13.5999997 GHz* MS2830A-043: MS2830A-044: –100 MHz to 26.5999997 GHz* MS2830A-045: –100 MHz to 43.0999997 GHz* MS2840A-040: 100 MHz to 3.6999997 GHz* MS2840A-041: 100 MHz to 6.0999997 GHz* MS2840A-044: –100 MHz to 26.9999997 GHz* MS2840A-046: –100 MHz to 44.9999997 GHz*...
  • Page 29 Setting Frequency Example: To set the stop frequency to 1 GHz <Procedure> Press Press (Stop). After pressing , press (GHz) to set the stop frequency. 2-13...

  • Page 30: Setting Frequency Offset

    2.3.6 Changing frequency band Note: This function can be set only when MS2830A-041/043/044/045, MS2840A-041/044/046 is installed, or MS2850A. The passing lower limit frequency of the preselector can be changed from 6 GHz to 3 GHz by changing the frequency band mode.

  • Page 31: Setting Whether To

    Setting Frequency 2.3.7 Setting Whether To Couple Time Domain Parameters and Frequency Domain Parameters Sets whether to couple the time domain parameters and frequency domain parameters. If coupling is enabled, the RBW, VBW, detection mode, and trace point are coupled (shared) between the time domain and frequency domain.

  • Page 32: Switching Speed

    Chapter 2 Basic Operation 2.3.8 Switching Speed Selects the normal or fast frequency switching speed. Table 2.3.8-1 Switching Speed Switching Speed Descriptions The operation is done so as to increase the Fast Tuning frequency switching speed. (fast switching) The operation is done so as to improve the phase noise characteristic rather than the Normal frequency switching speed.

  • Page 33: Setting Step Size

    1 Hz to 6.0 GHz MS2830A-043: 1 Hz to 13.5 GHz MS2830A-044: 1 Hz to 26.5 GHz MS2830A-045: 1 Hz to 43 GHz MS2840A-040: 1 Hz to 3.6 GHz* MS2840A-041: 1 Hz to 6.0 GHz* MS2840A-044: 1 Hz to 26.5 GHz* MS2840A-046: 1 Hz to 44.5 GHz*...

  • Page 34: Low Phase Noise

    This response is generated when a signal with frequency fin is input to the MS2830A or MS2840A RF input connector and the MS2830A, MS2840A Rx frequency is set to fin–150 MHz, and 330 MHz or more (with MS2830A-062) or 110 MHz or more (with MS2830A-066, MS2840A-066/166).
  • Page 35 MS2830A Signal Analyzer Operation refer to section 3.4.4 in the Manual Mainframe Operation manual or the MS2840A Signal Analyzer Operation Manual Mainframe Operation manual. ● For the setting method for Low Phase Noise for Spurious Emission, refer to section 6.7 “Spurious Emission Measurement”.
  • Page 36 Chapter 2 Basic Operation "SG Control" is displayed when MS2830A-052/152/352 Internal Signal Generator Control Function is On. (Displaying priority: [Low Phase Noise] < [SG Control]) This is displayed when Low Phase Noise Performance is enabled. Figure 2.3.10-1 Low Phase Noise Display 2-20...

  • Page 37: Displaying The Spurious Mode Icon

    2.3.11 Displaying the Spurious Mode icon When “Spurious” is selected for the Frequency Band Mode, the Spurious Mode icon is displayed in the following condition: Condition of displaying the icon * For MS2830A-040, MS2840A-040 Not displayed * For MS2830A-041/043/044/045 MS2840A-041/044/046, MS2850A The icon is displayed when the displayed range exceeds 3.5 GHz.

  • Page 38: Setting Level

    Chapter 2 Basic Operation 2.4 Setting Level Pressing (Amplitude) on the main function menu, or pressing displays the Amplitude function menu. Figure 2.4-1 Amplitude key 2-22...
  • Page 39 Attenuator 2.4.2 “Setting input attenuator” Sets Pre-amp to On/Off. This is displayed only when MS2830A-008/108/068/168, Pre-amp MS2840A-008/108/068/168/069/169, MS2850A-068/168 Preamplifier is installed. 2.4.6 “Pre-amp” Sets the level display unit to be used during log scale. Log Scale Unit 2.4.4 “Setting reference level unit”...
  • Page 40 Noise Floor Reduction Info. 9.5 “Displaying Information of Noise Floor Calibration” and, MS2840A Signal Analyzer Operation Manual (Mainframe Operation), 3.3 “Auto Calibration” or MS2850A Signal Analyzer Operation Manual (Mainframe Operation), 3.3 “Auto Calibration” Enables (On) or disables (Off) Noise Floor Reduction.
  • Page 41 Setting Level The display items related to the level parameters are described below. Figure 2.4-2 Display items related to level parameters Table 2.4-2 Display items related to level parameters Display Description Reference level Displays the reference level. Reference level Displays the reference level addition offset offset value.
  • Page 42 Chapter 2 Basic Operation The reference level (upper end of amplitude scale) range is described below. Setting range and resolution for reference level Setting range: Refer to Table 2.4-3 and Table 2.4-4. Resolution: 0.01 dB (dB unit system) Effective number of digits: 3 (W unit) Effective number of digits: 3 (V unit) Table 2.4-3 Reference level setting range (When Pre-amp is set to Off).
  • Page 43 Setting Level Table 2.4-4 Reference level setting range (When Pre-amp is set to On) Scale Mode Unit Reference Level Range dBm* 130 to +30 dBm 23.01 to +136.99 dBV (Impedance = 50 ) dBV* –21.25 to +138.75 dBV (Impedance = 75 ) 83.01 to +76.99 dBmV (Impedance = 50 ) dBmV*...

  • Page 44: Setting Reference Level

    Chapter 2 Basic Operation 2.4.1 Setting reference level The reference level (upper end of amplitude scale) can be set. Example: To set the reference level to  10 dBm <Procedure> Press Press (Reference Level). After pressing , press (dBm) to set the reference level.

  • Page 45: Setting Input Attenuator

    Setting Level 2.4.2 Setting input attenuator (1) Auto mode The input attenuator is automatically set according to the set reference level. When a signal of the same level as the reference level is input, the input level to the internal mixer is set so as become 10 dBm or lower.
  • Page 46 Chapter 2 Basic Operation Table 2.4.2-2 Input attenuators set in Auto mode (When Pre-amp is set to On) Attenuator Auto (dB) N = Reference Level (dBm) Resolution Resolution 2 dB 10 dB 130 20 20 18 18 16 16 14 14...
  • Page 47 The following tables show the setting range and resolution of input attenuator. Table 2.4.2-3 Resolution of Input Attenuator System ATT Mode SPAN range ATT value Resolution MS2830A, MS2840A, — — — 2 dB MS2850A Excluding the followings MS2830A-045 Electric Frequency Band Mode: ATT ≤...
  • Page 48 Chapter 2 Basic Operation Table 2.4.2-4 Input attenuator setting range (When Pre-amp is set to Off) Attenuator Manual Lower limit Upper limit Logic* ( = 0,  = 1,  = 2) 60 dB The minimum value is 0 dB. Table 2.4.2-5 Input attenuator setting range (When Pre-amp is set to On) Attenuator Manual...

  • Page 49: Setting Scale

    Setting Level 2.4.3 Setting scale Pressing (Scale) on the Amplitude function menu displays the Scale function menu. Table 2.4.3-1 Scale function menu Function Menu Display Function Selects the scale mode (Log/Lin). Scale (Log/Lin) This switches F2 and F3 display. Sets the scale range (Log scale range). Log Scale Division This is displayed when Log is selected for F1 Scale.
  • Page 50 Chapter 2 Basic Operation (1) Setting the Log scale The log scale can be selected from the following: 0.1, 0.2, 0.5, 1.0, 2.0, 5.0, 10.0, 20.0 dB/Div Example: To set Log Scale Division to 20 dB/Div and number of scale lines to 12 <Procedure>...

  • Page 51: Setting Reference Level Unit

    Setting Level 2.4.4 Setting reference level unit The level display unit for the Log scale mode can be set. In the case of Lin scale, the level display unit is fixed to V. Reference level display unit dBm, dBV, dBmV, V, W, dBV (emf), dBV/m Example: To set the reference level to 10 dBmV <Procedure>...

  • Page 52: Setting Reference Level Offset

    Chapter 2 Basic Operation 2.4.5 Setting reference level offset The waveform trace can be displayed with an arbitrary offset value added. Setting range and resolution for reference level offset Setting range:100 to 100 dB Resolution: 0.01 dB Set offset value to +10 dB Figure 2.4.5-1 Adding an offset value Example: To set the reference offset value to 10 dB...

  • Page 53: Pre-Amp

    Setting Level 2.4.6 Pre-amp Note: This function can be set only when MS2830A-008/108/068/168, MS2840A-008/108/068/168/069/169, MS2850A-068/168 Pre-amp is installed. The level sensitivity can be increased by setting Pre-amp to On. Example: To set Pre-amp to On <Procedure> Press Press (Pre-Amp) to set to On.

  • Page 54: Setting Rbw/Vbw

    Chapter 2 Basic Operation 2.5 Setting RBW/VBW The resolution bandwidth (RBW) and video bandwidth (VBW) can be selected either automatically or arbitrarily. Pressing (BW) on the main function menu, or pressing displays the BW function menu. Figure 2.5-1 BW key 2-38...
  • Page 55 SPAN:RBW ratio function. (On/Off) 2.5.4 “Setting SPAN:RBW Ratio” Sets the SPAN:RBW ratio. SPAN:RBW Ratio 2.5.4 “Setting SPAN:RBW Ratio” Displayed only when MS2830A-016/116, MS2840A-016/116 is installed. Selects the resolution bandwidth (RBW) RBW Mode Mode set with (RBW) and (RBW (Normal/CISPR) Value).

  • Page 56: Setting Resolution Bandwidth (Rbw)

    300 kHz, 1 MHz, 2 MHz, 3 MHz, 5 MHz, 10 MHz, (The above are for either no Option or Option-006/106.) 20 MHz, 31.25 MHz (for MS2830A-005/105/007/009/109 or MS2840A-005/105/009/109, but 31.25 MHz can only be specified for a frequency span of 0) Note: For RBW 31.25 MHz, it is not a Gauss filter but a flat-top...

  • Page 57: Setting Video Bandwidth (Vbw)

    Setting RBW/VBW 2.5.2 Setting video bandwidth (VBW) Auto or Manual can be selected for setting video bandwidth (VBW). Auto The video bandwidth is set to the same as the resolution bandwidth (RBW) or the nearest value. It is set to off when the detection mode (Detection) is “RMS,”...

  • Page 58: Setting Video Vbw/Power Vbw

    Chapter 2 Basic Operation 2.5.3 Setting Video VBW/Power VBW The Spectrum Analyzer function allows selection of either Video VBW or Power VBW as the video filter for the better and smooth screen display. Two VBM Modes Video: Performs smoothing and averaging with a video filter after logarithmic compression (logarithmic mean).

  • Page 59: Setting Span:rbw Ratio

    Setting RBW/VBW 2.5.4 Setting SPAN:RBW Ratio The SPAN:RBW Ratio can be turned On or Off, and the SPAN:RBW ratio can be specified. This function is available when the RBW mode is set to Auto. SPAN:RBW Ratio (On/Off) Turns On or Off the SPAN:RBW Ratio function. On (Enabled) Compares the currently set frequency span divided by the SPAN:RBW ratio and settable RBW, and automatically sets the...

  • Page 60: Setting Cispr Resolution Bandwidth (Rbw)

    2.5.5 Setting CISPR resolution bandwidth (RBW) This function is available if RBW Mode is set to CISPR when MS2830A-016/116, MS2840A-016/116 is installed. Refer to section 2.5.1 “Setting resolution bandwidth (RBW)” when the mode is set to Normal. The following restrictions apply when RBW Mode is set to CISPR.
  • Page 61 Setting RBW/VBW Figure 2.5.5-1 Screen for CISPR 2-45...
  • Page 62 Chapter 2 Basic Operation 2-46.

  • Page 63: Chapter 3 Display Mode Selection

    Chapter 3 Display Mode Selection This chapter describes the trace, storage mode, and wave detection mode. Setting Storage Mode ........... 3-2 3.1.1 Storage mode types ......... 3-3 3.1.2 Averaging function ..........3-4 3.1.3 Max Hold/Min Hold function ......3-5 3.1.4 Setting wave detection mode ......3-6 3.1.5 Displaying and updating Trace ......

  • Page 64: Setting Storage Mode

    Chapter 3 Display Mode Selection 3.1 Setting Storage Mode Pressing (Trace) on the main function menu, or pressing displays the Trace function menu. Figure 3.1-1 Trace key Table 3.1-1 Trace function menu Function Menu Display Function Selects trace to be set. Trace Type and Storage Active Trace Mode can be set for each trace.

  • Page 65: Storage Mode Types

    Setting Storage Mode 3.1.1 Storage mode types The following storage modes can be selected for trace A, trace B, trace C, trace D, trace E, and trace F. Table 3.1.1-1 Storage Mode Types Mode Display Description Display Example In the Log display mode, averaging is executed for Lin Average linear values, and the...

  • Page 66: Averaging Function

    Chapter 3 Display Mode Selection 3.1.2 Averaging function This function displays the averaged trace results. Example: To set trace A to Average and the storage count to 100 <Procedure> Press Press (Active Trace) and then press (A). Press (Storage Mode) and select (Average).

  • Page 67: Max Hold/Min Hold Function

    Setting Storage Mode 3.1.3 Max Hold/Min Hold function This function holds and displays the maximum value (Max Hold) or minimum value (Min Hold) of the trace data. Example: To set trace A to Max Hold, trace B to Min Hold, and simultaneous display <Procedure>...

  • Page 68: Setting Wave Detection Mode

    Displays the minimum value between sample points. Sample Displays the instantaneous value between sample points. Displays the root mean square value (effective value) between sample points. Displayed only when MS2830A-016/116 or MS2840A-016/116 is installed. Page 2 Detection Press Detection, and then press to display this.
  • Page 69 Setting Storage Mode Positive Negative Screen display Sample Sample points Screen display Pos & Neg Screen display Sample points Figure 3.1.4-1 Screen display differences according to wave detection mode...
  • Page 70 Chapter 3 Display Mode Selection Example: To set the wave detection mode to Negative <Procedure> Press Press (Detection) and then press (Negative). Wave detection mode Trace parameter Figure 3.1.4-2 Wave detection mode selection...

  • Page 71: Displaying And Updating Trace

    Setting Storage Mode 3.1.5 Displaying and updating Trace You can configure Trace Type display settings here. Table 3.1.5-1 lists the available options. Table 3.1.5-1 Trace Type Writing Modes Trace Type Display Description Writing Modes Write Updates the display per measurement. Keeps the current display;...

  • Page 72: Setting Limit Line

    Chapter 3 Display Mode Selection 3.2 Setting Limit Line You can evaluate trace data by drawing Limit Line. Notes: ● The limit line function is not available when Measure function is set to ON. ● Limit Test (evaluation of trace data) is not performed when, on the Amplitude function menu, the Scale menu is set to Lin.

  • Page 73: Setting Limit Function Parameters

    Setting Limit Line 3.2.1 Setting Limit function parameters Pressing (Trace) on the main function menu or pressing displays the Trace function menu. Selecting (Limits) on the Trace function menu displays the Limit function menu. Example: To draw –20 dBm Limit Line between 1 to 2 GHz in order to determine data as Fail when it exceeds Limit Line <Procedure>...

  • Page 74: Setting Limits

    Chapter 3 Display Mode Selection 3.2.2 Setting Limits Selecting (Limits) on the Trace function menu displays the Limits function menu. You can set six types of Limit Line. Table 3.2.2-1 Limits function menu Function Menu Display Function Sets Limit Line 1. Limit1 3.2.3 “Setting Limit1 to 6”...

  • Page 75: Setting Limit1 To 6

    Setting Limit Line 3.2.3 Setting Limit1 to 6 Selecting (Limit1) to (Limit6) on the Limits function menu displays Limit1 to Limit6 function menu. Table 3.2.3-1 Limit1 to 6 function menus Function Menu Display Function Press (Limit1) to (Limit6) on the Limits function Page 1 Limit1 to Limit6 menu.
  • Page 76 Chapter 3 Display Mode Selection Table 3.2.3-1 Limit1 to 6 function menus (Cont’d) Function Menu Display Function Press (Limit1) to (Limit6) on the Limits function Page 2 Limit1 to Limit6 menu and then press to display page 2. Sets the mode of setting the frequency axis of the Limit Line.
  • Page 77 Setting Limit Line (2) Margin function Example: To display a Margin line by adding the Limit Line with –20 dB <Procedure> Press Press (Limits). Press (Limit1). Press (Margin) to set it to On. Press (Margin Value). Press , and then press (dB) to set Margin Value.

  • Page 78: Edit Parameters

    Chapter 3 Display Mode Selection 3.2.4 Edit parameters Selecting (Edit) on the Limit1 to 6 function menu displays the Edit-Limit x function menu. Table 3.2.4-1 Edit-Limit x function menu Function Menu Display Function Sets the Limit Point you want to edit. Point Adds a Limit Point with the same frequency and level as Add Point...
  • Page 79 Setting Limit Line (1) Setting Point Point Setting range: 1 to Limit Points (Max: 100) Minimum resolution: Rotary knob resolution: Step key resolution: (2) Setting Frequency Offset Example: To set Frequency Offset to 1 GHz <Procedure> Press Press (Limits). Press (Limit1).
  • Page 80 Chapter 3 Display Mode Selection (3) Setting Amplitude Example: To set Amplitude to –10 dBm <Procedure> Press Press (Limits). Press (Limit1). Press (Edit). Press (Amplitude). Press , and press (dBm) to set Amplitude. Amplitude When Limit Line Type (Amplitude) is Abs. Setting range: –300.00 to 300.00 dBm Default:...
  • Page 81 Setting Limit Line (4) Connected to Previous Pt Pass/Fail evaluation between Limit Points is performed by making linear interpolation between the current Limit Point and the other Limit Point that is located on the nearest left of the current Limit Point.
  • Page 82 Chapter 3 Display Mode Selection (6) Creating a new Limit Line <Procedure> Press (Edit). Press (Add Point). Set the Frequency. Set the Amplitude. Press (Connected to Previous Pt) and set to On/Off. Set the Previous Pt Level Offset. Repeat steps 3 to 6 until the Limit Points are set. (7) Adding a new Limit Point to an existing Limit Line <Procedure>...

  • Page 83: Limit Envelope Function

    Setting Limit Line 3.2.5 Limit Envelope Function Selecting (Envelope) on the Limit1 to 6 function menu displays the Envelope-Limit x function menu. Set the values of the following: (Points), (Offset) and (Shape). Then, clicking (Create Envelope) automatically creates Limit Point(s) and Limit Line from the Trace data of the measurement results.
  • Page 84 Chapter 3 Display Mode Selection Create Envelope Example: When executing the Create Envelope menu with the following menu settings: Type: Upper, Trace Points: 15, Points: 3, Offset: 5 dB, Shape: Slope The following figure shows a Limit Line (—) and Limit Points (○) that are automatically created with respect to Trace Points (●), peak values for Trace Point values (←→) and offset values (↑).
  • Page 85 Setting Limit Line Points Setting range: When Shape is set to Slope: 2 to (Trace Points–2) × 2 + 2, (Max: 100) When Shape is set to Square: 2 to Trace Points, (Max: 100) Default: Resolution: 1 (Slope), 2 (Square) Shape When Shape is set to Slope: The number of Limit Points (○) is equal to that of Envelope Points set...

  • Page 86: Saving A Limit File

    “Table 3.6.1-1 Save on Event function menu” Saves the displayed waveform data (Trace). MS2830A Signal Analyzer Operation Manual (Mainframe Operation) Save Waveform MS2840A Signal Analyzer Operation Manual CSV DATA (Mainframe Operation) MS2850A Signal Analyzer Operation Manual (Mainframe Operation) Chapter 3 “Common Operations”...
  • Page 87 (Sequential number from 000 to 999. Up to 1000 files can be saved in the folder.) MS2830A Signal Analyzer Operation Manual (Mainframe Operation) MS2840A Signal Analyzer Operation Manual (Mainframe Operation) MS2850A Signal Analyzer Operation Manual (Mainframe Operation) Chapter 3 “Common Operations”...

  • Page 88: Loading A Limit File

    MS2830A Signal Analyzer Operation Manual Recall Current (Mainframe Operation) Application MS2840A Signal Analyzer Operation Manual (Mainframe Operation) MS2850A Signal Analyzer Operation Manual (Mainframe Operation) Chapter 3 “Common Operations” Displays the Parameter Save Data List.
  • Page 89 Setting Limit Line Load source directory of Limit Line file < D:\Anritsu Corporation\Signal Analyzer\User Data\Limit> < D:\Anritsu Corporation\Signal Analyzer\User Data\Parameter Setting> Limit Line file formats that can be recalled csv, lim, xml On the Recall Limit1 to 6 function menu, you can select Limit Line file(s) you want to load or delete.

  • Page 90: Setting Normalize Function

    Chapter 3 Display Mode Selection 3.3 Setting Normalize Function This function is available for MS2830A only when MS2830A-052/152/352 is installed. Pressing (Trace) on the main function menu, or pressing displays the Trace function menu. Selecting (Normalize) on the Trace function menu displays the Normalize function menu. For details on the functions, refer to Table 3.3.1-1.
  • Page 91 Setting Normalize Function The trace data stored by (Store Ref.) is initialized in the following conditions. (Normalize) is turned Off by the initialization. ● SG Control On/Off is changed. ● The trace selected by Select Trace is changed. ● The trace type writing mode of the trace selected by Select Trace is changed to Write.

  • Page 92: Setting Save Correction Csv Data

    “Corr date_sequence number”. The file is saved in Save Correction csv format. CSV DATA The save destination is “[selected drive]:\Anritsu Corporation\Signal Analyzer\User Data\Corrections\”. Up to 1000 files can be stored in the folder. Saves the parameter setting conditions of all the launched Save Application applications.

  • Page 93: Setting Math Function

    Setting Math Function 3.4 Setting Math Function This function is available only for MS2830A. Pressing (Trace) on the main function menu, or pressing displays the Trace function menu. Selecting (Math) on the Trace function menu displays the Math function menu. For details on the functions, refer to Table 3.4.1-1.

  • Page 94: Setting Time/Sweep

    Chapter 3 Display Mode Selection 3.5 Setting Time/Sweep Pressing (Time/Sweep) on the main function menu, or pressing displays the Time/Sweep function menu. Figure 3.5-1 Time/Sweep key Table 3.5-1 Time/Sweep function menu Function Menu Display Function Sets the Auto mode/Manual mode for the sweep Sweep Time time.

  • Page 95: Setting Sweep Time

    Setting Time/Sweep 3.5.1 Setting sweep time Set the sweep time. When Auto is set, the optimum value is set automatically. Each parameter is specified in accordance with the already-specified frequency axis or time axis measurement. Setting range and resolution for Sweep Time Setting range: 1 ms to 1000 s (in frequency domain) 1 µs to 1000 s (in time domain)

  • Page 96: Setting Trace Point

    The following numbers of trace points can be selected. Note: When Noise Floor Reduction is On, the maximum trace point number of MS2840A is 10001. Table 3.5.2-1 Trace Point Setting Range Condition Range Span >...

  • Page 97: Sweep Type Rules

    Setting Time/Sweep 3.5.3 Sweep Type Rules For Sweep (SW) Type Rules, specify the rules for determining which sweep method to use (sweep type or FFT type) when performing a frequency sweep. When RBW Mode is set to CISPR, Auto Sweep Type Rules is fixed to Swept Only.
  • Page 98 Chapter 3 Display Mode Selection Table 3.5.3-2 FFT width function menu Function Menu Display Function ≤ 40 kHz Uses an FFT width of 40 kHz or less. ≤ 2 MHz Uses an FFT width of 2 MHz or less. Appears when Sweep Type is FFT.

  • Page 99: Save On Event

    Save on Event 3.6 Save on Event The Save on Event function menu is displayed by pressing (Save on Event) when the Spectrum Analyzer screen is active. For details on the functions, refer to Table 3.6.1-1. 3.6.1 Setting Save on Event The Save on Event function saves a waveform upon occurrence of any of the trigger events set by (Event Type).
  • Page 100 Chapter 3 Display Mode Selection File Name This menu is used to set the Filename (underlined part of the following) that is internal data of a Waveform file to be saved as Folder.csv when performing the Save on Event function. Filename,Date,999.500001 MHz,999.501819 MHz,…,1000.500001 MHz LIM20140416163123000_R.spa, 4/16/2014 4:31:23 PM, -98.292000, -98.268000,…,-103.104000 ⋮...

  • Page 101: Waveform Files For Save On Event

    Example: When starting measurement on April 16 at 15:29, a file save destination is as follows: < D:\Anritsu Corporation\Signal Analyzer\User Data\Waveform\04161529_1> The number of the end of "04161529_1" is incremented automatically in order of "04161529_1", "04161529_2", and "04161529_3." It will be set to "04161530_1"...

  • Page 102: Delete Waveform Files For Save On Event

    Chapter 3 Display Mode Selection Meaning of description in file format _P: Positive detection, _N: Negative detection, _R: RMS detection, _S: Sample detection 3.6.3 Delete Waveform files for Save on Event The Recall function menu is displayed by pressing when the Spectrum Analyzer screen is active.

  • Page 103: Chapter 4 Marker Function

    Chapter 4 Marker Function This chapter describes the marker functions. Setting Marker ............... 4-2 4.1.1 Setting normal marker ........4-5 4.1.2 Setting delta marker ......... 4-5 4.1.3 Setting zone marker ......... 4-6 4.1.4 Setting marker trace ......... 4-7 4.1.5 Setting active marker ........4-8 4.1.6 Setting Fixed marker ........

  • Page 104: Setting Marker

    Chapter 4 Marker Function 4.1 Setting Marker Pressing (Marker) on the main function menu, or pressing displays the Marker function menu. The Marker function menu consists of two pages, which can be toggled by pressing Figure 4.1-1 Marker key Table 4.1-1 Marker function menu Function Menu Function...
  • Page 105 Setting Marker Table 4.1-1 Marker function menu (Cont’d) Function Menu Function Searches for the second biggest peak after the active marker, and moves the marker so that the marker becomes the center frequency of the Next Peak zone marker. 4.2.2 “Executing Next Peak search” Press (Marker) and then press to Page2...
  • Page 106 Chapter 4 Marker Function Zone Width function menu Pressing (Zone Width) on the Marker function menu displays the Zone Width function menu. Table 4.1-2 Zone Width function menu Function Menu Function Switches between the spot marker and the Type zone marker. (Zone/Spot) 4.1.3 “Setting zone marker”...

  • Page 107: Setting Normal Marker

    Setting Marker 4.1.1 Setting normal marker ▼ Normal markers are displayed as and display the frequency (time) and level on the screen. <Procedure> Press Press (Normal) to display the normal markers. Press (Off) to stop displaying the markers. Example: To set all the markers to Off. <Procedure>...

  • Page 108: Setting Zone Marker

    Chapter 4 Marker Function 4.1.3 Setting zone marker The area enclosed by the dashed lines in Figure 4.1.3-1 is called a zone marker. The current marker exists within this zone marker and moves to the maximum level point within the range indicated by the zone marker. The frequency (or time) and level at the current marker are displayed on the top part of the screen.

  • Page 109: Setting Marker Trace

    Setting Marker Example: To set the zone marker width to 10 MHz <Procedure> Press Press (Zone Width) to open the Zone Width function menu. After pressing , press (MHz) and set the zone marker width. Example: To set the spot marker. <Procedure>...

  • Page 110: Setting Active Marker

    Chapter 4 Marker Function 4.1.5 Setting active marker Select an active marker. You can set the position of the active marker by using the rotary knob and step key. Example: To set the active marker to 2. <Procedure> Press Press (Active Marker).

  • Page 111: Setting Type Of Result Display

    Setting Marker 4.1.7 Setting Type of Result Display The Marker Result function is used to select a type of a marker result. Marker Result function menu Press (Marker Result) on page 2 of the Marker function menu to display the Marker Result function menu. Table 4.1.7-1 Marker Result function menu Function Menu...
  • Page 112 Chapter 4 Marker Function This function allows you to select the power (total power, total density, and peak power) displayed in the zone marker. Example: To display the power per 1 Hz in the zone band. <Procedure> Press Press to move to page 2 of the Marker function menu, and then press (Marker Result).

  • Page 113: Setting Freq.count

    Frequency counter Setting Marker 4.1.8 Setting Freq.Count The Freq.Count function menu is used to set up frequency counter measurement. Freq.Count function menu Press (Freq.Count) in page 2 of Marker function menu to display the Freq.Count function menu. Table 4.1.8-1 Freq.Count function menu Function Menu Function...

  • Page 114: Setting N Db Bandwidth

    Frequency counter Chapter 4 Marker Function 4.1.9 Setting N dB Bandwidth The N dB Bandwidth function is available only for MS2830A. Press (N dB Bandwidth) in page 3 of Marker function menu to display the N dB Bandwidth function menu. Displays a bandwidth between the two points located N dB lower than the selected peak marker point.

  • Page 115: Setting Peak Search Function

    Setting Peak Search Function 4.2 Setting Peak Search Function Four types of peak search function are available, Peak, Next Peak, Min, and Next Min search. Peak Search function menu Pressing (Peak Search) on page 2 of the main function menu, or pressing displays the Peak Search function menu.
  • Page 116 Chapter 4 Marker Function Table 4.2-1 Peak Search function menu Function Menu Display Function Page1 Peak Search Press (Peak Search) to display this page. Moves the marker so that the maximum level point in the measurement band becomes the Peak Search center frequency of the zone marker.
  • Page 117 Setting Peak Search Function Table 4.2-1 Peak Search function menu (Cont’d) Function Menu Display Function This command searches for the next dip of the active marker and moves the marker so that it becomes the center frequency of the zone Next Min marker.
  • Page 118 Chapter 4 Marker Function Marker Search Function menu Press (Marker Search Function) on the Peak Search function menu to display the Marker Search function menu. Table 4.2-3 Marker Search function menu Function Menu Function Sorts the markers by level in relation to the peaks on the trace of the number specified in Search Peaks Sort Y Search Peaks Number.

  • Page 119: Executing Peak Search

    Setting Peak Search Function 4.2.1 Executing Peak search Detects the maximum level point from the trace in the display and moves the marker. If there are several peak points, the marker moves to the point with smallest frequency (or time) (left side of scale). The Peak search execution procedure is as follows: <Procedure>...

  • Page 120: Setting Search Threshold Value

    Chapter 4 Marker Function 4.2.4 Setting search threshold value Specify the threshold value with the Peak detection level. This also becomes the threshold value for the Min search. The threshold value is displayed on the screen, and search upward or downward from this level can be specified.

  • Page 121: Executing Marker To Center Freq

    Setting Peak Search Function 4.2.5 Executing Marker to Center Freq./Marker to Ref. Level The center frequency and reference level of the trace can be adjusted to match the frequency and level of the active marker. ● Marker to Center Freq. Sets the marker frequency to the center frequency.

  • Page 122: Executing Marker Search Function

    Chapter 4 Marker Function 4.2.6 Executing Marker Search Function Sorts the markers set by Search Peaks Number by frequency (time) or level. Note: Marker Search Function can be executed when Marker Result is set to Peak. 4.1.7 “Setting Type of Result Display” Example: To sort three markers by level.

  • Page 123: Executing Power Peak Search

    Setting Peak Search Function 4.2.7 Executing Power Peak search This command moves the active marker to the position where the peak power of the zone width of the active marker becomes maximum in the measurement band. If there are several peak points, the marker moves to the point with lowest frequency (left side of scale).

  • Page 124: Executing Min Search

    Chapter 4 Marker Function 4.2.9 Executing Min search This command moves the marker so that the minimum level point in the measurement band becomes the center frequency of the zone marker. Execute Min search as follows: <Procedure> Press Press to display Page 2 of the Peak Search function menu. Press (Min Search) to conduct Min search.

  • Page 125: Displaying Marker List

    Displaying Marker List 4.3 Displaying Marker List Displays the marker result list. The marker frequency and power are displayed on the list. Example: To set the marker display to On. <Procedure> Press After pressing to move to page 2 of the Marker function menu, press (Marker List) to set to On.
  • Page 126 Chapter 4 Marker Function 4-24.

  • Page 127: Trigger Function And Gate Function5-1

    Chapter 5 Trigger Function and Gate Function This chapter describes the trigger function and the gate function. Setting Trigger Function ..........5-2 5.1.1 Trigger sweep ........... 5-5 Setting Gate Function ..........5-10 5.2.1 Gate sweep ............ 5-10 5.2.2 Gate View ............5-15...

  • Page 128: Setting Trigger Function

    Chapter 5 Trigger Function and Gate Function 5.1 Setting Trigger Function Pressing (Trigger/Gate) from the main function menu, or pressing displays the Trigger function menu. The Trigger function menu consists of three pages, which can be toggled by pressing Figure 5.1-1 Trigger/Gate key...
  • Page 129 Setting Trigger Function Table 5.1-1 Trigger function menu Function Menu Display Function Page1 Trigger Press (Trigger/Gate) to display this page. Enables the trigger function. Trigger Switch (On/Off) 5.1.1 “Trigger sweep” Selects the trigger source. Trigger Source 5.1.1 “Trigger sweep” Selects the trigger detection method (rise or Trigger Slope fall).
  • Page 130 5.2.2 “Gate View” With MS2830A-016/116, MS2840A-016/116 installed: When RBW Mode is set to CISPR, the Gate View function cannot be set to On. Also, when the Gate View function is On, the mode cannot be set to CISPR.

  • Page 131: Trigger Sweep

    Setting Trigger Function 5.1.1 Trigger sweep Trigger sweep executes sweep using the specified trigger condition as the start point. A delay time until sweep start can be set through trigger delay. Trigger delay can be set only in the time domain mode. The trigger source can be selected from the following: ...
  • Page 132 , press (dBm) to set the trigger level. Press (Trigger Slope) and select Rise. Note: With MS2840A-051/151 or MS2850A-051/151 installed, the triggers are performed at the same level as when Noise Floor Reduction is Off even if it is On.
  • Page 133 Setting Trigger Function (2) Wide IF video trigger An IF signal with a wide passing band of about 50 MHz or greater is detected, and sweep starts in synchronization with either the rise or fall of the detected signal. Setting range and resolution for trigger level (wide IF video trigger) Setting range: 60 to +50 dBm Resolution:...
  • Page 134 Chapter 5 Trigger Function and Gate Function (4) Frame Trigger An equipment-internal trigger signal is used to generate a trigger and start the sweep. The generation period (Period) and offset time (Offset) for the trigger signal can be set. It is also possible to resynchronize the trigger signal with either the Wide IF Video signal or an external trigger.
  • Page 135 Sweep starts in synchronization with the rise or fall of the marker signal output of the Vector Signal Generator Option. This function allows measurement in synchronization with the output signal of the Option 020/120, 021/121. For the marker signal settings, refer to the MS2830A/MS2840A Vector Signal Generator Operation Manual (Operation) <Procedure> Press...

  • Page 136: Setting Gate Function

    Chapter 5 Trigger Function and Gate Function 5.2 Setting Gate Function 5.2.1 Gate sweep Gate sweep executes sweep only for the length of time specified with the gate length. The sweep start point is determined by adding a delay time specified with the gate delay to the time when the trigger condition is met.
  • Page 137 Setting Gate Function (1) Wide IF video trigger An IF signal with a wide passing band of approximately 5 MHz or greater is detected and sweep starts in synchronization with either the rise or fall of that signal. Example: To set the gate delay to 100 ns, gate length to 500  s, and gate level to ...
  • Page 138 Chapter 5 Trigger Function and Gate Function (2) External trigger Sweep is executed only for the gate length time, using the rise or fall of the signal input to the External Input connector as the start point. Example: To set the gate delay to 100  s, gate length to 300  s, and gate slope to Fall <Procedure>...
  • Page 139 Setting Gate Function (3) Frame trigger An equipment-internal trigger signal is used to generate a trigger and start the sweep. The generation period (Period) and offset time (Offset) for the trigger signal can be set. It is also possible to resynchronize the trigger signal with either the Wide IF Video signal or an external trigger.
  • Page 140 Gate sweep starts in synchronization with the rise or fall of the marker signal output from MS2830A-020/120/021/121 or MS2840A-020/120/021/121. Measurement can be done in synchronization with the output signal through this function. For the marker signal MS2830A/MS2840A Vector Signal Generator...

  • Page 141: Gate View

    Setting Gate Function 5.2.2 Gate View This section describes the gate view. An assistant view (the gate view) for setting up the gate sweep segment is displayed on the lower part of the screen when Gate View is set to On. By using the gate view, you can set up the gate sweep segment while checking the spectrum.
  • Page 142 30 Hz, 100 Hz, 300 Hz, 500 Hz, 1 kHz, 3 kHz, 10 RBW Value kHz, 30 kHz, 50 kHz, 100 kHz, 300 kHz, 1 MHz, 2 MHz, 3 MHz, 5 MHz, 10 MHz, 20 MHz, 31.25 MHz* Available when MS2830A-005/105/007, MS2840A-005/105 is installed, or MS2850A. 5-16...
  • Page 143 Setting Gate Function Table 5.2.2-2 Gate View Setting function menu (Cont’d) Function Menu Display Function Selects auto setting or manual setting for the video bandwidth (VBW). The value that is the same as or closest to the resolution bandwidth (RBW) is set when Auto (the auto setting) is selected.
  • Page 144 The Pre-Amp On/Off setting for the frequency domain is set and this menu item is disabled Pre-Amp when Spurious Emission is set to Off. (On/Off) Moreover, this menu item is also disabled when the MS2830A-008/108/068/168, MS2840A-008/108/068/168/069/169, or MS2850A-068/168 Preamplifier is not installed. 5-18.

  • Page 145: Chapter 6 Measure Function

    Chapter 6 Measure Function This chapter describes the Measure function of the Spectrum Analyzer function. Selecting Measure Function ......... 6-2 Adjacent Channel Leakage Power Measurement (ACP) ................6-4 Burst Average Power Measurement ......6-12 Channel Power Measurement (Channel Power) ..6-14 Occupied Bandwidth Measurement (Occupied Bandwidth) ..........

  • Page 146: Selecting Measure Function

    Chapter 6 Measure Function 6.1 Selecting Measure Function Pressing (Measure) on page 2 of the main function menu, or pressing displays the Measure function menu. Figure 6.1-1 Measure key Table 6.1-1 Measure function menu Function Menu Display Function Page1 Measure Press to display this page.
  • Page 147 Standard Same function as the Page 1. Note: With MS2830A-016/116, MS2840A-016/116 installed: When RBW Mode is set to CISPR, the Measure function cannot be set to On. Also, when the Measure function is On, the mode cannot be set to CISPR.

  • Page 148: Adjacent Channel Leakage Power Measurement (Acp)

    Chapter 6 Measure Function 6.2 Adjacent Channel Leakage Power Measurement (ACP) Pressing (ACP) on the Measure function menu displays the ACP function menu. Figure 6.2-1 ACP function menu...
  • Page 149 Adjacent Channel Leakage Power Measurement (ACP) Table 6.2-1 ACP function menu Function Menu Display Function Page1 Press (ACP) to display this page. The other Measure functions are set to off when (On/Off) ACP is set to On. Sets the reference power. Span Total: Uses the integral power on the entire screen as a reference.
  • Page 150 Chapter 6 Measure Function Table 6.2-1 ACP function menu (Cont’d) Function Menu Display Function Press (ACP), and then press Page2 display page 2. Set either the Normal or Adv. mode with different Offset setting contents. Offset Setup Mode When Adv. is selected, the measurement results graph display changes because the settable Offset increases.
  • Page 151 Adjacent Channel Leakage Power Measurement (ACP) Pressing (Offset Setup) in the ACP function menu displays Offset Setup function menu. The Offset Setup function menu consists of two pages. Press to change the page. Table 6.2-3 Offset Setup function menu Function Menu Display Function Page1...
  • Page 152 Chapter 6 Measure Function The Offset Setup (Advanced) function menu consists of 8 pages that are toggled by pressing Figure 6.2-2 Offset Setup (Advanced) function menu...
  • Page 153 Adjacent Channel Leakage Power Measurement (ACP) Table 6.2-4 Offset Setup (Advanced) function menu Function Menu Display Function Selects the Offset Number to be edited. Edit Offset Number Range: 1 to 8 Offset (On/Off) Sets the selected Offset Channel On/Off. Sets the offset frequency of the selected Offset Offset Channel.
  • Page 154 Chapter 6 Measure Function The display items for the measurement results when Power Result Type (Table 6.2-1) is set to Offset are described below. Figure 6.2-3 Display items for measurement result Table 6.2-5 Display items for measurement result Display Description Displays the integral power in the screen display band when “ACP Reference”...
  • Page 155 Adjacent Channel Leakage Power Measurement (ACP) The display items for the measurement results when Power Result Type (Table 6.2-1) is set to Carrier are described below. Figure 6.2-4 Display items for the measurement results Table 6.2-6 Display items for the measurement results Display Description Displays the integral power in the screen...

  • Page 156: Burst Average Power Measurement

    Sets the stop position (time) of the Stop Time measurement interval. Sets the noise canceling function On/Off. Measures the internal noise of the MS2830A/MS2840A/MS2850A and deducts the measured noise from the measurement result, when executed. Noise Cancel (On/Off) This function is available only when Standard Parameter is set.
  • Page 157 Burst Average Power Measurement Figure 6.3-1 Display items for measurement result Table 6.3-2 Display items for measurement result Display Description Displays the start position (time) of the Start Time measurement interval. Displays the stop position (time) of the Stop Time measurement interval.

  • Page 158: Channel Power Measurement (Channel Power)

    Chapter 6 Measure Function 6.4 Channel Power Measurement (Channel Power) Press (Channel Power) on the Measure function menu to display the Channel Power function menu. Table 6.4-1 Channel Power function menu Function Menu Display Function Channel Power The other Measure functions are set to Off when (On/Off) Channel Power is set to On.
  • Page 159 Channel Power Measurement (Channel Power) Figure 6.4-1 Display items for measurement results Table 6.4-2 Display items for measurement results Display Description Displays the setting value of the channel Channel Center center frequency. Displays the setting value of the channel Channel Width bandwidth.

  • Page 160: Occupied Bandwidth Measurement (Occupied Bandwidth)

    Chapter 6 Measure Function 6.5 Occupied Bandwidth Measurement (Occupied Bandwidth) Press (Occupied Bandwidth) on the Measure function menu to display the Occupied Bandwidth function menu. Table 6.5-1 Occupied Bandwidth function menu Function Menu Display Function The other Measure functions are set to Off when OBW (On/Off) OBW is set to On.
  • Page 161 Occupied Bandwidth Measurement (Occupied Bandwidth) Figure 6.5-1 Display items for measurement results Table 6.5-2 Display items for measurement results Display Description Displays the occupied bandwidth. Displays the center frequency of the occupied OBW Center bandwidth. Displays the frequency on the left of the OBW Lower occupied bandwidth.

  • Page 162: Spectrum Emission Mask Measurement (Spectrum Emission Mask)

    Chapter 6 Measure Function 6.6 Spectrum Emission Mask Measurement (Spectrum Emission Mask) On the Measure function menu, pressing (Spectrum Emission Mask) displays the Spectrum Emission Mask function menu. Table 6.6-1 Spectrum Emission Mask function menu Function Menu Function Spectrum Emission The other Measure functions are set to Off when Mask (On/Off) Spectrum Emission Mask is set to On.
  • Page 163 Spectrum Emission Mask Measurement (Spectrum Emission Mask) Pressing (Reference Setup) in the Spectrum Emission Mask function menu displays the Reference Setup function menu. The Reference Setup function menu consists of three pages. Press change the page. Table 6.6-2 Reference Setup function menu Function Menu Function...
  • Page 164 Chapter 6 Measure Function Table 6.6-2 Reference Setup function menu (Cont’d) Function Menu Function Press (Reference Setup), and then press Page2 Reference Setup to display page 2. Switches auto/manual setting of RBW when RBW Auto/Manual measuring the reference power. RBW Value Sets RBW when measuring the reference power.
  • Page 165 Spectrum Emission Mask Measurement (Spectrum Emission Mask) Press (Offset Setup) in the Spectrum Emission Mask function menu displays the Offset Setup function menu. The Offset Setup function menu consists of four pages. Press to change the page. Table 6.6-3 Offset Setup function menu Function Menu Function...
  • Page 166 Chapter 6 Measure Function Table 6.6-3 Offset Setup function menu (Cont’d) Function Menu Function Press (Offset Setup), and then press Page3 Offset Setup twice to display page 3. Edit Offset Number Selects Offset to be set. Sweep Time Switches auto/manual setting of Sweep Time Auto/Manual when measuring Offset.
  • Page 167 Spectrum Emission Mask Measurement (Spectrum Emission Mask) On the Spectrum Emission Mask function menu, pressing (Limit Setup) displays the Limit Setup function menu. Table 6.6-4 Limit Setup function menu Function Menu Function Edit Offset Number Selects the offset to be set. Specifies how to judge Pass/Fail.
  • Page 168 Chapter 6 Measure Function Table 6.6-4 Limit Setup function menu (Cont’d) Function Menu Function Sets the absolute level upper limit 1 of the offset ABS1 Start Level start frequency. Sets the absolute level upper limit 1 of the offset ABS1 Stop Level stop frequency.
  • Page 169 Spectrum Emission Mask Measurement (Spectrum Emission Mask) The display items for the measurement results are described below. Figure 6.6-1 Display items for Measurement results Table 6.6-5 Display items for measurement results Display Description Displays the result of Pass/Fail judgment. Result “PASS”...
  • Page 170 Chapter 6 Measure Function Table 6.6-5 Display items for measurement results (Cont’d) Display Description Displays storage mode, storage times, and trace type writing mode. Trace Displays storage count in % for Spectrum parameter Emission Mask. 3.1.2 “Averaging function” The measurement result is initialized (*** is displayed in Result) when a parameter that requires recapture is changed while measurement stops.
  • Page 171 Spectrum Emission Mask Measurement (Spectrum Emission Mask) An error occurs between the IBW setting value and the actual integral width, according to the frequency resolution of trace point. The error (Error [Hz]) is calculated by the following formula:  StopFreq StartFreq ...

  • Page 172: Spurious Emission Measurement

    Chapter 6 Measure Function 6.7 Spurious Emission Measurement Once Spurious Emission measurement has been executed, the segments set in Segment Setup are swept. After the measurement has finished, the result is displayed. Furthermore, the spurious detected by the limit line set in each segment is judged as Pass/Fail.
  • Page 173 Spurious Emission Measurement Table 6.7-1 Description of Spurious Emission Function Menu Function Menu Display Function Page1 Spurious Emission Press (Spurious Emission) to display this page. Spurious Emission When set to On, the other Measure functions are set to Off. (On/Off) Sets the segment to sweep.
  • Page 174 Chapter 6 Measure Function Table 6.7-1 Description of Spurious Emission Function Menu (Cont’d) Function Menu Display Function Displayed Segment Sets Displayed Segment Mode to Auto/Manual. When set to Mode Auto, the setting of Displayed Segment is automatically switched (Auto/Manual) in order to display the segment which is being swept. Selects the contents displayed for Summary Table.
  • Page 175 Spurious Emission Measurement The parameters for Save Spurious Emission Parameter and Recall Spurious Emission Parameter are shown below: Table 6.7-2 Parameters to save/query Parameter All the parameters (except Spurious Emission On/Off) on Spurious Emission menu Frequency Offset On/Off Frequency Offset Value Reference Level Offset On/Off Reference Level Offset Value Frequency Band Mode...
  • Page 176 Chapter 6 Measure Function Table 6.7-3 Descriptions of Segment Setup function menu Function Menu Display Function Page1 Segment Setup Press (Segment Setup) to display this page. Edit Segment Number Sets the segment number. Segment Sets the segment to On/Off. Start Freq Sets the start frequency.
  • Page 177 MS2830A For details of a correction table, see 3.4.10 “Correction” in the Signal Analyzer Operation Manual (Main unit Operation), MS2840A Signal Analyzer Operation Manual (Main unit Operation), or the MS2850A Signal Analyzer Operation Manual (Main unit Operation)
  • Page 178 Chapter 6 Measure Function Pressing (Time Domain Setup) on page 2 of the Spurious Emission function menu displays the Time Domain Setup function menu. Table 6.7-6 Descriptions of Time Domain Setup function menu Function Menu Display Function Edit Segment Number Sets the segment. Sets whether to share the RBW value set in Time Domain Setup.
  • Page 179 Spurious Emission Measurement When Time Domain Measurement is set to On, Time Domain measurement is executed, as Figure 6.7-1 shows. Start Executing the sweep based on parameters in Segment Setup. Repeating the sweep if Storage On If Storage On Spurious Frequency rounded up to the closest integer is F [Hz] Frequency Span is A [Hz] A ≤...
  • Page 180 Chapter 6 Measure Function From Previous Page Executing Time Domain measurement by the following parameters: Center Frequency: F [Hz] Frequency Span: 0 [Hz] Trace Point: 1001 RBW: Time Domain RBW VBW: Time Domain VBW Sweep Time: Time Domain Sweep Time Detection Mode: Time Domain Detection When Gate Sweep is set to On, each Gate Sweep function is used, Instead of each Trigger function, as shown below:...
  • Page 181 Spurious Emission Measurement Pressing (Trace) on the main function menu or displays the Trace function menu. During Spurious Emission measurement, the Trace function menu changes, as shown below: Table 6.7-7 Descriptions of Trace function menu Function Menu Display Function Sets Displayed Segment Mode to Auto/Manual. Displayed Segment When set to Auto, the setting of Displayed Mode...
  • Page 182 Chapter 6 Measure Function Display items of the measurement results are described below: When Result Type is set to Worst, the summary page displays the spurious with the least margin from the limit line set in Limit Setup. Figure 6.7-2 Display items of Spurious Emission measurement result (When Result Type is set to Worst.) 6-38...
  • Page 183 Spurious Emission Measurement Table 6.7-8 Descriptions of Display Items for Spurious Emission measurement results Item Description Displays the trace of the segment. Displays the summary page. Five measurement results are displayed per one page. One page displays the following result: Spurious number Segment: Segment number of the detected...
  • Page 184 Chapter 6 Measure Function When Result Type is set to Peaks, the spurious detected by Search Resolution and Search Threshold set in each segment is displayed on the summary page. Up to 10 spurious can be displayed per one segment. Figure 6.7-3 Display items of Spurious Emission measurement result (When Result Type is set to Peaks) 6-40...
  • Page 185 Spurious Emission Measurement Table 6.7-9 Descriptions of Spurious Emission display items Item Description Displays the trace of the segment. Displays the summary page. Five measurement results are displayed per one page. Up to 10 spurious can be displayed per one segment. Each page displays the following result: Spurious number Segment: Segment number of the detected...

  • Page 186: Two-Tone Third Order Intermodulation Distortion

    Chapter 6 Measure Function 6.8 Two-tone Third Order Intermodulation Distortion By inputting two different frequency CW signals (desired waves), two-tone third order intermodulation distortion is generated close to the desired waves according to non-linear characteristics of DUT. Then, TOI (Third Order Intercept) is calculated from the two-tone third order intermodulation distortion.
  • Page 187 Two-tone Third Order Intermodulation Distortion Table 6.8-1 Description of the TOI function menu Function Menu display Function Appears when pressing (TOI) in Page 1 the Measure function menu. Turns off the other measurement functions if (On/Off) set to On. Frequency Auto Executes the TOI frequency auto tune.
  • Page 188 Chapter 6 Measure Function Figure 6.8-2 Display items for measurement results 6-44...
  • Page 189 Two-tone Third Order Intermodulation Distortion Table 6.8-2 Description of display items for measurement results Item Description Displays the calculated TOI. The Worst TOI (dBm) value (lower) between two calculated values (lower and upper) is displayed. Displays the level ratio of two-tone third-order intermodulation distortion to the Amplitude (dBc) desired wave.

  • Page 190: Internal Signal Generator Control Function

    Chapter 6 Measure Function 6.9 Internal Signal Generator Control Function This function is available for MS2830A only when MS2830A-052/152/352 is installed. DUT characters are evaluated by controlling Signal Generator from Spectrum Analyzer. Display the 2nd page by pressing in the Measure function menu, then press (SG Control) to display the SG Control Function menu.
  • Page 191 Internal Signal Generator Control Function Table 6.9-1 SG Control function menu (Cont’d) Function Menu Display Function Displays a bandwidth between two points N dB below the selected peak marker point. N dB Bandwidth Displayed only on MS2830A. 4.1.9 “Setting N dB Bandwidth” Selects the frequency switching speed.

  • Page 192: Setting Internal Signal Generator Control Function

    Chapter 6 Measure Function 6.9.1 Setting Internal Signal Generator Control Function Setting Internal Signal Generator Control Press (SG Control) in the SG Control Function menu to run the Internal Signal Generator Control function. When SG Control is On, the SG is controlled and DUT characteristics can be evaluated. However, when SG Output is Off, RF output is not executed from the SG.

  • Page 193: Chapter 7 Other Functions

    Chapter 7 Other Functions This chapter describes the other functions of the Spectrum Analyzer function. Selecting Other Function ..........7-2 Setting Title ..............7-3 Erasing Warmup Message ........... 7-4 Setting Uncal Message ..........7-5 Adjusting Internal Reference Frequency Signal ... 7-6 Input Source for Reference Frequency Signal .....

  • Page 194: Selecting Other Function

    Adjusts the internal reference frequency signal. Reference Clock 7.5 “Adjusting Internal Reference Frequen cy Signal” Opens the Preselector function menu. This function is available for MS2830A-044/045, Preselector MS2840A-044/046, or MS2850A. This function is not available when External Mixer is turned On.

  • Page 195: Setting Title

    Setting Title 7.2 Setting Title A title of up to 32 characters can be displayed on the screen. (Character strings of up to 17 characters can be displayed on a function menu.) <Procedure> Press (Accessory) on page 2 of the main function menu. Press (Title) to display the character string input screen.

  • Page 196: Erasing Warmup Message

    Chapter 7 Other Functions 7.3 Erasing Warmup Message If the warmup message ( ) indicating that the level and frequency are not stable is displayed upon power on, the message can be deleted. <Procedure> Press (Accessory) on page 2 of the main function menu. Press (Erase Warm Up Message) to delete the warmup message.

  • Page 197: Setting Uncal Message

    Setting Uncal Message 7.4 Setting Uncal Message The Spectrum Analyzer function can also execute measurements when values for which the results cannot be guaranteed are set. In this case, the Uncal message is displayed on the screen. Display of the Uncal message can be switched on/off.

  • Page 198: Adjusting Internal Reference Frequency Signal

    Chapter 7 Other Functions 7.5 Adjusting Internal Reference Frequency Signal Pressing (Reference Clock) from the Accessory function menu displays the Reference Clock function menu. Table 7.5-1 Reference Clock function menu Function Menu Display Function Adjusts the frequency of the internal reference Reference Clock frequency signal.

  • Page 199: Input Source For Reference Frequency Signal

    Input Source for Reference Frequency Signal 7.6 Input Source for Reference Frequency Signal The reference frequency signal used is displayed on the screen. Ref.Int : The internal reference frequency signal is used. Ref.Int Unlock : The internal reference frequency signal is unlocked. The internal hardware may be faulty.

  • Page 200: Pre-Amp On/Off Display

    Chapter 7 Other Functions 7.7 Pre-Amp On/Off Display If the MS2830A-008/108, MS2840A-008/108 pre-amp, MS2830A-068/168, MS2840A-068/168/069/169, or MS2850A-068/168 Microwave Preamplifier is installed, whether the pre-amp is on or off is displayed at the lower left of the screen. Figure 7.7-1 Pre-Amp On/Off display...

  • Page 201: Preselector Tuning

    Preselector Tuning 7.8 Preselector Tuning Note: This function is available with MS2830A-044/045, MS2840A-044/046, MS2850A. This function is not available when External Mixer is turned On. Pressing (Preselector) from the Accessory function menu displays the Preselector function menu. Automatic preselector tuning (Preselector Auto Tune) can be executed...
  • Page 202 Chapter 7 Other Functions MS2830A-044/045, MS2840A-044/046, MS2850A employs a preselector to eliminate unexpected responses such as image responses and multiple responses in order to let only the real signals appear on the display. The preselector is a tunable band-pass filter that follows the reception frequency of the analyzer.

  • Page 203: Chapter 8 External Mixer

    Chapter 8 External Mixer This section describes the operation of the external mixer and measurement procedure using examples. External Mixer Overview ..........8-2 External Mixer ............... 8-3 Connecting External Mixer ..........8-8 Setting Band of External Mixer ........8-9 Setting External Mixer Bias ......... 8-11 Setting Conversion Loss ..........

  • Page 204: External Mixer Overview

    8.1 External Mixer Overview External Mixer function is MS2830A-044/045, MS2840A-044/046, MS2850A dedicated function. The frequency range of MS2830A-044/045, MS2840A-044/046, MS2850A extends up to 325 GHz by using optional external mixer. MA2806A, MA2808A, and MA2743C to 51C are products designed for exclusive use with MS2830A, MS2840A, or MS2850A.

  • Page 205: External Mixer

    Page 2 Frequency menu. Turn on when using external mixer. This function is External Mixer* available with MS2830A-044/045, MS2840A-044/046, or (On/Off) MS2850A. Opens the Ext Band Select menu. This function is available with MS2830A-044/045, MS2840A-044/046, or External Mixer Band MS2850A.
  • Page 206 MS2850A. This function is available when External Mixer Cable Loss is turned On. 8.10 “Setting External Mixer Cable Loss” Turn this on when using Signal ID function. This function is available with MS2830A-044/045, MS2840A-044/046, or Signal ID* MS2850A. (On/Off) 8.7 “Distinguishing measured signal - Signal ID”...
  • Page 207 Page 3 Frequency menu. Executes the External Mixer Calibration function. This function is available with MS2830A-044/045, MS2840A-044/046, or MS2850A. This function cannot be External Mixer performed without High Performance Waveguide Mixer or Calibration* when External Mixer is turned Off. 8.11 “External Mixer Calibration Function”...
  • Page 208 Reference Level 2.4.1 “Setting reference level” When External Mixer is turned On. Sets the External Mixer Cable Loss. This function is available with MS2830A-044/045, MS2840A-044/046, or MS2850A. Cable Loss 8.10 “Setting External Mixer Cable Loss” Attenuator function is not available when External Mixer is turned On.
  • Page 209 Micro Wave Preselector MS2830A Signal Analyzer Operation Manual Bypass (Mainframe Operation), 1.3.13 “MS2830A-067/167n, (On/Off) 1.3.14 “MS2830A-0070, or MS2840A Signal Analyzer Operation Manual (Mainframe Operation), 1.3.15 “MS2840A-067/167, or MS2850A Signal Analyzer Operation Manual (Mainframe Operation), 1.3.6 “MS2850A-067. Measure function cannot be set to On when Signal ID is On.

  • Page 210: Connecting External Mixer

    8.3 Connecting External Mixer Fix the external mixer to the device under test. Using the coaxial cable, connect the external mixer to the 1st Local Output on the front panel of MS2830A or MS2840A or MS2850A. 1st Local Output connector Coaxial cable Ext mixer Figure 8.3-1 External Mixer Connection...

  • Page 211: Setting Band Of External Mixer

    Mixing order (n) 26+ 170-260 GHz Band J+ Harmonic Mixer Band J+ Mixing order (n) 33+ 220-325 GHz When selecting the Band V+ High Performance 50-75 GHz, the MS2830A/MS2840A/MS2850A should be combined with the High Performance Waveguide Mixer (50 to 75 GHz).
  • Page 212 Chapter 8 External Mixer When selecting the Band E– High Performance 60-90 GHz, the MS2830A/MS2840A/MS2850A should be combined with the High Performance Waveguide Mixer (60 to 90 GHz). The below equation shows the measurable side band phase noise on the selected band.

  • Page 213: Setting External Mixer Bias

    Setting External Mixer Bias 8.5 Setting External Mixer Bias Sets the External Mixer Bias. Press (External Mixer Bias) on Page 2 of the Frequency function menu, and use the numeric keypad or rotary knob to input so that the received signal level becomes maximum. The displayed value indicates the biased current (mA).

  • Page 214: Setting Conversion Loss

    Chapter 8 External Mixer 8.6 Setting Conversion Loss Sets the External Mixer Conversion Loss. If an accurate level measurement is necessary, use the value which was calibrated by the power meter. By default, this unit is adjusted to display the level that is derived from adding the input level of the IF frequency signal for CW (1875 MHz) to the 1st Local Output connector, the external mixer's conversion loss value, Cable loss value, and Correction value.
  • Page 215 Setting Conversion Loss Level (dBm) Fb Frequency (Hz) Correction Factor Input Range Figure 8.6-1 Operation When Correction Factors Are Entered 8-13...

  • Page 216: Setting Conversion Loss Table

    Chapter 8 External Mixer 8.6.1 Setting Conversion Loss Table This executes loading of the External Mixer Conversion Loss Table. Connect the USB memory stick supplied with the High Performance Waveguide Mixer. Press (Conversion Loss Table) on External Mixer Conversion Loss function menu to load the External Mixer Conversion Loss Table from the USB memory stick.

  • Page 217: Distinguishing Measured Signal - Signal Id

    Distinguishing measured signal - Signal ID 8.7 Distinguishing measured signal - Signal ID In case of receiving unknown signals, be sure to turn on the Signal ID function. Signal ID will be enabled by the following procedure below. On the second page of the Frequency function menu, press (Signal ID On Off).
  • Page 218 Chapter 8 External Mixer Signal ID cannot be set to On when Measure function is On. Signal ID cannot be set to On when PS function is On. When using the High Performance Waveguide Mixer (60 to 90 GHz), Signal ID cannot be turned ON if the start frequency is below 61.875 GHz.

  • Page 219: Setting Signal Id Mode

    Displays the sweep results of different polarities Image Suppress as a single result after Minimum processing. When Signal ID is ON, MS2830A/MS2840A/MS2850A inverts polarity against local signal per sweep. At that time, the result is displayed in Signal ID Mode as below.

  • Page 220: Setting Ps Function

    Chapter 8 External Mixer 8.9 Setting PS Function Sets the PS function of the external mixer. Press (PS Center On Off) on Page 2 of the Frequency function menu. This function reverses the frequency polarity of the external mixer at the center frequency and displays the sweep result of the two polarities.

  • Page 221: Setting External Mixer Cable Loss

    When an accurate level measurement is necessary, perform level calibration of the external mixer, using the value calibrated by the power meter. The MS2830A/MS2840A/MS2850A displays a level calibration value to which External Mixer Conversion Loss, Cable Loss, and Correction are added.
  • Page 222 Figure 8.10-2 Correction of the calibration signal Calibration signal input Connect the calibrated signal to the External Mixer port (1st Local Output port) of the MS2830A, MS2840A, or MS2850A by using the coaxial cable for connecting the external mixer. Ref 10MHz...
  • Page 223 8.10 Setting External Mixer Cable Loss MS2830A, MS2840A, MS2850A setting Set up the MS2830A, MS2840A or MS2850A as below. Configuration screen Correction ● Correction (On/Off): Spectrum Analyzer screen Frequency ● External Mixer (On/Off): ● External Mixer Band Select: Select the used band ●...

  • Page 224: External Mixer Calibration Function

    Chapter 8 External Mixer 8.11 External Mixer Calibration Function When an accurate level measurement is necessary, execute the External Mixer Calibration function. Input the signal calibrated by the power meter to 1st Local Output port and press (External Mixer Calibration) on Page 3 of Frequency function menu.
  • Page 225 Figure 8.11-2 Correction of the calibration signal Calibration signal input Connect the calibrated signal to the External Mixer port (1st Local Output port) of the MS2830A, MS2840A, or MS2850A by using the coaxial cable for connecting the external mixer. Ref 10MHz...
  • Page 226 Chapter 8 External Mixer Performing External Mixer Calibration Press (External Mixer Calibration) to calibrate 1st Local Output port. 8-24.

  • Page 227: Chapter 9 Noise Floor Reduction

    Chapter 9 Noise Floor Reduction This section describes the operation of the Noise Floor Reduction and measurement procedure using examples. Overview of Noise Floor Reduction ......9-2 Noise Floor Reduction ..........9-3 Acquiring Noise Floor Calibration Values ..... 9-5 9.3.1 Acquiring noise floor calibration values for using RF input ..........

  • Page 228: Overview Of Noise Floor Reduction

    Chapter 9 Noise Floor Reduction 9.1 Overview of Noise Floor Reduction The Noise Floor Reduction function is available when MS2840A-051/151 or MS2850A-051/151 is installed. To use the Noise Floor Reduction function in the external mixer, MS2840A should be installed with MS2840A-044/046 in addition to...

  • Page 229: Noise Floor Reduction

    Attenuator 2.4.2 “Setting input attenuator” Sets Pre-amp to On/Off. This is displayed only when MS2830A-008/108/068/168, Pre-amp MS2840A-008/108/068/168/069/169, MS2850A-068/168 Preamplifier is installed. 2.4.6 “Pre-amp” Sets the level display unit to be used during log scale. Log Scale Unit 2.4.4 “Setting reference level unit”...
  • Page 230 Noise Floor Reduction Info. 9.5 “Displaying Information of Noise Floor Calibration” and, MS2840A Signal Analyzer Operation Manual (Mainframe Operation), 3.3 “Auto Calibration” or MS2850A Signal Analyzer Operation Manual (Mainframe Operation), 3.3 “Auto Calibration” Enables (On) or disables (Off) Noise Floor Reduction.

  • Page 231: Acquiring Noise Floor Calibration Values

    9.3.1 Acquiring noise floor calibration values for using RF input The noise floor calibration values are stored installed with MS2840A-051/151 or MS2850A-051/151. Thus, Noise Floor Reduction can be used without acquiring calibration values when performing a measurement using the RF Input.

  • Page 232: Acquiring Noise Floor Calibration Values For Using External Mixer

    Fix the terminator to the external mixer. Using the coaxial cable, connect the external mixer to the 1st Local Output on the MS2840A or MS2850A front panel. Press (Cal) to display the Cal function menu. Press (more) to show the second page.
  • Page 233 Acquiring Noise Floor Calibration Values ● It takes 20 to 30 minutes to acquire the noise floor calibration values. Do not power off or operate when acquiring the calibration values. ● When a waveguide terminator can't be used, it is possible to use an attenuator with the attenuation beyond 20 dB.

  • Page 234: Using Noise Floor Reduction

    Chapter 9 Noise Floor Reduction 9.4 Using Noise Floor Reduction To perform Noise Floor Reduction, take the following procedure to enable the function. Press (Amplitude) on Page 1 of the main function menu, or press to display the Amplitude function menu. Press (more) to show the second page.

  • Page 235: Displaying Information Of Noise Floor Calibration

    Displaying Information of Noise Floor Calibration 9.5 Displaying Information of Noise Floor Calibration Take the following procedure to display the temperature at the execution of Analyze Noise Floor or Analyze External Mixer Noise Floor and the elapsed time after the execution. Press (Amplitude) on Page 1 of the main function menu, or press...
  • Page 236 Chapter 9 Noise Floor Reduction 9-10.

  • Page 237: Appendix A Specifications

    Appendix A Specifications Table A-1 Error Messages Message Explanation Out of range. The settable range is exceeded. This operation is invalid during frequency domain Not available in Frequency Domain. display. This operation is invalid during time domain Not available in Time Domain. display.
  • Page 238 Appendix A Specifications Table A-1 Error Messages (Cont’d) Message Explanation This operation is invalid when SG Marker Trigger is Not available in SG Marker Trigger. used. Not available if not Vector Signal Generator This operation is invalid when Vector Signal option.
  • Page 239 Displayed Segment Mode is set to Auto. when Displayed Segment Mode is set to Auto. Available in remote control state with This command can use only when the Spurious Emission paused. MS2830A/MS2840A/MS2850A is set to remote control state and Spurious Emission is paused.
  • Page 240 Appendix A Specifications Table A-1 Error Messages (Cont’d) Message Explanation Not available when Gate View is set to Off. The operation is invalid when Gate View is set to Off. Not available when all traces are set to Blank. The operation is invalid when all traces are set to Blank.
  • Page 241 Appendix A Specifications Table A-1 Error Messages (Cont’d) Message Explanation Not available in External Mixer Off. External Mixer Band Select, External Mixer Bias, Conversion Loss, Cable Loss, Signal ID, Signal ID Mode cannot be set with External Mixer set to Off. External Mixer Calibration cannot be performed when External Mixer is Off.
  • Page 242 Appendix A Specifications Table A-1 Error Messages (Cont’d) Message Explanation Not available when Math isn’ t set to Off. The attempted operation is invalid when Math is set to other than Off. Not available in Normalize On. The attempted operation is invalid when Normalize is On.

  • Page 243: Appendix B Ms2830A Default Value List

    Appendix B MS2830A Default Value List MS2830A Frequency Center 1.8 GHz (MS2830A-040) 3 GHz (MS2830A-041) 6.75 GHz (MS2830A-043) 13.25 GHz (MS2830A-044) 21.5 GHz (MS2830A-045) Start 0 Hz Stop 3.6 GHz (MS2830A-040) 6 GHz (MS2830A-041) 13.5 GHz (MS2830A-043) 26.5 GHz (MS2830A-044) 43 GHz (MS2830A-045) Switching Speed...
  • Page 244 Appendix B MS2830A Default Value List Log Scale Line Offset Off, 0 dB Pre-amp Auto, 3 MHz Auto, 3 MHz VBW Mode Power Marker Active Marker Marker1 Marker Mode Normal Zone Width 360 MHz (MS2830A-040) 600 MHz (MS2830A-041) 1.35 GHz (MS2830A-043) 2.65 GHz (MS2830A-044)
  • Page 245 Appendix B MS2830A Default Value List Trace-A Storage Mode Trace-B Storage Mode Trace-C Storage Mode Trace-D Storage Mode Trace-E Storage Mode Trace-F Storage Mode Storage Count Limits Limit 1 to 6 Type Limit Display Limit Test Margin Margin Value 0 dB Edit Point Frequency...
  • Page 246 Appendix B MS2830A Default Value List Trigger/Gate Trigger Switch Trigger Source Video Trigger Slope Rise Trigger Level (Video) −40 dBm Trigger Level (Wide IF Video) −20 dBm Trigger Hold Trigger Hold 100 µ s Trigger Delay Gate Sweep Gate View Gate Delay Gate Length 1.0 ms...
  • Page 247 Appendix B MS2830A Default Value List Time/Sweep Sweep Time (Frequency Domain) Auto, 1 ms (MS2830A-040) Auto, 2 ms (MS2830A-041) Auto, 4 ms (MS2830A-043) Auto, 89 ms (MS2830A-044) Auto, 86 ms (MS2830A-045) Sweep Time (Time Domain) 100 ms Auto Sweep Time Select Fast Auto Sweep Type Rules Dynamic Range...
  • Page 248 Appendix B MS2830A Default Value List Measure On/Off ACP Reference Both Sides of Carriers Offset Ch BW 3.84 MHz Carrier BW 3.84 MHz In Band Center Center Frequency Carrier Spacing 5 MHz Offset-1 On, 5 MHz Offset-2 On, 10 MHz Offset-3 Off, 15 MHz In Band Filter Type...
  • Page 249 Appendix B MS2830A Default Value List Spectrum Emission Mask On/Off Limit Side Both Result Type Peak Reference Mode Channel Reference Power 0 dBm Channel BW 3.84 MHz Attenuator Auto, 10 dB RBW Auto/Manual Manual, 30 kHz VBW Auto/Manual Auto, 30 kHz VBW Mode Power Sweep Time...
  • Page 250 Appendix B MS2830A Default Value List Offset-2 Offset Start Freq 2.715 MHz Stop Freq 3.515 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 30 kHz Auto, 30 kHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select Fast Detection Trace Point...
  • Page 251 Appendix B MS2830A Default Value List Offset-4 Offset Start Freq 4 MHz Stop Freq 8 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 1 MHz Auto, 1 MHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select Fast Detection Trace Point...
  • Page 252 Appendix B MS2830A Default Value List Offset-6 Offset Start Freq 12.5 MHz Stop Freq 15 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 1 MHz Auto, 30 kHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select Fast Detection Trace Point...
  • Page 253 Appendix B MS2830A Default Value List Segment-1 Segment Setup Segment MS2830A-040 : On MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 9 kHz MS2830A-041 : 9 kHz MS2830A-043 : 9 kHz MS2830A-044 : 9 kHz MS2830A-045 : 9 kHz Stop Freq MS2830A-040 : 150 kHz...
  • Page 254 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 1 kHz MS2830A-041 : On, 1 kHz MS2830A-043 : On, 1 kHz MS2830A-044 : On, 1 kHz...
  • Page 255 Appendix B MS2830A Default Value List Segment-2 Segment Setup Segment MS2830A-040 : On MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 150 kHz MS2830A-041 : 150 kHz MS2830A-043 : 150 kHz MS2830A-044 : 150 kHz MS2830A-045 : 150 kHz Stop Freq MS2830A-040 : 30 MHz...
  • Page 256 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 10 kHz MS2830A-041 : On, 10 kHz MS2830A-043 : On, 10 kHz MS2830A-044 : On, 10 kHz...
  • Page 257 Appendix B MS2830A Default Value List Segment-3 Segment Setup Segment MS2830A-040 : On MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 30 MHz MS2830A-041 : 30 MHz MS2830A-043 : 30 MHz MS2830A-044 : 30 MHz MS2830A-045 : 30 MHz Stop Freq MS2830A-040 : 1 GHz...
  • Page 258 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 100 kHz MS2830A-041 : On, 100 kHz MS2830A-043 : On, 100 kHz MS2830A-044 : On, 100 kHz...
  • Page 259 Appendix B MS2830A Default Value List Segment-4 Segment Setup Segment MS2830A-040 : On MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 1 GHz MS2830A-044 : 1 GHz MS2830A-045 : 1 GHz Stop Freq MS2830A-040 : 2 GHz...
  • Page 260 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 1 MHz MS2830A-041 : On, 1 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 261 Appendix B MS2830A Default Value List Segment-5 Segment Setup Segment MS2830A-040 : On MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 2 GHz MS2830A-041 : 2 GHz MS2830A-043 : 2 GHz MS2830A-044 : 2 GHz MS2830A-045 : 2 GHz Stop Freq MS2830A-040 : 3 GHz...
  • Page 262 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 1 MHz MS2830A-041 : On, 1 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 263 Appendix B MS2830A Default Value List Segment-6 Segment Setup Segment MS2830A-040 : On MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 3 GHz MS2830A-041 : 3 GHz MS2830A-043 : 3 GHz MS2830A-044 : 3 GHz MS2830A-045 : 3 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 264 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 1 MHz MS2830A-041 : On, 1 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 265 Appendix B MS2830A Default Value List Segment-7 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 4 GHz MS2830A-043 : 4 GHz MS2830A-044 : 4 GHz MS2830A-045 : 4 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 266 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 1 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 267 Appendix B MS2830A Default Value List Segment-8 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : On MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 5 GHz MS2830A-043 : 5 GHz MS2830A-044 : 5 GHz MS2830A-045 : 5 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 268 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 1 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 269 Appendix B MS2830A Default Value List Segment-9 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 6 GHz MS2830A-044 : 6 GHz MS2830A-045 : 6 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 270 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 271 Appendix B MS2830A Default Value List Segment-10 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 7 GHz MS2830A-044 : 7 GHz MS2830A-045 : 7 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 272 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 273 Appendix B MS2830A Default Value List Segment-11 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 8 GHz MS2830A-044 : 8 GHz MS2830A-045 : 8 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 274 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 275 Appendix B MS2830A Default Value List Segment-12 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 9 GHz MS2830A-044 : 9 GHz MS2830A-045 : 9 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 276 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 277 Appendix B MS2830A Default Value List Segment-13 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 10 GHz MS2830A-044 : 10 GHz MS2830A-045 : 10 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 278 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 279 Appendix B MS2830A Default Value List Segment-14 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 11 GHz MS2830A-044 : 11 GHz MS2830A-045 : 11 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 280 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 281 Appendix B MS2830A Default Value List Segment-15 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : On MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 12 GHz MS2830A-044 : 12 GHz MS2830A-045 : 12 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 282 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 283 Appendix B MS2830A Default Value List Segment-16 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : Off MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 1 GHz MS2830A-044 : 14 GHz MS2830A-045 : 14 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 284 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 285 Appendix B MS2830A Default Value List Segment-17 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : Off MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 1 GHz MS2830A-044 : 18 GHz MS2830A-045 : 18 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 286 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 287 Appendix B MS2830A Default Value List Segment-18 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : Off MS2830A-044 : On MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 1 GHz MS2830A-044 : 24 GHz MS2830A-045 : 24 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 288 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 1 MHz...
  • Page 289 Appendix B MS2830A Default Value List Segment-19 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : Off MS2830A-044 : Off MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 1 GHz MS2830A-044 : 1 GHz MS2830A-045 : 32 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 290 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 3 MHz...
  • Page 291 Appendix B MS2830A Default Value List Segment-20 Segment Setup Segment MS2830A-040 : Off MS2830A-041 : Off MS2830A-043 : Off MS2830A-044 : Off MS2830A-045 : On Start Freq MS2830A-040 : 1 GHz MS2830A-041 : 1 GHz MS2830A-043 : 1 GHz MS2830A-044 : 1 GHz MS2830A-045 : 42 GHz Stop Freq MS2830A-040 : 3.6 GHz...
  • Page 292 Appendix B MS2830A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2830A-040 : On, 3 MHz MS2830A-041 : On, 3 MHz MS2830A-043 : On, 1 MHz MS2830A-044 : On, 3 MHz...
  • Page 293 Appendix B MS2830A Default Value List Signal Generator Control On/Off SG Output Level –40 dBm (except below) –136 dBm (with MS2830A-022/122) SG Output On/Off B-51...
  • Page 294 Appendix B MS2830A Default Value List B-52.

  • Page 295: Appendix C Ms2840A Default Value List

    Appendix C MS2840A Default Value List MS2840A Frequency Center 1.8 GHz (MS2840A-040) 3 GHz (MS2840A-041) 13.25 GHz (MS2840A-044) 22.25 GHz (MS2840A-046) Start 0 Hz Stop 3.6 GHz (MS2840A-040) 6 GHz (MS2840A-041) 26.5 GHz (MS2840A-044) 44.5 GHz (MS2840A-046) Switching Speed Normal (Best Phase Noise)
  • Page 296 Appendix C MS2840A Default Value List Offset Off, 0 dB Pre-amp Noise Floor Reduction Auto, 3 MHz Auto, 3 MHz VBW Mode Power Marker Active Marker Marker1 Marker Mode Normal Zone Width 360 MHz (MS2840A-040) 600 MHz (MS2840A-041) 2.65 GHz (MS2840A-044) 4.45 GHz...
  • Page 297 Appendix C MS2840A Default Value List Trace-C Storage Mode Trace-D Storage Mode Trace-E Storage Mode Trace-F Storage Mode Storage Count Limits Limit 1 to 6 Type Limit Display Limit Test Margin Margin Value 0 dB Edit Point Frequency Center Frequency...
  • Page 298 Appendix C MS2840A Default Value List Trigger/Gate Trigger Switch Trigger Source Video Trigger Slope Rise Trigger Level (Video) −40 dBm Trigger Level (Wide IF Video) −20 dBm Trigger Hold Trigger Hold 100 µ s Trigger Delay Gate Sweep Gate View...
  • Page 299 Appendix C MS2840A Default Value List Time/Sweep Sweep Time (Frequency Domain) Auto, 1 ms (MS2840A-040) Auto, 2 ms (MS2840A-041) Auto, 89 ms (MS2840A-044) Auto, 86 ms (MS2840A-046) Sweep Time (Time Domain) 100 ms Auto Sweep Time Select Fast Auto Sweep Type Rules Dynamic Range ≤...
  • Page 300 Appendix C MS2840A Default Value List Measure On/Off ACP Reference Both Sides of Carriers Offset Ch BW 3.84 MHz Carrier BW 3.84 MHz In Band Center Center Frequency Carrier Spacing 5 MHz Offset-1 On, 5 MHz Offset-2 On, 10 MHz...
  • Page 301 Appendix C MS2840A Default Value List Spectrum Emission Mask On/Off Limit Side Both Result Type Peak Reference Mode Channel Reference Power 0 dBm Channel BW 3.84 MHz Attenuator Auto, 10 dB RBW Auto/Manual Manual, 30 kHz VBW Auto/Manual Auto, 30 kHz...
  • Page 302 Appendix C MS2840A Default Value List Offset-2 Offset Start Freq 2.715 MHz Stop Freq 3.515 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 30 kHz Auto, 30 kHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select...
  • Page 303 Appendix C MS2840A Default Value List Offset-4 Offset Start Freq 4 MHz Stop Freq 8 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 1 MHz Auto, 1 MHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select...
  • Page 304 Appendix C MS2840A Default Value List Offset-6 Offset Start Freq 12.5 MHz Stop Freq 15 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 1 MHz Auto, 30 kHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select...
  • Page 305 Appendix C MS2840A Default Value List Segment-1 Segment Setup Segment MS2840A-040 : On MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 9 kHz MS2840A-041 : 9 kHz MS2840A-044 : 9 kHz MS2840A-046 : 9 kHz...
  • Page 306 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 1 kHz MS2840A-041 : On, 1 kHz MS2840A-044 : On, 1 kHz MS2840A-046 : On, 1 kHz...
  • Page 307 Appendix C MS2840A Default Value List Segment-2 Segment Setup Segment MS2840A-040 : On MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 150 kHz MS2840A-041 : 150 kHz MS2840A-044 : 150 kHz MS2840A-046 : 150 kHz...
  • Page 308 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 10 kHz MS2840A-041 : On, 10 kHz MS2840A-044 : On, 10 kHz MS2840A-046 : On, 10 kHz...
  • Page 309 Appendix C MS2840A Default Value List Segment-3 Segment Setup Segment MS2840A-040 : On MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 30 MHz MS2840A-041 : 30 MHz MS2840A-044 : 30 MHz MS2840A-046 : 30 MHz...
  • Page 310 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 100 kHz MS2840A-041 : On, 100 kHz MS2840A-044 : On, 100 kHz MS2840A-046 : On, 100 kHz...
  • Page 311 Appendix C MS2840A Default Value List Segment-4 Segment Setup Segment MS2840A-040 : On MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 1 GHz MS2840A-046 : 1 GHz...
  • Page 312 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 1 MHz MS2840A-041 : On, 1 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 313 Appendix C MS2840A Default Value List Segment-5 Segment Setup Segment MS2840A-040 : On MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 2 GHz MS2840A-041 : 2 GHz MS2840A-044 : 2 GHz MS2840A-046 : 2 GHz...
  • Page 314 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 1 MHz MS2840A-041 : On, 1 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 315 Appendix C MS2840A Default Value List Segment-6 Segment Setup Segment MS2840A-040 : On MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 3 GHz MS2840A-041 : 3 GHz MS2840A-044 : 3 GHz MS2840A-046 : 3 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 316 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 1 MHz MS2840A-041 : On, 1 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 317 Appendix C MS2840A Default Value List Segment-7 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 4 GHz MS2840A-044 : 4 GHz MS2840A-046 : 4 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 318 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 1 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 319 Appendix C MS2840A Default Value List Segment-8 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : On MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 5 GHz MS2840A-044 : 5 GHz MS2840A-046 : 5 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 320 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 1 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 321 Appendix C MS2840A Default Value List Segment-9 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 6 GHz MS2840A-046 : 6 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 322 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 323 Appendix C MS2840A Default Value List Segment-10 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 7 GHz MS2840A-046 : 7 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 324 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 325 Appendix C MS2840A Default Value List Segment-11 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 8 GHz MS2840A-046 : 8 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 326 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 327 Appendix C MS2840A Default Value List Segment-12 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 9 GHz MS2840A-046 : 9 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 328 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 329 Appendix C MS2840A Default Value List Segment-13 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 10 GHz MS2840A-046 : 10 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 330 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 331 Appendix C MS2840A Default Value List Segment-14 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 11 GHz MS2840A-046 : 11 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 332 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 333 Appendix C MS2840A Default Value List Segment-15 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 12 GHz MS2840A-046 : 12 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 334 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 335 Appendix C MS2840A Default Value List Segment-16 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 14 GHz MS2840A-046 : 14 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 336 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 337 Appendix C MS2840A Default Value List Segment-17 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 18 GHz MS2840A-046 : 18 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 338 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 339 Appendix C MS2840A Default Value List Segment-18 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : On MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 24 GHz MS2840A-046 : 24 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 340 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 1 MHz MS2840A-046 : On, 1 MHz...
  • Page 341 Appendix C MS2840A Default Value List Segment-19 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : Off MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 1 GHz MS2840A-046 : 32 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 342 Appendix C MS2840A Default Value List Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz MS2840A-041 : On, 3 MHz MS2840A-044 : On, 3 MHz MS2840A-046 : On, 1 MHz...
  • Page 343 Appendix C MS2840A Default Value List Segment-20 Segment Setup Segment MS2840A-040 : Off MS2840A-041 : Off MS2840A-044 : Off MS2840A-046 : On Start Freq MS2840A-040 : 1 GHz MS2840A-041 : 1 GHz MS2840A-044 : 1 GHz MS2840A-046 : 42 GHz Stop Freq MS2840A-040 : 3.6 GHz...
  • Page 344 Appendix C MS2840A Default Value List Pause before Sweep Correction Common Preamp Limit Setup Start Level −13 dBm Stop Level Auto, −13 dBm Search Resolution 6 dB Threshold Level −90 dBm Time Domain Setup Couple Segment RBW MS2840A-040 : On, 3 MHz...

  • Page 345: Appendix D Ms2850A Default Value List

    Appendix D MS2850A Default Value List MS2850A Frequency Center 16 GHz (MS2850A-047) 22.25 GHz (MS2850A-046) Start 0 Hz Stop 32 GHz (MS2850A-047) 44.5 GHz (MS2850A-046) Switching Speed Normal (Best Phase Noise) Preselector Auto Tune Offset Off, 0 Hz Step Size 1 GHz External Mixer Band Select...
  • Page 346 Appendix D MS2850A Default Value List Auto, 3 MHz Auto, 3 MHz VBW Mode Power Marker Active Marker Marker1 Marker Mode Normal Zone Width 3.2 GHz (MS2850A-047) 4.45 GHz (MS2850A-046) Marker Trace Marker Result Peak Marker Type Zone Couple Zone Spot Line Marker List Frequency Count...
  • Page 347 Appendix D MS2850A Default Value List Limits Limit 1 to 6 Type Limit Display Limit Test Margin Margin Value 0 dB Edit Point Frequency Center Frequency Connected to Previous Pt Previous Pt Level Offset 0.0 dB Envelope Points Offset 3.0 dB Shape Slope Limit Line Type (Frequency)
  • Page 348 Appendix D MS2850A Default Value List Trigger/Gate Trigger Switch Trigger Source Video Trigger Slope Rise Trigger Level (Video) 40 dBm Trigger Level (Wide IF Video) 20 dBm Trigger Hold 100  s Trigger Hold Trigger Delay Gate Sweep Gate View Gate Delay Gate Length 1.0 ms...
  • Page 349 Appendix D MS2850A Default Value List Time/Sweep Sweep Time (Frequency Domain) Auto, 89 ms (MS2850A-047) Auto, 86 ms (MS2850A-046) Sweep Time (Time Domain) 100 ms Auto Sweep Time Select Fast Auto Sweep Type Rules Dynamic Range ≤ 40 kHz FFT width Trace Point 10001 Peak Search...
  • Page 350 Appendix D MS2850A Default Value List Measure On/Off ACP Reference Both Sides of Carriers Offset Ch BW 3.84 MHz Carrier BW 3.84 MHz In Band Center Center Frequency Carrier Spacing 5 MHz Offset-1 On, 5 MHz Offset-2 On, 10 MHz Offset-3 Off, 15 MHz In Band Filter Type...
  • Page 351 Appendix D MS2850A Default Value List Spectrum Emission Mask On/Off Limit Side Both Result Type Peak Reference Mode Channel Reference Power 0 dBm Channel BW 3.84 MHz Attenuator Auto, 10 dB RBW Auto/Manual Manual, 30 kHz VBW Auto/Manual Auto, 30 kHz VBW Mode Power Sweep Time...
  • Page 352 Appendix D MS2850A Default Value List Offset-2 Offset Start Freq 2.715 MHz Stop Freq 3.515 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 30 kHz Auto, 30 kHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select Fast Detection Trace Point...
  • Page 353 Appendix D MS2850A Default Value List Offset-4 Offset Start Freq 4 MHz Stop Freq 8 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 1 MHz Auto, 1 MHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select Fast Detection Trace Point...
  • Page 354 Appendix D MS2850A Default Value List Offset-6 Offset Start Freq 12.5 MHz Stop Freq 15 MHz Reference Level Auto, 0 dBm Attenuator Auto, 10 dB Manual, 1 MHz Auto, 30 kHz VBW Mode Power Sweep Time Auto, 1 ms Auto Sweep Time Select Fast Detection Trace Point...
  • Page 355 Appendix D MS2850A Default Value List Segment-1 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 9 kHz MS2850A-046 : 9 kHz Stop Freq MS2850A-047 : 150 kHz MS2850A-046 : 150 kHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 356 Appendix D MS2850A Default Value List Segment-2 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 150 kHz MS2850A-046 : 150 kHz Stop Freq MS2850A-047 : 30 MHz MS2850A-046 : 30 MHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 357 Appendix D MS2850A Default Value List Segment-3 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 30 MHz MS2850A-046 : 30 MHz Stop Freq MS2850A-047 : 1 GHz MS2850A-046 : 1 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 358 Appendix D MS2850A Default Value List Segment-4 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 1 GHz MS2850A-046 : 1 GHz Stop Freq MS2850A-047 : 2 GHz MS2850A-046 : 2 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 359 Appendix D MS2850A Default Value List Segment-5 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 2 GHz MS2850A-046 : 2 GHz Stop Freq MS2850A-047 : 3 GHz MS2850A-046 : 3 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 360 Appendix D MS2850A Default Value List Segment-6 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 3 GHz MS2850A-046 : 3 GHz Stop Freq MS2850A-047 : 4 GHz MS2850A-046 : 4 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 361 Appendix D MS2850A Default Value List Segment-7 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 4 GHz MS2850A-046 : 4 GHz Stop Freq MS2850A-047 : 5 GHz MS2850A-046 : 5 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 362 Appendix D MS2850A Default Value List Segment-8 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 5 GHz MS2850A-046 : 5 GHz Stop Freq MS2850A-047 : 6 GHz MS2850A-046 : 6 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 363 Appendix D MS2850A Default Value List Segment-9 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 6 GHz MS2850A-046 : 6 GHz Stop Freq MS2850A-047 : 7 GHz MS2850A-046 : 7 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 364 Appendix D MS2850A Default Value List Segment-10 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 7 GHz MS2850A-046 : 7 GHz Stop Freq MS2850A-047 : 8 GHz MS2850A-046 : 8 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 365 Appendix D MS2850A Default Value List Segment-11 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 8 GHz MS2850A-046 : 8 GHz Stop Freq MS2850A-047 : 9 GHz MS2850A-046 : 9 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 366 Appendix D MS2850A Default Value List Segment-12 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 9 GHz MS2850A-046 : 9 GHz Stop Freq MS2850A-047 : 10 GHz MS2850A-046 : 10 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 367 Appendix D MS2850A Default Value List Segment-13 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 10 GHz MS2850A-046 : 10 GHz Stop Freq MS2850A-047 : 11 GHz MS2850A-046 : 11 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 368 Appendix D MS2850A Default Value List Segment-14 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 11 GHz MS2850A-046 : 11 GHz Stop Freq MS2850A-047 : 12 GHz MS2850A-046 : 12 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 369 Appendix D MS2850A Default Value List Segment-15 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 12 GHz MS2850A-046 : 12 GHz Stop Freq MS2850A-047 : 14 GHz MS2850A-046 : 14 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 370 Appendix D MS2850A Default Value List Segment-16 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 14 GHz MS2850A-046 : 14 GHz Stop Freq MS2850A-047 : 18 GHz MS2850A-046 : 18 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 371 Appendix D MS2850A Default Value List Segment-17 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 18 GHz MS2850A-046 : 18 GHz Stop Freq MS2850A-047 : 24 GHz MS2850A-046 : 24 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 372 Appendix D MS2850A Default Value List Segment-18 Segment Setup Segment MS2850A-047 : On MS2850A-046 : On Start Freq MS2850A-047 : 24 GHz MS2850A-046 : 24 GHz Stop Freq MS2850A-047 : 26.5 GHz MS2850A-046 : 32 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 373 Appendix D MS2850A Default Value List Segment-19 Segment Setup Segment MS2850A-047 : Off MS2850A-046 : On Start Freq MS2850A-047 : 1 GHz MS2850A-046 : 32 GHz Stop Freq MS2850A-047 : 26.5 GHz MS2850A-046 : 42 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 374 Appendix D MS2850A Default Value List Segment-20 Segment Setup Segment MS2850A-047 : Off MS2850A-046 : On Start Freq MS2850A-047 : 1 GHz MS2850A-046 : 42 GHz Stop Freq MS2850A-047 : 26.5 GHz MS2850A-046 : 44.5 GHz Reference Level 0 dBm Attenuator Auto, 10 dB Detection...
  • Page 375 Appendix D MS2850A Default Value List On/Off Tone Frequency Auto Manual Auto Lower Tone Frequency 5.062500000 GHz Upper Tone Frequency 8.437500000 GHz IM3 Frequency Search On/Off Zero Span Measurement On/Off Zero Span Bandwidth Auto/Manual Auto Zero Span Bandwidth 3 MHz Zero Span Sweep Time Auto/Manual Auto...
  • Page 376 Appendix D MS2850A Default Value List D-32.

  • Page 377: Appendix E Standard Parameter List

    Appendix E Standard Parameter List The parameters set by the standard functions are listed below. ACP ................E-3 5G Pre-Standard ............E-3 W-CDMA ..............E-11 Mobile WiMAX ............E-16 LTE ................E-18 DSRC ................. E-62 TD-SCDMA ..............E-64 CDMA2000 ..............E-76 EV-DO ................
  • Page 378 Appendix E Standard Parameter List LTE/LTE TDD Uplink ..........E-212 TD-SCDMA .............. E-264 XG-PHS ..............E-294 CDMA2000 ............... E-297 EV-DO ..............E-333 ISDB-Tmm ..............E-346 ISDB-T ..............E-353 ISDB-T ..............E-355 SEM 802.11a ............E-358 SEM 802.11b ............E-360 SEM 802.11g ............E-362 SEM 802.11j .............

  • Page 379: Acp

    E.1 ACP E.1 ACP 5G Pre-Standard Table E.1-1 Standard parameters for ACP function Standard Parameter Name Setting Frequency Span 500 MHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 99 MHz In Band Center Center Frequency...

  • Page 380: Pre-Standard

    Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 500 MHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 100 MHz In Band Center Center Frequency...
  • Page 381 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 600 MHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 99 MHz In Band Center Center Frequency In Band Filter Type...
  • Page 382 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 600 MHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 100 MHz In Band Center Center Frequency...
  • Page 383 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 800 MHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 99 MHz In Band Center Center Frequency In Band Filter Type...
  • Page 384 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 800 MHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 100 MHz In Band Center Center Frequency...
  • Page 385 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 1.2 GHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 99 MHz In Band Center Center Frequency In Band Filter Type...
  • Page 386 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 1.2 GHz 300 kHz Detection Auto, Normal Trace Point 10001 ACP Reference Carrier Select Carrier Number Carrier BW 90 MHz Carrier Spacing 100 MHz In Band Center Center Frequency...
  • Page 387 E.1 ACP W-CDMA Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 3.84 MHz Carrier Spacing 5 MHz In Band Center Center Frequency...

  • Page 388: W-Cdma

    Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 3.84 MHz Carrier Spacing 5 MHz W-CDMA...
  • Page 389 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 30 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number Carrier BW 3.84 MHz Carrier Spacing 5 MHz W-CDMA...
  • Page 390 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number Carrier BW 3.84 MHz Carrier Spacing...
  • Page 391 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 40 MHz 30 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number Carrier BW 3.84 MHz Carrier Spacing 5 MHz W-CDMA...

  • Page 392: Mobile Wimax

    Appendix E Standard Parameter List Mobile WiMAX Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 50 MHz 30 kHz 100 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 9.5 MHz Mobile WiMAX...
  • Page 393 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 25 MHz 30 kHz 100 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 4.75 MHz Mobile WiMAX DL / UL Carrier Spacing...

  • Page 394: Lte

    Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 21.4 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL)
  • Page 395 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 7.8 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL) 1.08 MHz (UL) LTE TDD...
  • Page 396 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 7 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL)
  • Page 397 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 7 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz (DL) 1.08 MHz (UL) LTE TDD...
  • Page 398 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 10 MHz 10 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.095 MHz...
  • Page 399 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 1.095 MHz BW Offset-2 1.095 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 1.28 MHz BW Offset-6 1.28 MHz BW Offset-7 1.28 MHz BW Offset-8 1.28 MHz...
  • Page 400 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 23 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL)
  • Page 401 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 9.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL) 2.7 MHz (UL) LTE TDD...
  • Page 402 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 15 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL)
  • Page 403 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 15 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz (DL) 2.7 MHz (UL) LTE TDD...
  • Page 404 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 20 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 2.715 MHz...
  • Page 405 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 4.515 MHz BW Offset-2 4.515 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 1.28 MHz BW Offset-6 1.28 MHz BW Offset-7 1.28 MHz BW Offset-8 1.28 MHz...
  • Page 406 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL)
  • Page 407 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 11.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL) 4.5 MHz (UL) LTE TDD...
  • Page 408 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz...
  • Page 409 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 45 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz Carrier Spacing 5 MHz...
  • Page 410 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL)
  • Page 411 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz (DL) 4.5 MHz (UL) LTE TDD...
  • Page 412 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 45 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 4.515 MHz...
  • Page 413 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 4.515 MHz BW Offset-2 4.515 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8 7.68 MHz...
  • Page 414 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 30 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL)
  • Page 415 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 16.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL) 9 MHz (UL) LTE TDD...
  • Page 416 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 30 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz...
  • Page 417 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz Carrier Spacing 10 MHz...
  • Page 418 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 100 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL)
  • Page 419 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz (DL) 9 MHz (UL) LTE TDD...
  • Page 420 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 50 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 9.015 MHz...
  • Page 421 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 9.015 MHz BW Offset-2 9.015 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8 7.68 MHz...
  • Page 422 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 35 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL)
  • Page 423 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 21.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL) 13.5 MHz (UL) LTE TDD...
  • Page 424 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 35 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz...
  • Page 425 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 55 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz Carrier Spacing 15 MHz...
  • Page 426 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 75 MHz 100 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL)
  • Page 427 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 75 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz (DL) 13.5 MHz (UL) LTE TDD...
  • Page 428 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 75 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 13.515 MHz...
  • Page 429 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 13.515 MHz BW Offset-2 13.515 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8 7.68 MHz...
  • Page 430 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 40 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL)
  • Page 431 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 26.4 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL) 18 MHz (UL) LTE TDD...
  • Page 432 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 40 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz...
  • Page 433 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 60 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz Carrier Spacing 20 MHz...
  • Page 434 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 100 MHz 100 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL)
  • Page 435 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 100 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz (DL) 18 MHz (UL) LTE TDD...
  • Page 436 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 100 MHz 30 kHz Detection Sweep Time Switch Auto Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 18.015 MHz...
  • Page 437 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting BW Offset-1 18.015 MHz BW Offset-2 18.015 MHz BW Offset-3 1.28 MHz BW Offset-4 1.28 MHz BW Offset-5 3.84 MHz BW Offset-6 3.84 MHz BW Offset-7 7.68 MHz BW Offset-8 7.68 MHz...

  • Page 438: Dsrc

    Appendix E Standard Parameter List DSRC Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz 100 kHz VBW Mode Power Detection Positive Sweep Time Freq. Domain 7.1 s Auto Sweep Time Select Normal ACP Reference...
  • Page 439 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz 100 kHz VBW Mode Power Detection Positive Sweep Time Freq. Domain 7.1 s Auto Sweep Time Select Normal ACP Reference Carrier Select...

  • Page 440: Td-Scdma

    Appendix E Standard Parameter List TD-SCDMA Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 8 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 441 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 10 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...
  • Page 442 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 12 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 443 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 13 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...
  • Page 444 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 15 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 445 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 16 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...
  • Page 446 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 18 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 447 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 20 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...
  • Page 448 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 21 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 449 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 23 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...
  • Page 450 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 25 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select...
  • Page 451 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 26 MHz 30 kHz Detection Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...

  • Page 452: Cdma2000

    Appendix E Standard Parameter List CDMA2000 Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 4.05 MHz 30 kHz Detection Sweep Time Freq. Domain 1.25 s Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW...

  • Page 453: Ev-Do

    E.1 ACP EV-DO Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Trace Points 1001 Span Frequency 4.05 MHz 30 kHz Detection Sweep Time Freq. Domain 1.667 s Auto Sweep Time Select Normal ACP Reference Carrier Select Carrier Number Carrier BW 1.23 MHz...

  • Page 454: Telec-T403

    Appendix E Standard Parameter List TELEC-T403 Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 18 MHz TELEC-T403 18MHz SPAN...
  • Page 455 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 19 MHz TELEC-T403 19MHz SPAN Carrier Spacing 20 MHz...
  • Page 456 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 200 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 38 MHz TELEC-T403 38MHz SPAN...
  • Page 457 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 400 MHz 300 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 78 MHz TELEC-T403 78MHz SPAN Carrier Spacing 80 MHz...

  • Page 458: Telec-T405

    Appendix E Standard Parameter List TELEC-T405 Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 MHz 30 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 18 MHz TELEC-T405 20MHz BW...
  • Page 459 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 200 MHz 30 kHz Detection POSITIVE Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 38 MHz TELEC-T405 40MHz BW Carrier Spacing 40 MHz...

  • Page 460: Bpsk

    Appendix E Standard Parameter List BPSK Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 600 kHz BPSK 950MHz...

  • Page 461: Gfsk

    E.1 ACP GFSK Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 200 kHz GFSK 50ksps 950MHz Carrier Spacing 600 MHz...
  • Page 462 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 400 kHz GFSK 100ksps 950MHz Carrier Spacing...
  • Page 463 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 800 kHz GFSK 200ksps 950MHz Carrier Spacing 600 MHz...
  • Page 464 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 200 kHz GFSK 50ksps 920MHz Carrier Spacing...
  • Page 465 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 400 kHz GFSK 100ksps 920MHz Carrier Spacing 600 MHz...
  • Page 466 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 800 kHz GFSK 200ksps 920MHz Carrier Spacing...
  • Page 467 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 75 kHz GFSK 50ksps 802.15.4gd7 Carrier Spacing 150 MHz...
  • Page 468 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 2 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 150 kHz GFSK 100ksps 802.15.4gd7 Carrier Spacing...
  • Page 469 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 3 MHz 10 kHz Detection Auto, Normal Trace Point 1001 Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 300 kHz GFSK 200ksps 802.15.4gd7 Carrier Spacing 600 MHz...

  • Page 470: Apco

    Appendix E Standard Parameter List APCO Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Carrier Select Carrier Number...
  • Page 471 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 100 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number APCO P25...
  • Page 472 Appendix E Standard Parameter List Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 250 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number...
  • Page 473 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 1 MHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers Carrier Number APCO P25...

  • Page 474: Nxdn

    Appendix E Standard Parameter List NXDN Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 30 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Both Sides of Carriers...
  • Page 475 E.1 ACP Table E.1-1 Standard parameters for ACP function (Cont’d) Standard Parameter Name Setting Frequency Span 70 kHz 100 Hz Detection Storage Mode Average Sweep Time Switch Auto Auto Sweep Time Select Normal Adjacent Channel Power ACP Reference Carrier-1 Carrier Number Carrier BW 8.3 kHz NXDN...

  • Page 476: Burst Average Power

    Appendix E Standard Parameter List E.2 Burst Average Power W-CDMA/Mobile WiMAX/LTE/DSRC Table E.2-1 Standard parameters for Burst Average Power Standard Parameter Name Setting 20 MHz Detection W-CDMA 10 ms Uplink/Downlink Trace Point 1001 Burst Average Power 20 MHz Detection Mobile WiMAX DL / UL 5 ms 5ms Frame...

  • Page 477: Td-Scdma/Lte Tdd/Cdma2000/Ev-Do

    E.2 Burst Average Power TD-SCDMA/LTE TDD/CDMA2000/EV-DO Table E.2-1 Standard parameters for Burst Average Power (Cont’d) Standard Parameter Name Setting 20 MHz Detection TD-SCDMA 5 ms 5ms Subframe Trace Point 1001 Burst Average Power 20 MHz LTE TDD Detection Uplink/Downlink 10 ms Mean Power Trace Point 1001...

  • Page 478: Channel Power

    Appendix E Standard Parameter List E.3 Channel Power W-CDMA Table E.3-1 Standard parameters for Channel Power function Standard Parameter Name Setting Frequency Span 10 MHz Auto Detection Auto, Normal W-CDMA Uplink/Downlink Trace Point 1001 (Mean Power) Channel Power Channel Center Center Frequency Channel Width 5 MHz...

  • Page 479: Mobile Wimax

    E.3 Channel Power Mobile WiMAX Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal Mobile WiMAX DL / UL Trace Point 1001 10MHz BW Channel Power Channel Center Center Frequency Channel Width 10 MHz...

  • Page 480: Lte

    Appendix E Standard Parameter List Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width 1.4 MHz Filter Type...
  • Page 481 E.3 Channel Power Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 10 MHz Filter Type Rect...
  • Page 482 Appendix E Standard Parameter List Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection Auto, Normal Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width 1.095 MHz (DL) 1.08 MHz (UL)
  • Page 483 E.3 Channel Power Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 9.015 MHz (DL) 9 MHz (UL) Filter Type...

  • Page 484: Lte Tdd

    Appendix E Standard Parameter List LTE TDD Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection LTE TDD Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width...
  • Page 485 E.3 Channel Power Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection LTE TDD Auto, Normal Uplink/Downlink Trace Point 1001 Mean Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 10 MHz Filter Type...
  • Page 486 Appendix E Standard Parameter List Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.8 MHz Auto Detection Auto, Normal LTE TDD Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 1.4MHz BW Channel Center Center Frequency Channel Width 1.095 MHz (DL)
  • Page 487 E.3 Channel Power Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal LTE TDD Trace Point 1001 Uplink/Downlink Filtered Power Channel Power 10MHz BW Channel Center Center Frequency Channel Width 9.015 MHz (DL) 9 MHz (UL)

  • Page 488: Dsrc/Td-Scdma

    Appendix E Standard Parameter List DSRC/TD-SCDMA Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 10 MHz Auto Detection Sweep Time Switch Manual Sweep Time Freq. Domain 7.1 s DSRC Auto Sweep Time Select Normal /4DQPSK Trace Point...

  • Page 489: Xg-Phs

    E.3 Channel Power XG-PHS Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Gate Sweep Sweep Time Switch Manual XG-PHS Sweep Time Freq. Domain 5000 ms Mean Power Trace Point 1001 10MHz BW Channel Power...

  • Page 490: Cdma2000/Ev-Do

    Appendix E Standard Parameter List CDMA2000/EV-DO Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 2.5 MHz Auto Detection Sweep Time Switch Manual Sweep Time Freq. Domain 1.25 s CDMA2000 Auto Sweep Time Select Normal Forward Link Trace Point...

  • Page 491: Isdb-Tmm/Isdb-T

    E.3 Channel Power ISDB-Tmm/ISDB-T Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal ISDB-Tmm Trace Point 1001 14.2MHz BW Channel Power (Mean Power) Channel Center Center Frequency Channel Width 14.2 MHz Filter Type Rect...

  • Page 492: Isdb-Tsb

    Appendix E Standard Parameter List ISDB-T Table E.3-1 Standard parameters for Channel Power function (Cont’d) Standard Parameter Name Setting Frequency Span 20 MHz Auto Detection Auto, Normal ISDB-T Trace Point 1001 3.9MHz BW Channel Power (Mean Power) Channel Center Center Frequency Channel Width 3.9 MHz...

  • Page 493: Obw

    E.4 OBW E.4 OBW W-CDMA/Mobile WiMAX Table E.4-1 Standard parameters for OBW function Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 10 MHz 30 kHz W-CDMA Uplink/Downlink Detection Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00% Frequency Span...

  • Page 494: Lte

    Appendix E Standard Parameter List Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 2.8 MHz 10 kHz Uplink/Downlink 1.4MHz Detection Bandwidth Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00%...
  • Page 495 E.4 OBW Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 20 MHz 100 kHz Uplink/Downlink 10MHz Detection Bandwidth Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00% Frequency Span...

  • Page 496: Lte Tdd

    Appendix E Standard Parameter List LTE TDD Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 2.8 MHz LTE TDD 10 kHz Uplink/Downlink Detection 1.4MHz Auto, Normal Bandwidth Trace Point 401 (DL) 1001 (UL)
  • Page 497 E.4 OBW Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 20 MHz LTE TDD 100 kHz Uplink/Downlink 10MHz Detection Bandwidth Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00% Frequency Span...

  • Page 498: Dsrc

    Appendix E Standard Parameter List DSRC Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 10 MHz 30 kHz 30 kHz VBW Mode Power DSRC /4DQPSK Detection Positive Sweep Time Switch Manual Sweep Time Freq.

  • Page 499: Td-Scdma/Xg-Phs/Cdma2000/Ev-Do

    E.4 OBW TD-SCDMA/XG-PHS/CDMA2000/EV-DO Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 5 MHz 30 kHz Detection TD-SCDMA Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal Trace Point...
  • Page 500 Appendix E Standard Parameter List Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 40 MHz 100 kHz 300 kHz Storage Mode Max Hold XG-PHS Storage Count 20MHz Bandwidth Detection Positive...

  • Page 501: Isdb-Tmm/Isdb-T/Isdb-Tsb

    E.4 OBW ISDB-Tmm/ISDB-T/ISDB-T Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 20 MHz ISDB-Tmm 10 kHz 14.2MHz BW Detection Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00% Frequency Span...

  • Page 502: Telec-T401/Telec-T403

    Appendix E Standard Parameter List TELEC-T401/TELEC-T403 Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 60 MHz 300 kHz TELEC-T401 DSSS/CCK 300 kHz (WLAN) Detection Positive Auto, Normal Trace Point 1001 Method...
  • Page 503 E.4 OBW Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 80 MHz 300 kHz TELEC-T403 40MHz 300 kHz (WLAN) Detection Positive Auto, Normal Trace Point 1001 Method N% of Power N% Ratio 99.00%...

  • Page 504: Telec-T405

    Appendix E Standard Parameter List TELEC-T405 Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method N% of Power N% Ratio 99.00% Frequency Span 60 MHz 30 kHz TELEC-T405 30 kHz 20MHz (WLAN) Detection Positive Auto, Normal Trace Point 1001 Method...

  • Page 505: Etsi En 301 893

    E.4 OBW ETSI EN 301 893 Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method xdB Down XdB Value Frequency Span 10 MHz ETSI EN 301 100 kHz 893 V1.5.1 100 kHz OFDM 5MHZ Detection Positive (WLAN) Auto, Normal Trace Point...
  • Page 506 Appendix E Standard Parameter List Table E.4-1 Standard parameters for OBW function (Cont’d) Standard Parameter Name Setting Method xdB Down XdB Value 6 dB Frequency Span 80 MHz ETSI EN 301 100 kHz 893 V1.5.1 100 kHz OFDM 40MHZ Detection Positive (WLAN) Auto, Normal...

  • Page 507: Sem

    E.5 SEM E.5 SEM W-CDMA Table E.5-1 Standard parameters for Spectrum Emission Mask Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3.84 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type...
  • Page 508 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select...
  • Page 509 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –69.6 dBm Limit-2 ABS1 Start Level –54.3 dBm Limit-3 ABS1 Start Level –54.3 dBm Limit-4 ABS1 Start Level –54.3 dBm...
  • Page 510 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3.84 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 511 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 512 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS2 Stop Level –15 dBm Limit-2 ABS2 Stop Level –13 dBm Limit-3 ABS2 Stop Level –13 dBm Limit-4 ABS2 Stop Level –13 dBm...
  • Page 513 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 514 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 515 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –12.5 dBm Limit-2 ABS1 Start Level –12.5 dBm Limit-3 ABS1 Start Level –24.5 dBm Limit-4 ABS1 Start Level –11.5 dBm...
  • Page 516 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 517 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 RBW 30 kHz Offset-2 RBW 30 kHz Offset-3 RBW 30 kHz Offset-4 RBW 100 kHz Offset-5 RBW 1 MHz Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto...
  • Page 518 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW 1 MHz Offset-5 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off...
  • Page 519 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 520 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 521 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –12.5 dBm Limit-2 ABS1 Start Level –12.5 dBm Limit-3 ABS1 Start Level –24.5 dBm Limit-4 ABS1 Start Level –11.5 dBm...
  • Page 522 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 523 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal...
  • Page 524 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –12.5 dBm Limit-2 ABS1 Start Level –12.5 dBm Limit-3 ABS1 Start Level –24.5 dBm...
  • Page 525 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 526 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 527 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –15 dBm Limit-2 ABS1 Start Level –15 dBm Limit-4 ABS1 Start Level –13 dBm Limit-5 ABS1 Start Level –13 dBm...
  • Page 528 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 529 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal...
  • Page 530 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –15 dBm Limit-2 ABS1 Start Level –15 dBm Limit-4 ABS1 Start Level –13 dBm...
  • Page 531 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 532 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 533 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –20.5 dBm Limit-2 ABS1 Start Level –20.5 dBm Limit-3 ABS1 Start Level –32.5 dBm Limit-4 ABS1 Start Level –19.5 dBm...

  • Page 534: Mobile Wimax

    Appendix E Standard Parameter List Mobile WiMAX Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 535 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 1 MHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Positive Trace Point 1001 Filter Type...
  • Page 536 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –20.0 dBm Limit-4 ABS1 Start Level –25.0 dBm...
  • Page 537 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 538 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 1 MHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Positive...
  • Page 539 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm Limit-4 ABS1 Start Level –25.0 dBm Limit-5 ABS1 Start Level –28.57 dBm...

  • Page 540: Lte/Lte Tdd Downlink

    Appendix E Standard Parameter List LTE/LTE TDD Downlink Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 541 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –9.5 dBm <...
  • Page 542 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 543 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –13.5 dBm <...
  • Page 544 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 545 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 546 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 547 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 548 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 549 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 550 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 551 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 552 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 553 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –9.5 dBm >...
  • Page 554 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 555 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –13.5 dBm >...
  • Page 556 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 557 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm >...
  • Page 558 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 559 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm >...
  • Page 560 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 561 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm >...
  • Page 562 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 563 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryA Limit-2 ABS1 Start Level –12.5 dBm >...
  • Page 564 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 565 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –9.5 dBm <...
  • Page 566 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 567 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –13.5 dBm <...
  • Page 568 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 569 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 570 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 571 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 572 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 573 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 574 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 575 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm <...
  • Page 576 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 577 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level 0.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –9.5 dBm >...
  • Page 578 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 579 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –3.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –13.5 dBm >...
  • Page 580 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 581 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm >...
  • Page 582 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 583 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm >...
  • Page 584 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 585 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm >...
  • Page 586 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 587 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –5.5 dBm Downlink (CategoryB Limit-2 ABS1 Start Level –12.5 dBm >...

  • Page 588: Lte/Lte Tdd Uplink

    Appendix E Standard Parameter List LTE/LTE TDD Uplink Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 589 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –8.5 dBm (General Limit-2 ABS1 Start Level –8.5 dBm 1.4MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 590 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 591 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –11.5 dBm (General Limit-2 ABS1 Start Level –8.5 dBm 3MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 592 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 593 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –13.5 dBm (General Limit-2 ABS1 Start Level –8.5 dBm 5MHz) Limit-3 ABS1 Start Level –11.5 dBm...
  • Page 594 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 595 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –16.5 dBm (General Limit-2 ABS1 Start Level –8.5 dBm 10MHz) Limit-3 ABS1 Start Level –11.5 dBm...
  • Page 596 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 597 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –18.5 dBm (General Limit-2 ABS1 Start Level –8.5 dBm 15MHz) Limit-3 ABS1 Start Level –11.5 dBm...
  • Page 598 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 599 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –19.5 dBm (General Limit-2 ABS1 Start Level –8.5 dBm 20MHz) Limit-3 ABS1 Start Level –11.5 dBm...
  • Page 600 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 601 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –8.5 dBm (NS-03 Limit-2 ABS1 Start Level –11.5 dBm 1.4MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 602 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 603 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –11.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 3MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 604 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 605 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –11.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-03 5MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 606 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 607 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –16.5 dBm (NS-03 Limit-2 ABS1 Start Level –11.5 dBm 10MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 608 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 609 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –18.5 dBm (NS-03 Limit-2 ABS1 Start Level –11.5 dBm 15MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 610 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 611 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –19.5 dBm (NS-03 Limit-2 ABS1 Start Level –11.5 dBm 20MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 612 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 613 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –8.5 dBm (NS-04 Limit-2 ABS1 Start Level –11.5 dBm 1.4MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 614 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 615 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –11.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 3MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 616 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 617 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.5 dBm Uplink Limit-2 ABS1 Start Level –11.5 dBm (NS-04 5MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 618 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 619 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –16.5 dBm (NS-04 Limit-2 ABS1 Start Level –11.5 dBm 10MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 620 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 621 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –18.5 dBm (NS-04 Limit-2 ABS1 Start Level –11.5 dBm 15MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 622 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 623 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Uplink Limit-1 ABS1 Start Level –19.5 dBm (NS-04 Limit-2 ABS1 Start Level –11.5 dBm 20MHz) Limit-3 ABS1 Start Level –23.5 dBm...
  • Page 624 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.4 MHz 30 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 625 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink Offset-6 On/Off (NS-06/07...
  • Page 626 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3 MHz 30 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 627 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink Offset-6 On/Off (NS-06/07...
  • Page 628 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 629 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink Offset-6 On/Off (NS-06/07...
  • Page 630 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 631 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Uplink Offset-6 On/Off (NS-06/07...
  • Page 632 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5 MHz 100 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 633 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.5 dBm...
  • Page 634 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 10 MHz 300 kHz Sweep Time 400 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 635 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –16.5 dBm...
  • Page 636 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 15 MHz 300 kHz Sweep Time 500 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 637 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –18.5 dBm...
  • Page 638 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 20 MHz 300 kHz Sweep Time 1000 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 639 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –19.5 dBm...

  • Page 640: Td-Scdma

    Appendix E Standard Parameter List TD-SCDMA Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 641 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 642 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 643 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 644 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 645 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 646 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 647 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point Offset-2 Trace Point Offset-3 Trace Point 1001...
  • Page 648 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 136 ms Auto Sweep Time Select Normal...
  • Page 649 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point Offset-2 Trace Point Offset-3 Trace Point 1001...
  • Page 650 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 651 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 652 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 653 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 654 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 655 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 656 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 657 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001...
  • Page 658 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Switch Manual Sweep Time Freq. Domain 676 ms Auto Sweep Time Select Normal...
  • Page 659 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001...
  • Page 660 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 661 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 662 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 663 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 664 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 665 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 666 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 667 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001...
  • Page 668 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.6 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 669 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001...

  • Page 670: Xg-Phs

    Appendix E Standard Parameter List XG-PHS Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 50 MHz 30 kHz Reference Mode Channel Reference Channel 10 MHz Bandwidth Reference Sweep Time Auto Switch Reference Auto Sweep Time Normal Select Reference Detection...
  • Page 671 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 50 MHz 30 kHz Reference Mode Channel Reference Channel 10 MHz Bandwidth Reference Sweep Time Auto Switch Reference Auto Sweep Time Normal Select Reference Detection Offset-1 On/Off Offset-1 Start Freq-1...
  • Page 672 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-2 Fail Logic ABS1 Offset-2 Detection Positive Offset-3 On/Off Offset-3 Start Freq-1 20 MHz Offset-3 Stop Freq-1 25 MHz Offset-3 RBW Value 1 MHz Offset-3 Sweep Time Switch Manual...

  • Page 673: Cdma2000

    E.5 SEM CDMA2000 Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point Filter Type Rect...
  • Page 674 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 675 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm Limit-1 ABS1 Stop Level –13.0 dBm...
  • Page 676 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 677 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 678 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –27.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm...
  • Page 679 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point Filter Type Rect Offset-1 Start Freq...
  • Page 680 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 681 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm Limit-1 ABS1 Stop Level –13.0 dBm...
  • Page 682 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 683 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 684 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm...
  • Page 685 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –50.0 dB Limit-4 REL Start Level –45.0 dB Limit-5 REL Start Level –45.0 dB Limit-6 REL Start Level –45.0 dB...
  • Page 686 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 687 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 688 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –22.0 dBm...
  • Page 689 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –50.0 dB Limit-4 REL Start Level –45.0 dB Limit-5 REL Start Level –45.0 dB Limit-6 REL Start Level –45.0 dB...
  • Page 690 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 691 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 692 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm...
  • Page 693 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –45.0 dB Limit-5 REL Start Level –45.0 dB Limit-6 REL Start Level –45.0 dB...
  • Page 694 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 695 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 696 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm...
  • Page 697 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –50.0 dB Limit-5 REL Start Level –45.0 dB Limit-6 REL Start Level –45.0 dB...
  • Page 698 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 699 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 700 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm...
  • Page 701 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –50.0 dB Limit-5 REL Start Level –45.0 dB Limit-6 REL Start Level –45.0 dB...
  • Page 702 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 703 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time...
  • Page 704 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm...
  • Page 705 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –45.0 dB Limit-3 REL Start Level –55.0 dB Limit-4 REL Start Level –55.0 dB Limit-5 REL Start Level –45.0 dB Limit-6 REL Start Level –45.0 dB...
  • Page 706 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 707 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 708 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm Limit-4 ABS1 Start Level –13.0 dBm Limit-5 ABS1 Start Level –36.0 dBm...

  • Page 709: Ev-Do

    E.5 SEM EV-DO Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point Filter Type...
  • Page 710 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 711 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –46.0 dBm Limit-4 ABS1 Start Level –36.0 dBm Limit-5 ABS1 Start Level –36.0 dBm Limit-1 ABS1 Stop Level –13.0 dBm...
  • Page 712 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 713 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time Normal Select Offset-1 Detection...
  • Page 714 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –13.0 dBm Limit-4 ABS1 Start Level –13.0 dBm Limit-5 ABS1 Start Level –9.0 dBm...
  • Page 715 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point Filter Type Rect...
  • Page 716 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Normal Select Offset-2 Auto Sweep Time Normal Select Offset-3 Auto Sweep Time Normal Select Offset-4 Auto Sweep Time Normal Select Offset-5 Auto Sweep Time...
  • Page 717 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –13.0 dBm Limit-3 ABS1 Start Level –13.0 dBm Limit-4 ABS1 Start Level –13.0 dBm Limit-5 ABS1 Start Level –13.0 dBm Limit-1 ABS1 Stop Level –13.0 dBm...
  • Page 718 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 1.23 MHz 30 kHz Auto Sweep Time 20 ms Auto Sweep Time Select Normal Detection Trace Point...
  • Page 719 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time 20 ms Offset-2 Sweep Time 20 ms Offset-3 Sweep Time 20 ms Offset-4 Sweep Time 20 ms Offset-5 Sweep Time Auto Offset-6 Sweep Time Auto Offset-1 Auto Sweep Time Normal...
  • Page 720 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 ABS1 Start Level –13.0 dBm Limit-2 ABS1 Start Level –9.0 dBm Limit-3 ABS1 Start Level –9.0 dBm...
  • Page 721 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Start Level –45.0 dB Limit-2 REL Start Level –60.0 dB Limit-3 REL Start Level –65.0 dB Limit-4 REL Start Level –75.0 dB Limit-5 REL Start Level –55.0 dB Limit-6 REL Start Level –55.0 dB...

  • Page 722: Isdb-Tmm

    Appendix E Standard Parameter List ISDB-Tmm Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 14.2 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 723 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time...
  • Page 724 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower * Noise Cancel Reference Mode Channel Channel BW 14.2 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 725 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-5 SweepTime Auto Offset-1 Auto Sweep Time Select Fast Offset-2 Auto Sweep Time Select Fast Offset-3 Auto Sweep Time Select Fast...
  • Page 726 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting ISDB-Tmm Limit-1 Fail Logic Off * 14.2MHz BW Limit-2 Fail Logic Off * (ABS) Limit-3 Fail Logic Off * Limit-4 Fail Logic Off * Limit-5 Fail Logic ABS1 and REL...
  • Page 727 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5.6 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001...
  • Page 728 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time...

  • Page 729: Isdb-T

    E.5 SEM ISDB-T Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 5.6 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point...
  • Page 730 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time...

  • Page 731: Isdb-Tsb

    E.5 SEM ISDB-T Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Channel Channel BW 3.9 MHz 10 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point...
  • Page 732 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 SweepTime Auto Offset-2 SweepTime Auto Offset-3 SweepTime Auto Offset-4 SweepTime Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time...
  • Page 733 E.5 SEM *4: Value when antenna power exceeds 5 W. The value for each antenna power can be calculated using the following formula (source: ARIB STD-B46 2.0). Antenna power P in Watts. Antenna Power [W] Setting [dB] P > 5 –75.9 5 ≥...
  • Page 734 Appendix E Standard Parameter List SEM 802.11a Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 735 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 736 Appendix E Standard Parameter List SEM 802.11b Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 22 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 737 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off SEM 802.11b Offset-5 On/Off DSSS/CCK Offset-6 On/Off (WLAN) Limit-1 REL Start Level –30.0 dB (IEEE 802.11-2012) Limit-2 REL Start Level –50.0 dB Limit-1 REL Stop Level –30.0 dB...
  • Page 738 Appendix E Standard Parameter List SEM 802.11g Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 739 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 740 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 22 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 741 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off SEM 802.11g Offset-5 On/Off DSSS/CCK Offset-6 On/Off (WLAN) Limit-1 REL Start Level –30.0 dB (IEEE 802.11-2012) Limit-2 REL Start Level –50.0 dB Limit-1 REL Stop Level –30.0 dB...
  • Page 742 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 743 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 744 Appendix E Standard Parameter List SEM 802.11j Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 9 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 745 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 746 Appendix E Standard Parameter List SEM 802.11p Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 9 MHz 100 kHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 747 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection...
  • Page 748 Appendix E Standard Parameter List SEM 802.11n Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 749 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...
  • Page 750 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 751 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...
  • Page 752 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 38 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 753 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...
  • Page 754 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 38 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 755 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...
  • Page 756 Appendix E Standard Parameter List SEM 802.11ac Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 18 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 757 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...
  • Page 758 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 38 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 759 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...
  • Page 760 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 78 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 761 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...
  • Page 762 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 158 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001...
  • Page 763 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Offset-2 Detection Offset-3 Detection Offset-4 Detection Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto...

  • Page 764: Etsi En 301 893

    Appendix E Standard Parameter List ETSI EN 301 893 Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 5 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast...
  • Page 765 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto...
  • Page 766 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off...
  • Page 767 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 10 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001 Filter Type...
  • Page 768 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto...
  • Page 769 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off...
  • Page 770 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 20 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point...
  • Page 771 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto...
  • Page 772 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off...
  • Page 773 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 20 MHz 1 MHz 30 kHz Sweep Time Auto Auto Sweep Time Select Fast Detection Trace Point 1001 Filter Type...
  • Page 774 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 30 kHz Offset-2 VBW 30 kHz Offset-3 VBW 30 kHz Offset-4 VBW 30 kHz Offset-5 VBW 30 kHz Offset-6 VBW 30 kHz Offset-1 Sweep Time Auto...
  • Page 775 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto Offset-5 Integrate BW Auto Offset-6 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off...

  • Page 776: O-Qpsk

    Appendix E Standard Parameter List O-QPSK Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...

  • Page 777: Bpsk

    E.5 SEM BPSK Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...

  • Page 778: Gfsk

    Appendix E Standard Parameter List GFSK Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point...
  • Page 779 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 780 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 781 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 782 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001...
  • Page 783 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 2 MHz 100 kHz Sweep Time Auto Auto Sweep Time Select Normal Detection Trace Point 1001 Filter Type Rect...
  • Page 784 Appendix E Standard Parameter List APCO P25 Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 11.25 kHz 30 kHz Sweep Time 5.7 s Auto Sweep Time Select Normal Detection Positive...
  • Page 785 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off APCO P25 Offset-6 On/Off FCC 12.5kHz Limit-1 REL Start Level 0 dBm...
  • Page 786 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Noise Cancel Reference Mode Peak Channel BW 11.25 kHz 30 kHz Sweep Time 5.7 s Auto Sweep Time Select Normal Detection Positive...
  • Page 787 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off APCO P25 Offset-6 On/Off NTIA 12.5kHz Limit-1 REL Start Level 0 dBm...
  • Page 788 Appendix E Standard Parameter List Microlink ETSI CS: 7MHz Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...

  • Page 789: Etsi

    E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast...
  • Page 790 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 REL Stop Level 1.0 dB Limit-2 REL Stop Level –23.0 dB Limit-3 REL Stop Level –23.0 dB Limit-4 REL Stop Level –45.0 dB Limit-5 REL Stop Level –45.0 dB...
  • Page 791 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 792 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 793 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 794 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 795 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 796 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 797 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 798 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 799 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off...
  • Page 800 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 801 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 802 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 803 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 35 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 30 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 804 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 805 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 1.0 dB Limit-2 REL Start Level 1.0 dB Limit-3 REL Start Level –10.0 dB Microlink Limit-4 REL Start Level...
  • Page 806 Appendix E Standard Parameter List Microlink ETSI CS: 14MHz Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...
  • Page 807 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast...
  • Page 808 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 Fail Logic Microlink Limit-2 Fail Logic ETSI Limit-3 Fail Logic CS:14MHz Limit-4 Fail Logic Class:2 Limit-5 Fail Logic E-432...
  • Page 809 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 810 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Positive Offset-2 Detection Positive Offset-3 Detection Positive Offset-4 Detection Positive Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001...
  • Page 811 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 812 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Detection Positive Offset-2 Detection Positive Offset-3 Detection Positive Offset-4 Detection Positive Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001...
  • Page 813 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 814 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 815 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 816 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 817 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off...
  • Page 818 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 819 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 820 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 821 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 70 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 822 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 823 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 1.0 dB Limit-2 REL Start Level 1.0 dB Limit-3 REL Start Level –10.0 dB Microlink Limit-4 REL Start Level...
  • Page 824 Appendix E Standard Parameter List Microlink ETSI CS: 28MHz Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...
  • Page 825 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto Offset-3 Sweep Time Auto Offset-4 Sweep Time Auto Offset-5 Sweep Time Auto Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast...
  • Page 826 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –23.0 dB Limit-4 REL Start Level...
  • Page 827 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 828 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 829 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 830 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 831 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 832 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection...
  • Page 833 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 834 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 835 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB Limit-4 REL Start Level –33.0 dB...
  • Page 836 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 837 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto...
  • Page 838 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 839 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 840 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 841 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB Microlink Limit-4 REL Start Level...
  • Page 842 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 843 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 844 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 845 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 846 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 847 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off...
  • Page 848 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 849 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto...
  • Page 850 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 851 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 852 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 853 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off...
  • Page 854 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 855 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 856 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 857 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 140 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 100 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 858 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 859 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB Limit-4 REL Start Level –32.0 dB...
  • Page 860 Appendix E Standard Parameter List Microlink ETSI CS: 56MHz Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select...
  • Page 861 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Positive Offset-2 Detection Positive...
  • Page 862 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 863 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Positive Offset-2 Detection Positive...
  • Page 864 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 865 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-1 Detection Positive Offset-2 Detection Positive...
  • Page 866 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 867 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 868 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 869 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 870 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 871 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off...
  • Page 872 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 873 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto Offset-2 Sweep Time Auto...
  • Page 874 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB...
  • Page 875 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 876 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz...
  • Page 877 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001 Offset-1 On/Off Offset-2 On/Off...
  • Page 878 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 879 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-7 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 880 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-5 Trace Point 1001 Offset-6 Trace Point 1001 Offset-7 Trace Point 1001...
  • Page 881 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Frequency Span 280 MHz Limit Side Both Reference Mode Peak Channel BW 1 kHz 300 kHz 300 Hz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive...
  • Page 882 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 VBW 300 Hz Offset-2 VBW 300 Hz Offset-3 VBW 300 Hz Offset-4 VBW 300 Hz Offset-5 VBW 300 Hz Offset-6 VBW 300 Hz Offset-1 Sweep Time Auto...
  • Page 883 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off Offset-4 On/Off Offset-5 On/Off Offset-6 On/Off Limit-1 REL Start Level 2.0 dB Limit-2 REL Start Level 2.0 dB Limit-3 REL Start Level –10.0 dB Microlink Limit-4 REL Start Level...
  • Page 884 Appendix E Standard Parameter List TELEC-T403 Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001...
  • Page 885 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 886 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 887 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 888 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 889 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 890 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 891 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 892 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 893 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 894 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 895 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 20 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 896 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 897 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 898 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto...
  • Page 899 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 900 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Auto Sweep Time Fast Select Offset-2 Auto Sweep Time Fast Select Offset-3 Auto Sweep Time Fast Select Offset-4 Auto Sweep Time Fast Select Offset-5 Auto Sweep Time...
  • Page 901 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit-1 ABS1 Start Level –3.01 dB Limit-2 ABS1 Start Level –13.01 dB Limit-3 ABS1 Start Level –21.02 dB Limit-4 ABS1 Start Level –26.02 dB Limit-5 ABS1 Start Level –26.02 dB Limit-1 ABS1 Stop Level –13.01 dB...
  • Page 902 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 40 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 903 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 904 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 905 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto...
  • Page 906 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 907 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Trace Point 1001 Offset-2 Trace Point 1001 Offset-3 Trace Point 1001 Offset-4 Trace Point 1001 Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-4 Integrate BW Auto...
  • Page 908 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 909 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 160 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 910 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 160 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 911 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 912 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 913 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off TELEC-T403 Offset-4 On/Off 5210MHz Limit-1 ABS1 Start Level –9.03 dB 80+80 Upper Limit-2 ABS1 Start Level...
  • Page 914 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 915 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 916 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 917 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Integrate BW Auto Offset-2 Integrate BW Auto Offset-3 Integrate BW Auto Offset-1 On/Off Offset-2 On/Off Offset-3 On/Off TELEC-T403 Offset-4 On/Off 5290MHz Limit-1 ABS1 Start Level –9.03 dB 80+80 Lower Limit-2 ABS1 Start Level...
  • Page 918 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 919 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Lower Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type Rect Offset-1 Start Freq...
  • Page 920 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Upper Reference Mode Channel Channel BW 80 MHz 1 MHz Sweep Time Auto Auto Sweep Time Select Fast Detection Positive Trace Point 1001 Filter Type...
  • Page 921 E.5 SEM NXDN Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Reference Mode Peak Channel BW 6 kHz 30 kHz 30 kHz VBW Mode Power Sweep Time Manual Sweep Time Value 3 sec Auto Sweep Time Select Normal Detection...
  • Page 922 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Switch Manual Offset-1 Sweep Time Value 2.9 sec Offset-2 Sweep Time Switch Manual Offset-2 Sweep Time Value 3.5 sec Offset-3 Sweep Time Switch Manual Offset-3 Sweep Time Value...
  • Page 923 E.5 SEM Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Limit Side Both Reference Mode Peak Channel BW 11.25 kHz 30 kHz 30 kHz VBW Mode Power Sweep Time Manual Sweep Time Value 5.7 sec Auto Sweep Time Select Normal Detection...
  • Page 924 Appendix E Standard Parameter List Table E.5-1 Standard parameters for Spectrum Emission Mask (Cont’d) Standard Parameter Name Setting Offset-1 Sweep Time Switch Manual Offset-1 Sweep Time Value 2.9 sec Offset-2 Sweep Time Switch Manual Offset-2 Sweep Time Value 3.5 sec Offset-3 Sweep Time Switch Manual Offset-3 Sweep Time Value...
  • Page 925 E.6 Spurious Emission E.6 Spurious Emission TELEC-T401 Table E.6-1 Standard parameters for Spurious Emission Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7 Spurious Segment Switch8...
  • Page 926 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Start Freq 2.4965 GHz Segment-4 Stop Freq 12.5 GHz or Max Frequency Segment-4 RBW 1 MHz Segment-4 VBW 1 MHz Segment-4 Sweep Time Switch Auto Segment-4 Detection Positive...
  • Page 927 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-8 Start Freq 2.4965 GHz Segment-8 Stop Freq 2.5095 GHz Segment-8 RBW 1 MHz Segment-8 VBW 1 MHz TELEC-T401 (WLAN) Segment-8 Sweep Time Switch Auto Segment-8 Detection Positive...
  • Page 928 Appendix E Standard Parameter List TELEC-T402 Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7 Spurious Segment Switch8...
  • Page 929 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 RBW 1 MHz Segment-4 VBW 1 MHz Segment-4 Sweep Time Switch Auto Segment-4 Detection Positive Segment-4 Limit Start Level –26 dB Segment-4 Limit Stop Level –26 dB Segment-5 Start Freq 2.450 GHz...
  • Page 930 Appendix E Standard Parameter List TELEC-T403 Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.14 GHz Segment-1 RBW 1 MHz...
  • Page 931 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.14 GHz Segment-1 RBW 1 MHz Segment-1 VBW...
  • Page 932 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.46 GHz Segment-1 RBW 1 MHz...
  • Page 933 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.135 GHz Segment-1 RBW 1 MHz Segment-1 VBW...
  • Page 934 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.135 GHz Segment-1 RBW 1 MHz...
  • Page 935 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.455 GHz Segment-1 RBW 1 MHz Segment-1 VBW...
  • Page 936 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.1 GHz Segment-1 RBW 1 MHz...
  • Page 937 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.1 GHz Segment-1 RBW 1 MHz Segment-1 VBW...
  • Page 938 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.42 GHz Segment-1 RBW 1 MHz...
  • Page 939 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.020 GHz Segment-1 RBW 1 MHz Segment-1 VBW...
  • Page 940 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.020 GHz Segment-1 RBW 1 MHz...
  • Page 941 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.340 GHz Segment-1 RBW 1 MHz Segment-1 VBW...
  • Page 942 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.916 GHz Segment-1 RBW 1 MHz...
  • Page 943 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.42 GHz Segment-1 RBW 1 MHz Segment-1 VBW...
  • Page 944 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 5.455 GHz Segment-1 Stop Freq 5.460 GHz...
  • Page 945 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Segment-1 Start Freq 5.420 GHz Segment-1 Stop Freq 5.460 GHz Segment-1 RBW 1 MHz...
  • Page 946 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 5.340 GHz Segment-1 Stop Freq 5.460 GHz...
  • Page 947 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Segment-1 Start Freq 5.2360 GHz Segment-1 Stop Freq 5.4196 GHz Segment-1 RBW 1 MHz...
  • Page 948 Appendix E Standard Parameter List TELEC-T405 Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq...
  • Page 949 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 5MHz 4.9GHz Segment-5 RBW...
  • Page 950 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 951 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 5MHz 5.0GHz Segment-5 RBW...
  • Page 952 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.87 GHz...
  • Page 953 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 10MHz 4.9GHz Segment-5 RBW...
  • Page 954 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 955 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max Frequency TELEC-T405 10MHz 5.0GHz Segment-5 RBW...
  • Page 956 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.87 GHz...
  • Page 957 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max TELEC-T405 Frequency 20MHz 4.9GHz Segment-5 RBW...
  • Page 958 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.87 GHz...
  • Page 959 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max TELEC-T405 Frequency 20MHz 4.9GHz Segment-5 RBW...
  • Page 960 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 961 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max TELEC-T405 Frequency 20MHz 5.0GHz Segment-5 RBW...
  • Page 962 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.99 GHz...
  • Page 963 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-4 Limit Start Level –37 dB Segment-4 Limit Stop Level –37 dB Segment-5 Start Freq 5.342 GHz Segment-5 Stop Freq 26 GHz or Max TELEC-T405 Frequency 20MHz 5.0GHz Segment-5 RBW...
  • Page 964 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 4.840 GHz Segment-1 RBW...
  • Page 965 E.6 Spurious Emission FCC 15 407 Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq...
  • Page 966 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.15 GHz...
  • Page 967 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.15 GHz...
  • Page 968 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Segment-1 Start Freq 30 MHz Segment-1 Stop Freq 5.47 GHz...
  • Page 969 E.6 Spurious Emission ETSI EN 301 893 Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7 Spurious Segment Switch8...
  • Page 970 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-3 Start Freq 74 MHz Segment-3 Stop Freq 87.5 MHz Segment-3 RBW 100 kHz Segment-3 VBW 100 kHz Segment-3 Sweep Time Switch Auto Segment-3 Detection Positive Segment-3 Limit Start Level...
  • Page 971 E.6 Spurious Emission Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-7 Start Freq 2300 MHz Segment-7 Stop Freq 4700 MHz Segment-7 RBW 100 kHz Segment-7 VBW 100 kHz Segment-7 Sweep Time Switch Auto Segment-7 Detection Positive Segment-7 Limit Start Level –36 dB...
  • Page 972 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-11 Start Freq 5.35 GHz Segment-11 Stop Freq 5.47 GHz Segment-11 RBW 1 MHz Segment-11 VBW 1 MHz Segment-11 Sweep Time Auto Switch Segment-11 Detection Positive Segment-11 Limit Start Level...
  • Page 973 E.6 Spurious Emission ETSI 300 328 Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Spurious Result Type Worst Spurious Fail Stop Spurious Segment Switch1 Spurious Segment Switch2 Spurious Segment Switch3 Spurious Segment Switch4 Spurious Segment Switch5 Spurious Segment Switch6 Spurious Segment Switch7 Spurious Segment Switch8...
  • Page 974 Appendix E Standard Parameter List Table E.6-1 Standard parameters for Spurious Emission (Cont’d) Standard Parameter Name Setting Segment-3 Start Freq 1.8 GHz Segment-3 Stop Freq 1.9 GHz Segment-3 RBW 100 kHz Segment-3 VBW 30 kHz Segment-3 Sweep Time Switch Auto Segment-3 Detection Positive Segment-3 Limit Start Level...
  • Page 975 Index References are to page numbers. Symbol and Numbers Ch BW .............. 6-7 Channel BW ........... 6-19 ABS1 Start Level ........... 6-24 Channel Center ........6-14, 6-15 ABS1 Stop Level ..........6-24 Channel Power ........6-2, 6-14 ABS2 Start Level ........... 6-24 Channel Width ........
  • Page 976 Index Gate Length ......5-4, 5-11, 5-12, 5-14 Gate Level ............5-4 Edit ..............3-13 Gate Slope ........5-4, 5-12, 5-14 Edit Offset Number ..... 6-21, 6-22, 6-23 Gate Source ..........5-4, 5-10 Edit Segment Number ....6-32, 6-33, 6-34 Gate Sweep ............
  • Page 977 Index Log Scale Line ..........2-33 Normal ............4-2, 4-5 Log Scale Unit ......2-23, 2-35, 8-6, 9-3 normal marker ..........4-5 Low Phase Noise ........2-18, 2-21 Normalize ........3-2, 3-28, 6-46 Lower.............. 6-25 Notes On Export Management ......iii Number of trace points .........
  • Page 978 Index Search Peaks Number ......4-16, 4-20 Search Peaks Sort X ......4-16, 4-20 RBW ..2-39, 2-40, 2-44, 5-15, 5-16, 6-20, 6-21, Search Peaks Sort Y ......4-16, 4-20 ............6-32, 6-34 search resolution ........... 4-17 RBW Mode ............. 2-39 Search Resolution ..........
  • Page 979 Index ..............E-100 Trace Type ..........3-2, 3-9 Standard parameters for Channel Power Trigger .............. 5-3 function............. E-102 Trigger delay ..........5-15 Standard parameters for OBW function ..E-117 Trigger Delay ........... 5-3 Standard parameters for Spectrum Emission Trigger Hold ............. 5-3 Mask ............
  • Page 980 Index Index-6.

This manual is also suitable for:

Ms2830aMs2850a

Table of Contents
