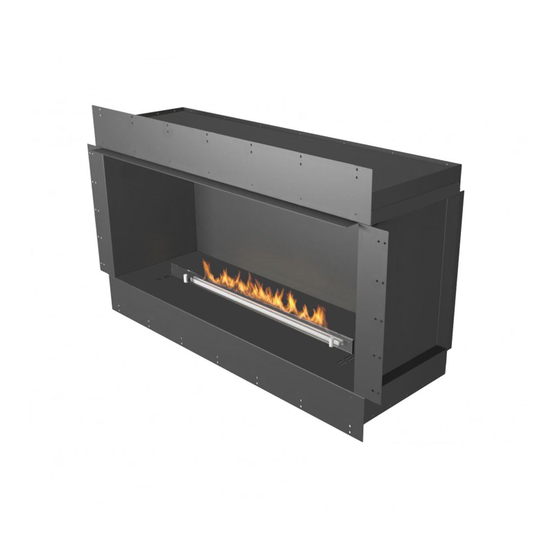

FORMA

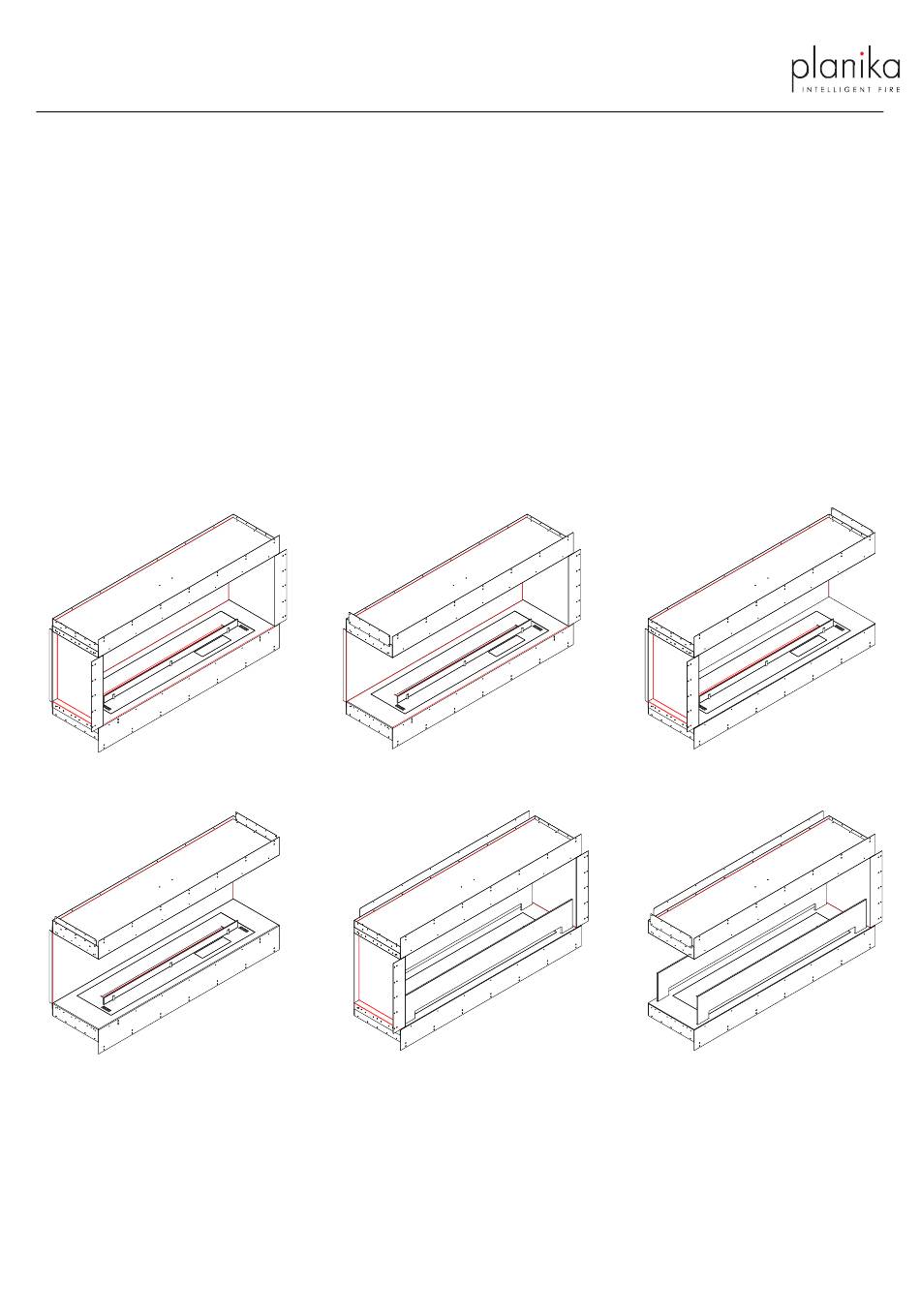

EN Installation manual / DE Montageanleitung / ES Manual de montaje /
FR Notice de montage / IT Istruzioni di montaggio / PL Instrukcja montażu /
RU инструкция по монтажу
Front
Left Corner
Right Corner
Three-sided
Tunnel
Room Divider
Copyright Planika Sp. z o.o.
www.planikausa.com
I1459#02
16.01.2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the FORMA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Planika FORMA Series

  • Page 1 EN Installation manual / DE Montageanleitung / ES Manual de montaje / FR Notice de montage / IT Istruzioni di montaggio / PL Instrukcja montażu / RU инструкция по монтажу Front Left Corner Right Corner Three-sided Tunnel Room Divider Copyright Planika Sp. z o.o. www.planikausa.com I1459#02 16.01.2020...
  • Page 2 Burner / Feuerungsleiste / Hogar / Foyer Min. m / Focolare / Palenisko / Желоб пламени Forma 1000 Front Forma 1000 Left Corner / Right Corner 44 m Forma 1000 Three-sided FLA3/FLA3+ Forma 1000 Tunnel Forma 1000 Room Divider Forma 1200 Front Forma 1200 Left Corner / Right Corner Forma 1200 Three-sided 70 m...
  • Page 3 Casing Forma Flange extension panel Montageleise Liston de montaje Bande de montage Listello di montaggio Listwa montażowa Монтажная панель Tunnel, Room Divider Forma Casing Casing Forma Casing Forma Casing Forma Casing Forma Casing Forma Casing Forma 2 x Left/Right Corner and Tunnel Stability brackets Stahl- Stütze...
  • Page 4 1. Front W1 min W2 max D1 max H1 min Forma 1000 Front 1120 Forma 1200 Front 1320 1020 Forma 1500 Front 1630 1230 Forma 1800 Front 1930 1530 Forma 2300 Front 2440 2040 Forma 2700 Front 2800 2500...
  • Page 5 1. Front Optional SHS, min. 4x0,25 mm AWG 23 230 V, 50 Hz, min. 3x1,5 mm...
  • Page 6 1 Front Option A Option B...
  • Page 7 2 Left/Right Corner W1 min W2 max D1 max H1 min Appliance Forma 1000 Left/Right Corner 1120 Forma 1200 Left/Right Corner 1320 1020 Forma 1500 Left/Right Corner 1630 1230 Forma 1800 Left/Right Corner 1930 1530 Forma 2300 Left/Right Corner 2440 2040 Forma 2700 Left/Right Corner 2800...
  • Page 8 2 Left/Right Corner Optional SHS, min. 4x0,25 mm AWG 23 230 V, 50 Hz, min. 3x1,5 mm...
  • Page 9 2 Left/Right Corner Option A Option B...
  • Page 10: Three-Sided

    3. Three-sided W1 min W2 max D1 max H1 min Appliance Forma 1000 Three-sided 1098 Forma 1200 Three-sided 1301 1020 Forma 1500 Three-sided 1606 1230 Forma 1800 Three-sided 1911 1530 Forma 2300 Three-sided 2419 2040 Forma 2700 Three-sided 2774 2500...
  • Page 11 3. Three-sided Optional SHS, min. 4x0,25 mm AWG 23 230 V, 50 Hz, min. 3x1,5 mm...
  • Page 12 3. Three-sided Option A Option B...
  • Page 13 4 Tunnel W1 min W2 max D1 max H1 min Appliance Forma 1000 Tunnel 1120 Forma 1200 Tunnel 1320 1020 1630 1230 Forma 1500 Tunnel 1930 1530 Forma 1800 Tunnel 2440 2040 Forma 2300 Tunnel 2800 2500 Forma 2700 Tunnel...
  • Page 14 4. Tunnel Optional SHS, min. 4x0,25 mm AWG 23 230 V, 50 Hz, min. 3x1,5 mm...
  • Page 15 4. Tunnel Option A Option B...
  • Page 16 4. Tunnel...
  • Page 17: Room Divider

    5. Room Divider W1 min W2 max D1 max H1 min Appliance Forma 1000 Room Divider 1120 1320 1020 Forma 1200 Room Divider 1630 1230 Forma 1500 Room Divider 1930 1530 Forma 1800 Room Divider 2440 2040 Forma 2300 Room Divider Forma 2700 Room Divider 2800 2500...
  • Page 18 5. Room Divider Optional SHS, min. 4x0,25 mm AWG 23 230 V, 50 Hz, min. 3x1,5 mm...
  • Page 19 5. Room Divider Option A Option B...
  • Page 20 5. Room Divider...
