INSTALLATION MANUAL

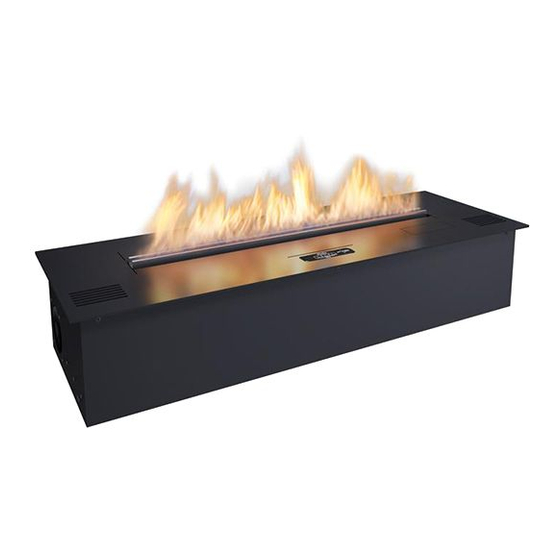

PrimeFire#4
PrimeFire#4 REMOTE
Planika
I N T E L L I G E N T F I R E
ECO
STA RT
S TOP
HO T
FUEL
REA DY
PAT. P EN D.
E RROR
L1
L
Manufactured by:
www.planikafires.com
B
C
x 1
SERVICE KIT
L2
Planika Sp. z o.o.
ul. Bydgoska 38
86-061 Brzoza
Poland
i1086#04
Automatic fuel pump
*
D
x 1
* only REMOTE
Fixed unit's weight
= 15 kg / 33,07 lb
18.10.2017
x 1
x 1
[mm]
['']

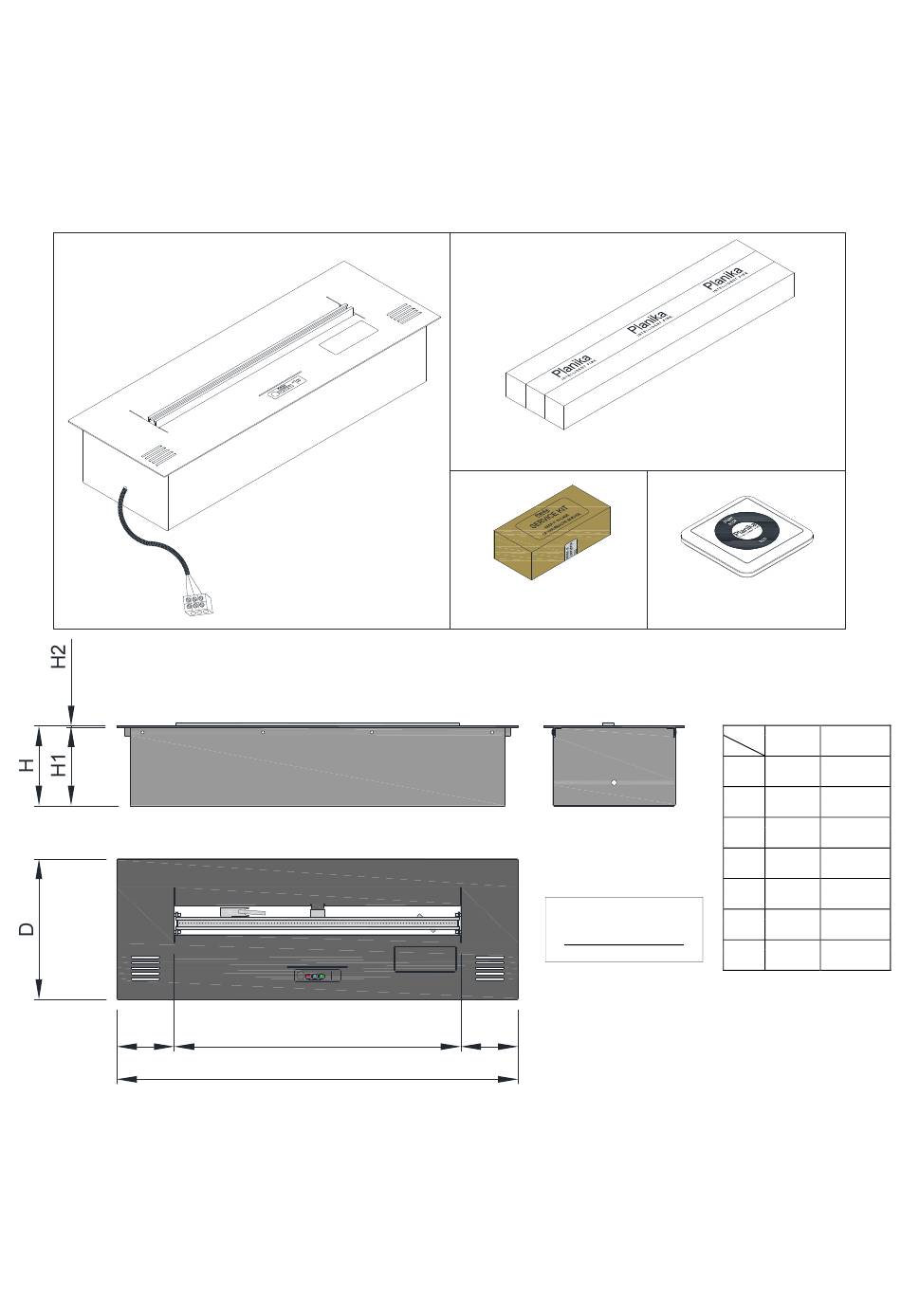

1
H
139
5
/
2
3
H1
137
5
/
8
1
H2
2
/
16
27
9
/
L
700
16
11
L1
500
19
/
16
15
L2
100
3
/
16
5
D
245
9
/
8
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Planika PrimeFire 4
Summary of Contents for Planika PrimeFire 4
- Page 1 I N T E L L I G E N T F I R E STA RT S TOP HO T FUEL REA DY PAT. P EN D. E RROR Manufactured by: Planika Sp. z o.o. ul. Bydgoska 38 86-061 Brzoza Poland Copyright 2017 Planika Sp. z o.o. www.planikafires.com i1086#04 18.10.2017...
- Page 2 • The recess, into which the fireplace will be mounted, has to have a load capacity of 22,5 kg (49,6lb). • Device must be kept out of reach of children, animals and unauthorized persons. • Do not install the device on a mobile object (eg. caravan, yacht ). Copyright 2017 Planika Sp. z o.o. www.planikafires.com i1086#04 18.10.2017...
- Page 3 Also, Planika does not recommend to place any heat sensitive materials or devices within this radius as it can significantly limit the materials properties and longevity. Non-flammable Planika will not take any responsibility for the damage of any materials materials or devices being installed above the fireplace. Non-flammable materials min.
- Page 4 710 mm / min 27 " min 10 " min 12 mm min 13 mm " " 230 mm 680 mm / 26 " " 680 mm " min 710 mm min 27 " Copyright 2017 Planika Sp. z o.o. www.planikafires.com i1086#04 18.10.2017...
- Page 5 The furnace assembly "A" is connected to mains now. Set it in the prepared cavity. Connection to the mains must be made by a qualified electrician. Copyright 2017 Planika Sp. z o.o. www.planikafires.com i1086#04 18.10.2017...
- Page 6 • completely and the display shows , disconnect the power supply and take the device out of FUEL the housing. Keep this instruction manual throughout the lifetime of the device. • Copyright 2017 Planika Sp. z o.o. www.planikafires.com i1086#04 18.10.2017...
