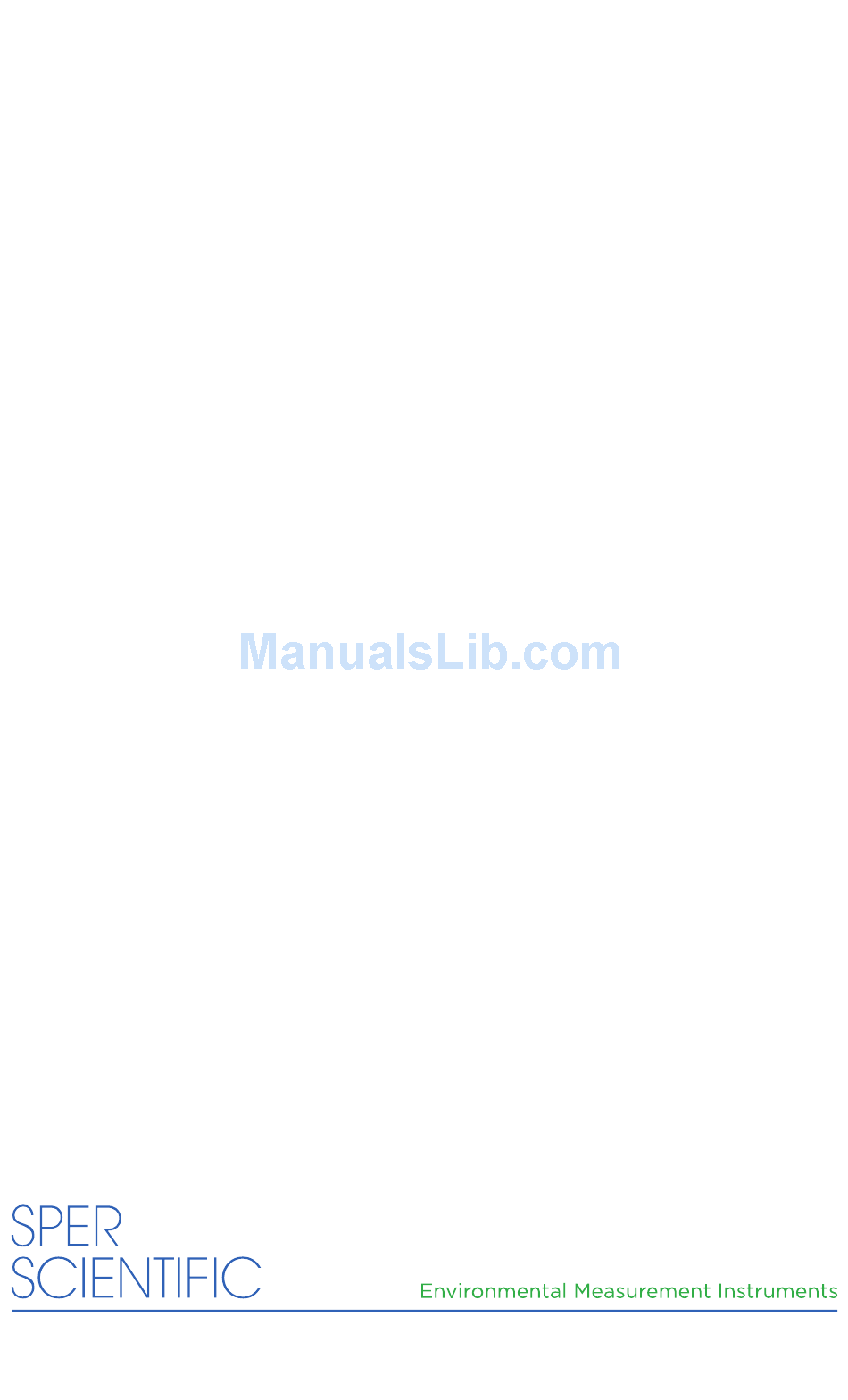

- Page 1 AquaShock® Bluetooth® pH Kit 850057K...
- Page 2 Sper Scientific. EPA Equivalency Method (with Glass Probe): 150.1 FCC ID: 2AK5U-1300 This device and enclosed comply with part 15 of the FCC Rules.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........4 FEATURES. -
Page 4: Introduction
INTRODUCTION This Sper Scientific AquaShock® Bluetooth® pH Meter (850057K) is the industry’s leading cross-over meter that brings lab quality capability to the portable meter industry. The AquaShock® line can withstand rigorous use, floats, and can be completely submerged in up to a meter of water. The fast calibration calibrates up to five-points with auto-recognition technology. -
Page 5: Features
FEATURES • Floats • Shockproof • IP67 Waterproof • Bluetooth® streaming up to 100 feet • Protective soft grip outer layer • Rechargeable Lithium Ion battery • Also accepts standard BNC probes (Waterproof seal is compromised with non-AquaShock® probes) • Multi-line display LCD screen •... -
Page 6: Lcd Display
LCD DISPLAY Name Description Ready Displayed when measuring results are stable Electrode Current electrode durability Durability Icon Scale Unit Current measurement scale unit Measuring Results Current measurement value ATC/MTC Automatic/Manual Temperature Compensation indicator Temperature Scale Current temperature measurement unit Temperature Value Current temperature measurement value Battery Icon... -
Page 7: Power Supply
LCD DISPLAY Probe Life Icon: More than 90% life remaining More than 85 – 90% life remaining More than 80 - 85% life remaining Less than 80% life remaining Battery Power Icon: Battery voltage is more than 7.7V shows full. Battery voltage between 7.2V and 7.7V shows 2 cells. -
Page 8: Keypad
KEYPAD Name 1st Function 2nd Function Power/Backlight/ Power on/off Backlight on/off Low Battery Setup Setting parameters Confirm setting MI↑ Store data ↑ MR↓ Recall data ↓ Max/Min/Ave Max/Min/Ave Range/Temp Switch measuring Set temperature value scale Hold/Exit Hold Exit Calibration... -
Page 9: Setup Mode
SETUP MODE The Setup Mode allows you to customize the following meter preferences and defaults: • Temperature Units • Clock Setting • Restore Factory Defaults • View Calibration Data • View Probe Parameters 1. Press POWER for 1 second to turn the meter on before performing any setup function. - Page 10 Restore Factory Settings 1. Press SETUP to enter the Setup Mode. 2. Press ↑ or ↓ to select the Restore Factory Settings screen. 3. Press SETUP to confirm selection. “NO” will flash on the LCD. 4. Press ↑ or ↓ to select “YES” or “NO.” 5.
-
Page 11: Calibration
CALIBRATION Calibration should be performed whenever the probe has been out of use for 48 hours or longer. To prepare for calibration: Calibrate With Temperature Sensor/ATC pH Probe 1. Press CAL for 2 seconds to enter Calibration Mode. 2. The meter will automatically recognize the calibration buffer. -
Page 12: Measurement Procedures
MEASUREMENT PROCEDURES Turning the Unit On/Off 1. Press POWER to turn the meter on. 2. Press and hold POWER for 2 seconds to turn the meter off. Backlight 1. With the meter on press POWER to turn the backlight on/off. Scale Selection 1. - Page 13 Recall Memory 1. Press RANGE to select the scale (pH or mV) for recall. 2. Press MR to enter Recall Mode and view the last measured value. The date and time are on cyclical display. 3. Press ↑ or ↓ to scroll saved data points. 4.
-
Page 14: Bluetooth ® Datalogging
BLUETOOTH® DATALOGGING WITH SOFTWARE Software Installation Note… Different computer systems may require slightly different installation steps than those below. First-Time Setup of meter and Software: 1. Download the software to your computer from our website Go to www.sperdirect.com/software.htm and find your meter or search for you meter (850057K) and download from product page. - Page 15 General Software Use: 1. Open the Software and click CONNECT in the upper left hand corner (See Image 2, below). 2. A pop-up window will open. Choose your desired meter from the AquaShock choices and click “OK.” Note... All connected Bluetooth devices will show in the popup window, including non-AquaShock®...
- Page 16 For Live Streaming 1. Click the Start Button in the upper right hand corner. A live graph will appear showing both the pH value and the mV value from the meter (See image 4). Press STOP to stop the live stream. The data can now be Exported to Excel. Downloading Internal Memory Points 1.
- Page 17 Exporting Data Note... The software will only export the most recent data that has been streamed or loaded from internal memory. If you are downloading both a stream and a set of internal memory points, you must export them individually. 1.
-
Page 18: Optional Accessories
OPTIONAL ACCESSORIES 850057P Replacement AquaShock® ATC pH Probe 850057PG AquaShock® Refillable ATC Glass pH Probe 840016 Standard pH Probe (non-ATC) 840049 Spear Tip pH Probe (non-ATC) 840093 Field Tripod 860008 pH 4 Buffer Solution - 3 bottles of 40ml each 860009 pH 7 Buffer Solution - 3 bottles of 40ml each 860010... -
Page 19: Specifications
SPECIFICATIONS Mode Temperature Range 0 to 14 pH 32 to 140°F -1999 to (0 to 60°C) 1999 mV Resolution 0.01 pH 0.1°F (0.1°C) 0.1 mV Accuracy ±0.01 pH ±0.9°F (±0.5°C) ±0.3 mV Input Temperature Connector Probe Connector Connector Calibration Up to 5 points Memory Up to 99 data points pH Slope... -
Page 20: Warranty
WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
