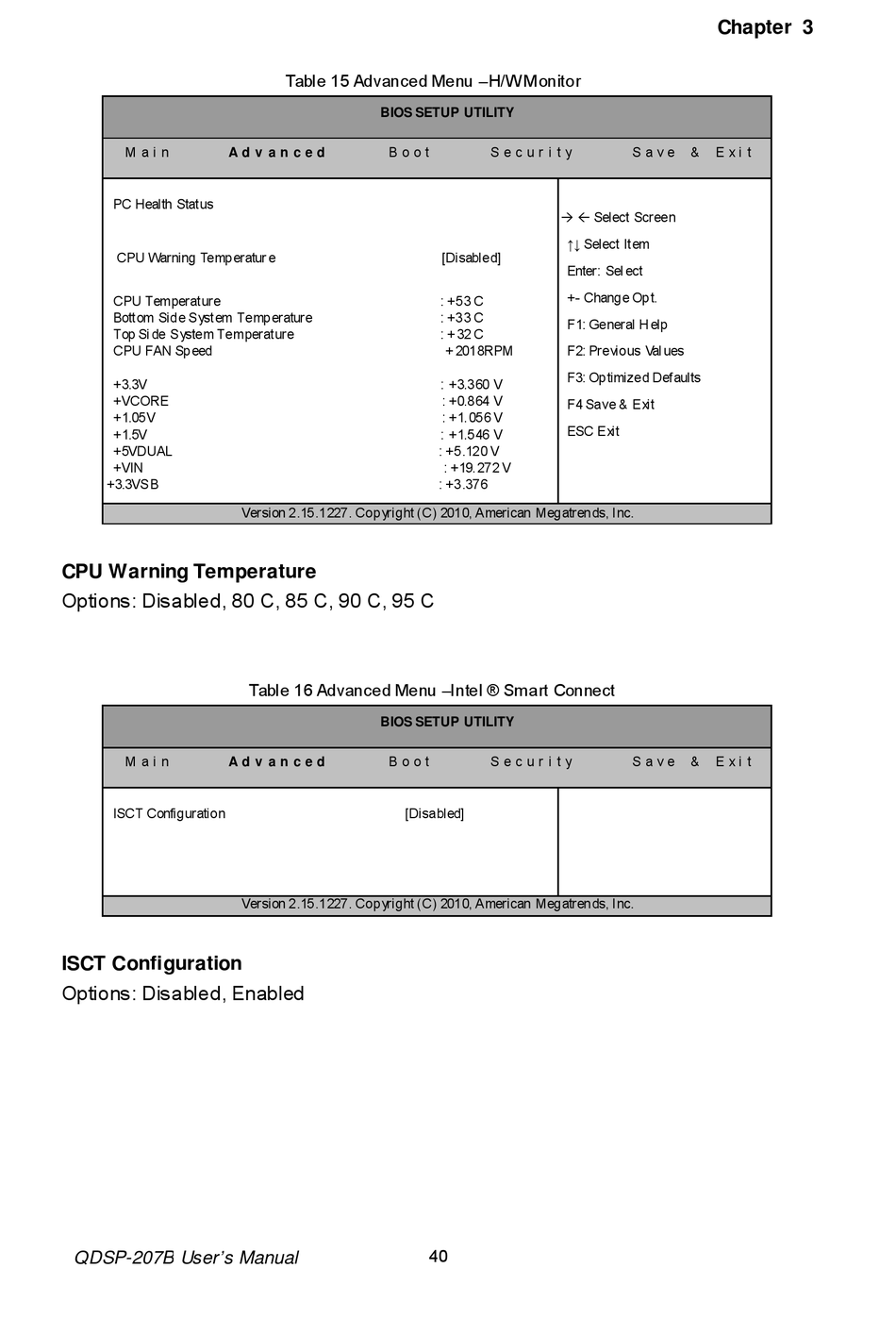

Table 15 Ad Vanced Menu –H/W Monitor - Quanmax QDSP-207B User's Manual Controller

M a i n
PC Health Status
CPU Warning Temperatur e
CPU Temperature
Bottom Side System Temperature
Top Si de System Temperature
CPU FAN Speed
+3.3V
+VCORE
+1.05V
+1.5V
+5VDUAL
+VIN
+3.3VSB
CPU Warning Temperature
Options: Disabled, 80 C, 85 C, 90 C, 95 C
M a i n
ISCT Configuration
ISCT Configuration
Options: Disabled, Enabled
QDSP-207B User's Manual
Table 15 Advanced Menu –H/W Monitor
