Chapter 2
Changing mini-PCIe
(1) Pla ce your mini‐PCIe module towa rd the mini‐PCIe socket.

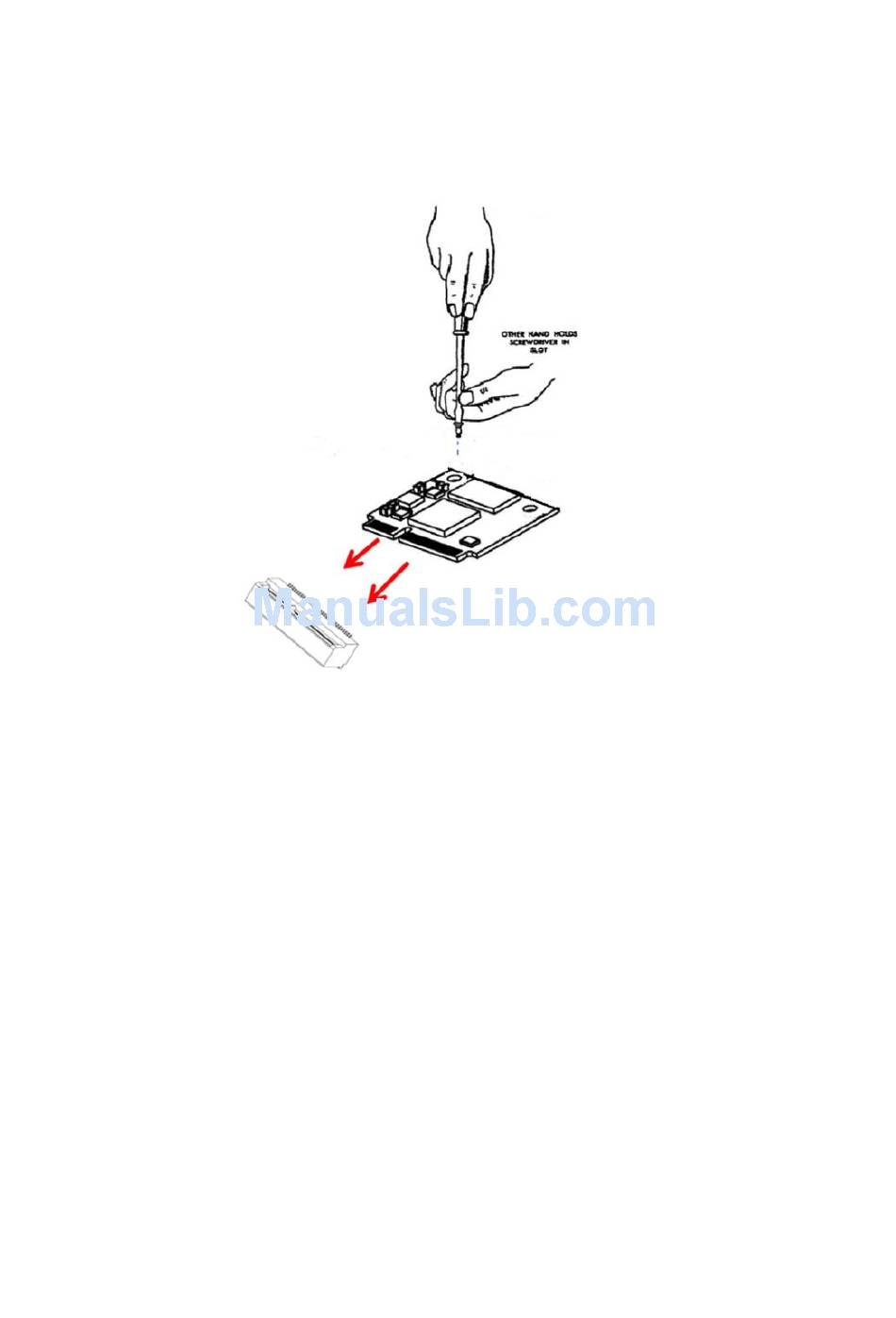

Figure 16 Mini-PCIe Installation

(2) Ti ghtening the s crew on the hole of the mini ‐PCIe module as shown above.
27
QDSP-207B User's Manual
