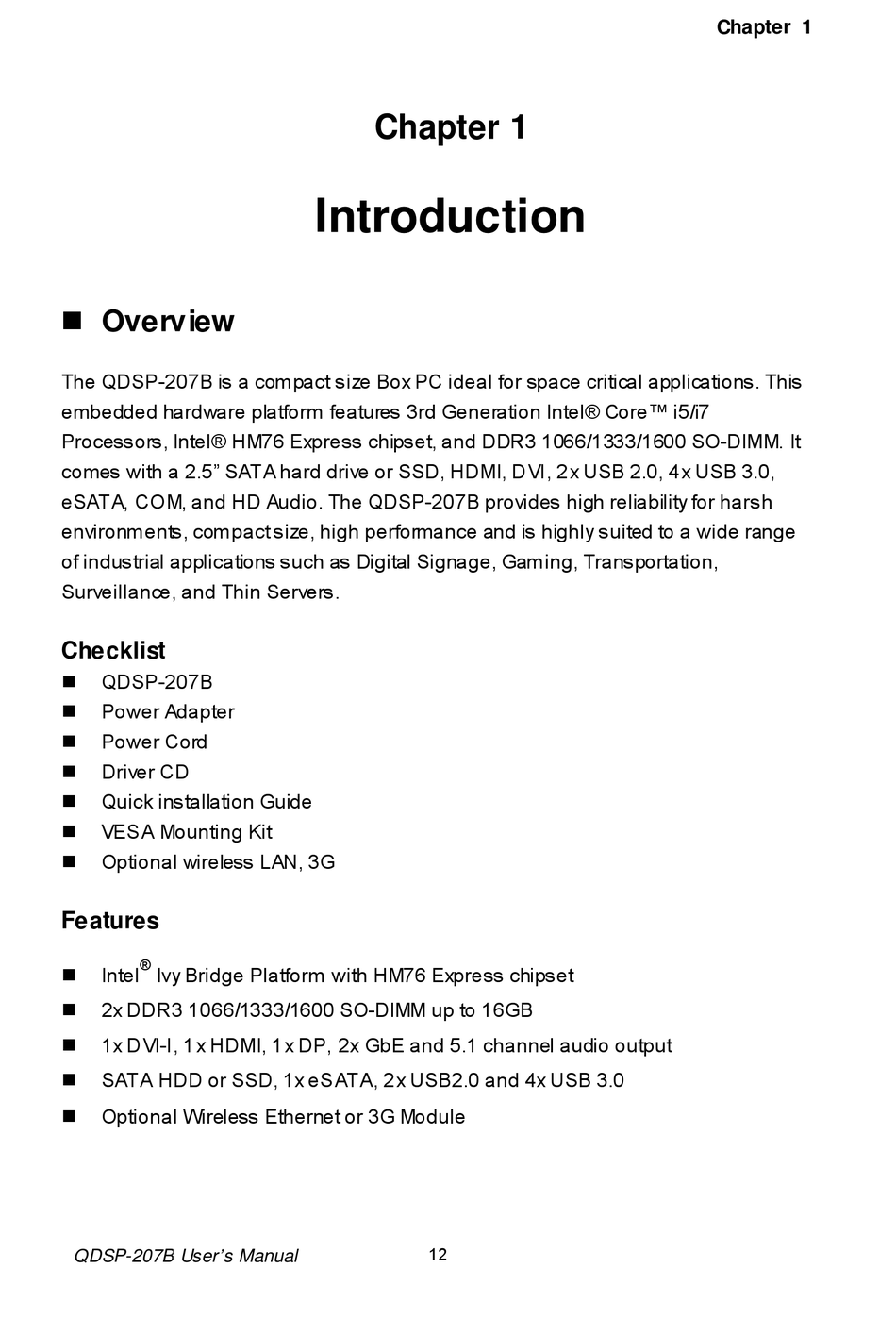

 Overview
The QDSP-207B is a compact size Box PC ideal for space critical applications. This
embedded hardware platform features 3rd Generation Intel® Core™ i5/i7
Processors, Intel® HM76 Express chipset, and DDR3 1066/1333/1600 SO-DIMM. It
comes with a 2.5" SATA hard drive or SSD, HDMI, D VI, 2 x USB 2.0, 4 x USB 3.0,
eSATA, COM, and HD Audio. The QDSP-207B provides high reliability for harsh
environments, compact size, high performance and is highly suited to a wide range
of industrial applications such as Digital Signage, Gaming, Transportation,
Surveillance, and Thin Servers.
Checklist
 QDSP-207B
Power Adapter

 Power Cord
 Driver CD
 Quick installation Guide
 VESA Mounting Kit
 Optional wireless LAN, 3G
Features
®
 Intel Ivy Bridge Platform with HM76 Express chipset
 2x DDR3 1066/1333/1600 SO-DIMM up to 16GB
 1x D VI-I, 1 x HDMI, 1 x DP, 2x GbE and 5.1 channel audio output
 SATA HDD or SSD, 1x eSATA, 2 x USB2.0 and 4x USB 3.0
 Optional Wireless Ethernet or 3G Module
