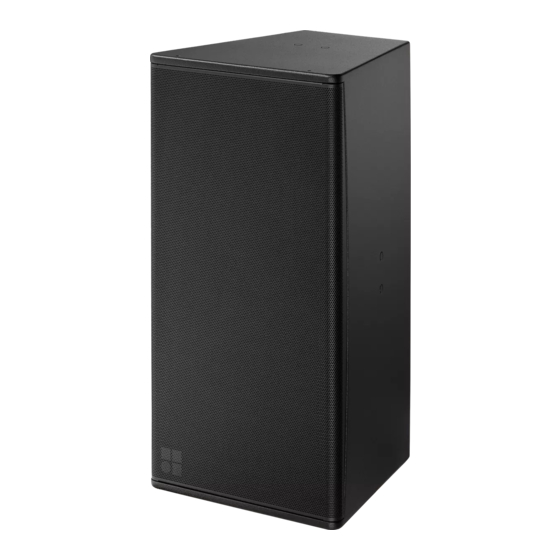

d&b audiotechnik 24S Manual
  1. Manuals
  2. Brands
  3. d&b audiotechnik Manuals
  4. Speakers
  5. 24S
  6. Manual

d&b audiotechnik 24S Manual

Xs series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
xS
24S/24S-D
Manual 1.1 en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24S and is the answer not in the manual?

Questions and answers

Related Manuals for d&b audiotechnik 24S

Summary of Contents for d&b audiotechnik 24S

  • Page 1 24S/24S-D Manual 1.1 en...
  • Page 2 General information 24S/24S-D Manual Version: 1.1 en, 10/2016, D2624.EN .01 Copyright © 2016 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.

  • Page 3: Table Of Contents

    2.1. Product description..............5 2.2. Connections................5 2.3. Operation................7 2.3.1. Controller settings..............7 2.4. Dispersion characteristics............8 2.5. Technical specifications............10 Manufacturer's declarations........12 3.1. EU conformity of loudspeakers (CE symbol)....... 12 3.1.1. WEEE Declaration (Disposal)........... 12 d&b 24S/24S-D Manual 1.1 en...

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b 24S/24S-D Manual 1.1 en...

  • Page 5: S/24S-D Loudspeaker

    – Z5551 VP Flying adapter link 24S/24S-D ceiling mounted with Z5554 Horizontal bracket 24S. 24S/24S-D array with Z5384 VP Flying adapter/Z5551 VP Flying adapter link. 2.2. Connections The cabinets are fitted with an NL4 M connector using the pin assignment 1+/1– and a two pole screw terminal block (ST).
  • Page 6 Fixed cable connection The 24S and 24S-D loudspeakers are each supplied with a cover plate [1] and a rubber grommet feed through [2]. For indoor operation, these items can be used to hide the connector panel, if required. For unprotected outdoor operation, the connector panel must be covered, i.e.

  • Page 7: Operation

    3 dB at 10 kHz. This roll off mimics the decline in frequency response experienced when listening to a system from a distance in a typically reverberant room or auditorium. Frequency response correction in HFA mode d&b 24S/24S-D Manual 1.1 en...

  • Page 8: Dispersion Characteristics

    The following graphs show dispersion angle over frequency of a single cabinet plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. vertical setup Isobar diagram vertical Isobar diagram horizontal horizontal setup, horn rotated Isobar diagram horizontal Isobar diagram vertical d&b 24S/24S-D Manual 1.1 en...
  • Page 9 Make sure the gasket of the horn is in place. – Refit the horn. – Insert all screws and carefully tighten them clockwise until they fit precisely into the countersunk holes. 4. Refit the front grill. Altering the HF dispersion d&b 24S/24S-D Manual 1.1 en...

  • Page 10: Technical Specifications

    24S-D with 30D/D20 137 dB 24S-D with D80 137 dB (SPLmax peak, pink noise test signal with crest factor of 4) 24S frequency response, standard and CUT modes 24S/24S-D loudspeaker Nominal impedance 4 ohms Power handling capacity (RMS/peak 10 ms)
  • Page 11 24S/24S-D cabinet dimensions in mm [inch] d&b 24S/24S-D Manual 1.1 en...

  • Page 12: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b 24S/24S-D Manual 1.1 en...
  • Page 14 www.dbaudio.com...
