IDEAL 7260 Operating Instructions Manual

Hide thumbs Also See for 7260:

Advertisement

Quick Links

Download this manual
EN Operating Instructions
Guillotines
IDEAL 7260
www.ideal.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7260 and is the answer not in the manual?

Questions and answers

Related Manuals for IDEAL 7260

Summary of Contents for IDEAL 7260

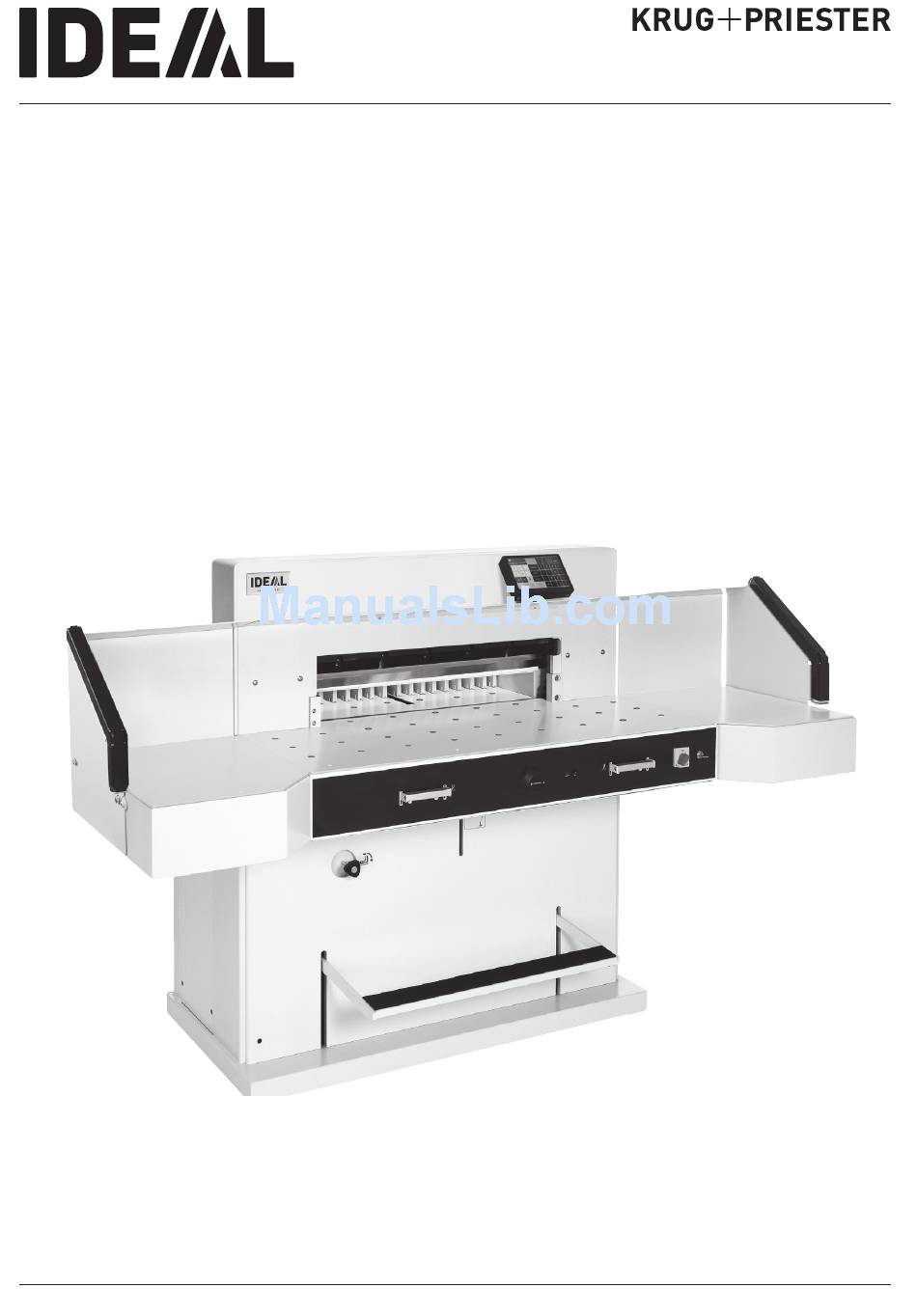

  • Page 1 EN Operating Instructions Guillotines IDEAL 7260 www.ideal.de...
  • Page 2 • Sicherheitshinweise • Safety precautions • • Consignes de sécurité • Veiligheidsvoorschriften • • Misure di Sicurezza • Normas de Seguridad • • Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene • • Środki bezpieczeństwa • Ìерû предосторожности • DE Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise.
  • Page 3 • Sicherheitshinweise • Safety precautions • • Consignes de sécurité • Veiligheidsvoorschriften • • Misure di Sicurezza • Normas de Seguridad • • Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene • • Środki bezpieczeństwa • Ìерû предосторожности • DE In der Nähe der Schneidemaschine keine Spraydosen mit entzündbaren Stoffen benutzen! EN Do not use any spray cans with flammable content near to the cutting machine!
  • Page 4 • Sicherheitshinweise • Safety precautions • • Consignes de sécurité • Veiligheidsvoorschriften • • Misure di Sicurezza • Normas de Seguridad • • Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene • • Środki bezpieczeństwa • Ìерû предосторожности • DE Keine entzündbaren Reinigungsmittel verwenden. EN Do not use any flammable cleaning agents.
  • Page 5 • Sicherheitshinweise • Safety precautions • • Consignes de sécurité • Veiligheidsvoorschriften • • Misure di Sicurezza • Normas de Seguridad • • Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene • • Środki bezpieczeństwa • Ìерû предосторожности • DE Keine Bedienung durch Kinder! EN Children must not operate the machine! FR Pas d‘utilisation par un enfant! NL Geen bediening door kinderen!
  • Page 6 • Sicherheitshinweise • Safety precautions • • Consignes de sécurité • Veiligheidsvoorschriften • • Misure di Sicurezza • Normas de Seguridad • • Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene • • Środki bezpieczeństwa • Ìерû предосторожности • DE Messer nie lose liegen lassen! Messer nur mit Messerwechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 31 und 33).
  • Page 7 • Sicherheitshinweise • Safety precautions • • Consignes de sécurité • Veiligheidsvoorschriften • • Misure di Sicurezza • Normas de Seguridad • • Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene • • Środki bezpieczeństwa • Ìерû предосторожности • DA Knivbladet må aldrig efterlades uden opsyn. Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 31 og 33) FARE! Risiko for legemlig beskadigelse.
  • Page 8 • Sicherheitshinweise • Safety precautions • • Consignes de sécurité • Veiligheidsvoorschriften • • Misure di Sicurezza • Normas de Seguridad • • Säkerhetsföreskrifter • Turvallisuusohjeita • Sikkerhetsforskriftene • • Środki bezpieczeństwa • Ìерû предосторожности • DE Keine harten und splitternden Materialien schneiden! EN Do not cut hard materials or materials which may splinter! La coupe de matériaux trop durs ou risquant des projections est interdite !
  • Page 9 • • Safety precautions The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is...
  • Page 10 • • Safety precautions All components which may endanger the operator are covered by a guard (A). Do not operate the machine without the following safety devices: • Panels, tightly screwed (A). • Safety beam guard (B). The cutting action, which is dangerous to the operator, is protected by a two-handed control system (C) and safety beam guard (D).
  • Page 11 • • Safety precautions Protect mains cable against heat, oil and sharp edges! Standard machines are factory-set as follows: • Power supply: 400 V, 3P+N+PE 220 V, 3P+PE • Frequency 50 / 60 Hz. Machine does not function • Is the machine switched on? •...
  • Page 12 • • Safety precautions Ensure free access to mains! When not in use for a longer period switch off. (Main switch to "0"). - 12 -...
  • Page 13 • • Installation The machine is delivered ready for operation. 6 strong people are required to lift the machine from the pallet. Side tables, left and right, (A) are available as accessories. Attach the side tables to the front table so that the upper surface is level.
  • Page 14 • • Installation Plug into socket. Display (C) is pivotable. By loosing the allen head screw (D), (allen wrench is in the tool box) the display can be pivoted within the elongated hole. Tighten allen screw again. - 14 -...
  • Page 15 • • Operation The machine may only be operated, if the operating instructions and the safety instructions have been understood. Before each use, check the safety equipment for completeness and functionality. • All covers have to be mounted (A). • Safety beam guard must be mounted (B). •...
  • Page 16 • • Operation Position the main switch to "I" (A). Insert the key for the control system and turn it to the right (B). Press (C) machine will automatically go to 72 cm or 28,346 inches. The machine is now ready for use. The measurement is set as follows: •...
  • Page 17 • • Operation Optical cutting line indicator: Optical cutting red line (A), indicates the position of the cut. Blade cuts on the front edge (B) of the light beam. Mechanical cutting line indicator: The clamp (C) can be used as cutting line indicator for cutting.
  • Page 18 • • Operation False clamp plate: A clamp plate (A) is fitted to the machine to prevent pressure marks on sensitive material. To dismount: • Remove the clamp plate (A) by turning the screwdriver (found in tool box) in the space between the clamp and clamp plate.
  • Page 19 • • Operation The clamp moves automatically when cutting is activated. The paper can be pressed in advance, with the foot pedal. Cutting is activated by pressing both actuators (B) on the front table. Symbols for cutting activation: Cutting sequence with automatic clamping. Cutting activation: Press both actuators of the two-handed control system (A) simultaneously and keep...
  • Page 20  backgauge to the rear and searches for the reference position, wait until a measurement is shown in the display 7260 = 72.00 cm, 28.346 inches • The DIN and free programmable measurements are recallable with the respective buttons Memory 1: A2, A3, A4, A5,...
  • Page 21 Before storing or cutting a measurement please check if the correct measurement scale (cm or inch) see above is stored. (7260 = 72.00 cm, 28.346 inches) Is shown on the screen see After 30 minutes the machine ( A B C D switches to energy-saving mode.
  • Page 22 • • Operation Cutting activation Warning! • Run backgauge to the front for turning the paper stack • Do not interrupt the upward movement of the blade by performing switching procedures • Wait until the display is green before activating a cut •...
  • Page 23 • • Operation Eject function If EJECT is pressed instead of START after inserting the measurement , the backgauge will advance forwards so that paper can be removed. Finally the backgauge moves to the last setting. Multiple cut • Enter the start dimension on the display •...
  • Page 24 • • Operation Programming This control system enables you to store 99 programs with 99 programmable steps. One step represents one measurement. After entering the program numbers you are able to change between several program steps with the button First figure on display = program number.
  • Page 25 • • Operation Calculator function in programming • Press PROG EDIT • Enter program number • Enter the 1st program step e.g. start-up measurement 40 cm • Store the measurement with enter • Calculate the desired measurement e.g. 40 - 2 = ...
  • Page 26 • • Operation Adapting a program when the printer’s imprint deviates • Press PROG RUN  "Load program no." appears • Enter program number 01 ... 99, and with 2 x Enter proceed to Step 1 • Correct the cutting position of the backgauge with the hand-wheel •...
  • Page 27 • • Operation Eject function program • If a short measurement e.g. 30 cm and then a long measurement e.g. 40 cm is cut at the start of a program then it is wise to insert an EJECT after the first cut so that the paper is pushed to the front.
  • Page 28 • Blade and cutting stick replacement • If the cutting quality decreases: • Check the cutting depth (see page 36). • Check the cutting stick (see page 32). • Replace or grind the blade (see page 28 - 36). The blade cannot be ground if the blade height is less than 8,3 cm / 3,29 inches.
  • Page 29 • • Blade and cutting stick replacement Turn the blade depth adjustment (A) towards the top until the blade screw recess corresponds with the frame recess (B). (Spanner found in tool set (C)). Remove spanner Danger! Risk of injury Lower the blade by pressing both cutting buttons (1.).
  • Page 30 • • Blade and cutting stick replacement The 3 eccentrics are now exposed and should be turned counter clockwise to position "0" with the special wrench and attachable extension pipe (A) (in the tool set). The slot must correspond to position "0"...
  • Page 31 • • Blade and cutting stick replacement Position the main switch to "0" (1.) Remove the 2 blade screws on the elongated holes (2.). Then put the blade changing tool (A) into place and fasten it to the blade (3.). Remove 4 blade screws (1.) Loosen the grips (2.) of the blade changing tool (A) lightly and allow the blade to be taken...
  • Page 32 • • Blade and cutting stick replacement Take out the cutting stick with a small screw- driver. If needed the cutting stick can be turned or exchanged. (The cutting stick can be used eight times). Replacing the cutting stick (not the blade) •...
  • Page 33 • • Blade and cutting stick replacement Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (A) • Make sure there is a space ot 10 mm or 0.39 inches! (B). •...
  • Page 34 • • Blade and cutting stick replacement Lightly tighten 4 of the 6 blade screws with washers (1.). Remove the blade changing tool (A) (2.). Lightly tighten the remaining blade screws with washers (3.). Remove all tools and distribute paper along the entire cutting length (1.).
  • Page 35 • • Blade and cutting stick replacement Lower the blade by pressing both cutting buttons (1.). Keep one button pressed and turn off the main switch (2.). With the special wrench (A) the 3 eccentrics should be screwed down until the paper is cut along the entire length of the blade (3.) (The blade must remain parallel, not too deep into cutting stick).
  • Page 36 • • Blade and cutting stick replacement Turn main switch to position "I" (1.). Blade will return to upper position. Tighten 6 blade screws (2.) firmly. Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the blade depth adjustment (A) 1/12 downwards until all the paper is completely cut.
  • Page 37 • • Maintenance and cleaning Danger! • Maintenance work may only be performed by trained staff. • Disconnect the mains before starting any service work or before removing the cover. Grease the backgauge (A) control weekly with a grease gun. Advance the backgauge as far as possible to the front.
  • Page 38 • • Maintenance and cleaning Grease the remaining parts twice a year (see picture). The main switch must be on "0" (B). Disconnect from the mains. Remove the front upper housing (E)  taking care of the cable. Remove lower panel and rear wooden panel (C).
  • Page 39 • • Maintenance and cleaning Annual inspection Next Maintenance To maintain the operational safety and to prevent premature wear, we recommend an annual inspection and maintenance of the machine by a qualified service technician. Krug & Priester GmbH & Co. KG 72336 Balingen - Germany Parts &...
  • Page 40 • • Possible malfuntions Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Check the units fuse and the on-site circuit breaker! Release a cut see page 19. - 40 -...
  • Page 41 • • Possible malfuntions The machine does not funktion after being moved to another position. If the machine still does not function then the rotation must be reversed. The machine is wired according to the IEC standards. We recommend that alterations to the rotary direction be made in the socket.
  • Page 42 • • Possible malfuntions Machine turns off: • Machine overloaded. Safety button (A) ejects. Reset the safety button (A). • Machine blocked. • Blade is blunt. Eliminate the cause, and push the safety button (A). • Backgauge blocked Safety button (B) ejects. Eliminate the cause, and push the safety button (B).
  • Page 43 • • Possible malfuntions Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of blade depth adjustment (B) (see page 36). Poor cutting quality or blade stays in the paper stack.
  • Page 44 • • Possible malfuntions Motor runs but blade does not move downwards. • Security brake has been activated! Inform the Service Team! • www.krug-priester.de  "Service" Service service@krug-priester.com Display illumination off • Is the machine plugged in? (A) • Is the main switch on position "I"? (B) •...
  • Page 45 • • Possible malfuntions No clamp pressure. • Hydraulic oil needs refilling (F). Contact your dealer. Trouble shooting-light beam Cut cannot be activated: • Remove all items obstructing the safety area (A) • (B) Green = o.k. / ready for operation light beam is interrupted or error - 45 -...
  • Page 46 • • Possible malfuntions Did none of the specified solutions help you with your problem? Contact: Service  • www.krug-priester.com • service@krug-priester.com Service - 46 -...
  • Page 47 • • Accessories Recommended accessories: HSS - Blade • No. 9000 141 Cutting stick (6 pieces) • No. 9000 039 Blade changing tool • No. 9000 514 Paper knock-up block • No. 9000 521 Grease gun • No. 9004 683 Side tables left and right •...
  • Page 48 • • Technical data Technical data: • Power supply: 400 V, 3P+N+PE 220 V, 3P+PE • Cutting length: 720 mm • Cutting height: 80 mm • Table depth: 720 mm • Sound level EN 13023: 72 dB (A) • Minimum space requirement (width x depth x height) 1305/2100 mm x 1540/1600...
  • Page 49 • • Technical data The company Krug + Priester has the following certifications: • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2009 • Energy management system according to DIN EN ISO 50001:2011 - 49 -...
  • Page 50 • • Technical data This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2014/30/EG. Sound level information: The sound level is 72 db (A) as defined by EN 13023. Subject to alteration without notice. - 50 -...
  • Page 51 - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que GS- IDENT. Nr. UL- IDENT. Nr. 7260 11072101 10072101 - folgenden einschlägigen Bestimmungen entspricht - complies with the following provisons applying to it...
  • Page 52 IDEAL • Made in Germany Document Shredders • • Trimmers and Guillotines • • Krug & Priester GmbH & Co KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) IDEAL 07-2016 15.01.2018 zm...
