www.WhitakerBrothers.com
Guillotines
GB Operating Instructions
IDEAL 4815
IDEAL 4850

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4815 and is the answer not in the manual?

Questions and answers

Related Manuals for IDEAL 4815

Summary of Contents for IDEAL 4815

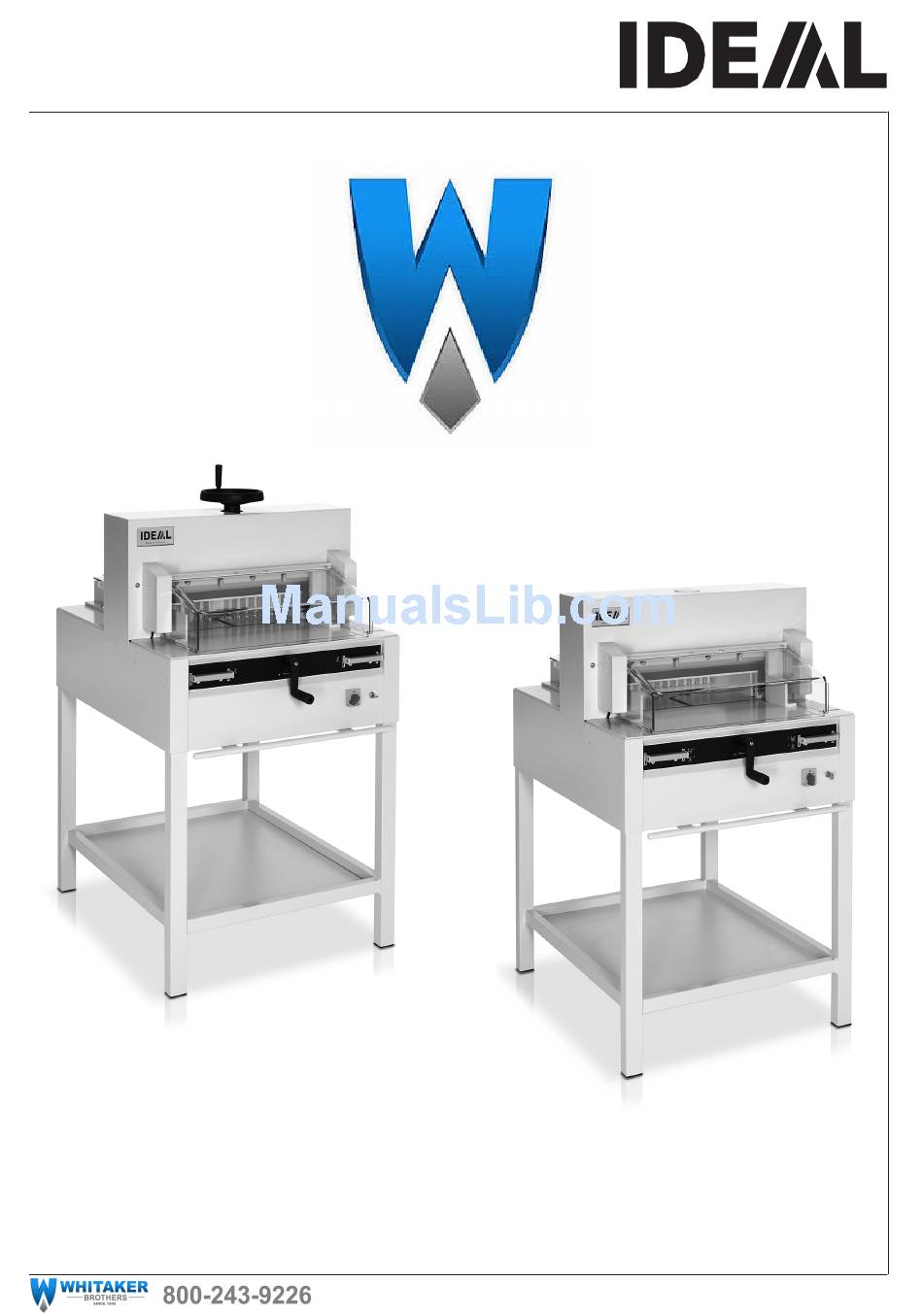

  • Page 1 Guillotines GB Operating Instructions IDEAL 4815 IDEAL 4850...
  • Page 2 • Safety precautions • IDEAL 4815 • IDEAL 4850 Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. Please read these operating instructions before putting the machine into operation and observe the safety precautions.
  • Page 3 • Safety precautions • Keine Bedienung durch Kinder! GB Children must not operate the machine! Pas d‘utilisation par un enfant! Geen bediening door kinderen! Non lasciare utilizzare il tagliacarte a bambini! No dejar que la utilicen los niños! Installera maskinen utom räckhåll för barn! FIN Asentakaa laite lasten ulottumattomiin ! Installer maskinen utenfor rekkevidde for barn! Dzieciom nie wolno obsługiwać...
  • Page 4 • Safety precautions • IDEAL 4815 • IDEAL 4850 Messer nie lose liegen lassen! Messer nur mit Messerwechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 27 und 29). Warnung! Verletzungsgefahr! GB Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 27 and 29).
  • Page 5 • Safety precautions • DK Knivbladet må aldrig efterlades uden opsyn. Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 27 og 29) FARE! Risiko for legemlig beskadigelse. Nikdy nenechávejte nůž bez krytu. Nikdy nevyjímejte nebo neprepravujte nuz bez ochranného krytu (viz.
  • Page 6 • Safety precautions • IDEAL 4815 • IDEAL 4850 Keine harten und splitternden Materialien schneiden! GB Do not cut hard materials or materials which may splinter! La coupe de matériaux trop durs ou risquant des projections est interdite ! Snij geen harde materialen of materiaal dat kan splinteren!
  • Page 7 Safety precautions • • The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade. Disconnect from the mains before starting any service work or before removing the panels! Replacement of blade and cutting stick may be performed only when the main switch is...
  • Page 8 Safety precautions • • IDEAL 4815 • IDEAL 4850 All components which could endanger the operator are covered by a guard! Operating the machine without safety device is forbidden! (Front safety guard (A), rear screwed safety guard (B) and panel (C).
  • Page 9 Safety precautions • • The dangerous cutting movement is safeguarded by a movable guard (A) and a safety two-handed control system! (B) Before working with the machine and after every blade replacement the automatic cut-off function of safety guard (A),(correct if distance between cover and table is <...
  • Page 10 Safety precautions • • IDEAL 4815 • IDEAL 4850 Protect mains cable against heat, oil and sharp edges! Connect the power cord to a single phase socket. 230V / 10A min 115V / 15A min Ensure free access to mains!
  • Page 11 Safety precautions • • When not in use for a longer period switch off. (Main switch to "0"). Warning by IDEAL 4815 Danger! Blade must always be covered by the pressing bar. Clamping Blade - 11 -...
  • Page 12 Installation • • IDEAL 4815 • IDEAL 4850 Remove the stand from the wooden pallet. 4 strong people are required to lift the machine from the pallet and place it on the stand. Secure with 4 screws (A). Put the shelf (B) on the stand.
  • Page 13 Installation • • Tools can be kept in the holder provided . Cutting sticks (A) can be put in the tool holder - 13 -...
  • Page 14 Installation • • IDEAL 4815 • IDEAL 4850 Tighten the backgauge crank (A). Parts and tools are in the tool set (C). Only IDEAL 4815 Attach the enclosed hand-wheel for clamping. Parts and tools are in the tool set (C).
  • Page 15 Installation • • Side tables (A), left and right are available as an option (Nr. 9000 528). Plug into socket. The machine must be connected directly to the socket. - 15 -...
  • Page 16 Operation • • IDEAL 4815 • IDEAL 4850 It is forbidden to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices are functioning and complete before use. • All covers have to be mounted (A).
  • Page 17 - Display cutting size (cm or inch) - Main switch - Crank handle for backgauge setting - Key switch - Paper clamp (only IDEAL 4815) - Backgauge - Side lay left and right - Front safety guard - Measuring unit (cm or inch)
  • Page 18 Operation • • IDEAL 4815 • IDEAL 4850 Position the main switch to "I" (A). Insert the for the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use.
  • Page 19 Operation • • The measurement is set with the backgauge crank.(A) The symbol – rotary direction – moves to the right on the display (B) (see picture C). The rotary direction of the backgauge crank (A) is indicated on the right. Keep turning the backgauge crank to the right until a measurement appears (see picture E).
  • Page 20 Operation • • IDEAL 4815 • IDEAL 4850 Cut according to markings Optical cutting line (A) that indicates the exact position of the cut. Blade cuts on the front edge (B) of the light beam. (Only use when no exact cut is required).
  • Page 21 (C) provided. (Run backgauge to the front for turning the paper stack). Only 4815 Clamping is released by the hand-wheel. Before every cut lower the clamp by turning the hand-wheel to the right and tighten with a light twist.
  • Page 22 Operation • • IDEAL 4815 • IDEAL 4850 IDEAL 4850 The clamp moves automatically when cutting is activated. The paper can also be pressed in advance. Clamping and cutting is activated by pressing actuators (A) on the front table. IDEAL 4850 The actuator has 2 switching steps: 1.
  • Page 23 Operation • • Close the safety guard. Cutting activation: Press both buttons of the two-handed control system activation (A) simultaneously and them pressed until the paper is completely cut. To interrupt or stop cutting: To interrupt or stop cutting, release both buttons (A) of the two-hand control.
  • Page 24 Blade and cutting stick replacement • • IDEAL 4815 • IDEAL 4850 If the cutting quality decreases: • Check the cutting depth (see page 32). • Check the cutting stick (see page 28). • Replace or grind the blade (see page 24 - 32).
  • Page 25 Blade and cutting stick replacement • • Turn the blade depth adjustment screw to the left until it stops. (Screwdriver found in tool set (A). Close the safety guard (1.). Lower the blade by pressing both cutting actuators (2.). Keep one actuator pressed and turn off the main switch (3.).
  • Page 26 Blade and cutting stick replacement • • IDEAL 4815 • IDEAL 4850 The 3 eccentrics are now exposed and should be turned counter clockwise to position "0" with the special wrench and attachable extension pipe (A) (in the tool set). The slot must correspond to position "0"...
  • Page 27 Blade and cutting stick replacement • • Position the main switch to "0" (1.) Remove the 2 blade screws on the elongated holes (2.). Then put the blade changing tool (A) into place and fasten it to the blade (3.). Remove 2 blade screws (1.).
  • Page 28 Blade and cutting stick replacement • • IDEAL 4815 • IDEAL 4850 Take out the cutting stick with a small screw- driver. If needed the cutting stick can be turned or exchanged. (The cutting stick can be used eight times).
  • Page 29 Blade and cutting stick replacement • • Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (A). • Make sure there is a space ot 11 mm or 0.43 inches! (B). •...
  • Page 30 Blade and cutting stick replacement • • IDEAL 4815 • IDEAL 4850 Lightly tighten 2 of the 5 blade screws with washers (1.). Remove the blade changing tool (2.). Lightly tighten the remaining blade screws with washers (3.). Lightly screw in the right blade screw with the washer (A) when the blade is lowered.
  • Page 31 Turn main switch to position "I" (1.). Blade will return to upper position. Tighten the blade screws (2.) firmly. Warning by IDEAL 4815 Do not turn main switch to position "0" whilst blade is moving upwards! The clamp must always overlap the blade! (see page 32).
  • Page 32 Blade and cutting stick replacement • • IDEAL 4815 • IDEAL 4850 Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the knob for blade depth adjustment (A) ¼ turn to the right until the paper is cut along the entire length.
  • Page 33 Maintenance and cleaning • • Maintenance work may only be performed by trained staff. Danger! Disconnect the mains before starting any service work or before removing the cover. Grease the backgauge (A) control weekly with a grease gun. Advance the backgauge as far as possible to the front.
  • Page 34 Maintenance and cleaning • • IDEAL 4815 • IDEAL 4850 Safety test The safety regulations are according to the regulations of the country where the cutting machine is operated. The manufacturer recommends a safety check is made every 5 years by an authorised service team.
  • Page 35 Possible malfuntions • • Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Check the units fuse and the on-site circuit breaker! Release a cut see page 21 and 22. - 35 -...
  • Page 36 Possible malfuntions • • IDEAL 4815 • IDEAL 4850 Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). - 36 -...
  • Page 37 (A). • Machine blocked. • Blade is blunt. Eliminate the cause, and push the safety button (A). Only IDEAL 4850 • Clamping drive blocked Safety button (B) ejects. Eliminate the cause, and push the safety button (B). Safety button for:...
  • Page 38 Possible malfuntions • • IDEAL 4815 • IDEAL 4850 Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B) (see page 32). Poor cutting quality or blade stays in the paper stack.
  • Page 39 • • Motor runs but blade does not move downwards. • Security brake has been activated! Inform the Service Team! • www.ideal.de "Service" service@krug-priester.com Display illumination off • Machine is plugged in? (A) • Main switch on position "I"? (B) •...
  • Page 40 Possible malfuntions • • IDEAL 4815 • IDEAL 4850 None of the above mentioned methods helped to solve the problem: Contact Service Team under • www.ideal.de "Service" service@krug-priester.com - 40 -...
  • Page 41 • • Accessories Recommended accessories: Blade • Nr. 9000 021 Cutting stick (6 pieces) • Nr. 9000 022 Blade changing tool • Nr. 9000 518 Paper knock-up block • Nr. 9000 521 Side tables left and right • Nr. 9000 528 Included in delivery - 41 -...
  • Page 42 765* x 1080 x 1435 212** IDEAL 4850 765* x 1080 x 1300 225*** * with side tables: 1365 mm ** with side tables: IDEAL 4815 / 221 kg *** with side tables:IDEAL 4850 / 234 kg - 42 -...
  • Page 43 Technical data • • This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2006/42/EG and 2004/108/EG. Sound level information: The sound level is < 70 db (A) as defined by EN 13023. Subject to alteration without notice. - 43 -...
  • Page 44 Technical data • • IDEAL 4815 • IDEAL 4850 Krug + Priester has a certified quality management system according to DIN EN ISO 9001:2008 and a certified environmental management system according to DIN ISO 14001:2009. - 44 -...
  • Page 45 Déclaration de conformité CE - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que GS- IDENT. Nr. UL- IDENT. Nr. 4815 11481001 10481001 4850 11485001 10485001 - folgenden einschlägigen Bestimmungen entspricht...
  • Page 46 IDEAL 4815 • IDEAL 4850 Remarks: - 46 -...
  • Page 47 Remarks: - 47 -...
  • Page 48 IDEAL • Made in Germany Document Shredders • • Trimmers and Guillotines • • • • • • • IDEAL 72336 Balingen Germany www.ideal.de...
