Indicators On Lcd - INVENTOR V2MCI-24 Owner's Manual

Function buttons(continued)
9 FAN SPEED Button+MODE Button
Press the Mode and Fan speed button
SET TEMPERATURE( C) simultaneously for 2 seconds.The remote
AUTO FAN controls into faceplate setting state and the
COOL HIGH
LCD shows F2.Press the TEMPUP( ) to
DRY MED
HEAT LOW
control the faceplate up and press the TEMP
DOWN( ) to control the faceplate down.Press
ADJUST
any button to exit the faceplate setting state,
then the LCD back to the normal display.
ON/OFF
MODE
FAN SPEED
10 TIMER ON Button
TIMER ON
SWING ECO
Press this button to activate the Auto-on time
setting. Each press will increase the time setting
SWING TIMER OFF
RESET LOCK
in 30 minutes increments, up to 10 hours, then at
AIR
1 hour increments up to 24 hours. To cancel the
DIRECTION
Auto-on time setting, just press the button until
the time setting is 0.0.
11
ECO Button
Select this function during the sleeping time. It
can maintain the most comfortable temperature
and save energy. This function is available on
COOL, HEAT or AUTO mode only .
NOTE: While the unit is running under Energy-
saving mode, it would be cancelled if press
SET TEMPERATURE( C)
MODE, FAN SPEED or ON/OFF button.
AUTO FAN
COOL HIGH
TIMER OFF Button
12
DRY MED
HEAT LOW
Press this button to activate the Auto-off time
setting. Each press will increase the time setting
ADJUST
in 30 minutes increments, up to 10 hours, then at
1 hour increments up to 24 hours. To cancel the
ON/OFF
MODE
FAN SPEED
Auto-off time setting, just press the button until
the time setting is 0.0.
TIMER ON
SWING ECO
13 LOCK Button
TIMER OFF
SWING
RESET LOCK
Press this recessed button to lock all current
AIR settings, and the remote controller will not accept
DIRECTION
any operation except that of the LOCK. Use the
LOCK mode when you want to prevent settings
from being changed accidentally. Press the LOCK
button again to cancel the LOCK function. A lock
symbol will appear on the remote controller display
when the lock function is activated.
5 5

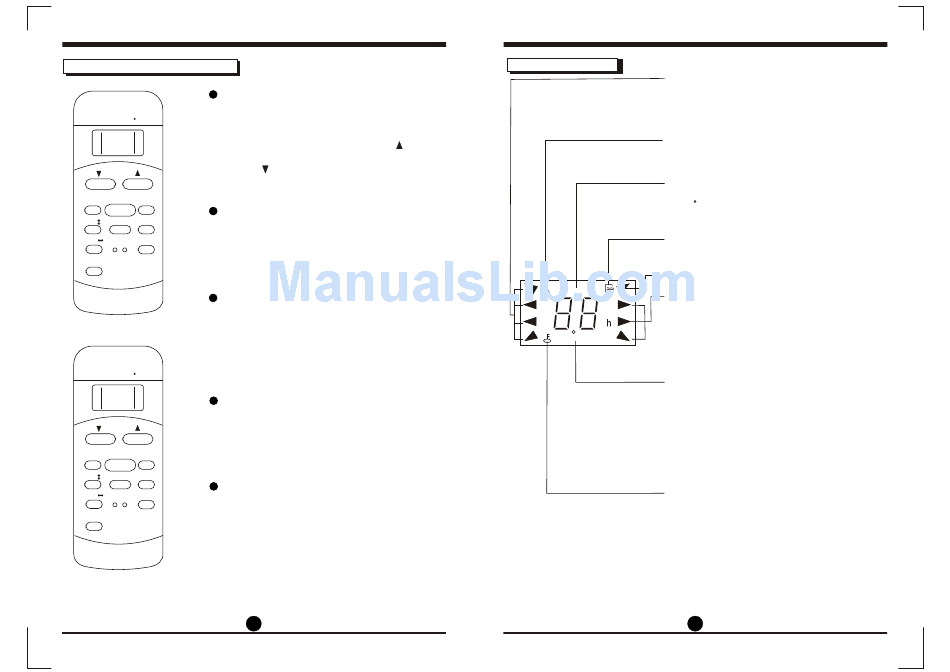

Indicators on LCD

MODE display
Displays the current selected mode. Including
AUTO, COOL, DRY, HEAT(cooling & heating
models only) and FAN.
Transmission Indicator
This transmission indicator will light when remote
controller transmits signals to the indoor unit.
Temp./Timer display
The temperature setting (from 17 C to 30 C) or
timer setting (0~24h) will be displayed. If FAN
mode is selected, there will be no display.
ON/OFF display
This indicator will be displayed when the unit is
operating.
MODE display(FAN mode)
SET TEMPERATURE
FAN SPEED display
Displays the selected fan speed: AUTO, HIGH,
MED(if applicable) and LOW. Nothing displays
when the fan speed is selected in AUTO speed.
TIMER ON OFF
When AUTO or DRY Mode is selected, there
will be no signals displayed.
TIMER display
This display area shows the settings of the TIMER.
That is, if only the Auto-on time function is set, it
will display TIMER ON. If only the Auto-off time
function is set, it will display TIMER OFF. If both
functions are set, it will display TIMER ON OFF
which indicates you have chosen both the
Auto-on time and Auto-off time.
LOCK Indicator
LOCK display is displayed when pushing the
LOCK button. Push the LOCK button to clear
display.
O O
6 6
