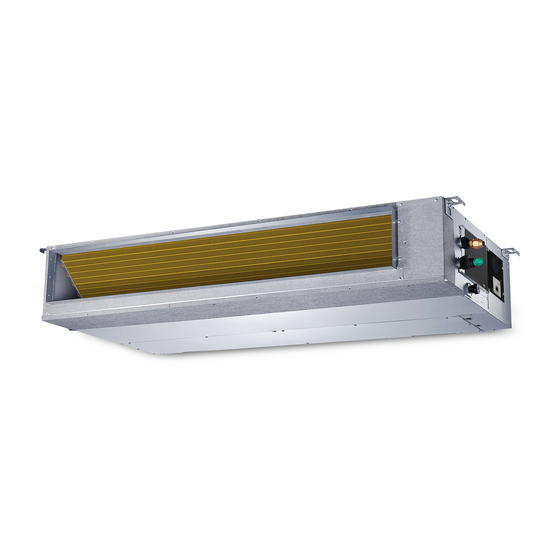

AIR CONDITIONING SYSTEMS
• USER'S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
• MANUAL UTILIZATORULUI
• BENUTZERHANDBUCH
ENGLISH | ΕΛΛΗΝΙΚΑ | ROMANA | DEUTSCH
REMOTE CONTROLLER
MODELS:
V7DI-12WiFiR/U7RS-12
V7DI-18WiFiR/U7RS-18
V7DI-24WiFiR/U7RS-24
V7DI-36WiFiR/U7RS-36
V7DI-42WiFiR/U7RS-42
V7DI-50WiFiR/U7RT-50
V7DI-60WiFiR/U7RT-60
V7CRI-12WiFiR/U7RS-12
V7CRI-18WiFiR/U7RS-18
V7KI-18WiFiR/U7RS-18
V7KI-24WiFiR/U7RS-24
V7KI-36WiFiR/U7RS-36
V7KI-50WiFiR/U7RT-50
V7KI-60WiFiR/U7RT-60
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V7DI-12WiFiR/U7RS-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INVENTOR V7DI-12WiFiR/U7RS-12

Summary of Contents for INVENTOR V7DI-12WiFiR/U7RS-12

  • Page 1 AIR CONDITIONING SYSTEMS REMOTE CONTROLLER • USER’S MANUAL • ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ • MANUAL UTILIZATORULUI • BENUTZERHANDBUCH MODELS: V7DI-12WiFiR/U7RS-12 V7DI-18WiFiR/U7RS-18 V7DI-24WiFiR/U7RS-24 V7DI-36WiFiR/U7RS-36 V7DI-42WiFiR/U7RS-42 V7DI-50WiFiR/U7RT-50 V7DI-60WiFiR/U7RT-60 V7CRI-12WiFiR/U7RS-12 V7CRI-18WiFiR/U7RS-18 V7KI-18WiFiR/U7RS-18 V7KI-24WiFiR/U7RS-24 V7KI-36WiFiR/U7RS-36 V7KI-50WiFiR/U7RT-50 V7KI-60WiFiR/U7RT-60 ENGLISH | ΕΛΛΗΝΙΚΑ | ROMANA | DEUTSCH...

  • Page 3: Table Of Contents

    Table of Contents Remote Controller Specifications ............02 Handling the Remote Controller ............03 Buttons and Functions ..............04 Remote Screen Indicators ..............08 How to Use Basic Functions ............09 How to Use Advanced Functions ..........11...

  • Page 4: Remote Controller Specifications

    Remote Controller Specifications RG10A(D2S) 3.0V( Dry batteries R03/LR03×2) -5°C~60°C(23°F~140°F) Quick Start Guide AUTO COOL HEAT FIT BATTERIES SELECT MODE SELECT TEMPERATURE SELECT FAN SPEED POINT REMOTE TOWARD UNIT PRESS POWER BUTTON NOT SURE WHAT A FUNCTION DOES? Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.

  • Page 5: Handling The Remote Controller

    Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. •...

  • Page 6: Buttons And Functions

    Buttons and Functions Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

  • Page 7: Remote Screen Indicators

    Remote Screen Indicators Information are displayed when the remote controller is power up. Breeze Away display - not available Active clean feature display Fresh feature display - not available Sleep mode display Follow me feature display Wireless control feature display Transmission Indicator Low battery detection display(flashing) Lights up when remote...

  • Page 8: How To Use Basic Functions

    How to Use Basic Functions ATTENTION Before operation, please ensure the unit is plugged in and power is available. AUTO Mode Select AUTO mode Set your desired temperature Turn on the air conditioner MODE NOTE: 1. In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT function based on the set temperature.
  • Page 9 Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER button to initiate Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence.

  • Page 10: How To Use Advanced Functions

    How to Use Advanced Functions Swing function Press Swing button Swing Swing The horizontal louver will swing up and down Keep pressing this button more than 2 seconds, automatically when pressing Swing button. the vertical louver swing function is activated. Press again to make it stop.
  • Page 11 ECO/GEAR function Press X-ECO button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode ECO..Note:This function is only available under COOL mode. ECO operation: Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24 C/75 F, fan speed of Auto to save energy (only when the set temperature is less than 24 C/75 F).
  • Page 12 Silence function Keep pressing Fan button for more than 2 seconds to activate/disable Silence function. Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity. Pressing ON/OFF, Mode, Sleep, Turbo or Clean button while operating will cancel silence function.
  • Page 13 SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above.
  • Page 14 All the pictures in the manual are for explanatory purposes only. The actual shape of the unit you purchased may be slightly different, but the operations and functions are the same. The company may not be held responsible for any misprinted information. The design and the specifications of the product for reasons, such as product improvement, are subject to change without any prior notice.
  • Page 15 Περιεχόμενα Προδιαγραφές τηλεχειριστηρίου............16 Χειρισμός του τηλεχειριστηρίου............17 Πλήκτρα και λειτουργίες.................18 Ενδείξεις οθόνης LCD του τηλεχειριστηρίου........19 Χρήση των βασικών λειτουργιών............20 Χρήση των προηγμένων λειτουργιών..........22...

  • Page 16: Προδιαγραφές Τηλεχειριστηρίου

    Remote Controller Specifications Remote Controller Specifications Προδιαγραφές τηλεχειριστηρίου RG10A(D2S) RG10N2(D2S) Μοντέλο RG10A(D2S) 3.0V( Dry batteries R03/LR03×2) 3.0V (Dry batteries R03/LR03×2) Ονομαστική τάση 3.0V( μπαταρίες R03/LR03×2) Εμβέλεια λήψης σήματος -5°C~60°C(23°F~140°F) -5°C~60°C(23°F~140°F) Περιβάλλον -5°C~60°C(23°F~140°F) Οδηγός γρήγορης εκκίνησης Quick Start Guide Quick Start Guide AUTO AUTO COOL...

  • Page 17: Χειρισμός Του Τηλεχειριστηρίου

    Χειρισμός του τηλεχειριστηρίου Handling the Remote Controller ΤΟΠΟΘΕΤΗΣΗ ΚΑΙ ΑΝΤΙΚΑΤΑΣΤΑΣΗ ΣΗΜΕΙΩΣΕΙΣ ΓΙΑ ΤΗΝ ΧΡΗΣΗ ΤΟΥ Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL ΤΗΛΕΧΕΙΡΙΣΤΗΡΙΟΥ ΤΩΝ ΜΠΑΤΑΡΙΩΝ Your air conditioning unit may come with two The device could comply with the local national Η...

  • Page 18: Πλήκτρα Και Λειτουργίες

    Πλήκτρα και λειτουργίες Προτού αρχίσετε να χρησιμοποιείτε το νέο σας κλιματιστικό φροντίστε να Buttons and Functions εξοικειωθείτε με το τηλεχειριστήριό του. Ακολουθεί μια σύντομη παρουσίαση του τηλεχειριστηρίου. Για οδηγίες σχετικά Before you begin using your new air conditioner, make sure to familiarize yourself with its remote με...

  • Page 19: Ενδείξεις Οθόνης Lcd Του Τηλεχειριστηρίου

    Ενδείξεις οθόνης LCD του τηλεχειριστηρίου Remote Screen Indicators Όταν το τηλεχειριστήριο τίθεται σε λειτουργία, εμφανίζονται πληροφορίες στην οθόνη. Information are displayed when the remote controller is power up. Ένδειξη Breeze Away (μη διαθέσιμη) Breeze Away display - not available Ένδειξη Active Clean Active clean feature display Ένδειξη...

  • Page 20: Χρήση Των Βασικών Λειτουργιών

    How to Use Basic Functions How to Use Basic Functions How to Use Basic Functions Χρήση των βασικών λειτουργιών How to Use Basic Functions ATTENTION Before operation, please ensure the unit is plugged in and power is available. ATTENTION Before operation, please ensure the unit is plugged in and power is available. Πριν...
  • Page 21 Press TIMER button to initiate Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence. for multiple times to set the desired the TIMER ON will be activated. time to turn on the unit. Ρύθμιση...

  • Page 22: Χρήση Των Προηγμένων Λειτουργιών

    Χρήση των προηγμένων λειτουργιών How to Use Advanced Functions How to Use Advanced Functions How to Use Advanced Functions Ρύθμιση SWING Swing function Swing function Swing function Πιέστε το πλήκτρο Swing Press Swing button Press Swing button Press Swing button Swing Swing Swing...
  • Page 23 Λειτουργία εξοικονόμησης ενέργειας ECO/GEAR ECO/GEAR function Πιέστε το πλήκτρο ECO/GEAR για ενεργοποίηση της λειτουργίας εξοικονόμησης ενέργειας. Η επιλογή μεταβάλλεται με την εξής Press this button to enter the energy efficient mode in a sequence of ακολουθία: ECO/GEAR function following: GEAR (75%) GEAR (50%) Απενεργοποίηση...
  • Page 24 Silence function Keep pressing Fan button for more than 2 seconds to activate/disable Silence Λειτουργία Silence: function. Silence function Keep pressing Fan button for more than 2 seconds to activate/disable Silence Due to low frequency operation of compressor, it may result in insufficient cooling function.
  • Page 25 Λοιπές Λειτουργίες SET function • Πιέστε το πλήκτρο SET για να εισέλθετε στο μενού των λοιπών λειτουργιών, και πιέστε το πλήκτρο SET ή τα πλήκτρα TEMP ή TEMP για να μετακινηθείτε ανάμεσα Press the SET button to enter the function setting, then press SET button or TEMP or TEMP στις...
  • Page 26 Όλες οι εικόνες στο παρόν εγχειρίδιο εξυπηρετούν επεξηγηματικούς σκοπούς. Το προϊόν που προμηθευτήκατε μπορεί να εμφανίζει ορισμένες διαφορές ως προς το σχήμα, ωστόσο οι λειτουργίες και τα χαρακτηριστικά παραμένουν ίδια. Η εταιρεία δεν φέρει ευθύνη για τυχόν τυπογραφικά λάθη. Ο σχεδιασμός και οι προδιαγραφές...
  • Page 27 CUPRINS Specificatiile telecomenzii ..............28 Utilizarea telecomenzii ..............29 Butoane si functii ................30 Indicatori ecran ................. 31 Cum se folosesc functiile de baza ........... 32 Cum se folosesc functiile avansate ..........34...
  • Page 28 Remote Controller Specifications Remote Controller Specifications Specificatii telecomanda RG10A(D2S) RG10N2(D2S) 3.0V( Dry batteries R03/LR03×2) Μοντέλο RG10A(D2S) 3.0V (Dry batteries R03/LR03×2) Ονομαστική τάση 3.0V( baterii R03/LR03×2) -5°C~60°C(23°F~140°F) Εμβέλεια λήψης σήματος -5°C~60°C(23°F~140°F) Περιβάλλον -5°C~60°C (23°F~140°F) Ghid rapid de utilizare Quick Start Guide Quick Start Guide AUTO AUTO...
  • Page 29 Handling the Remote Controller Folosirea telecomenzii INTRODUCEREA SI INLOCUIREA OBSERVATII PENTRU UTILIZAREA Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL TELECOMENZII BATERIILOR Your air conditioning unit may come with two The device could comply with the local national Dispozitivul ar putea fi conform cu reguli batteries(some units).
  • Page 30 Butoane si functii Inainte de utilizarea noului aparat de aer conditionat, familiarizati-va cu telecomanda Buttons and Functions acestuia. In urmatoarele randuri regasiti o scurta prezentare. Pentru instructiuni legate de functionarea aparatului de aer conditionat, consultati rubrica “Cum se folosesc func- Before you begin using your new air conditioner, make sure to familiarize yourself with its remote tiile de baza”...
  • Page 31 Indicatorii telecomenzii Remote Screen Indicators Remote Screen Indicators Information are displayed when the remote controller is power up. Informatiile sunt afisate atunci cand telecomanda este pornita. Information are displayed when the remote controller is power up. Afisare Breeze Away (Nu este disponibil) Breeze Away display - not available Breeze Away display - not available Afisare functie Active Clean...
  • Page 32 How to Use Basic Functions How to Use Basic Functions How to Use Basic Functions How to Use Basic Functions Cum se folosesc functiile de baza ATTENTION Before operation, please ensure the unit is plugged in and power is available. ATTENTION Before operation, please ensure the unit is plugged in and power is available.
  • Page 33 the ON time sequence. for multiple times to set the desired the TIMER ON will be activated. time to turn on the unit. TIMER Setare TIMER Setting the TIMER TIMER ON / OFF - Setati perioada de timp dupa care unitatea va porni / opri au- Setting the TIMER tomat.
  • Page 34 Cum se folosesc functiile avansate How to Use Advanced Functions How to Use Advanced Functions How to Use Advanced Functions Functia SWING Swing function Swing function Swing function Apasati butonul Swing Press Swing button Press Swing button Press Swing button Swing Swing Swing...
  • Page 35 Functia ECO / GEAR ECO/GEAR function Apasati butonul X-ECO pentru a intra in modul eficient de energie: ECO GEAR (75%) GEAR (50%) Απενεργοποίηση    Press this button to enter the energy efficient mode in a sequence of εξοικονόμησης ενέργειας ECO...
  • Page 36 Functia Silent Silence function Silence function Continuati sa apasati butonul FAN mai mult de 2 secunde pentru a activa / dezactiva functia Silent (unele unitati). Keep pressing Fan button for more than 2 seconds to activate/disable Silence Datorita functionarii cu frecventa redusa a compresorului, aceasta poate Keep pressing Fan button for more than 2 seconds to activate/disable Silence function.
  • Page 37 Functia SET SET function • Apasati butonul SET pentru a intra in setarea functiei, apoi apasati butonul SET sau butonul TEMP pentru a selecta functia dorita. Simbolul selectat va clipi pe zona de afisare. Press the SET button to enter the function setting, then press SET button or TEMP or TEMP Apasati butonul OK pentru a confirma.
  • Page 38 Toate imaginile din acest manual, au scop pur informativ. Forma reala a produsului pe care l-ati cumparat poate fi usor diferita insa functiile si operatiile sunt aceleasi. Compania nu isi asuma nici o responsabilitate pentru greselile de tipar. Aspectul fizic si specificatiile tehnice se pot schimba fara o notificare prealabila datorita imbunatatirii continue a echipamentelor noastre.
  • Page 39 Inhaltsverzeichnis Spezifikationen der Fernbedienung ............40 Bedienung der Fernbedienung ...............41 Tasten und Funktionen ................42 Entfernte Bildschirmanzeigen ...............43 Verwendung der Grundfunktionen ............44 Verwendung der erweiterten Funktionen ..........46...

  • Page 40: Spezifikationen Der Fernbedienung

    Remote Controller Specifications Remote Controller Specifications Spezifikationen der Fernbedienung RG10N2(D2S) RG10A(D2S) Modell RG10A(D2S) 3.0V (Dry batteries R03/LR03×2) 3.0V( Dry batteries R03/LR03×2) Bemessungsspannung 3.0V( Trockenbatterien R03/LR03×2) Signal Receiving Range 8m Signalempfangsbereich 8 mtr -5°C~60°C(23°F~140°F) -5°C~60°C(23°F~140°F) Environment Umgebung -5°C~60°C(23°F~140°F) Schnellstart-Anleitung Quick Start Guide Quick Start Guide AUTO COOL...

  • Page 41: Bedienung Der Fernbedienung

    Handling the Remote Controller Bedienung der Fernbedienung Einsetzen und Auswechseln der Bat- HINWEISE ZUR VERWENDUNG DER Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL FERNBEDIENUNG terien Your air conditioning unit may come with two The device could comply with the local national Das Gerät könnte den örtlichen nationalen batteries(some units).

  • Page 42: Tasten Und Funktionen

    Tasten und Funktionen Bevor Sie Ihr neues Klimagerät in Betrieb nehmen, sollten Sie sich mit der Fernbedi- Buttons and Functions enung vertraut machen . Im Folgenden finden Sie eine kurze Einführung in die Fernbe- dienung selbst. Für Anweisungen für die Bedienung des Klimagerätes finden Sie im Before you begin using your new air conditioner, make sure to familiarize yourself with its remote Abschnitt “Grundlegende Funktionen”...

  • Page 43: Entfernte Bildschirmanzeigen

    Entfernte Bildschirmanzeigen Remote Screen Indicators Die Informationen werden angezeigt, wenn die Fernbedienung eingeschaltet wird. Information are displayed when the remote controller is power up. Breeze Away-Anzeige (Nicht verfügbar) Breeze Away display - not available Anzeige der aktiven Reinigungsfunktion Active clean feature display Anzeige der Frischhaltefunktion (Nicht verfügbar) Fresh feature display - not available Anzeige des Ruhemodus...

  • Page 44: Verwendung Der Grundfunktionen

    How to Use Basic Functions How to Use Basic Functions How to Use Basic Functions Verwendung der Grundfunktionen How to Use Basic Functions ATTENTION Before operation, please ensure the unit is plugged in and power is available. ATTENTION Before operation, please ensure the unit is plugged in and power is available. Vergewissern Sie sich vor dem Betrieb, dass das Gerät eingesteckt ist ATTENTION ACHTUNG...
  • Page 45 Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence. for multiple times to set the desired the TIMER ON will be activated. time to turn on the unit. TIMER Einstellen des Zeitschalters (TIMER) Setting the TIMER ZEITSCHALTER EIN/AUS - Stellen Sie die Zeitspanne ein, nach der sich das Gerät Setting the TIMER...

  • Page 46: Verwendung Der Erweiterten Funktionen

    Verwendung der erweiterten Funktionen How to Use Advanced Functions How to Use Advanced Functions Schwenkfunktion Swing function Swing function Taste “Swing” drücken Press Swing button Press Swing button Swing Swing Swing Swing Die horizontale Jalousie schwingt auf und ab automa- Halten Sie diese Taste länger als 2 Sekun- The horizontal louver will swing up and down The horizontal louver will swing up and down...
  • Page 47 ECO/GEAR-Funktion ECO/GEAR function Drücken Sie die “X-ECO”-Taste, um den Energiesparmodus in folgender Reihenfolge aufzurufen Press this button to enter the energy efficient mode in a sequence of folgend: following: ECO -Stuffe(75%)- Stuffe (50%) Vorheriger Einstellmodus- ECO... GEAR(75%) GEAR(50%) Previous setting mode ECO..
  • Page 48 Geräuschlose Funktion Silence function Silence function Halten Sie die Lüftertaste länger als 2 Sekunden gedrückt, um die “Silence” Keep pressing Fan button for more than 2 seconds to activate/disable Silence (Stille) -Funktion zu aktivieren/deaktivieren (einige Geräte).Aufgrund des Keep pressing Fan button for more than 2 seconds to activate/disable Silence Niederfrequenzbetriebs des Kompressors kann es zu einer unzureichen- function.
  • Page 49 SET Funktion SET function • Drücken Sie die SET-Taste, um die Funktionseinstellung aufzurufen, drücken Sie dann die SET-Taste oder die TEMP-Taste, um die gewünschte Funktion auszuwählen. Das aus- Press the SET button to enter the function setting, then press SET button or TEMP or TEMP gewählte Symbol blinkt im Anzeigebereich, drücken Sie die OK-Taste zur Bestätigung button to select the desired function.
  • Page 50 Die Abbildungen in diesem Handbuch dienen lediglich zur Erläuterung der Funktionen. Die tatsächliche Form der Einheit, die Sie gekauft haben, kann etwas abweichen, aber die Bedienung und Funktionen sind gleich. Das Unternehmen übernimmt keinerlei Haftung für eventuell in diesem Dokument enthaltene falsch gedruckte Informationen.
  • Page 52 AIR CONDITIONING SYSTEMS REMOTE CONTROLLER V:1.0 202106 Manufacturer: INVENTOR A.G. S.A. 24th km National Road Athens - Lamia & 2 Thoukididou Str., Ag.Stefanos, 14565 Tel.: +30 211 300 3300, Fax: +30 211 300 3333 - www.inventor.ac...
