Silicon Laboratories C8051F930-DK User Manual page 12

C8051F930-DK
7. Target Board
The C8051F930 Development Kit includes a target board with a C8051F930 device pre-installed for evaluation and
preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping
using the target board. Refer to Figure 7 for the locations of the various I/O connectors. Figure 9 on page 14 shows
the factory default shorting block positions.
P1
P2
P3
J1
J2, J3, J4
J5
J6
J7
J8
J9
J10, J11
J12
J13
J14
J15
J16
J17
H1
H2
SW4
SW5
P1
12
Downloaded from Elcodis.com electronic components distributor
Expansion connector (96-pin)
Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
USB connector (connects to PC for serial communication)
Enable/Disable VBAT Power LED
Port I/O headers (provide access to Port I/O pins)
Enable/Disable VDD/DC+ Power LED
Provides an easily accessible ground clip
Connects pin P0.7 (IREF0 Output) to resistor R14 and capacitor C19
Connects P0.2 and P0.3 to switches and P1.5 and P1.6 to LEDs
DEBUG connector for Debug Adapter interface
Selects the power supply source (Wall Power, AAA Battery, or Coin Cell)
Connects Port I/O to UART0 interface
Connects external VREF capacitor to the P0.0/VREF
Connects the PCB ground plane to P0.1/AGND
Connects negative potentiometer (R14) terminal to pin P1.4 or to GND
Connects the potentiometer (R14) wiper to P0.6/CNVSTR
Creates an open in the power supply path to allow supply current measurement
Analog I/O terminal block
Provides terminal block access to the input and output nodes of J17
Switches the device between One-Cell (0.9–1.8 V supply) or Two-Cell (1.8–3.6 V) mode
Turns power to the MCU on or off
R15
J16
P1.4
J15
TOUCH SENSE SWITCH
GND
P2.0
J4
SILICON LABS
www.silabs.com
PORT2
J7
PORT1
J3
J6 VDD/DC+
J5
H1
Pin 1

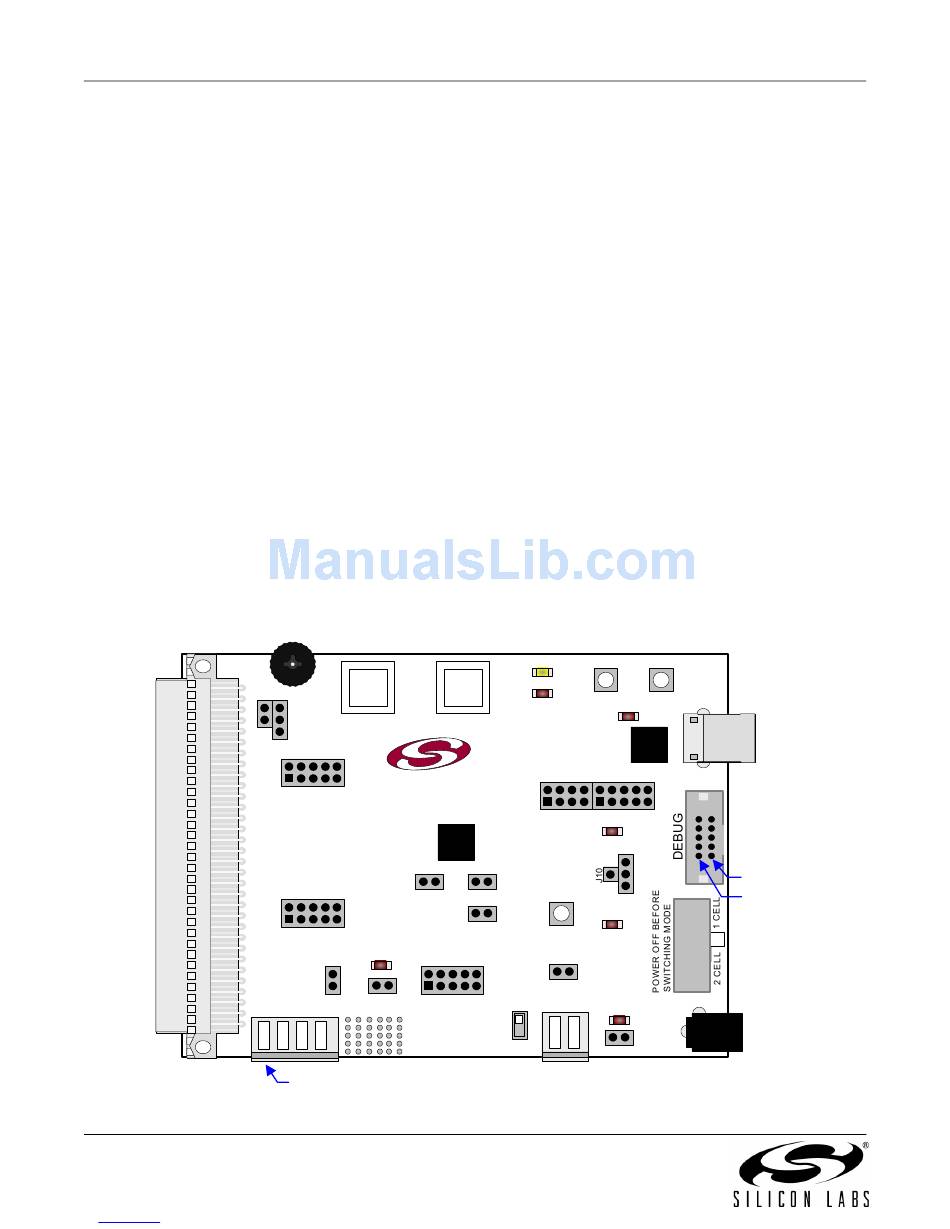

Figure 7. C8051F930 Target Board
P1.6 P0.2
SW2
P1.5
USB POWER
TOUCH SENSE SWITCH
P2.1
J8
U1
+1VD
F930
COIN_CELL
AAA_BAT
J13
WALL_PWR
SW1
J14 +3VD
RESET
IMEASURE
PORT0
`
J2
J17
H2
OFF
ON
SW5
Rev. 0.5
P0.3
SW3
P3
CP
2103
U3
J9
J12
J11
VBAT
Pin 1
Pin 2
SW4
VBAT
J1
P2
