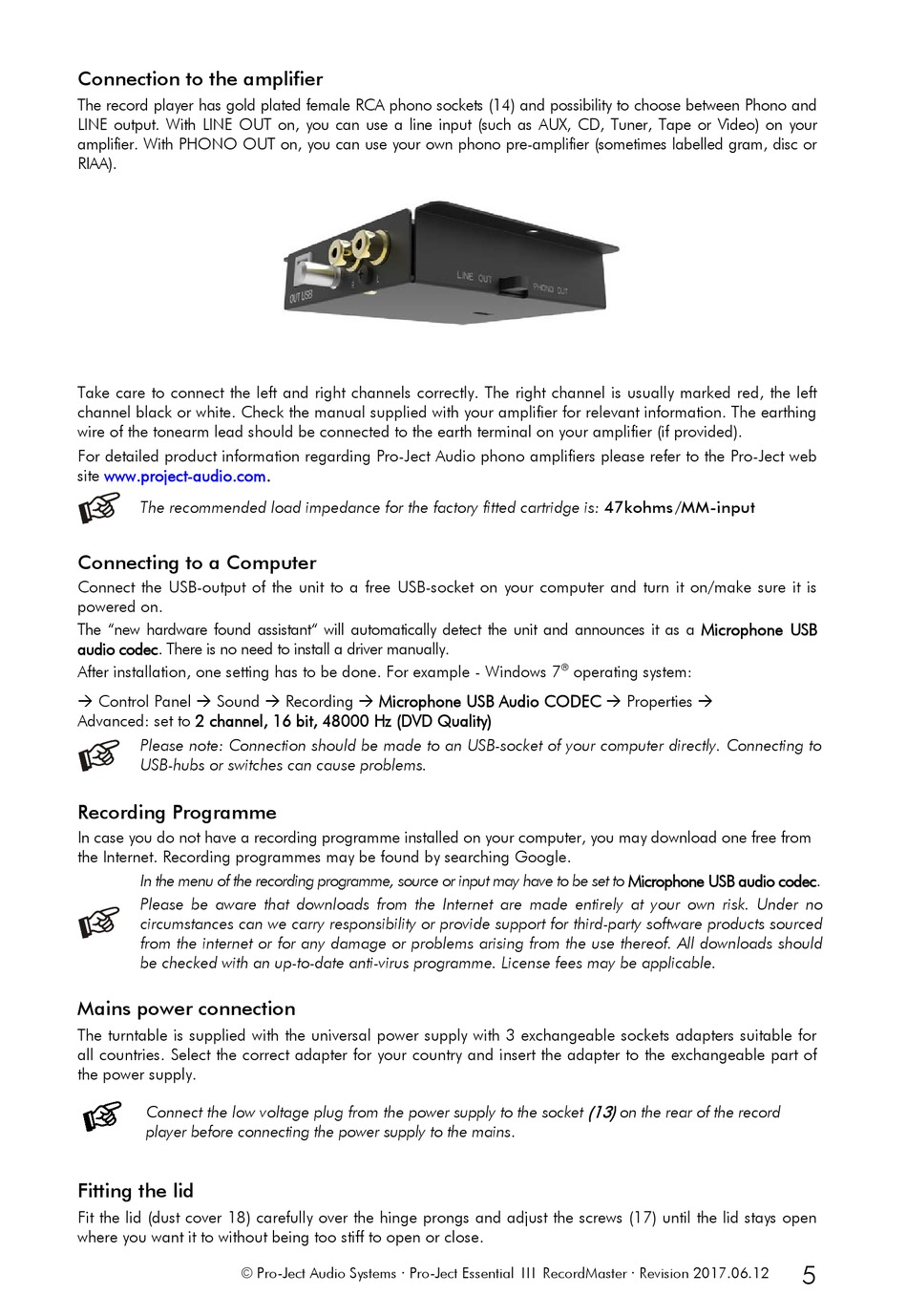

Connection to the amplifier
The record player has gold plated female RCA phono sockets (14) and possibility to choose between Phono and
LINE output. With LINE OUT on, you can use a line input (such as AUX, CD, Tuner, Tape or Video) on your
amplifier. With PHONO OUT on, you can use your own phono pre-amplifier (sometimes labelled gram, disc or
RIAA).
Take care to connect the left and right channels correctly. The right channel is usually marked red, the left
channel black or white. Check the manual supplied with your amplifier for relevant information. The earthing
wire of the tonearm lead should be connected to the earth terminal on your amplifier (if provided).
For detailed product information regarding Pro-Ject Audio phono amplifiers please refer to the Pro-Ject web
site www.project-audio.com.
The recommended load impedance for the factory fitted cartridge is: 47kohms /MM-input
Connecting to a Computer
Connect the USB-output of the unit to a free USB-socket on your computer and turn it on/make sure it is
powered on.
The "new hardware found assistant" will automatically detect the unit and announces it as a Microphone USB
audio codec. There is no need to install a driver manually.
After installation, one setting has to be done. For example - Windows 7
Control Panel Sound Recording Microphone USB Audio CODEC Properties
Advanced: set to 2 channel, 16 bit, 48000 Hz (DVD Quality)
Please note: Connection should be made to an USB-socket of your computer directly. Connecting to
USB-hubs or switches can cause problems.
Recording Programme
In case you do not have a recording programme installed on your computer, you may download one free from
the Internet. Recording programmes may be found by searching Google.
In the menu of the recording programme, source or input may have to be set to Microphone USB audio codec.
Please be aware that downloads from the Internet are made entirely at your own risk. Under no
circumstances can we carry responsibility or provide support for third-party software products sourced
from the internet or for any damage or problems arising from the use thereof. All downloads should
be checked with an up-to-date anti-virus programme. License fees may be applicable.
Mains power connection
The turntable is supplied with the universal power supply with 3 exchangeable sockets adapters suitable for
all countries. Select the correct adapter for your country and insert the adapter to the exchangeable part of
the power supply.
Connect the low voltage plug from the power supply to the socket
player before connecting the power supply to the mains.
Fitting the lid
Fit the lid (dust cover 18) carefully over the hinge prongs and adjust the screws (17) until the lid stays open
where you want it to without being too stiff to open or close.
© Pro-Ject Audio Systems · Pro-Ject Essential I I I RecordMaster · Revision 2017.06.12
®
operating system:
(13)
on the rear of the record
5
