3.4 USING THE UNIT FOR THE FIRST TIME

The ebios-fire-Quadra Inside Automatic I SL and II SL is supplied with the
fuel feed lines empty, to prevent any leakage or evaporation of ethanol in
transit.
Important notes when using the unit for the first time:
• The circular cut-outs on the long side of the burner housing must be left
open. They must not be closed off or restricted. These are the air inlets.
• The height adjustment screws must always be accessible.
• The height adjustment screws only have a limited adjustment range. If
you are unable to level the unit correctly by means of the screws, then
use a structural solution (e.g. lining the base of the frame) in order to
achieve a satisfactory result.
• The first time the unit is used, the fuel lines are still empty. There may
not yet be enough ethanol in the fire tray if the ignition timing is erratic.
• Take care not to bend the lines sharply when connecting and installing
them. Avoid pinching or chafing them and avoid tensile stress!
• Do not attach the lines to the outside of the burner. Allow them to hang
freely.
• Pull gently on the quick-action couplings to check that they are securely
engaged with the filling adapters.
• Check all the feed line connections to make sure the hose clip is cor-
rectly positioned. It should not be possible to detach the fuel lines from
the nozzles with a gentle pull.
• The ethanol canisters should always be placed below the level of the
burner or fire tray. Never place the canisters above fire tray level.
• The unit should only be plugged into a socket that has been installed by
a qualified electrician. The socket outlet must be easily accessible and
it must be provided with a switch.

3.4.1 ASSEMBLY AND INSTALLATION

1. The first step is to connect the fuel feed lines (supplied) to the burner.
You will need a standard pair of universal pliers or pointed pliers to do
this. Push the ends of the fuel lines on to the connecting nozzles on the

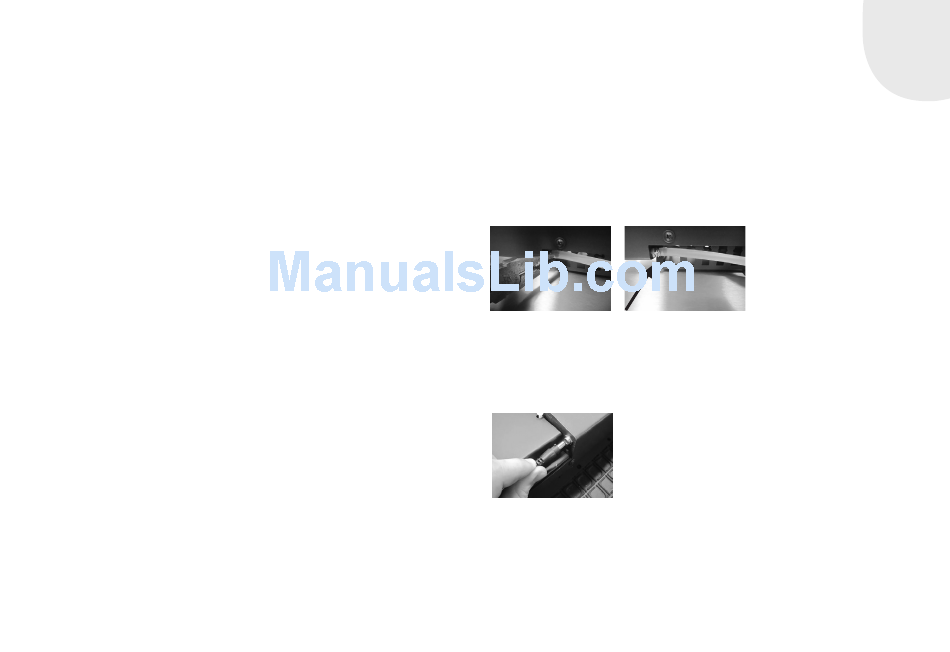

underside of the burner (Fig. 1), as far as they will go. Now squeeze
the clips and slide them over the connecting nozzle and fuel line. When
the pliers are released, the hose clip will hold the fuel line securely on
the nozzle (Fig. 2). The ends of the fuel lines should now be securely
attached to the burner. The lines can be connected in any order.
Fig. 1
2. Connect the small, round, low voltage plug on the wall power supply
to the burner. The plug will only fit the socket provided. The socket is
located at the end of the burner diagonally opposite the fuel line con-
nection side (Fig. 3).
Fig. 3
3. Then place the Quadra Inside Automatic I SL or II SL in the ready-made
cut-out in the top plate/tabletop. Start by inserting the mounting frame
into the recess. Then place the burner in the mounting frame so that it
rests on the bolts in the corners (Fig. 4).
GB 15
Fig. 2
