  • Page 1: Operating Instructions

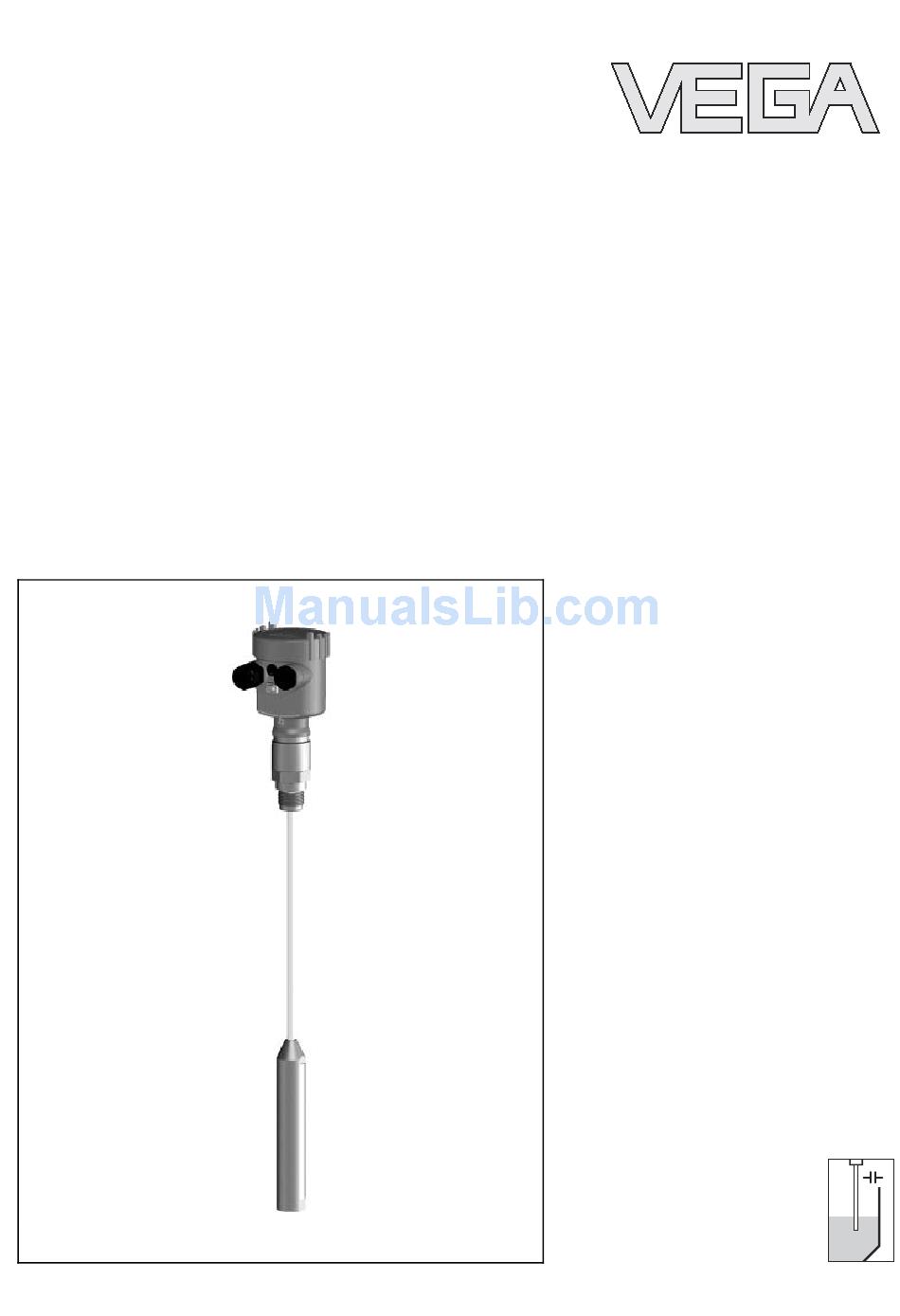

    Operating Instructions VEGACAL 66 4 … 20 mA/HART...

  • Page 2: Table Of Contents

    Setup procedure ..... . . Menu schematic ..... . . VEGACAL 66 - 4 … 20 mA/HART...
  • Page 3 10.2 Dimensions ......10.3 Industrial property rights....VEGACAL 66 - 4 … 20 mA/HART...

  • Page 4: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGACAL 66 - 4 … 20 mA/HART...

  • Page 5: For Your Safety

    2.4 General safety instructions The VEGACAL 66 is a high-tech instrument requiring the strict observance of standard regulations and guidelines. The user must take note of the safety instructions in this operating instructions manual, the country-specific installation standards...

  • Page 6: Safety Information For Ex Areas

    2.8 Manufacturer declaration In conformity with DIN EN 60079-14/2004, para. 5.2.3, point c1, the capacitive probe VEGACAL 66 is suitable for use in zone 2. The operator must use the instrument correctly and follow the specifications of the following documents:...

  • Page 7: Environmental Instructions

    The environment man- agement system is certified acc. to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environ- mental instructions in this manual: Chapter "Storage and transport" Chapter "Disposal" VEGACAL 66 - 4 … 20 mA/HART...

  • Page 8: Product Description

    Process fitting with probe Housing with electronics Housing cover, optionally available with indicating and adjustment module PLICSCOM Fig. 1: VEGACAL 66 - cable version with plastic housing Housing cover with integrated PLICSCOM (optional) Housing with electronics Process fitting VEGACAL 66 - 4 … 20 mA/HART...

  • Page 9: Principle Of Operation

    Product description 3.2 Principle of operation VEGACAL 66 is a level sensor with fully insulated probe for Area of application continuous level measurement. The electronics functions acc. to the admittance principle (phase-selective admittance processing). It is designed for industrial use in all areas of process technology and can be applied in all areas of industrial process measurement.

  • Page 10: Adjustment

    The exact range is stated in the "Technical data" in the "Supplement". 3.3 Adjustment VEGACAL 66 can be adjusted with four different adjustment media: the indicating and adjustment module PLICSCOM the suitable VEGA DTM in conjunection with an adjustment software acc.

  • Page 11: Mounting

    Use the recommended cables (see chapter "Connecting to Moisture power supply") and tighten the cable gland. You can give your VEGACAL 66 additional protection against moisture penetration by leading the connection cable down- ward in front of the cable entry. Rain and condensation water can thus drain off.

  • Page 12: Mounting Information

    In the gravity weight there is a thread (M12), e.g. for a ring bolt (article no. 2.27424). The thread is already insulated in the gravity weight. Make sure that the probe cable is not completely taut. Avoid tensile loads on the rope. VEGACAL 66 - 4 … 20 mA/HART...
  • Page 13 It is not possible to measure on the gravity weight. The measuring range of the probe ends at the upper edge of the gravity weight. If VEGACAL 66 is mounted in the filling stream, unwanted Inflowing material switching signals may be generated. Mount VEGACAL 66 at a location in the vessel where no disturbing influence from e.g.
  • Page 14 Mounting Fig. 5: Inflowing material VEGACAL 66 - 4 … 20 mA/HART...

  • Page 15: Connecting To Power Supply

    "Technical data" in the "Supplement". Provide a reliable separation between the supply circuit and the mains circuits acc. to DIN VDE 0106 part 101. The VEGA power supply units VEGATRENN 149AEx, VEGASTAB 690, VEGADIS 371 as well as all VEGAMETs meet this require- ment.

  • Page 16: Connection Steps

    5 Insert the cable into the sensor through the cable entry 6 Lift the opening levers of the terminals with a screwdriver (see following illustration) 7 Insert the wire ends into the open terminals according to the wiring plan VEGACAL 66 - 4 … 20 mA/HART...

  • Page 17: Wiring Plans, Single Chamber Housing

    12 Screw the housing cover back on The electrical connection is finished. 5.3 Wiring plans, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex ia version. VEGACAL 66 - 4 … 20 mA/HART...
  • Page 18 Fig. 8: Electronics and connection compartment, single chamber housing Plug connector for VEGACONNECT (I²C interface) Spring-loaded terminals for connection of the external indication VEGADIS Ground terminal for connection of the cable screen Spring-loaded terminals for power supply VEGACAL 66 - 4 … 20 mA/HART...

  • Page 19: Wiring Plans, Double Chamber Housing

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments. VEGACAL 66 - 4 … 20 mA/HART...
  • Page 20 Terminals for VEGADIS 61 Connection compartment I 2 C Fig. 12: Connection compartment, double chamber housing Plug connector for VEGACONNECT (I²C interface) Ground terminal for connection of the cable screen Spring-loaded terminals for power supply VEGACAL 66 - 4 … 20 mA/HART...

  • Page 21: Wiring Plans, Double Chamber Housing Exd

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments. VEGACAL 66 - 4 … 20 mA/HART...
  • Page 22 Internal connection cable to the connection compartment Terminals for VEGADIS 61 Connection compartment Fig. 16: Connection compartment, double chamber housing Exd Spring-loaded terminals for power supply and cable screen Ground terminal for connection of the cable screen VEGACAL 66 - 4 … 20 mA/HART...

  • Page 23: Wiring Plans, Version Ip 66/Ip 68 (1 Bar)

    5.6 Wiring plans, version IP 66/IP 68 (1 bar) Wire assignment, connection cable Fig. 18: Wire assignment, connection cable br (+) and bl (-) for power supply or to the processing system Screen VEGACAL 66 - 4 … 20 mA/HART...

  • Page 24: Setup With The Indicating And Adjustment Module Plicscom

    4 Screw housing cover with inspection window tightly back Removal is carried out in reverse order. PLICSCOM is powered by the sensor, an additional con- nection is not necessary. VEGACAL 66 - 4 … 20 mA/HART...
  • Page 25 Setup with the indicating and adjustment module PLICSCOM Fig. 19: Installation of PLICSCOM Note: If you intend to retrofit VEGACAL 66 with a PLICSCOM for continuous measured value indication, a higher cover with an inspection glass is required. VEGACAL 66 - 4 … 20 mA/HART...

  • Page 26: Adjustment System

    The functions of the individual keys are shown in the above illustration. Approx. 10 minutes after the last pressing of a key, an automatic reset to measured value indication is triggered. Any values not confirmed with [OK] will not be saved. VEGACAL 66 - 4 … 20 mA/HART...

  • Page 27: Setup Procedure

    Setup with the indicating and adjustment module PLICSCOM 6.4 Setup procedure After VEGACAL 66 is connected to voltage supply or after Switch-on phase voltage recurrence, the instrument carries out a self-test for approx. 30 seconds. The following steps are carried out: Internal check of the electronics Indication of the instrument type, the firmware version as...
  • Page 28 1 Move from the measured value display to the main menu by pushing [OK]. ▶ Basic adjustment Display Diagnostics Service Info 2 Select the menu item "Basic adjustment" with [->] and confirm with [OK]. Now the menu item "Min. adjustment" is displayed. VEGACAL 66 - 4 … 20 mA/HART...
  • Page 29 Max. adjustment 100.00 % 1000.0 pF 327.4 pF 1 Prepare the adjustment value for editing with [OK]. Move to the selection window with [OK]. Min. adjustment Accept current meas- ured value? Accept? Edit? VEGACAL 66 - 4 … 20 mA/HART...
  • Page 30 "Display". Linearization curve linear Enter the requested parameter via the appropriate keys, save your settings and jump to the next menu item with the [->] key. VEGACAL 66 - 4 … 20 mA/HART...
  • Page 31 Current output - failure <3.6 mA Tab. 3: Reset values Special parameters All special parameters are reset to delivery status. Peak values The min. and max. values are reset to the current value. VEGACAL 66 - 4 … 20 mA/HART...

  • Page 32: Menu Schematic

    100 % = 005.0 hl Diagnostics Basic adjustment Display ▶ Diagnostics Service Info Peak values Sensor status Trend recording Capacit. min: 65.7 pF Presentation of the out- Capacit. max: 782.4 pF put trend VEGACAL 66 - 4 … 20 mA/HART...
  • Page 33 Diagnostics Service ▶ Info Device type Date of manufacture Date of last change using PC Sensor characteristics VEGACAL 6x 04. February 2005 Serial number Software version 04. March 2005 Display now? 12345678 4.10/00 VEGACAL 66 - 4 … 20 mA/HART...

  • Page 34: Setup With Pactware™ And Other Adjustment Programs

    Fig. 21: PC connected directly to the sensor RS232 connection VEGACAL 66 I²C adapter cable for VEGACONNECT 3 Necessary components: VEGACAL 66 PC with PACTware™ and suitable VEGA-DTM VEGACONNECT 3 with I²C adapter cable (article no. 2.27323) Power supply unit VEGACAL 66 - 4 … 20 mA/HART...

  • Page 35: Parameter Adjustment With Pactware

    With power supply units with integrated HART resistance (internal resistance approx. 250 Ohm), an additional external resistance is not necessary. This applies, e.g. to the VEGA instruments VEGATRENN 149A, VEGADIS 371, VEGAMET 381. Also standard Ex separators are most of the time equipped with a sufficiently hugh current limitation resistor.

  • Page 36: Parameter Adjustment With Ams™ And Pdm

    All currently available VEGA-DTMs are provided in the DTM Collection on CD and can be obtained from the responsible VEGA agency for a token fee. This CD includes also the up-to- date PACTware™ version. The basic version of this DTM Collection incl.

  • Page 37: Maintenance And Fault Rectification

    Maintenance and fault rectification 8 Maintenance and fault rectification 8.1 Maintenance When used as directed in normal operation, VEGACAL 66 is completely maintenance-free. 8.2 Fault rectification VEGACAL 66 offers maximum reliability. Nevertheless faults Causes of malfunction can occur during operation. These may be caused by the following, e.g.:...
  • Page 38 Exchange instrument or return it for repair Shortcircuit in the probe, e.g. because of moisture in the housing à Remove the oscillator and check the resistance between the marked plug connections acc. to the following illustration VEGACAL 66 - 4 … 20 mA/HART...

  • Page 39: Exchange Of The Electronics Module

    Carry out software update or send instrument for repair E041/E042/E043 Hardware error, electronics defective à Exchange instrument or return it for repair 8.3 Exchange of the electronics module If the electronics module is defective, it can be replaced by the user. VEGACAL 66 - 4 … 20 mA/HART...

  • Page 40: Instrument Repair

    If it is necessary to repair, please proceed as follows: You can download a return form (23 KB) in the Internet from our home page www.vega.com under: "Downloads - Forms and Certificates - Repair form". By doing this you help us carry out the repair quickly and without having to call back for needed information.
  • Page 41 Maintenance and fault rectification Attach the completed form and possibly also a safety data sheet to the instrument Please contact your respective agency for the address of the return shipment! VEGACAL 66 - 4 … 20 mA/HART...

  • Page 42: Dismounting

    Take note of chapters "Mounting" and "Connecting to power supply" and carry out the listed steps in reverse order. 9.2 Disposal VEGACAL 66 consists of materials which can be recycled by specialised recycling companies. We use recyclable materials and have designed the electronic modules to be easily separable.

  • Page 43: Supplement

    0.2 … 32 m (0.7 … 105 ft) Max. tensile load (cable) - PTFE fully insulated ø 8 mm 10 KN (2248 lbs) (ø 0.32 in) Max. torque (process fitting thread) 100 Nm (73 lbf ft) VEGACAL 66 - 4 … 20 mA/HART...
  • Page 44 0.06 %/10 K relating to the max. measuring range Ambient conditions Ambient, storage and transport temperature - without indicating and adjustment -40 … +80°C (-40 … +176°F) module - with indicating and adjustment -20 … +70°C (-4 … +158°F) module VEGACAL 66 - 4 … 20 mA/HART...
  • Page 45 (176˚F) 40˚C (104˚F) 0˚C (32˚F) -50˚C 50˚C 100˚C 150˚C 200˚C (-58˚F) (122˚F) (212˚F) (302˚F) (392˚F) -40˚C (-40˚F) Fig. 24: Ambient temperature - Product temperature Product temperature Ambient temperature Dielectric figure (DK value) >1.5 VEGACAL 66 - 4 … 20 mA/HART...
  • Page 46 M20x1.5; plug M12x1 for VEGADIS 61 (option) 1x closing cap ½ NPT, 1x blind stopper ½ NPT, plug M12x1 for VEGADIS 61 (optional) Depending on the version M12x1, acc. to DIN 43650, Harting, Amphenol- Tuchel, 7/8" FF VEGACAL 66 - 4 … 20 mA/HART...
  • Page 47 12 … 30 V DC - EExd ia instrument 18 … 36 V DC Permissible residual ripple - <100 Hz <1 V - 100 Hz … 10 kHz <10 mV Load see diagram VEGACAL 66 - 4 … 20 mA/HART...
  • Page 48 Ship approvals Requirement to maintain the protection is the suitable cable. Deviating data with Ex applications: see separate safety instructions. Only in conjunction with Aluminium double chamber housing. Not in conjunction with plastic housing. VEGACAL 66 - 4 … 20 mA/HART...

  • Page 49: Dimensions

    M20x1,5/ ½ NPT Fig. 27: Housing versions in protection IP 66/IP 68, 1 bar (with integrated PLICSCOM the housing is 9 mm/0.35 in higher) Stainless steel housing Aluminium double chamber housing Aluminium housing VEGACAL 66 - 4 … 20 mA/HART...
  • Page 50 Supplement G 1 A, G 1 ø8mm ( ") ø30 ") Fig. 28: VEGACAL 66 - Threaded version G1 = Sensor length, see "Technical data" VEGACAL 66 - 4 … 20 mA/HART...

  • Page 51: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com.
  • Page 52 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2006 Technical data subject to alterations 30036-EN-060306...
