Deva24

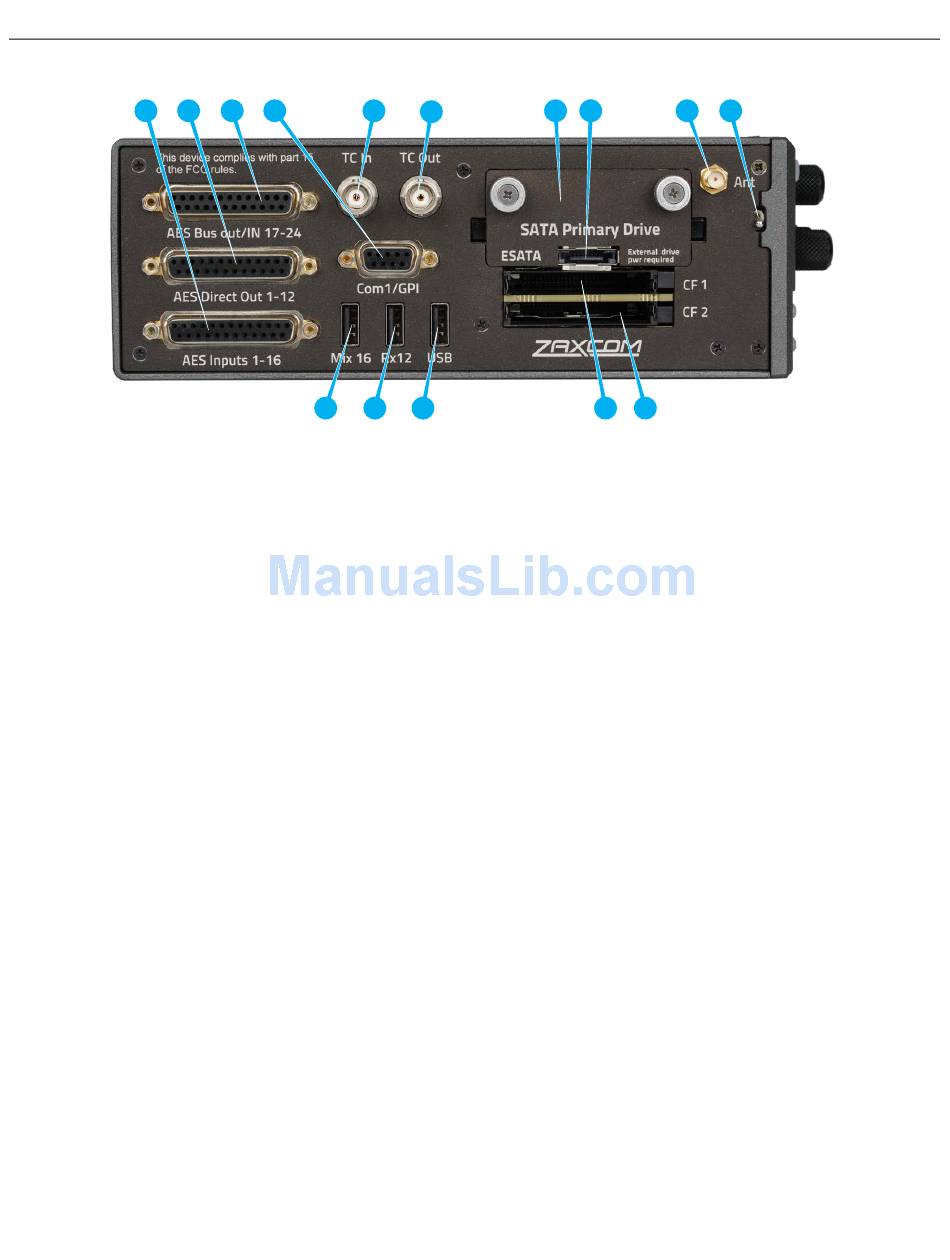

Left Side
1
2
1. AES Input 1 thru 16 (DB-25F)
These inputs will support an AES42 microphone. The input has a sample-rate conversion, allowing each input
to have a different sampling-rate. Deva will accept any unlocked AES signal with a sampling-rate of 32 to 192
kHz. The dynamic range of the sample-rate conversion is 124 dB, offering completely transparent conversion
of digital audio from one sample-rate to another.
2. AES Direct Outputs (DB-25F)
Direct AES outputs of the 12 analog inputs. These outputs are direct outputs with no effects or equalization
applied.
3. AES Bus outputs and AES input 17 thru 24 (DB-25F)
AES output busses 1 thru 8.
AES inputs 17 thru 24 - please note these inputs do not support AES42 microphones.
4. COM1 / GPI (DB-9F)
This connector is used for word clock out and supports a general purpose serial and parallel interface.
5. Time Code Output connector (BNC)
6. Time Code Input connector (BNC)
7. SATA- Primary Drive
The drive gets inserted behind the removable door. To remove the door turn the thumb screws
counterclockwise.
8. Connection for ESATA - mirror drive
9. ZaxNet antenna connector (SMA F)
10. Power switch
11. Mix16 connector
12. RX12 connector
13. USB connector - for connection to a PC or MAC
14. Compact flash 1 drive - mirror drive
15. Compact flash 2 drive - mirror drive
3
4
5
11
12
7
8
6
13
8
9
10
14
15
Left Side Panel
