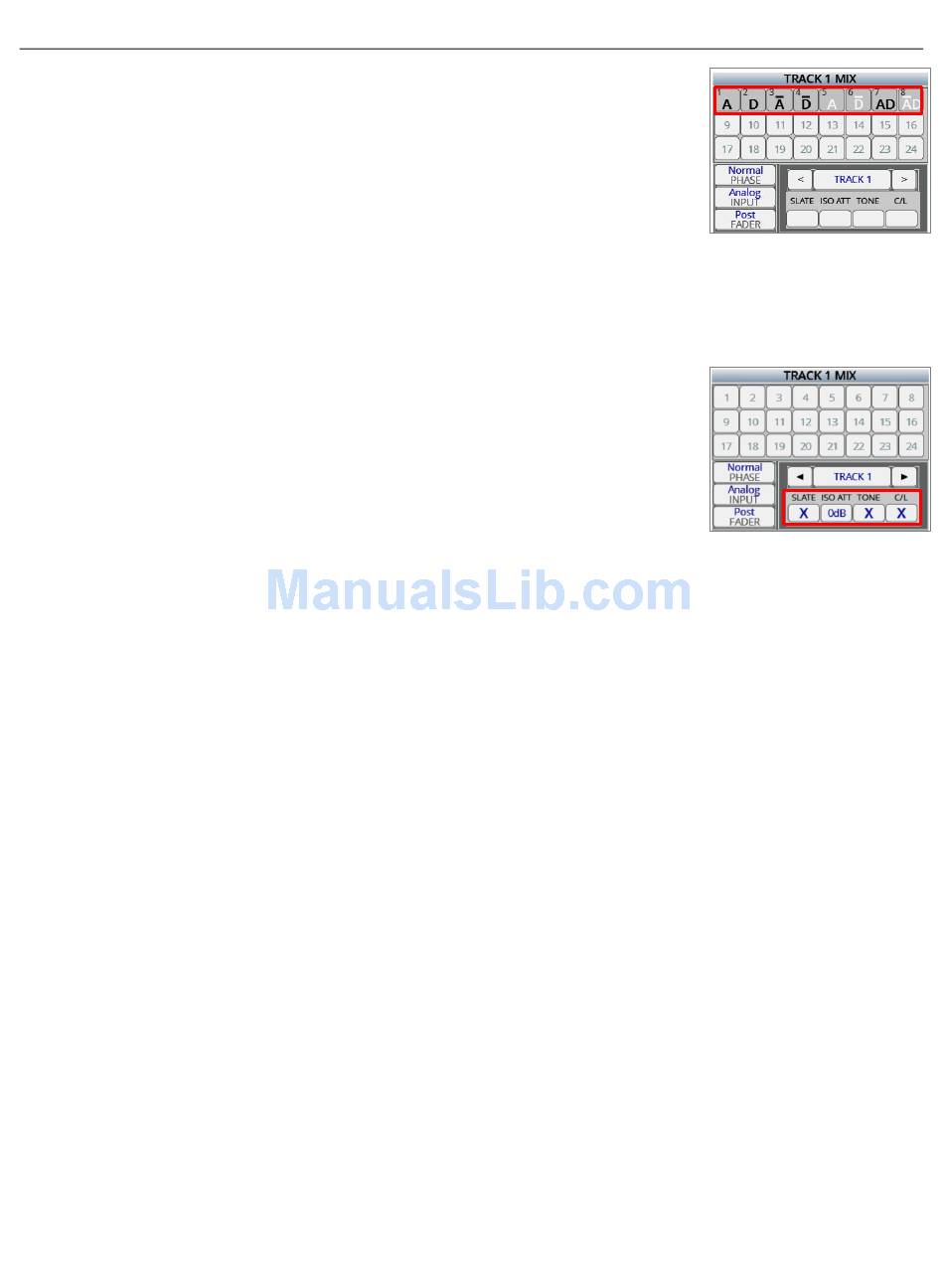

Assiging the inputs to the track

Tap on the desired input(s) (1 thru 24) to route those input to the selected mix
track. The number in the box represents the input number, for both analog and
digital. After the box is tapped the chosen parameter for that input will be
displayed as:
An analog assignment will be displayed as an "A"
•
A digital assignment will be displayed as a "D"
•
If the phase is inverted a line will appear on top of the letter
•
If the input is routed post fade the letter will be black
•
If the input is routed pre fader the letter will be white
•
To remove an assignment select the same parameters (phase, input and fader),
then tap on the input to be removed.

Setting the paramaters for the track

Tap on the desired key to:
Enable the slate microphone for that track
•
Set the desired ISO attenuation (0dB, -6dB, -12dB, -18dB, -24dB) for that track
•
Enable tone to that track - when tone is engaged
•
Enable the compressor / limiter to that track
•
14
Track Mix
