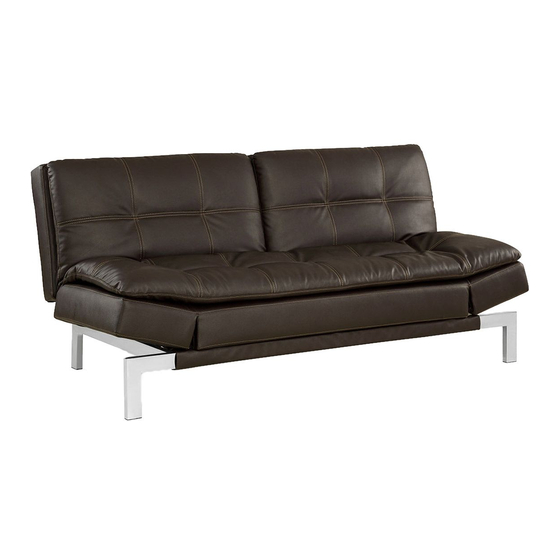

Serta VALENCIA Assembly Instructions

Enlarged version

Adjusting Armrest Positions

Standing in front of the unit, lift armrest to the desired

position and secure in place by releasing to the

sound of a click.

To return to a flat position, lift armrest all the way up

to the end, releasing the locking mechanism and

carefully return to a flat position.

IMPORTANT

During conversion, ensure lifting in done on

bottom of armrest.

8 of 8

Splitback

Sofa with Armrest

Rev.141114

VALENCIA

U.S. PATENT NUMBER D635,793 S

TOLL FREE 1-877-693-8866 LIFESTYLE SOLUTIONS

Table of Contents

Do you have a question about the VALENCIA and is the answer not in the manual?

Page 1 To return to a flat position, lift armrest all the way up VALENCIA to the end, releasing the locking mechanism and carefully return to a flat position.
Page 2 PARTS AND HARDWARE OPERATING YOUR UNIT Converting to Sofa Avoid using sharp objects such as a knife to cut open packing as you may accidentally damage the upholstery. Standing at the side of the unit (from bed position), lift backrest to the desired position and secure in place by releasing to the sound of a click.
Page 3 ASSEMBLY INSTRUCTIONS Carefully lift and turn assembled unit onto its legs. A flat configuration of the sofa indicates that it is in bed position (refer Operating Your Unit on page 7). CAUTION: At least two adults are required to safely complete performing this task. Other lifting attempts may risk back injury due to large and heavy part(s).
Page 4 Align support rail into position and secure with two long bolts and washer at Remove temporary cover to expose hidden pre-drilled holes on front leg. each ends. Finally, completely tighten all bolts. Place both rear legs in the correct orientation and secure front leg into each with two long bolts and washers with nuts from inside.
