Jura D6 Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Jura Manuals
  4. Coffee Maker
  5. D6
  6. Instructions for use manual

Jura D6 Instructions For Use Manual

Hide thumbs Also See for D6:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual
D6/D60 Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D6 and is the answer not in the manual?

Questions and answers

Karen
March 10, 2025

after descaling our jura d the coffee taste awful

0
1 comments:
Mr. Anderson
March 10, 2025

Coffee may taste awful after descaling the Jura D6 if the water filter is not removed before starting the process. The descaling solution can render the filter useless, affecting the taste of coffee made afterward.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Jura D6

Summary of Contents for Jura D6

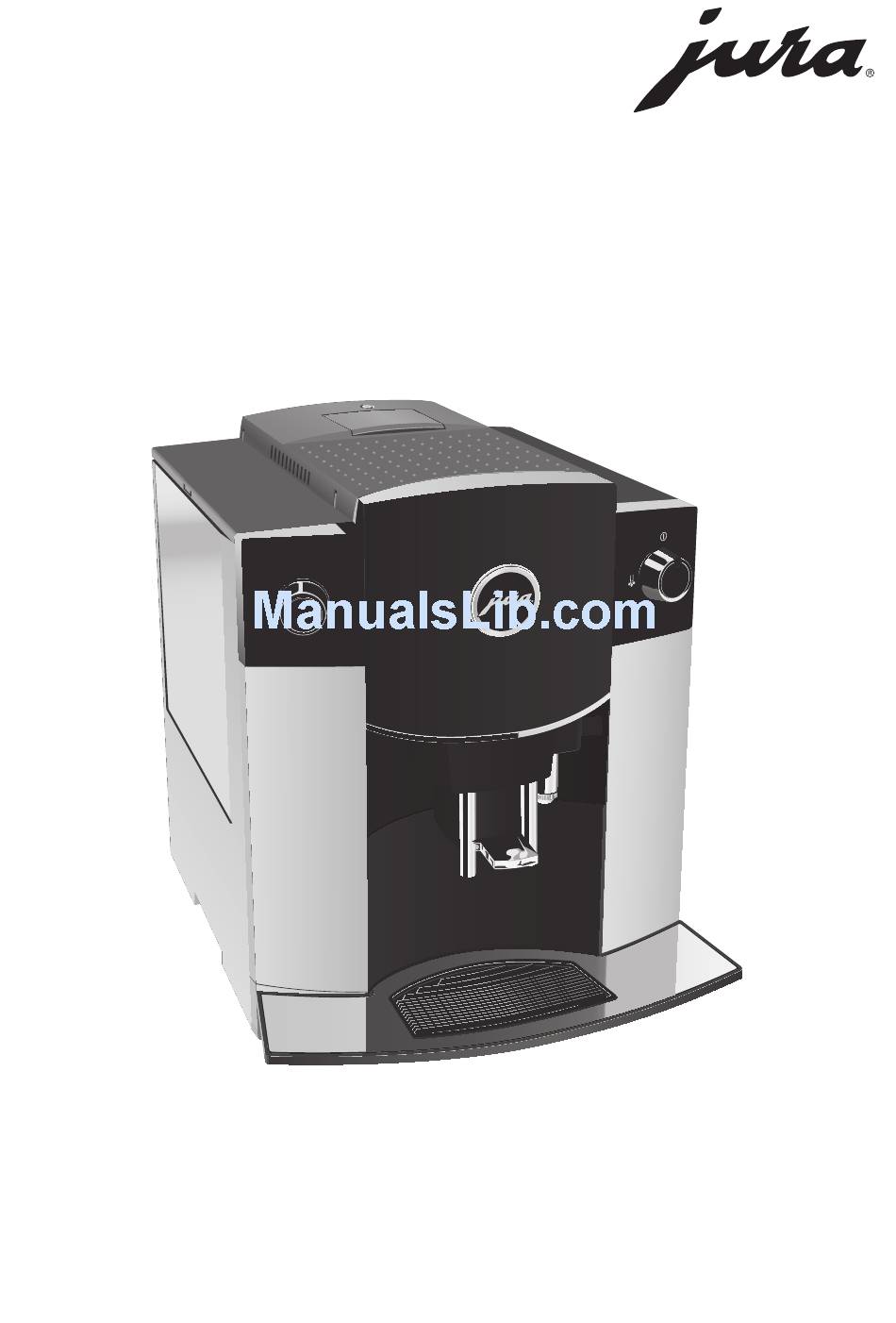

  • Page 1 D6/D60 Instructions for Use...

  • Page 2: Table Of Contents

    Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10 Determining the water hardness .......................11 First-time use ..............................11 Connecting milk ............................
  • Page 3 CAUTION draws your attention to potential damage to the machine. Symbols used Prompt to take action. This symbol means that you are being prompted to perform some action. Information and tips to make it even easier to use your D6. Display COFFEE...

  • Page 4: Control Elements

    Control elements Control elements Cover of filler funnel for cleaning tablet On/Off button Q Filler funnel for cleaning tablet Water tank cover Bean container cover Water tank Grinder adjustment switch Mains cable (back of the machine) Bean container with aroma preservation Height-adjustable coffee spout cover Coffee grounds container...
  • Page 5 Control elements n n n n n n Display P symbol (programming) Rotary Switch Maintenance symbol Milk foam symbol Service socket for optional JURA Smart Connect (under cover)

  • Page 6: Important Information

    JURA or by an authorised JURA service centre. Make sure that the D6 and the mains cable are not located close to hot surfaces. Be careful to ensure that the mains cable is not...
  • Page 7 Protect the D6 from environmental influences such as rain, frost and direct sunlight. Do not immerse the D6, mains cable or con- nections in water. Do not put the D6 or any individual parts in the dishwasher.
  • Page 8 Important information Before cleaning, switch the D6 off with the On/ Off button. Always wipe the D6 with a damp cloth rather than a wet one, and protect it from prolonged exposure to water splash. Only connect the machine to the mains volt- age in accordance with the information on the rating plate.
  • Page 9 Important information People, including children, who do not have the physical, sensory or mental capabilities to use the machine safely or are inexperienced or lack knowledge in how to use the machine safely must be supervised by a responsible person when using it, or must be instructed in how to use it cor- rectly.

  • Page 10: Preparing And Using For The First Time

    Setting up the machine When setting up your D6, please note the following: Place the D6 on a horizontal surface that is not sensitive to water. Choose a spot for your D6 which protects the machine against overheating. Ensure that the ventilation slots are not covered.

  • Page 11: Determining The Water Hardness

    T  Only fill the water tank with fresh, cold water. Precondition: The bean container has been filled. T  Insert the mains plug into a power socket. T  Press the On/Off button Q to switch the D6 on. SPRACHE DE appears on the display.

  • Page 12: Empty Tray

    1 Preparing and using for the first time T  Turn the Rotary Switch to change the water hardness set- ting, e.g. to 25 °dH T  Press the Rotary Switch. appears briefly on the display. INSERT FILTER T  Open the water tank cover. T ...

  • Page 13: Connecting Milk

    Your D6 is ready for use. Connecting milk Your D6 creates fine, creamy, feather-light milk foam with a perfect consistency. The most important requirement for frothing milk is a milk temperature of 4–8 °C. We would therefore recommend using a milk cooler or a milk container.

  • Page 14: Preparation

    – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –...

  • Page 15: Two Speciality Coffees At The Touch Of A Button

    Preparation stops automatically. appears on ESPRESSO the display. Cappuccino Your D6 can prepare a cappuccino at the touch of a button. There is no need to move the cup. Precondition:  CAPPUCC. is displayed. Milk is connected to the fine foam frother.

  • Page 16: Milk Foam

    2 Preparation T  Turn the switch to the ° position. Coffee preparation starts. The preset amount of water for espresso flows into the cup. Preparation stops automatically. appears on CAPPUCC. the display. To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk (see Chapter 5 ‘Maintenance –...

  • Page 17: Permanently Setting The Amount Of Water For The Cup Size

    2 Preparation Permanently setting the It is easy to make permanent settings for the amount of water for all amount of water for the speciality coffees according to the cup size. Adjust the amount once cup size as shown in the following example. Every time you prepare a drink in the future, this amount of water will be dispensed.

  • Page 18: Hot Water

    2 Preparation Example: Proceed as follows to change the consistency of grind dur- ing the preparation of an espresso. T  Place a cup under the coffee spout. T  Open the bean container cover and remove the aroma preservation cover. T  Turn the Rotary Switch until is displayed.

  • Page 19: Daily Operation

    CAPPUCC. D6 is ready for use. Daily maintenance To ensure that you get many years of reliable service out of your D6 and to guarantee the optimum coffee quality, the machine requires daily maintenance. T  Pull out the drip tray.

  • Page 20: Regular Maintenance

    Traces of milk and coffee may stick to the top and bottom of the cup grille. If this happens, clean the cup grille. Switching off the When the D6 is switched off, the system is automatically rinsed if a machine speciality coffee has been prepared. If milk has been prepared, you will also be prompted to clean the milk system.
  • Page 21 T  Turn the switch to the m position. , the milk system is rinsed. nnnkkkkk The rinse stops automatically. CLOSE SWITCH T  Turn the switch to the ° position. RINSING , the system rinses itself. The rinse stops auto- matically. Your D6 is switched off.

  • Page 22: Permanent Settings In Programming Mode

    1 °dH 30 °dH T You can set the water hardness of the water used. OFF FROM 15 MIN. 30 MIN. T Set the time after which the D6 should switch off  –  1 HRS. 9 HRS. automatically. UNITS T Select the unit for the amount of water.
  • Page 23 4 Permanent settings in programming mode Product Amount Coffee strength Temperature Milk foam Milk foam: – –  –  3 SEC. 60 SEC. Hot water Water: – –  –  25 ML 450 ML 2 cups When you prepare two speciality coffees at once, the temperature and amount of water selected for the single product are used for each cup.

  • Page 24: Setting The Water Hardness

    4 Permanent settings in programming mode Setting the water The harder the water is, the more frequently the D6 needs to be hardness descaled. It is therefore important to set the water hardness accu- rately. The water hardness was set when the machine was first used. You can change this setting at any time.

  • Page 25: Unit For Amount Of Water

    (example) CAPPUCC. Language In the programme item you can set the language LANGUAGE used by your D6. Example: Proceed as follows to change the language from is displayed (example). Precondition:  CAPPUCC. T  Touch the P symbol for approximately 2 seconds until RINSE appears on the display.

  • Page 26: Maintenance

    E You can start the maintenance programmes at any time in programming mode (programme item RINSE Rinsing the fine foam Ten minutes after milk preparation, the D6 prompts you to perform frother milk system rinsing. Precondition:   / is displayed (example).

  • Page 27: Dismantling And Rinsing The Fine Foam Frother

    Your D6 will not prompt you to dismantle and rinse the frother. T  Remove the milk pipe and rinse it thoroughly under running water.

  • Page 28: Inserting/Changing The Filter

    T  Firmly attach the fine foam frother to the Connector Sys- © Inserting/changing the Your D6 no longer has to be descaled if you are using the CLARIS filter Smart filter cartridge. E Once the filter cartridge stops working (depending on the water hardness setting), the D6 will prompt you to change the filter.

  • Page 29: Cleaning The Machine

    T  Turn the switch to the ° position. (example) CAPPUCC. Cleaning the machine After 180 preparations or 80 switch-on rinses, the D6 will prompt you to clean it. If the wrong cleaning agent is used, the machine could be damaged CAUTION and/or traces could be left behind in the water.

  • Page 30: Descaling The Machine

    CAPPUCC. (example) Descaling the machine The D6 builds up deposits of limescale over time and automatically prompts you to descale it when necessary. The degree of calcifica- tion depends on the hardness of your water. CAUTION If the descaling agent comes into contact with the skin or eyes, this can cause irritation.
  • Page 31 5 Maintenance T  Completely dissolve 3 JURA descaling tablets in a receptacle holding 500 ml of water. This may take several minutes. T  Pour the solution into the empty water tank and insert it into the machine. , the light segment on the switch lights up.

  • Page 32: Cleaning The Bean Container

    Precondition:  FILL BEANS T  Press the On/Off button Q to switch the D6 off. T  Open the bean container cover and remove the aroma pres- ervation cover. T  Clean the bean container with a soft, dry cloth.

  • Page 33: Display Messages

    T Press the Rotary Switch to confirm that the bean container has been filled. The D6 is prompting you to PRESS RINSE T Touch the Maintenance symbol c continue a previously started to continue the programme.

  • Page 34: Troubleshooting

    Q. Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).

  • Page 35: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your D6. It should be used to protect the system machine during transport. In order to protect the D6 from frost during transport, the system must be emptied.

  • Page 36: Technical Data

    9 Technical data 9 Technical data Voltage 220–240 V ~, 50 Hz Power 1450 W Conformity mark Pump pressure static, max. 15 bar Holding capacity of water tank 1.9 l Holding capacity of bean container 200 g Holding capacity of coffee grounds max. 16 portions container Cable length approx.

  • Page 37: Index

    10 Index 10 Index Addresses 40 Daily maintenance 19 Aroma preservation cover Descaling Bean container with aroma preservation Machine 30 cover 4 Water tank 32 Automatic switch-off 24 Display 5 Display messages 33 Disposal 35 Bean container Double product 15 Bean container with aroma preservation Drip tray 4 cover 4...
  • Page 38 10 Index Programming mode 22 Automatic switch-off 24 Internet 10 Language 25 Product settings 22 JURA Setting the water hardness 24 Contact details 40 Unit for amount of water 25 Internet 10 Proper use 6 Language 25 Regular maintenance 20...
  • Page 39 10 Index Water hardness Determining the water hardness 11 Setting the water hardness 24 Water tank 4 Descaling 32 Filling 19 Website 10...

  • Page 40: Jura Contact Details / Legal Information

    J73431/D6-D60/en/201708 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. @ If you need assistance with using your machine, you can find this at www.jura.com/service.
