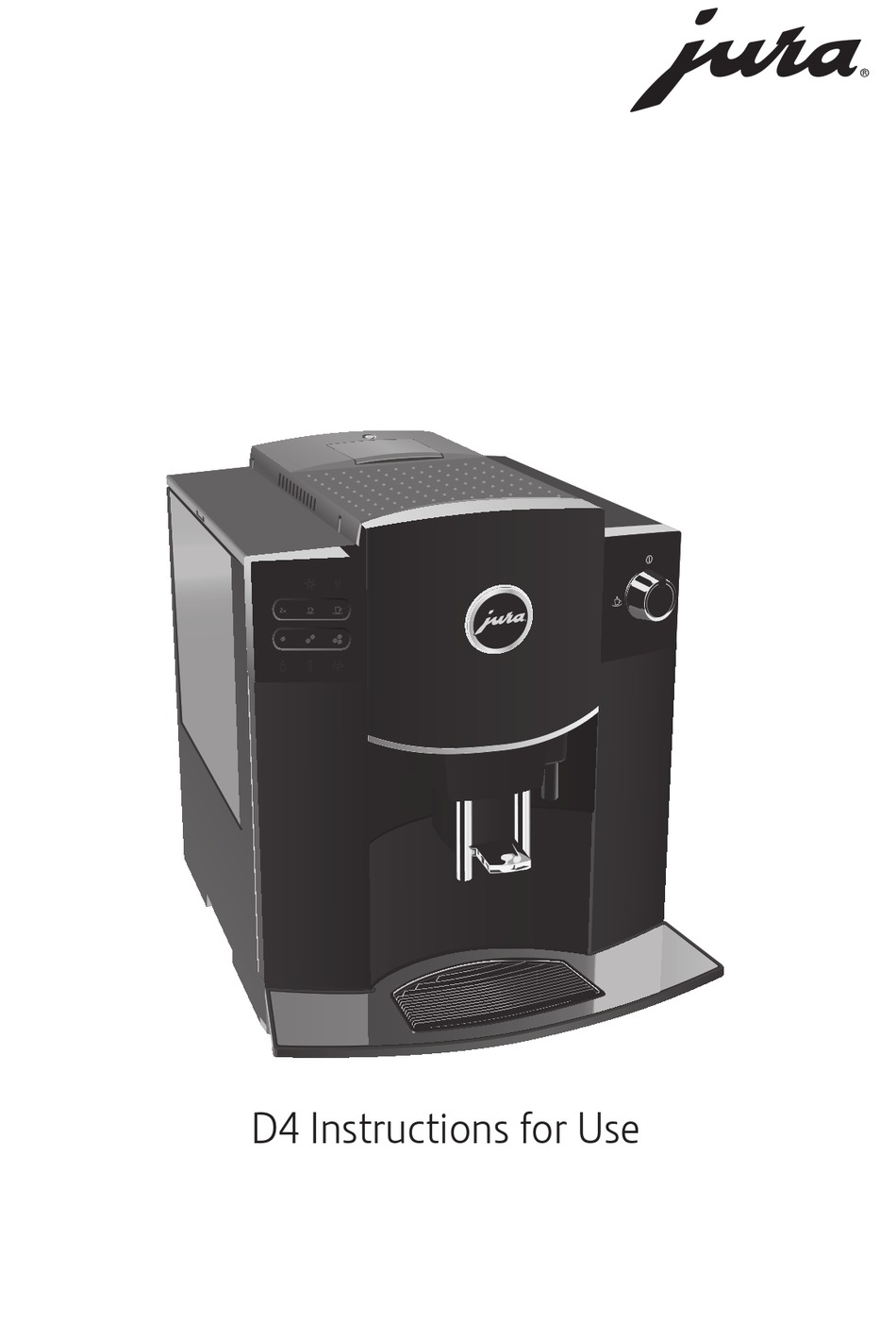

  • Page 1 § D4 Instructions for Use...

  • Page 2: Table Of Contents

    Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10 Determining the water hardness ......................10 First-time use ..............................11 2 Preparation Espresso and coffee .............................

  • Page 3: Your D4

    CAUTION draws your attention to potential damage to the machine. Symbols used Prompt to take action. This symbol means that you are being prompted to perform some action. Information and tips to make it even easier to use your D4.

  • Page 4: Control Elements

    Control elements Control elements § Filler funnel cover On/Off button Q Filler funnel for ground coffee Water tank cover Bean container cover Water tank Grinder adjustment switch Mains cable (back of the machine) Bean container with aroma preservation Height-adjustable coffee spout cover Coffee grounds container Switch for hot water preparation...
  • Page 5 Descaling symbol _ ‘Strong’ Coffee Strength symbol 2x Double Product symbol Water Tank symbol < Espresso symbol Filter symbol > Coffee symbol W Coffee Grounds Container symbol Measuring spoon for ground coffee Service socket for optional JURA Smart Connect (under cover)

  • Page 6: Important Information

    JURA or by an authorised JURA service centre. Make sure that the D4 and the mains cable are not located close to hot surfaces. Be careful to ensure that the mains cable is not...
  • Page 7 To completely and safely disconnect the machine from the power supply, first switch off the D4 using the On/Off button Q. Only then should you remove the mains plug from the power socket. There is a risk of scalds or burns on the spouts or the hot-water nozzle: Place the machine out of the reach of children.
  • Page 8 Important information Do not put the D4 or any individual parts in the dishwasher. Do not use alkaline cleaning agents; only use a soft cloth and mild cleaning agents. Before cleaning, switch the D4 off with the On/Off button Q. Always wipe the D4 with a damp cloth rather than a wet one, and protect it from prolonged exposure to water splash.
  • Page 9 Important information Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely. Chil- dren must be able to recognise and under- stand the potential dangers arising from incor- rect use.

  • Page 10: Preparing And Using For The First Time

    Setting up the machine When setting up your D4, please note the following: Place the D4 on a horizontal surface that is not sensitive to water. Choose a spot for your D4 which protects the machine against overheating. Ensure that the ventilation slots are not covered.

  • Page 11: First-Time Use

    T  Only fill the water tank with fresh, cold water. Precondition: The bean container has been filled. T  Insert the mains plug into a power socket. T  Press the On/Off button Q to switch the D4 on. The Coffee symbol > lights up. T  Touch the Coffee symbol >.
  • Page 12 T  Place a receptacle under the coffee spout. The < and > symbols flash, the system is rinsed. Water flows out of the coffee spout. The rinse stops automatically. Your D4 is ready for use.

  • Page 13: Preparation

    – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. Espresso and coffee Espresso and coffee are both prepared following this model.

  • Page 14: Permanently Setting The Amount Of Water For The Cup Size

    T  Touch the Coffee symbol > as soon as there is sufficient coffee in the cup. Preparation stops. The set amount of water for one coffee is permanently stored. Your D4 is once more ready for use. E You can alter this setting at any time by repeating the above procedure.

  • Page 15: Ground Coffee

    The desired speciality coffee must be prepared within approx- imately one minute after filling with the ground coffee. Oth- erwise the D4 stops the operation and is once more ready for use. All speciality coffees with ground coffee are always prepared following the same model.

  • Page 16: Hot Water

    The < and > symbols light up. T  Touch the Espresso symbol <. Preparation starts. The preset amount of water for coffee flows into the cup. Preparation stops automatically. Your D4 is once more ready for use. Hot water CAUTION There is a danger of scalding from hot water splashes.

  • Page 17: Daily Operation

    The < and > symbols flash, the system is rinsed. The rinse stops automatically. Your D4 is ready for use. Daily maintenance To ensure that you get many years of reliable service out of your D4 and to guarantee the optimum coffee quality, the machine requires daily maintenance.

  • Page 18: Regular Maintenance

    Traces of coffee may stick to the top and bottom of the cup grille. If this happens, clean the cup grille. Switching off the When the D4 is switched off, the system is automatically rinsed if a machine speciality coffee has been prepared.

  • Page 19: Permanent Settings In Programming Mode

    4 Permanent settings in programming mode Automatic switch-off By instructing your D4 to automatically switch itself off, you can cut down your energy consumption. If this function is activated, your D4 switches off automatically after the preset time following the last action on the machine.

  • Page 20: Setting The Water Hardness

    4 Permanent settings in programming mode Setting the water The harder the water is, the more frequently the D4 needs to be hardness descaled. It is therefore important to set the water hardness accur- ately. The water hardness was set when the machine was first used. You can change this setting at any time.

  • Page 21: Maintenance

    E Proceed with the maintenance programmes when prompted to do so. Inserting/changing the Your D4 no longer has to be descaled if you are using the CLARIS filter Smart filter cartridge. E Once the filter cartridge stops working (depending on the water hardness setting), the D4 will prompt you to change the filter.

  • Page 22: Cleaning The Machine

    T  Turn the switch to the ° position. Your D4 is once more ready for use. Cleaning the machine After 180 preparations or 80 switch-on rinses, the D4 will prompt you to clean it. CAUTION If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water.

  • Page 23: Descaling The Machine

    Your D4 is once more ready for use. Descaling the machine The D4 builds up deposits of limescale over time and automatically prompts you to descale it when necessary. The degree of calcifica- tion depends on the hardness of your water.
  • Page 24 The & and M symbols light up. T  Remove and empty the water tank. T  Completely dissolve 3 JURA descaling tablets in a receptacle holding 500 ml of water. This may take several minutes. T  Pour the solution into the empty water tank and insert it into the machine.

  • Page 25: Cleaning The Bean Container

    These traces may negatively affect the coffee result. For this reason clean the bean container from time to time. T  Press the On/Off button Q to switch the D4 off. T  Open the bean container cover and remove the aroma pre- servation cover.

  • Page 26: Display Messages

    (see Chapter 5 ‘Maintenance – Inserting/ changing the filter’). The Cleaning The D4 is prompting you to clean it. T Perform cleaning (see Chapter 5 symbol L lights up. ‘Maintenance – Cleaning the machine’). The Descaling The D4 is prompting you to T Perform descaling (see symbol &...

  • Page 27: Troubleshooting

    T Carefully tighten it using the hexagonal hole on the measuring spoon, turning by no more than a quarter of a rotation. E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).

  • Page 28: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your D4. It should be used to protect the system machine during transport. In order to protect the D4 from frost during transport, the system must be emptied.

  • Page 29: Technical Data

    9 Technical data 9 Technical data Voltage 220 – 240 V ~, 50 Hz Power 1450 W Conformity mark Pump pressure static, max. 15 bar Holding capacity of water tank 1.9 l Holding capacity of bean container 200 g Holding capacity of coffee grounds max. 16 portions container Cable length approx.

  • Page 30: Index

    Switch for hot water preparation 4 Filler funnel for ground coffee 4 Water tank 4 Instant coffee Cup grille 4 Ground coffee 15 Customer support 32 Internet 10 Daily maintenance 17 JURA Descaling Contact details 32 Machine 23 Internet 10 Water tank 25...
  • Page 31 10 Index Setting up Setting up the machine 10 Machine Short operating instructions 10 Cleaning 22 Smart Connect 5 Daily maintenance 17 Switch for hot water preparation 4 Descaling 23 Switching off 18 Regular maintenance 18 Switching on 17 Setting up 10 Switch-off Switching off 18 Automatic switch-off 19...

  • Page 32: Jura Contact Details / Legal Information

    J74018/D4/en/201810 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 E You will find additional contact details for your country at www.jura.com. E If you need assistance with using your machine, you can find this at www.jura.com/service.
