Controls & Connections (Front) - Philips Plena Installation And User Instructions Manual

PLENA UNIVERSAL PRE-AMPLIFIER
0 dB
1
-6 dB
-20 dB
2
Power
3

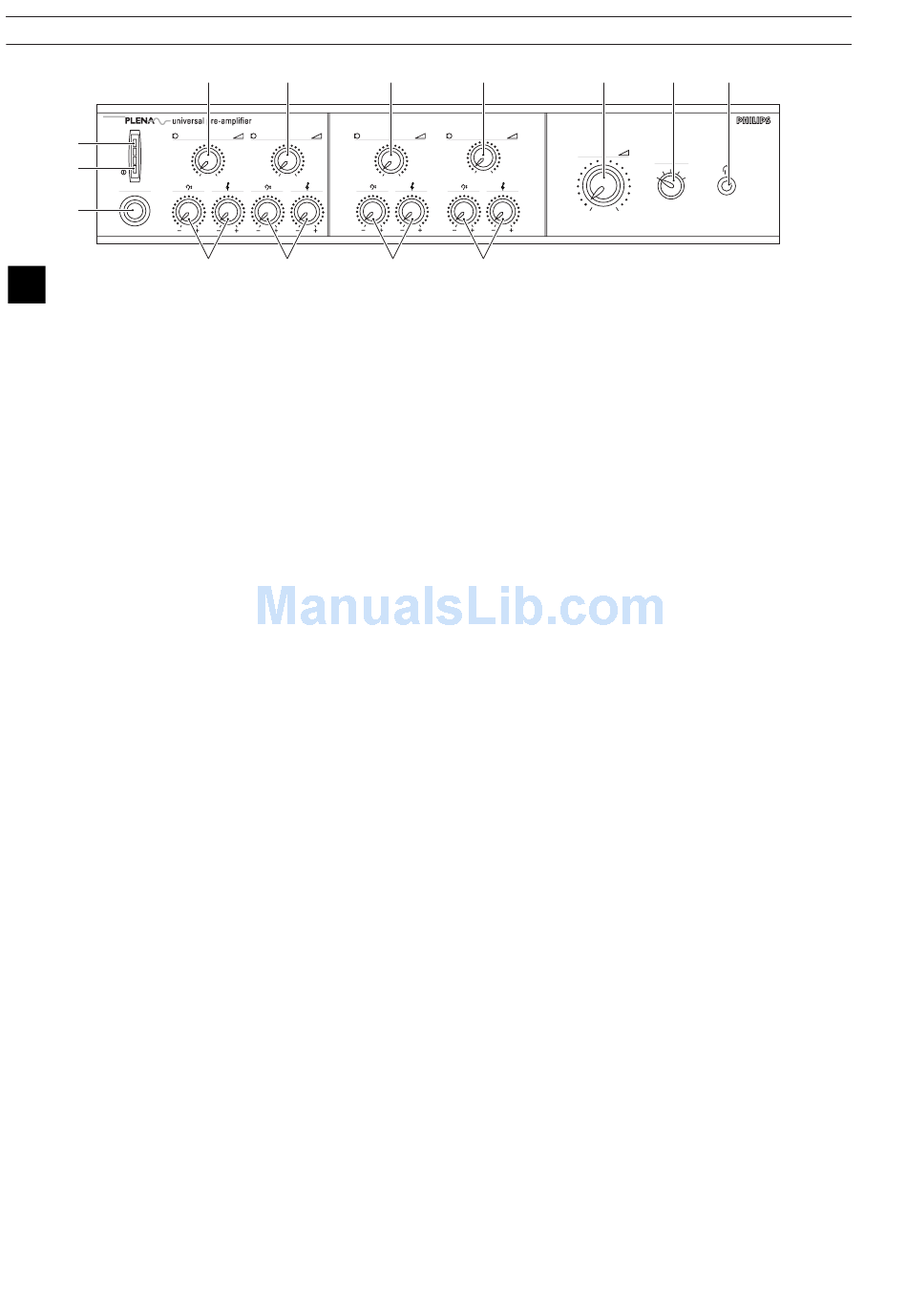

Eng Controls & Connections (front)
1. VU meter (LED bar)
2. Power on indication LED (green)
3. Power on/off
4. Tone control, channel 1 to 4
5 5
1/Line 2/Line
4 4
5 5
3/Line 4/Line
4 4
5. Volume, channel 1 to 4
6. Master volume
7. Channel selection for headphone
8. Headphone connection.
4
6 7 8
Master
Select
3
2 4
1
Master
0
