Triple video output amplifier

Advertisement

Quick Links

1. General description

2. Features

3. Ordering information

Table 1:
Ordering information
Type number
Package
Name
TDA6107AJF
DBS9MPF
TDA6107AJF
Triple video output amplifier
Rev. 02 — 28 April 2005
The TDA6107AJF contains three video output amplifiers which are intended to drive the

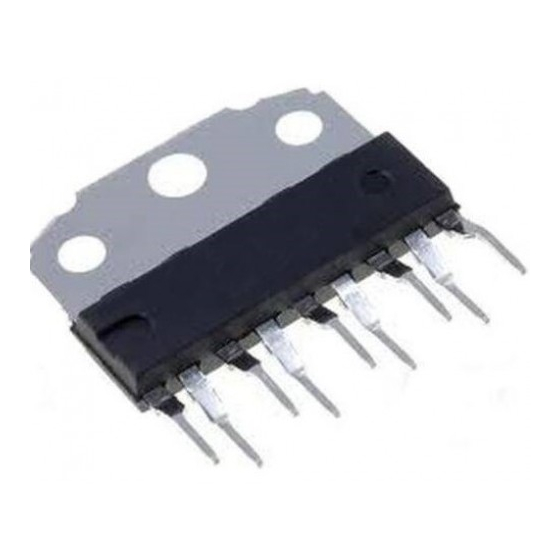

three cathodes of a color CRT. The device is contained in a plastic DIL-bent-SIL 9-pin
medium power (DBS9MPF) package, and uses high-voltage DMOS technology.
To obtain maximum performance, the amplifier should be used with black-current control.
Typical bandwidth of 5.5 MHz for an output signal of 60 V (p-p)
High slew rate of 900 V/ s
No external components required
Very simple application
Single supply voltage of 200 V
Internal reference voltage of 2.5 V
Fixed gain of 81
Black-Current Stabilization (BCS) circuit with voltage window from 1.8 V to 6 V and
current window from +100 A to 10 mA
Thermal protection
Internal protection against positive flashover discharges appearing on the CRT
Description
plastic DIL-bent-SIL medium power package with fin; 9 leads
Product data sheet
Version
SOT111-1

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

Summary of Contents for Philips TDA6107AJF

  • Page 1: General Description

    Rev. 02 — 28 April 2005 1. General description The TDA6107AJF contains three video output amplifiers which are intended to drive the three cathodes of a color CRT. The device is contained in a plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package, and uses high-voltage DMOS technology.
  • Page 2: Block Diagram

    MIRROR 3 MIRROR 2 Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier MIRROR 5 CASCODE 1 9, 8, 7 CASCODE 2 mce457 © Koninklijke Philips Electronics N.V. 2005. All rights reserved. oc(1) oc(2) oc(3) 2 of 16...
  • Page 3: Pinning Information

    3 ground (fin) black-current measurement output supply voltage cathode output 3 cathode output 2 cathode output 1 Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier © Koninklijke Philips Electronics N.V. 2005. All rights reserved. 3 of 16...
  • Page 4: Internal Circuitry

    Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier to black-current measurement circuit flash V bias to black-current measurement circuit © Koninklijke Philips Electronics N.V. 2005. All rights reserved. 7, 8, 9 mce458 Unit +150 +150 3000 4 of 16...
  • Page 5: Thermal Characteristics

    fin outputs 5 K/W thermal protection circuit 6 K/W Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier Conditions mbh989 ( C) mgk279 © Koninklijke Philips Electronics N.V. 2005. All rights reserved. Unit 5 of 16...
  • Page 6: Characteristics

    Triple video output amplifier = 25 C; V = 200 V; th(h-a) 50 V = 0 mA = 0 mA © Koninklijke Philips Electronics N.V. 2005. All rights reserved. = 18 K/W; measured in Unit +4.2 mV/K mV/K 6 of 16...
  • Page 7 Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier = 25 C; V = 200 V; = 18 K/W; measured in th(h-a) © Koninklijke Philips Electronics N.V. 2005. All rights reserved. Unit V/ s mce455 7 of 16...
  • Page 8 V ] rising edge as a function of the AC input signal oc(2) oc(3) Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier mce477 © Koninklijke Philips Electronics N.V. 2005. All rights reserved. 8 of 16...
  • Page 9: Application Information

    Application note AN10227-01 . The DC voltage of pin V the peak currents. 10.2 Flashover protection The TDA6107AJF incorporates protection diodes against CRT flashover discharges that clamp the cathodes output voltage up to a maximum of V 9397 750 14728 Product data sheet 2.96...
  • Page 10: Switch-Off Behavior

    10.3 Switch-off behavior The switch-off behavior of the TDA6107AJF is controllable. This is because the output pins of the TDA6107AJF are still under control of the input pins for low power supply voltages (approximately 30 V and higher). 10.4 Bandwidth The addition of the flash resistor produces a decreased bandwidth and increases the rise...
  • Page 11: Test Information

    3.2 pF 136 pF 100 k oc(3) 6.8 pF probe 3 3.2 pF 136 pF 100 k mce459 and V is set to 100 V. oc(1) oc(2) oc(3) © Koninklijke Philips Electronics N.V. 2005. All rights reserved. 11 of 16...
  • Page 12: Package Outline

    Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier 10 mm 2.75 1.75 15.1 2.54 2.50 1.55 14.9 EUROPEAN PROJECTION © Koninklijke Philips Electronics N.V. 2005. All rights reserved. SOT111-1 max. 0.25 ISSUE DATE 95-03-11 03-03-12 12 of 16...
  • Page 13: Handling Information

    Suitability of through-hole mount IC packages for dipping and wave soldering methods Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier stg(max) Soldering method Dipping Wave suitable suitable suitable not suitable © Koninklijke Philips Electronics N.V. 2005. All rights reserved. ). If the 13 of 16...
  • Page 14: Revision History

    Change notice Doc. number Product data sheet Preliminary specification - Rev. 02 — 28 April 2005 TDA6107AJF Triple video output amplifier Supersedes 9397 750 14728 TDA6107AJF_1 9397 750 11632 © Koninklijke Philips Electronics N.V. 2005. All rights reserved. 14 of 16...
  • Page 15: Data Sheet Status

    This data sheet contains data from the preliminary specification. Supplementary data will be published at a later date. Philips Semiconductors reserves the right to change the specification without notice, in order to improve the design and supply the best possible product.
  • Page 16: Table Of Contents

    Contact information ....15 TDA6107AJF Triple video output amplifier © Koninklijke Philips Electronics N.V. 2005 All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.
