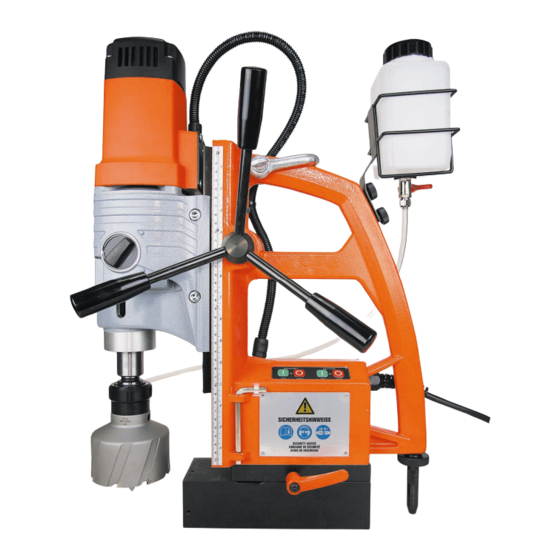

Alfra Rotabest 100
Metal Core Drilling Machine
Operation Manual
06/2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rotabest 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALFRA Rotabest 100

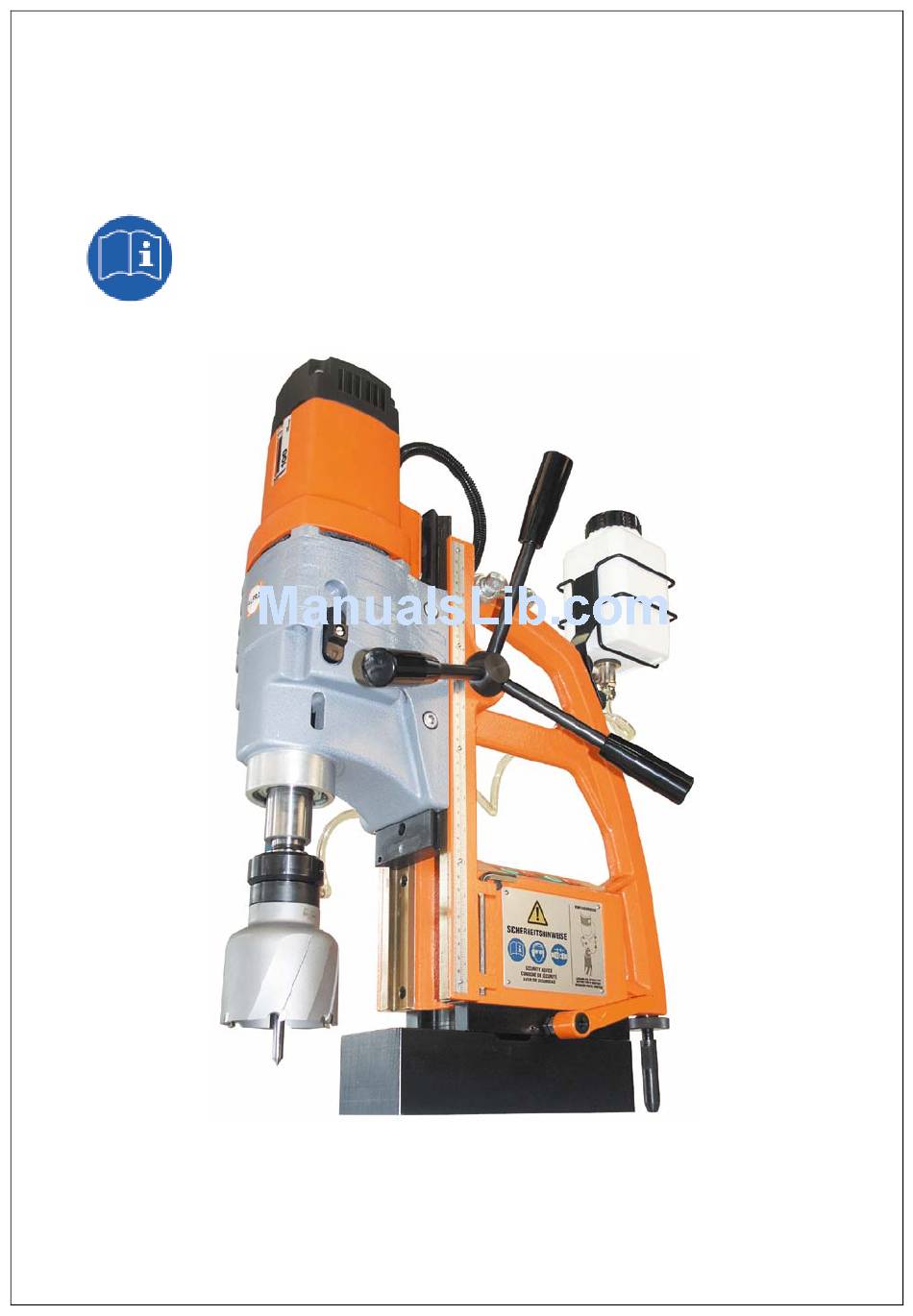

  • Page 1 Alfra Rotabest 100 Metal Core Drilling Machine Operation Manual 06/2005...
  • Page 2 1. Technical Data Prod. – No.: 18630 Name Rotabest 100 Input: 1800 Watt Load rpm: 110/175/245/385 rpm Tool Holder MT 3 Coolant supply: internal, automatically Voltage: (see nameplate) Magnetic Adhesion: 20000 N Boring Ø max. in Steel: - Core Cutter...
  • Page 3 2. Description a) Motor b) Spindle c) Control Panel d) Magnet Foot e) Arbor f) Depth Scale g) Hexagon screw for the adjustment of the motors´ stroke range h) Clamping lever for clamping the magnet foot i) Rear support j) Recess for safety belt k) Adjusting screws for adjusting the slide...
  • Page 4: Standard Scope Of Supply

    3. Standard scope of supply a) Transport Case b) Coolant Unit c) Coolant Spray d) Chip Remover e) Safety Belt f) Allan Key 2,5 mm g) Allan Key 6,0 mm Prior to use: Read Operation Manual! Pay attention to Safety Precautions! Appropriate Use This device is destined to: Cut material with magnetizable surface with core cutters, twist drills and to tap...
  • Page 5: Safety Precautions

    Do not execute any electric welding on the workpiece, on which the Metal Core Drilling Machine is used. Prior to all operations, mount coolant unit (b). Danger of injuries! Danger of an electric shock For operations on walls and ceilings, we recommend cooling with our spray (Alfra BIO 2000, Prod.- No. 21010).
  • Page 6 Switching on and off. • Check connecting line and plug on damages first! • Push button MAGNET ON, in order to initiate the magnet and the magnetic adhesion is guaranteed. • When working on walls and ceilings, safe machine with safety belt (f). •...
  • Page 7 Operating tips. First, place annular cutter with ejector pin on a marked center or marking. Drilling with ALFRA Rotabest cutters does not require much expenditure of force. Set the cutter and spot-drill, until the entire cut edge is formed as a circle.
  • Page 8: Maintenance And Repair

    The Metal Core Drilling Machine ALFRA ROTABEST should be serviced after appr. 250 hours running time by our Alfra workshop or appointed dealers. Only use genuine ALFRA spare parts. Spare part list at the end of this operation manual.
  • Page 9 Cutting depth 50 mm Product- No. 2002 ... 050 Alfra Tapping Attachment M3 – M12 Product-No. 18652 Alfra Tapping Attachment M10 – M 20 Product-No. 18653 HSS Countersink and Deburrer Ø 25 mm Product -No. 18533 HSS Countersink and Deburrer Ø 40 mm Product -No.
  • Page 10: Ce Declaration Of Conformity

    9. Guarantee For our ALFRA Rotabest Metal Core Drilling Machines we grant guarantee according to the legal and regional regulations (proven by invoice). 10. CE Declaration of Conformity We declare in our exclusive responsibility, that this product correspond to the...
  • Page 11: Spare Parts

    11. Spare Parts Pos. N° Stück 189852105 189041210 189060005 189852100 189120410 189601096 189060006 189852101 189090410 189480276 189060012 189601114 189040510 189490604 189490606 189501072 189020512 189490605 189490607 189852102 189040516 189852106 189480020 189601074 189030516A 189480010 189480021 189852103 189010620 189172050 189411027 189480007 189010880 189160416 189601105 189501076 189601079...
  • Page 12 N° Stück 189813052 189813043 189813003 189813053 189601041 189622011 189812029 189601043 189622013 189812028 189601023 189622004 189502019 189622052 189813002 189812031 189601022 189622005 189812030 189812047 189622007 189602036 189622055 189502065 189601049 189812048 189622009 189812038 189812050 189802053 189812043 189812044 189622010 189812034 189812046 189813050 189812033 189812045 189813051 189812032 189622052...
  • Page 13: Circuit Diagram

    12. Circuit diagram...
