ALFRA 18400 Rotabest RB 35B Operation Manual

Metal core drilling machine
Hide thumbs Also See for 18400 Rotabest RB 35B:
Table of Contents

Advertisement

Quick Links

Download this manual
Bedienungsanleitung / Operation manual /
Mode d'emploi / Manual de instrucciones /
ALFRA ROTABEST RB 35B
Metallkernbohrmaschine
Metal Core Drilling Machine
Perceuse à socle magnétique
Taladro electromagnético
Art-Nr. 18400 / Prod.-No. 18400 / N° de produit 18400 / Nº de producto 18400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18400 Rotabest RB 35B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALFRA 18400 Rotabest RB 35B

Summary of Contents for ALFRA 18400 Rotabest RB 35B

  • Page 1 Bedienungsanleitung / Operation manual / Mode d‘emploi / Manual de instrucciones / ALFRA ROTABEST RB 35B Metallkernbohrmaschine Metal Core Drilling Machine Perceuse à socle magnétique Taladro electromagnético Art-Nr. 18400 / Prod.-No. 18400 / N° de produit 18400 / Nº de producto 18400...

  • Page 2: Safety Instructions

    Dear customer, Thank you for purchasing an ALFRA product. Be sure to read these operation instructions closely before using your device for the first time and keep them along with the enclosed Product Control Card for later reference. Safety Instructions Danger can occur when working with this machine due to improper handling and/or poor maintenance, which may lead to the destruction of the device and to severe physical injuries.

  • Page 3: Specified Conditions Of Use

    AC=3,5 mm/s² and VC=3,2 mm/s Available Accessories Prod.-No.  Transport case 17701  Coolant unit 189311241  Coolant spray ALFRA BIO 4000 21040  Safety guard 189311293 + 2x 189601096  Safety belt 189490501  Allen key 2,5 mm DIN911-2,5 ...

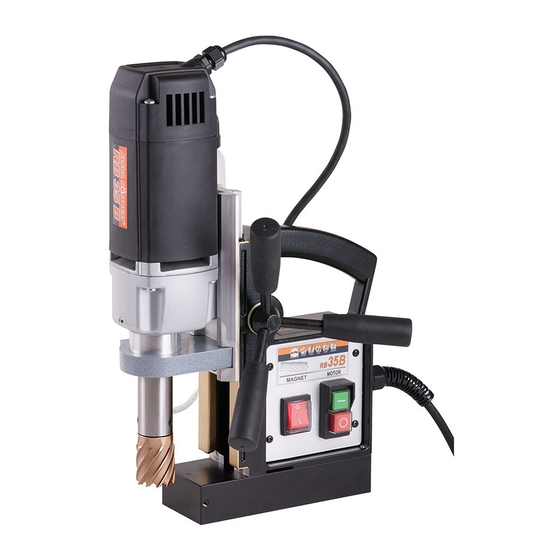

  • Page 4 Description The Magnetic Core Drilling Machine can be fixed with a switchable electromagnet on ferromagnetic work pieces. The electromagnet (C) and the motor (A) can be switched on and off with the large buttons of the control panel (E). A self-adjusting dovetail guide on which the motor is mounted can be adjusted in height with the star handle (F). On the back of the machine is the nameplate including the serial number.
