Summary of Contents for ESI ESRTM

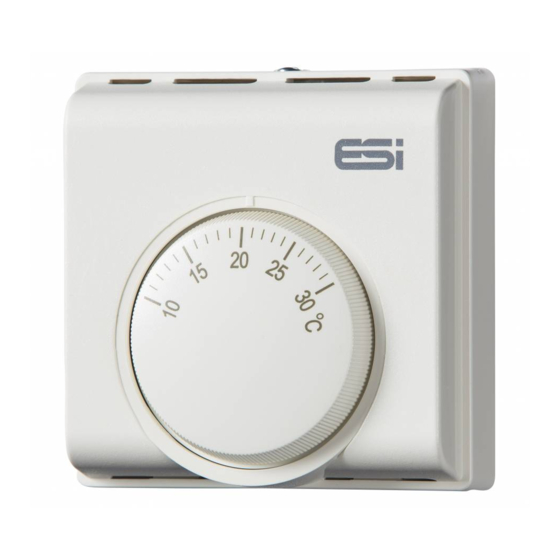

- Page 1 ESRTM Mechanical Room Thermostat Installation Instructions...
- Page 2 Thank you for choosing ESi Controls. All our products are tested in the UK so we are confident this product will reach you in perfect condition and give you many years of service. However, for additional peace of mind, we recommend you register your product online at www.esicontrols.co.uk/warranty for your...
-
Page 3: Table Of Contents
Contents Installation Instructions Technical Data Installation Instructions Installation Safety Instructions Maintenance Safety Notice Wiring Diagram Fitting the Mechanical Room Thermostat Installation... -
Page 5: Installation Instructions
Installation Instructions... -
Page 6: Technical Data
Technical data Fixing Easy Fit Back Plate Sensing Element Gas Bellows/Membrane Switch Rating 230VAC (Volt Free) Temperature Setting Range 10°C to 30°C Temperature Heating Range 0.6°C to 4°C/hour Terminal Differential Approx 4°C Current Rating 16(4)Amp Switch Type S.P.S.T Plastic Thermoplastic, flame retardant Protection Rating IP30 Dimensions... -
Page 7: Installation Safety Instructions
Installation Safety Instructions The unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring Regulations. Isolate mains supply before commencing installation. Please read all instructions before proceeding. Ensure that the fixed wiring connections to the mains supply is via a fuse rated at not more than 6 amps and class ‘A’... -
Page 8: Safety Notice
Arrange for an annual maintenance and inspection schedule to be carried out by a competent person on every part of the heating and hot water system. Safety Notice WARNING! Always isolate the AC mains supply before installing. this product must be fitted by a qualified person, and installation must comply with the guidance provided in the current editions of BS767 (IEE wiring regulations) and part “P”... -
Page 9: Fitting The Mechanical Room Thermostat
Fitting the Mechanical Room Thermostat The ideal position to locate the Mechanical Room Thermostat is about 1.5m above floor level, in a location where the thermostat is accessible, reasonably lit and free from extremes of temperature and draughts. Do not position the thermostat near sources of heat, such as radiators, lights, TV, direct sunlight or on an outside wall. - Page 10 We are continuously developing our products to bring you the very latest in energy saving technology and simplicity. However, should you have any questions setting up your controls please email us at sales@esicontrols.co.uk or for technical queries call us on our dedicated technical helpline 07539 117468.
- Page 11 WARNING: Interference with sealed parts renders the guarantee void. In the interests of continuous product improvement we reserve the right to alter designs, specifications and materials without prior notice and cannot accept liability for errors.
- Page 12 Version 6.10.2 © ESi Controls Limited 2017...
