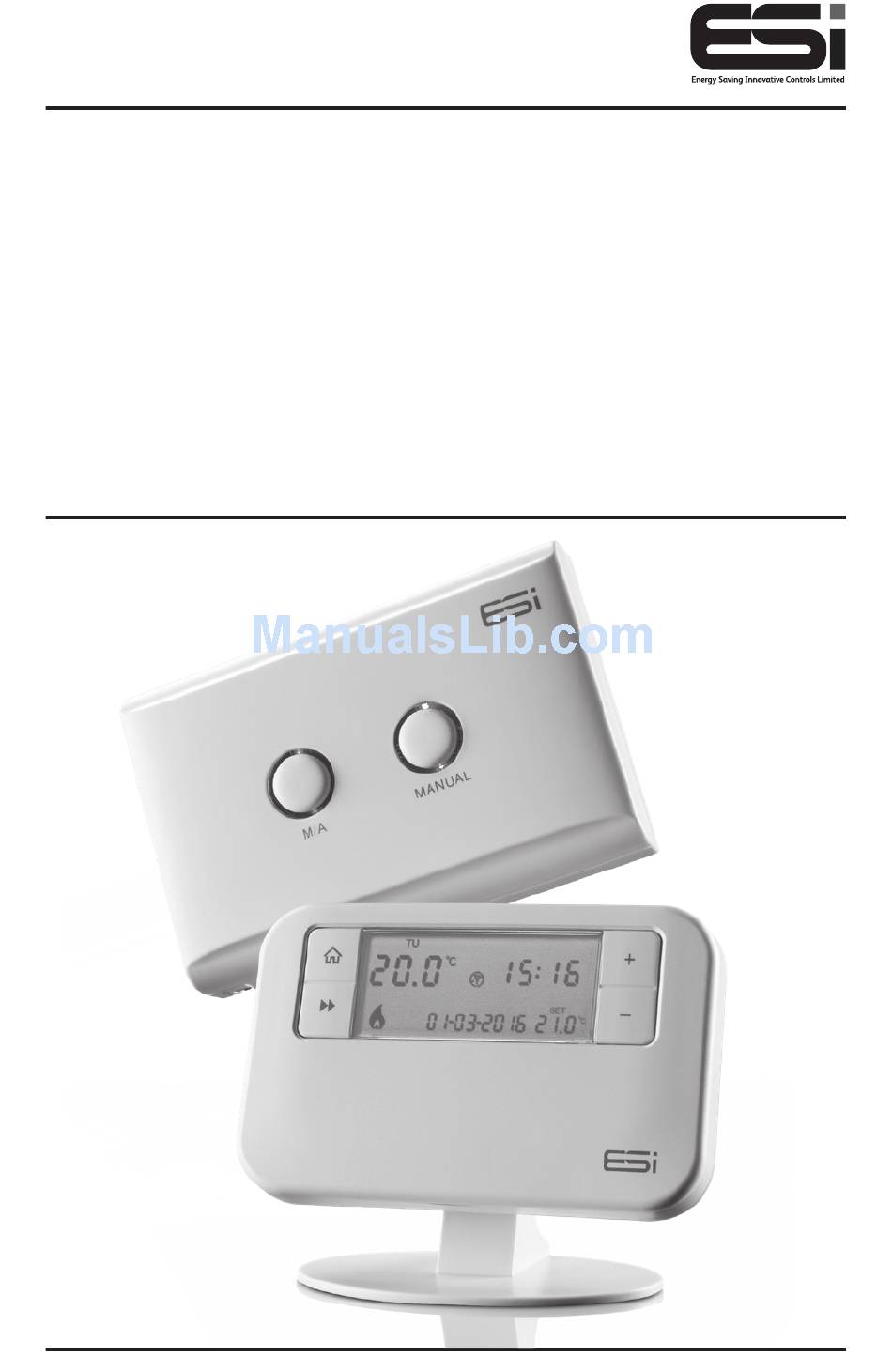

  • Page 1 ESRTP4RF RF Programmable Room Thermostat User Instructions...
  • Page 2 Thank you for choosing ESi Controls. All our products are tested in the UK so we are confident this product will reach you in perfect condition and give you many years of service. However, for additional peace of mind, we recommend you register your product online at www.esicontrols.co.uk/warranty for your...

  • Page 3: Table Of Contents

    Contents User Instructions 1. What is a Programmable Room Thermostat? The ESRTP4RF explained Introduction to the ESRTP4RF What is Chronoproportional Controls (TPI)? What is Delayed Start? What is Optimum Start? What is Optimum Stop? What is Landlord Service? 2. Quick Operating Guide 3.

  • Page 5: User Instructions

    User Instructions...

  • Page 6: What Is A Programmable Room Thermostat

    1. What is a Programmable Room Thermostat? An explanation for householders Put simply a Programmable Room Thermostat is a timer and thermostat combined in one unit. With a standard timer you choose your heating ON times and set your room thermostat (fitted usually away from the timer) to the desired comfort temperature required.

  • Page 7: Introduction To The Esrtp4Rf

    Introduction to the ESRTP4RF The ESRTP4RF is an easy to install and use Wireless 7 Day, 5/2 Day or 24 Hr Programmable Room Thermostat which offers four or six time and temperature changes each day, with different programmes available for weekdays and for weekends.

  • Page 8: What Is Delayed Start

    room thermostats, room thermostats with TPI increase boiler efficiency by firing the boiler at regular intervals, adjusting firing duration with demand, to maintain set room temperatures. This gives them a great advantage over other domestic room thermostats and achieves a constant ambient environment for the user e.g.

  • Page 9: What Is Optimum Start

    What is Optimum Start? The Optimum Start adjusts the starting time for home heating according to the temperature measured within the building. Instead of setting an arbitrary time for the heating to come on, the homeowner programmes the time that the home should be at the desired temperature.

  • Page 10: Quick Operating Guide

    2. Quick operating guide °C AUTO DS OS SER OST TPI MAN Home (takes you back to home screen) Next (moves you to next option within a function) Temporary Override/Settings Adjustment °C Accepts/Confirms selection in functions/All Day Mode Copy (COPY) AUTO DS OS SER OST TPI MAN Holiday Mode Sets Time and Date...
  • Page 11 °C AUTO DS OS SER OST TPI MAN Day Display Programme Events Display/All Day Room Temperature Delayed Start (DS) / Frost Protection Mode Optimum Start (OS) is Thermostat is receiving active signal Date (DD-MM-YYYY) Thermostat is not Annual Service is due receiving signal (SERV) Time Display (12 hour...

  • Page 12: Operation Modes

    3. Operation modes Factory Pre-Set Programme This Programmable Room Thermostat has been designed to be a simple to use thermostat, requiring minimal user intervention with a pre-programmed heating profile. The pre- set heating times and temperatures will suit most people (see table below).

  • Page 13: Setting The Operation Mode

    Pre-Set Temperatures: 7 Day In 7 day setting, the pre-set settings are the same as the 5/2 Day programme. Pre-Set Temperatures: 24 Hours In 24hr setting, the pre-set settings are the same as Mon-Fri of the 5/2 Day programme. Setting the Operation Mode (5/2 day, 7 day, 24hr) 1.

  • Page 14: All Day Setting

    5. Repeat steps 3 - 4 for all temperature events. 6. Press A to accept/confirm temperature events and move to the next day/block of days. 7. Repeat steps 3 - 6 until all days have been set. Then wait 15 seconds to automatically confirm and return to run Home button.

  • Page 15: Holiday Mode

    3. Once the desired temperature is reached (and after approx. 6 seconds) the time display will be replaced by a display indicating the time left to the next programme (the length of time the temporary override will run, if left unhindered) and the display then alternates between the time left and the current time.

  • Page 16: Frost Protection

    7. To cancel the Holiday Mode setting or to exit the Home button to function at any time, press the revert back to Run mode. Frost Protection This function is provided as an option if it is desirable to turn the heating off permanently.

  • Page 17: Program Settings

    4. Program settings Setting the Time and Date The time and date are factory set so it will not normally be necessary to do this on site. Changes between summer and winter time are handled automatically by the unit. 1. Switch the slider to Time/Date. The hour symbols will flash, use + or –...

  • Page 18: Battery Replacement

    To operate the copy function 1. Switch the slider to PROG and press the Home Button. 2. Press the C button to enter the COPY mode. 3. The A button chooses the day you want to copy from and the +/- buttons choose the day you want to copy to. 4.
  • Page 19 1. To engage the manual override, press the MANUAL button on the receiver, which will then light up with a green background. This shows that the manual override is active. 2. Use the M/A button to manually override the status of the receiver.
  • Page 20 We are continuously developing our products to bring you the very latest in energy saving technology and simplicity. However, should you have any questions setting up your controls please email us at sales@esicontrols.co.uk or for technical queries call us on our dedicated technical helpline 07539 117468.
