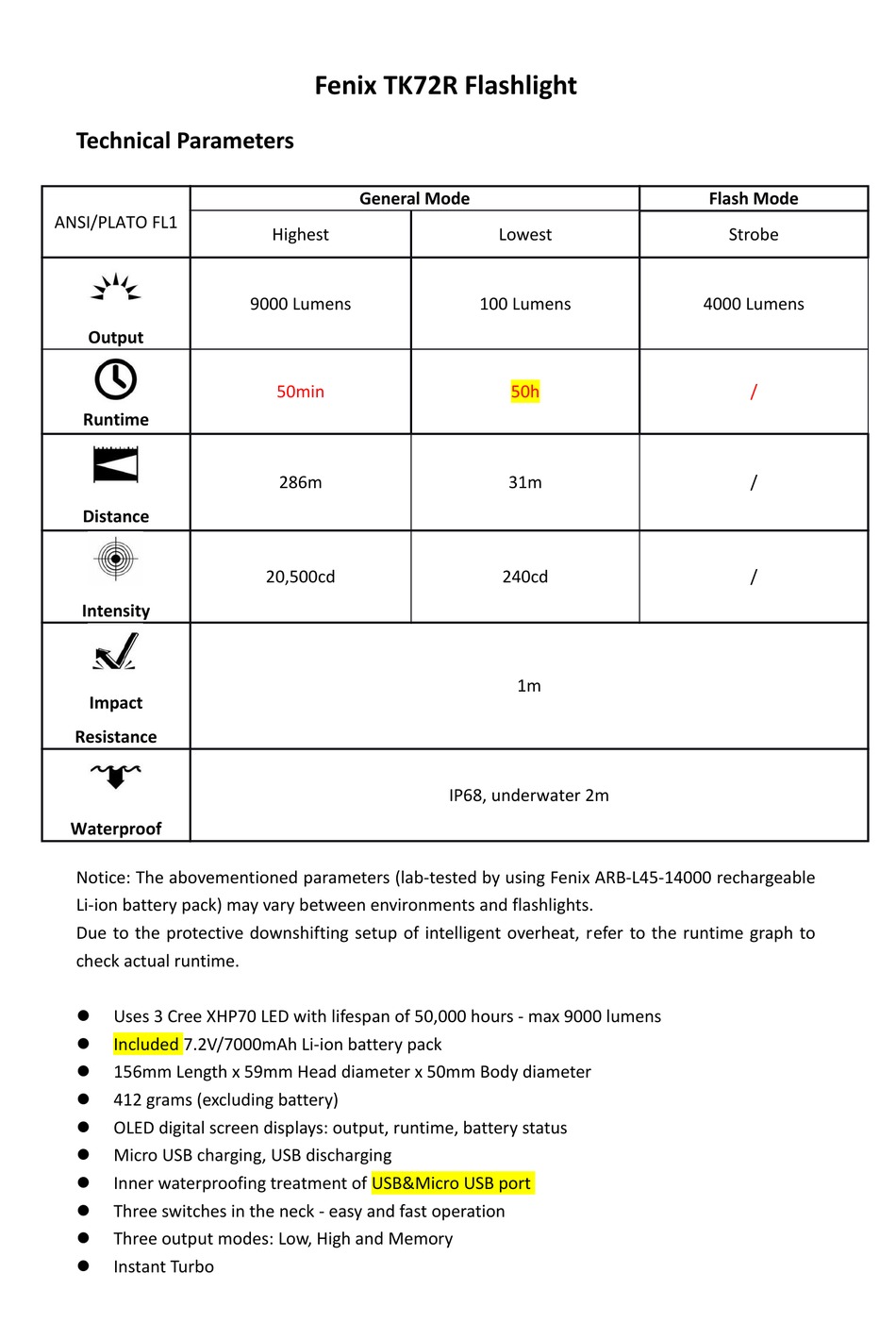

Technical Parameters
ANSI/PLATO FL1
Output
Runtime
Distance
Intensity
Impact
Resistance
Waterproof
Notice: The abovementioned parameters (lab-tested by using Fenix ARB-L45-14000 rechargeable
Li-ion battery pack) may vary between environments and flashlights.
Due to the protective downshifting setup of intelligent overheat, refer to the runtime graph to
check actual runtime.
Uses 3 Cree XHP70 LED with lifespan of 50,000 hours - max 9000 lumens
Included 7.2V/7000mAh Li-ion battery pack
156mm Length x 59mm Head diameter x 50mm Body diameter
412 grams (excluding battery)
OLED digital screen displays: output, runtime, battery status
Micro USB charging, USB discharging
Inner waterproofing treatment of USB&Micro USB port
Three switches in the neck - easy and fast operation
Three output modes: Low, High and Memory
Instant Turbo

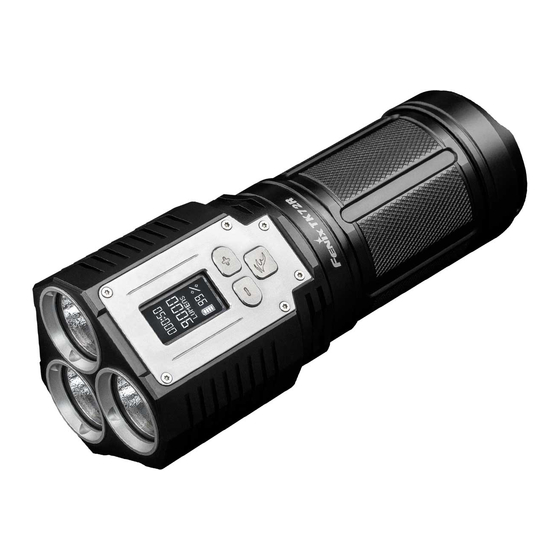

Fenix TK72R Flashlight
General Mode
Highest
9000 Lumens
50min
286m
20,500cd
Lowest
100 Lumens
50h
31m
240cd
1m
IP68, underwater 2m
Flash Mode
Strobe
4000 Lumens
/
/
/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fenix TK72R
Summary of Contents for Fenix TK72R
- Page 1 Resistance IP68, underwater 2m Waterproof Notice: The abovementioned parameters (lab-tested by using Fenix ARB-L45-14000 rechargeable Li-ion battery pack) may vary between environments and flashlights. Due to the protective downshifting setup of intelligent overheat, refer to the runtime graph to check actual runtime.
- Page 2 Lockout function Low-voltage warning function Digitally regulated output maintains constant brightness Intelligent overheat protection protects from high surface temperature Reverse polarity protection to protect from improper battery insertion Made of durable high-strength and oxidation-resistance aluminum ...
- Page 3 to the last used brightness. Lockout Function Lock: With the light switched off and unlocked, continuously click the switch twice within 0.5 seconds, the OLED screen will display locking icon, indicating the light enters locked status. Unlock: With the light switched off and locked, continuously click the switch twice within 0.5 seconds, the light will be unlocked and activated on last used brightness.
-
Page 4: Battery Replacement
Included 1 x TK72R flashlight, 1 x ARB-L45-14000 battery, 1 x Lanyard, 1 x Holster, 2 x Spare O-rings, 1 x Micro USB charging cable, 1 x Adaptor, 1 x User manual, 1 x Warranty card Usage and Maintenance ...
