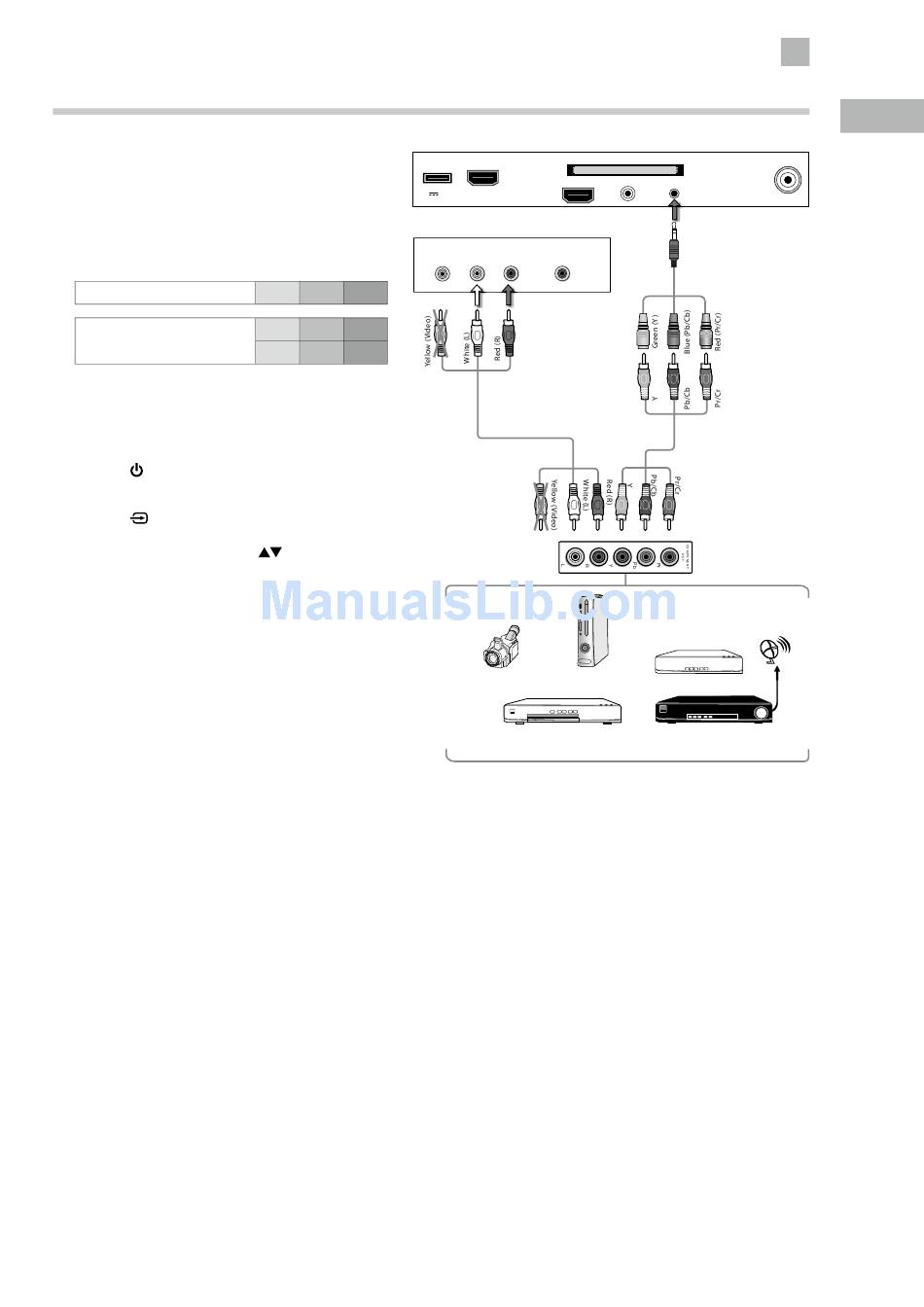

Connecting an AV Device Using a Component (YPbPr) Cable

1. Connect the supplied component adapter cable and a
component cable from the TV's YPbPr input sockets to
an external AV device's component output sockets.
2. Use an AV cable to connect the TV's Audio in (L/R)
input sockets to the external AV device's component
audio output sockets. (Audio Left = white, and Audio
Right = red)
Component port on the TV
Video output ports on DVD
player
3. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the front right side under the
frame.
4. Press the button at the front right side under the
frame or on the remote control to turn on your TV.
5. Press the
button at the front right side under the
frame or the INPUT button on the remote control to
display the Source List. Use the
YPbPr and then press the OK button to confirm.
USB
5V 500mA
VIDEO
Y Pb Pr
Y Pb Pr
Y Cb Cr
buttons to select
Rear Right Side View of TV
COMMON INTERFACE (CI)
HDMI2(ARC)
HDMI1 HEADPHONE
Rear Bottom View of TV
Digital Audio Output
Audio in
L R (Coaxial)
AV Cable
(not included)
Analogue Game
Video Camera
Console
Blu-ray Player / DVD Player /
Recorder
Connections
3
RF
YPbPr
Component
Adapter
Cable
(included)
Component Cable
(not included)
Satellite
Set-top Box
antenna
cable
Satellite Receiver
15
GB
