Quick Start Guide

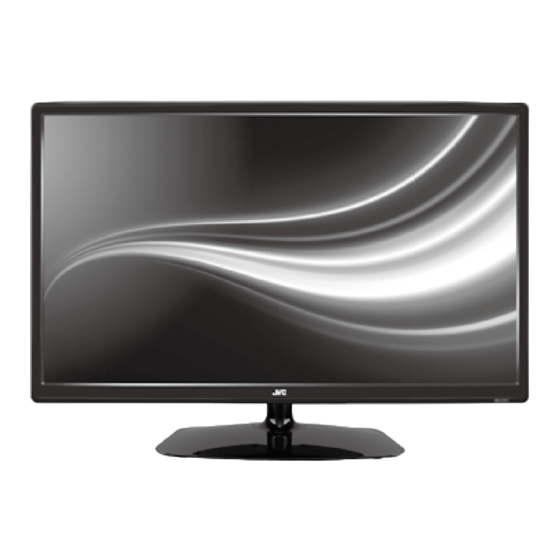

32" HD LED TV
LT-32E33B / LT-32E33W
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch o the TV if device
is left on and idle for 4 hours. Please refer to "Auto Standby" under the "Time
Settings" section of the instruction manual for more detail.
For Help and Support Call
Norway: 815 56 602 Sweden: 0770 474 700
Denmark: 70 27 87 37 Finland: 020 - 500 6550
1
Unpacking
Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
TV Screw A x 3
TV Stand Support Screw B x 4
TV Stand Base Component Adapter
Cable (YPbPr)
Remote Control
Instruction Manual
AAA Batteries x 2
Quick Start Guide
3
Installing the Base Stand
1. Lay the TV down on a flat surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it. Please
make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
2. To install the TV stand, first attach the stand support to the TV by using 3 screw A. Align with the screw hole then use screws to fix the stand support to the
TV.
3. To install the base stand, align the screw holes, then secure with a screw driver (not included) using the 4 screw B provided.
screw in
Screw A x 3
2
Operating Your Remote Control
1. Press and lift the back
cover to open the
battery compartment of
the remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Install the batteries correctly by following the polarity (+ and -) indications in the
battery compartment.
screw in
TV Front
Base Stand
Front
Screw B x 4
4
Connecting the Aerial and the Mains Socket
1. Connect one end of the RF coaxial cable to the aerial socket on the
wall and the other end of the cable to the RF (75 ) socket at the rear
right side of your TV.
2. Connect the mains cable to the mains socket after you have
GB
completed all the connections.
3. Switch on the POWER ON/OFF switch which is located at the front right
side under the frame. At this stage, the TV switches to standby mode.
The red LED indicator will illuminate on the front panel of the TV.
4. In standby mode, press the
button on the right side panel of the
TV or on the remote control to turn the TV on. The red LED indicator
will turn blue.
Do not connect the TV to the mains supply until you have completed all the
connections.
5
Turning the TV On for the First Time
First Time Installation
Please ensure aerial is plugged in!
Then press OK button.
1. The first time you turn the TV on, it will go
straight into First Time Installation menu.
Press the OK button to start First Time
Installation menu.
Please select an OSD Language
English Česky Suomi
Svenska Slovak
Dansk Norsk
OK
2. Press the buttons to select your
desired language to be displayed on the
menu. The default on-screen menu language is
set as English. Press the OK button to confirm.
Mode Select
Home Mode
Shop Mode
OK
3. Press the buttons to select your desired
mode and then press the OK button. Press the
button to select Yes to confirm or the
button to select No to cancel and return to the
Mode Select menu.
Well done,
your new TV is now ready to use. You will find that there are many exciting features available. To get to know all these features, please
take some time to read the instruction manual provided with your TV.
If after reading the instruction manual you have additional questions related to the use of your TV, please call our Support Centre:
Norway: 815 56 602 Sweden: 0770 474 700
3
2
To the mains socket
COMMON INTERFACE (CI)
USB HDMI2 HDMI1(ARC)
HEADPHONE
5V 500mA
DVB Select type
DVB-T
DVB-C
4. Press the buttons to select DVB-T / 5. Channel tuning will commence. This operation
DVB-C and then press the OK button to may take up to 6 minutes. The display will
confirm. show the progress of the tuning and the
number of channels found.
Tune Type DTV Target Region Setting (UK only)
During tuning your TV may have received signals
Germany Italy Netherlands
from more than one transmitter. If this has
Greece Ireland Norway occurred the Target Region Setting screen will be
displayed. This will enable you to select the correct
Hungary Luxembourg Poland
regional transmission for the local news service
MENU that you require.
Press the
4a. If you select DVB-T, press the buttons to
setting and then press the OK button to confirm.
select DTV / ATV / ATV + DTV. Press the
button and then press the buttons
to select the desired country and. Press the
OK button to start tuning.
1 Country Code
2 Primary Region
DVB-C Scan Menu
3 Secondary Region
Scan type Full
4 Tertiary Region
Frequency
610000
Auto
Network ID
Symbol(ks/s) Auto
1 This will be shown as GBR for the UK.
OK MENU
2 This will show the regional country (e.g. England,
4b. If you select DVB-C, the next step is to
Wales, Scotland, NI).
configure the DVB-C system (Scan type /
Frequency / Network ID / Symbol(ks/s)). Press 3 This will allow you to set the region for your local
news service on BBC and ITV (e.g. London, Beds and
the OK button to go to the tune type and add
Cambs etc).
country select menu. This step is the same as
the DVB-T's select the tune type (DTV / ATV)
4 You may receive signals from more than one
process. Press the buttons to select transmitter within the Secondary Region, (e.g Beds
the desired country and then press the OK and Cambs may have Luton or Sandy Heath).
button to start tuning.
Denmark: 70 27 87 37 Finland: 020 - 500 6550
OR
RF coaxial cable
(not included)
1
PC IN RF
PC AUDIO
Channel Tuning
DTV : 3 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36% UHF CH (DTV)
Press [MENU] to skip.
buttons to select each option's
Target Region Setting
GBR
England
London
