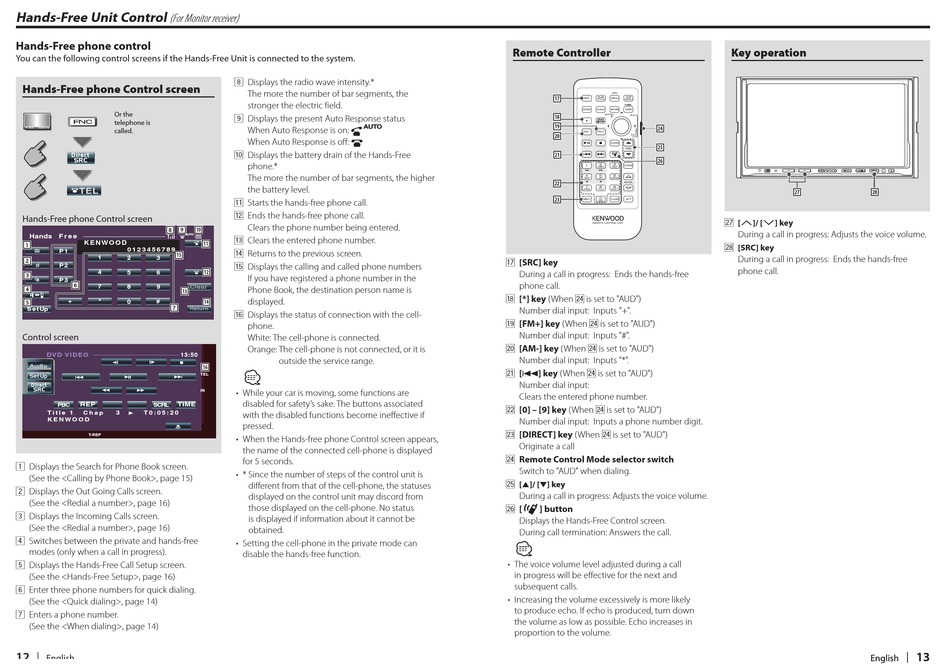

Hands-Free Unit Control

(For Monitor receiver)
Hands-Free phone control
You can the following control screens if the Hands-Free Unit is connected to the system.
Hands-Free phone Control screen
Or the
telephone is
called.
TEL
Hands-Free phone Control screen
8 9
AUTO
Hands F r e e
K E N WO O D
1
0 1 2 3 4 5 6 7 8 9
P 1
15
1 2 3
2
P 2
4 5 6
3
P 3
6
7
8 9 Clear
4
13
+ *
0 #
5
7
S e t Up Return
Control screen
DV D V I D E O 13:50
REP TIME
PBC SCRL
N e x t N e x t
T i t l e 1 C h a p 3 T 0 : 0 5 : 2 0
K E N W O O D
T-REP
1 Displays the Search for Phone Book screen.
(See the <Calling by Phone Book>, page 15)
2 Displays the Out Going Calls screen.
(See the <Redial a number>, page 16)
3 Displays the Incoming Calls screen.
(See the <Redial a number>, page 16)
4 Switches between the private and hands-free
modes (only when a call in progress).
5 Displays the Hands-Free Call Setup screen.
(See the <Hands-Free Setup>, page 16)
6 Enter three phone numbers for quick dialing.
(See the <Quick dialing>, page 14)
7 Enters a phone number.
(See the <When dialing>, page 14)
12
|
English
8 Displays the radio wave intensity.*
The more the number of bar segments, the
stronger the electric field.
9 Displays the present Auto Response status
AUTO
When Auto Response is on:
When Auto Response is off:
p Displays the battery drain of the Hands-Free
phone.*
The more the number of bar segments, the higher
the battery level.
q Starts the hands-free phone call.
w Ends the hands-free phone call.
Clears the phone number being entered.
10
e Clears the entered phone number.
11
r Returns to the previous screen.
t Displays the calling and called phone numbers
12
If you have registered a phone number in the
Phone Book, the destination person name is
displayed.
14
y Displays the status of connection with the cell-
phone.
White: The cell-phone is connected.
Orange: The cell-phone is not connected, or it is
outside the service range.
16
TEL
IN • While your car is moving, some functions are
disabled for safety's sake. The buttons associated
with the disabled functions become ineffective if
pressed.
• When the Hands-free phone Control screen appears,
the name of the connected cell-phone is displayed
for 5 seconds.
• * Since the number of steps of the control unit is
different from that of the cell-phone, the statuses
displayed on the control unit may discord from
those displayed on the cell-phone. No status
is displayed if information about it cannot be
obtained.
• Setting the cell-phone in the private mode can
disable the hands-free function.
Remote Controller
17
18
19
24
20
25
21
26
22
23
u [SRC] key
During a call in progress: Ends the hands-free
phone call.
i [*] key (When f is set to "AUD")
Number dial input: Inputs "+".
o [FM+] key (When f is set to "AUD")
Number dial input: Inputs "#".
; [AM-] key (When f is set to "AUD")
Number dial input: Inputs "*".
a [4] key (When f is set to "AUD")
Number dial input:
Clears the entered phone number.
s [0] – [9] key (When f is set to "AUD")
Number dial input: Inputs a phone number digit.
d [DIRECT] key (When f is set to "AUD")
Originate a call
f Remote Control Mode selector switch
Switch to "AUD" when dialing.
g
[5]/ [∞] key
During a call in progress: Adjusts the voice volume.
h [
] button
Displays the Hands-Free Control screen.
During call termination: Answers the call.
• The voice volume level adjusted during a call
in progress will be effective for the next and
subsequent calls.
• Increasing the volume excessively is more likely
to produce echo. If echo is produced, turn down
the volume as low as possible. Echo increases in
proportion to the volume.
Key operation
SRC
27 28
j
[u]/ [d] key
During a call in progress: Adjusts the voice volume.
k
[SRC] key
During a call in progress: Ends the hands-free
phone call.
