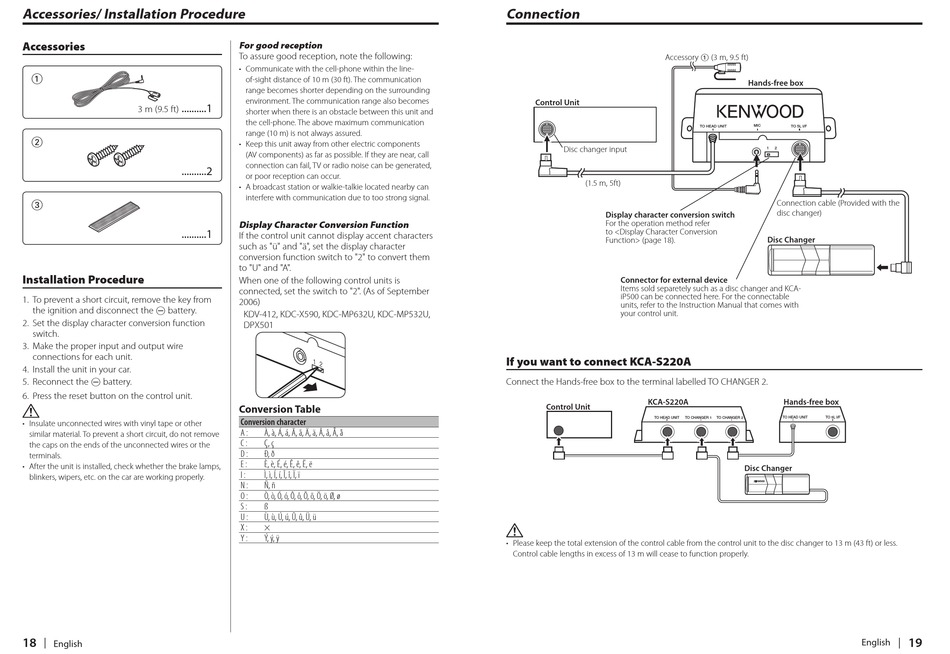

Accessories/ Installation Procedure

Accessories
1
..........1
3 m (9.5 ft)
2
..........2
3
..........1
Installation Procedure
1. To prevent a short circuit, remove the key from
the ignition and disconnect the - battery.
2. Set the display character conversion function
switch.
3. Make the proper input and output wire
connections for each unit.
4. Install the unit in your car.
5. Reconnect the - battery.
6. Press the reset button on the control unit.
• Insulate unconnected wires with vinyl tape or other
similar material. To prevent a short circuit, do not remove
the caps on the ends of the unconnected wires or the
terminals.
• After the unit is installed, check whether the brake lamps,
blinkers, wipers, etc. on the car are working properly.
18
|
English
For good reception
To assure good reception, note the following:
• Communicate with the cell-phone within the line-
of-sight distance of 10 m (30 ft). The communication
range becomes shorter depending on the surrounding
environment. The communication range also becomes
shorter when there is an obstacle between this unit and
the cell-phone. The above maximum communication
range (10 m) is not always assured.
• Keep this unit away from other electric components
(AV components) as far as possible. If they are near, call
connection can fail, TV or radio noise can be generated,
or poor reception can occur.
• A broadcast station or walkie-talkie located nearby can
interfere with communication due to too strong signal.
Display Character Conversion Function
If the control unit cannot display accent characters
such as "ü" and "ä", set the display character
conversion function switch to "2" to convert them
to "U" and "A".
When one of the following control units is
connected, set the switch to "2". (As of September
2006)
KDV-412, KDC-X590, KDC-MP632U, KDC-MP532U,
DPX501
1 2
Conversion Table
Conversion character
A : À, à, Á, á, Ã, ã, Ä, ä, Â, â, Å, å
C : Ç, ç
D : Ð, ð
E : È, è, É, é, Ê, ê, Ë, ë
I : Ì, ì, Í, í, Î, î, Ï, ï
N : Ñ, ñ
O : Ò, ò, Ó, ó, Ô, ô, Õ, õ, Ö, ö, Ø, ø
S : ß
U : Ù, ù, Ú, ú, Û, û, Ü, ü
X : ×
Y : Ý, ý, ÿ
Connection
Accessory 1 (3 m, 9.5 ft)
Control Unit
Disc changer input
(1.5 m, 5ft)
Display character conversion switch
For the operation method refer
to <Display Character Conversion
Function> (page 18).
Connector for external device
Items sold separetely such as a disc changer and KCA-
iP500 can be connected here. For the connectable
units, refer to the Instruction Manual that comes with
your control unit.
If you want to connect KCA-S220A
Connect the Hands-free box to the terminal labelled TO CHANGER 2.
KCA-S220A
Control Unit
TO HEAD UNIT
• Please keep the total extension of the control cable from the control unit to the disc changer to 13 m (43 ft) or less.
Control cable lengths in excess of 13 m will cease to function properly.
Hands-free box
TO HEAD UNIT MIC TO 5L I/F
1 2
Connection cable (Provided with the
disc changer)
Disc Changer
Hands-free box
TO CHANGER 1 TO CHANGER 2 TO HEAD UNIT TO 5L I/F
Disc Changer
