JB Systems MULTIBEAM LASER Operation Manual page 10

ENGLISH

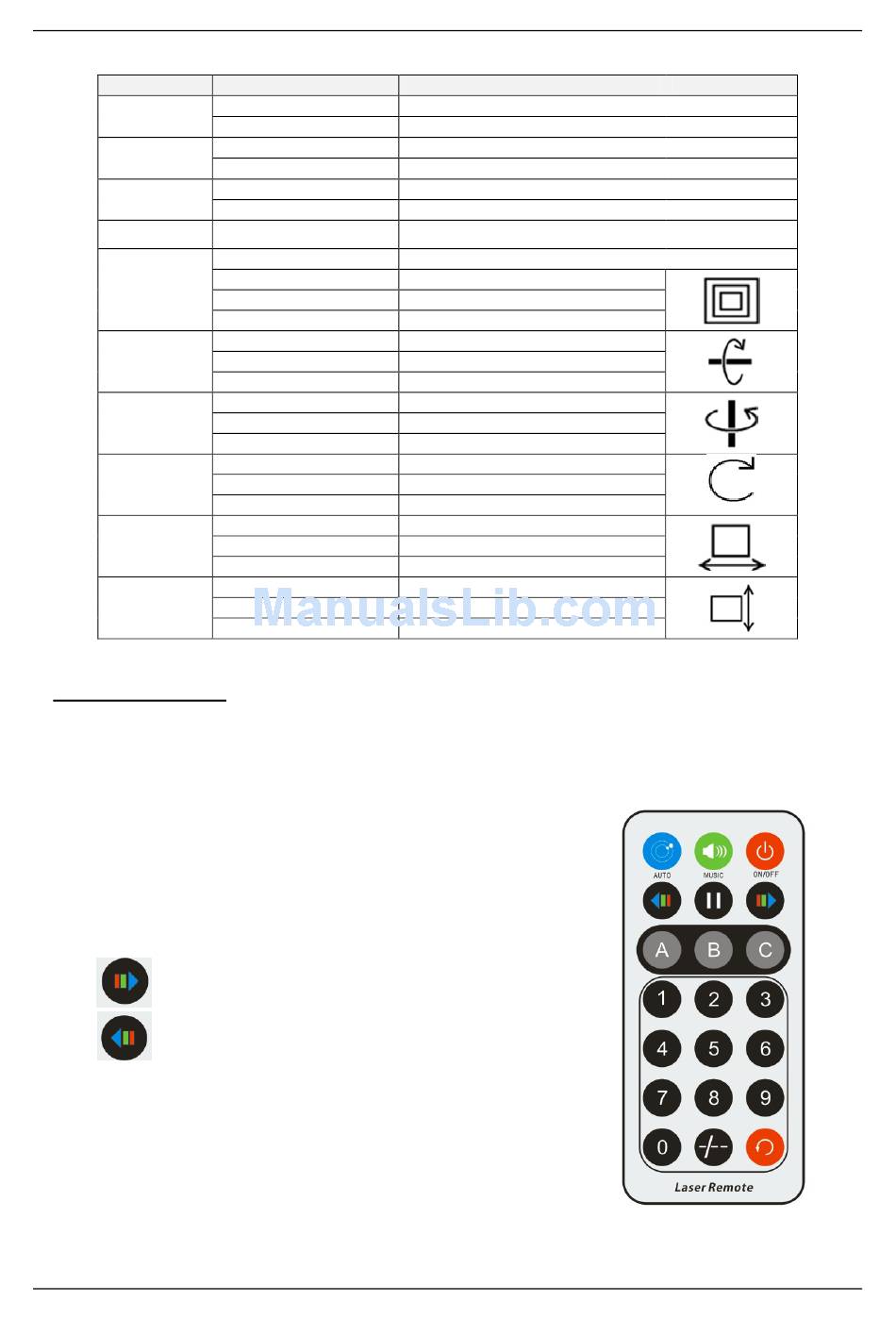

10 channel DMX MODE:
CHANNEL
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
CH 9
CH 10
5) IR Remote control:
The laser can also be controlled by the IR remote control:
• Press the [MENU] button to select the correct mode [SET]
• Press the [ENTER]-button to confirm your choice.
• Press the [UP / DOWN] buttons to choose [on] or [off] to enable or disable the IR remote control
• Press the [ENTER]-button to confirm your choice.
ON/OFF : Blackout
AUTO : runs programs in automatic mode
MUSIC : runs programs in sound controlled mode
: Speed up (faster)
: Speed down
1 – 9 : program 1 – 9
The other buttons have no function.
JB SYSTEMS ®
VALUE
000‐015 Channel 3-10 are active
See 2-channel DMX mode
016‐255
000‐200 Program speed
201‐255 Programs run sound activated
000-015 Blackout
016-255 Control four laser outputs
000-255 Patterns
000-127 Pattern size : 100%-5%
128-169 Zooming in
170-209 Zooming out
210-255 Zooming in & out
000-127 0 -359 degree fixed X axis rolled
128-191 Clockwise rolling
192-255 Anticlockwise rolling
000-127 0 -359 degree fixed Y axis rolled
128-191 Clockwise rolling
192-255 Anticlockwise rolling
000-127 0 -359 degree fixed Z axis rotate
128-191 Clockwise rotating
128-255 Anticlockwise rotating
000-127 128 different fixed position on X
128-191 Clockwise moving
128-255 Anticlockwise moving
000-127 128 different fixed position on Y
128-191 Clockwise moving
128-255 Anticlockwise moving
8/9
