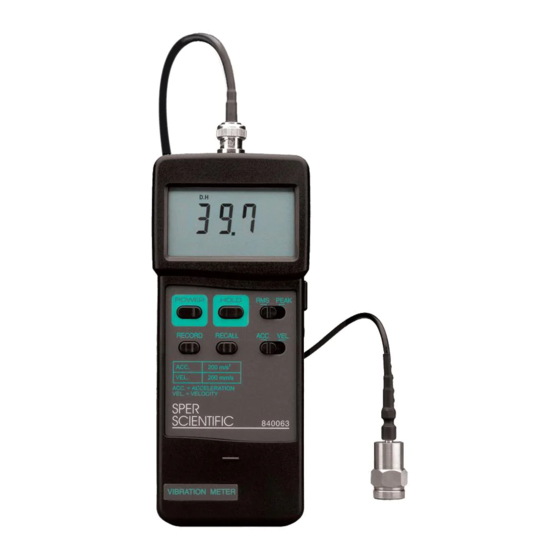

- Page 1 VIBRATION METER 840063 Instruction Manual SPER SCIENTIFIC LTD.
-
Page 2: Table Of Contents
CONTENTS Title Page Introduction ..............Panel Description ............III. Operating Instructions A. General Measurement Procedures ......B. Peak ................ C. Data Hold ..............D. Datra Record ............E. Automatic Shut Off ..........F. RS232 PC Serial Interface ........G. Battery Replacement ..........H. -
Page 3: Ii. Panel Description
II. PANEL DESCRIPTION (fig. A) 1. DISPLAY 2. POWER BUTTON 9. RS232 OUTPUT TERMINAL 3. HOLD BUTTON 10. BNC SOCKET 4. RMS/PEAK SELECTOR 11. BNC PLUG 5. RECORD BUTTON 12. MINI PLUG 6. RECALL BUTTON 13. INPUT SOCKET 7. ACC/VEL SELECTOR 14. - Page 4 6 a. If the surface material of the object you are testing is a non-magnetic material, hold the VIBRATION SENSOR and touch the tip to the object (above). b.If the surface material is magnetic, connect the VIBRATION SENSOR to the MAGNETIC BASE (left) and touch it to the object's surface (below).
-
Page 5: C. Data Hold
B. PEAK VALUE Switch the RMS/PEAK SELECTOR (A4) to the "PEAK" position. Peak value = 1.414 RMS value. C. DATA HOLD 1. Press the HOLD BUTTON (A3) during measurement to freeze the displayed value. "D.H" is shown on the LCD. 2. -
Page 6: G. Battery Replacement
Each digit indicates the following status: End Word D1 to D4 Upper Display reading, D1=LSD, D4=MSD D5 to D8 All "?" (?, ?, ?, ?) Decimal Point(DP), position from right to the left 0 = No DP, 1 = 1 DP, 2 = 2 DP, 3 = 3 DP D10 to D14 All Zeros (0, 0, 0, 0, 0) Start Word... -
Page 7: J. Iso 2954 Sensitivity Relative Table
GROUP G: Large machines on heavy foundations. Good 0 ~ 1.80 mm/s Acceptable 1.81 ~ 4.50 mm/s Still permissible 4.51 ~ 11.2 mm/s Dangerous > 11.2 mm/s GROUP T: Largest machines and turbo machines with special foundations. Good 0 ~ 2.80 mm/s Acceptable 2.81 ~ 7.10 mm/s Still permissible... -
Page 8: V. Warranty
Exclusive microcomputer circuit. V. WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
