Summary of Contents for Sper scientific 840062

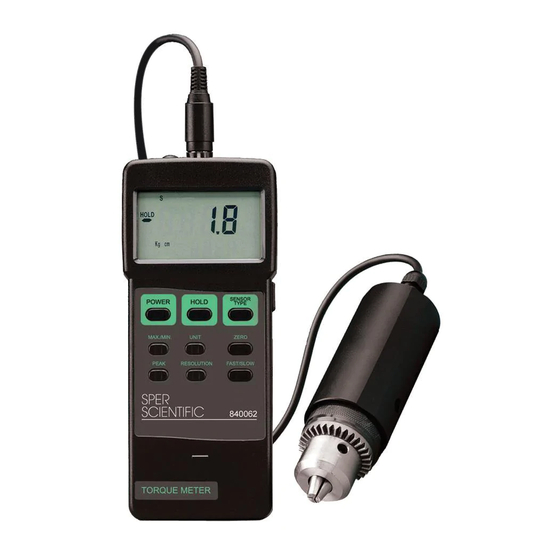

- Page 1 Torque Meter 840062 Instruction Manual...
- Page 2 Sper Scientific. TABLE OF CONTENTS INTRODUCTION ........3 METER DESCRIPTION .
-
Page 3: Introduction
INTRODUCTION This portable meter is used for bolt torquing, torque wrench calibration, switch or contact closure measurement and other industrial, QC, and materials testing applications. Features three units of measure as well as hold, peak, min-max, fast/slow sampling, hi/low resolution auto power off and an RS232 computer interface. -
Page 4: Measurement Procedures
OPERATING INSTRUCTIONS Measurement Procedures • Plug the SENSOR CABLE PLUG into the SENSOR INPUT SOCKET. • Turn on the meter by pressing the POWER button. • Press the SENSOR TYPE button to check that the meter’s sensor type matches the external torque sensor. (ie: the LCD displays 15Kg cm.) •... -
Page 5: Automatic Shut Off
You can download the software that came with your meter directly. Go to the www.sperdirect.com/software.htm and find your meter or search for you meter (840062) and download from product page. Note... -
Page 6: Rs232 Pc Serial Interface
RS232 PC Serial Interface The unit features an RS232 Output (2-2) via a 3.5 mm terminal. The output is a 16 digit data stream which can be adapted to the user’s specific application. Optional RS232 Cable 840055, or an RS232 lead with the following connection is required to link the instrument with the computer: Meter (3.5 mm jack plug) PC (9W ‘D”... -
Page 7: Specifications
SPECIFICATIONS Display 2.4" x 1.3" (61 x 34 mm) 6" (15 mm) digit size Unit of Measure Kg - cm, LB - inch and Newton - cm Operating Temperature 32 to 122°F (0° to 50°C) Operating Humidity Less than 80% Power Supply Alkaline or heavy duty type DC 9V battery Power Consumption... -
Page 8: Warranty
WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of one (1) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
