PES36G INSTRUCTION MANUAL ELECTRIC HOB WITH A CONTROL PANEL IO-HOB-0243 / 8066205 (02.2017 / v2) -
Page 2: Basic Information
DEAR CUSTOMER This hob combines exceptional ease of use with excellent effectiveness. Once you have read the instructions, operating the appliance will not be a problem. Before packing each hob is subjected to rigorous safety and operational testing in our quality control facilities. -
Page 3: Table Of Contents
CONTENTS Basic Information ....................2 Safety instructions ....................4 Product Characteristics ................7 Specification ....................7 Installation ....................8 Operation .......................10 Cleaning and maintenance ................13... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... -
Page 5: The Appliance
SAFETY INSTRUCTIONS The appliance is not intended to be operated by me- ans of an external timer or separate remote-control system. You should not use steam cleaning devices to clean the appliance. • Ensure that children do not play with the appliance. •... - Page 6 HOW TO SAVE ENERGY? UNPACKING The appliance was packed Using the energy in a re- to protected it from dama- sponsible manner not only ge during transport. After saves money, but also unpacking, please dispose helps protect the environ- of all elements of packaging ment.
-
Page 7: Product Characteristics

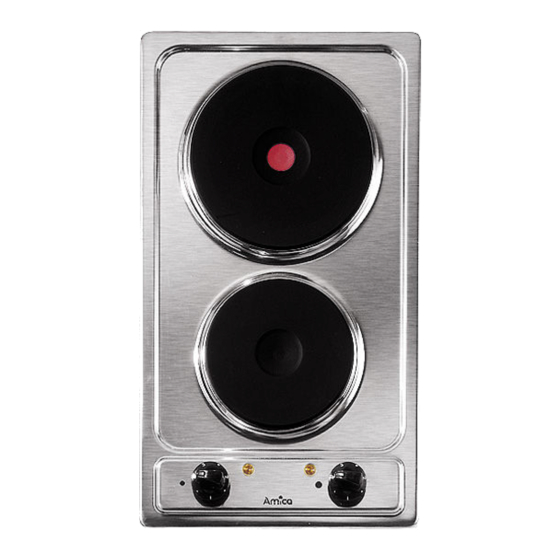

DESCRIPTION OF THE APPLIANCE Electric hob type PES36G 1, 2 – cooking zones 3 - knobs 4 - pilot light Fig.1 Specification - Voltage rating 230 V ~50 Hz - Dimensions 510 x 290 x 40 mm - Hob weight... -
Page 8: Installation
INSTALLATION Hob installation • Prepare opening in the worktop with dimensions shown on the assembly drawing (Fig. • Ensure minimum clearance of 80mm below the hob to allow proper air circulation and prevent overheating. • Connect the appliance to electricity mains Plug in accordance with the instructions in the manual. -
Page 9: Electrical Connection
INSTALLATION Electrical connection Warning: This appliance must be earthed. The appliance is supplied fitted with a power cord and 3 pin plug protected by 13amp fuse. The cable type must be a minimum of H05VV-F (PVC insulated and sheathed) 3 cores x 1,5mm . -
Page 10: Operation
OPERATION How to use the heating plate Save energy by using the appropriate cookware. Properly selected cookware must have a flat and solid base, and its diameter must match the diameter of the cooking zone, which results in a better heat transfer (Fig. 4) Fig.5 Fig.4 How is energy lost? - Page 11 OPERATION The symbols by the knobs indicate which knob operates each cooking zone. The cooking zone is off if: ● “0“ on the knob is aligned with the vertical line marked on the control panel, when heat settings are marked on the knob. ●...
- Page 12 OPERATION General information on using cooking zones Depending on the type of electric hob, it can by equipped with standard or fast cooking zones. Cooking and frying on the standard and fast cooking zones Fast cooking zones have greater power than standard cooking zones. For easy distinction they are marked with a red ring.
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Proper routine maintenance and cleaning of the appliance can significantly extend its trouble-free operation. Before cleaning, turn off the hob (all knobs set to „0”) and wait until it cools down. To clean the hob, only use a damp cloth with a little washing-up liquid added. - Page 16 For the UK: please call 01949 862012 01 88 2010...
