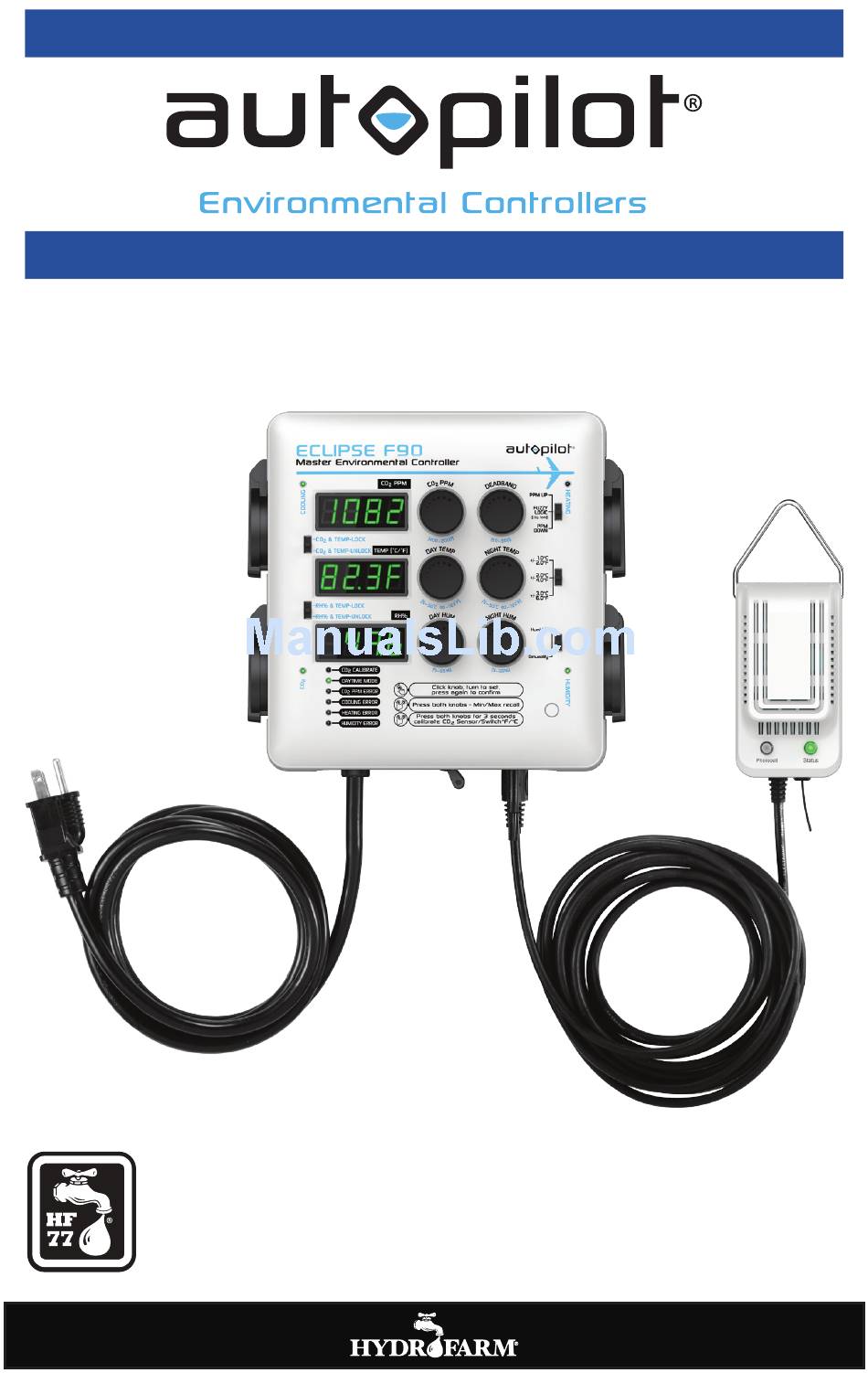

- Page 1 USER MANUAL ECLIPSE F90 (Master Environmental Controller) APE4200 AutopilotControllers.com...
- Page 2 AutopilotControllers.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS OVERVIEW PARTS LIST (WHAT’S IN THE BOX) LED DISPLAY & CONTROL SURFACE OPERATING INSTRUCTIONS CO 2 PPM SETTINGS CO 2 & TEMP LOCK/UNLOCK SWITCH TEMPERATURE SETTINGS HUMIDITY & TEMPERATURE (RH% & TEMP) LOCK/UNLOCK SWITCH HUMIDITY SETTINGS HUMIDITY DEADBAND (HYSTERESIS) HUMIDITY MIN/MAX RECALL HUMIDITY MODE SWITCH TEMP DEADBAND OPTIONS... -
Page 4: Overview
CO PPM levels, and its LED lights indicate active modes and inform the user of any errors. The ECLIPSE F90 Master Environmental Controller is easy to program and operate while showcasing total transparency of environmental conditions 24 hours a day. -
Page 5: Parts List (What's In The Box)

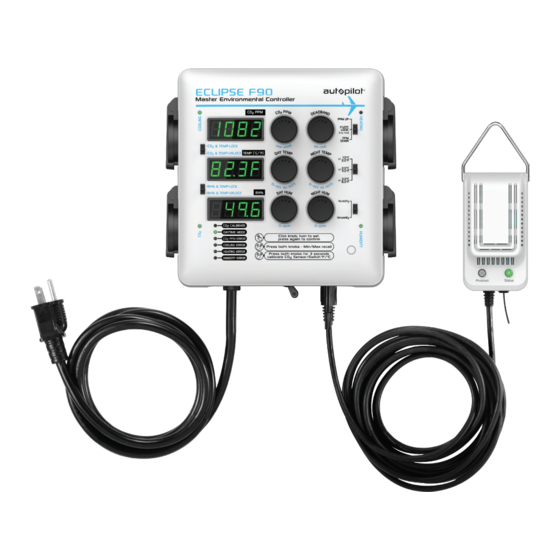

PARTS LIST (WHAT’S IN THE BOX) A - Controller Unit B - Sensor Unit C - Mounting Hardware (for walls) D - Mounting Hardware (for grow tents) -
Page 6: Led Display & Control Surface
LED DISPLAY & CONTROL SURFACE PPM SETTING DEADBAND & TEMP LOCK HEATING OUTPUT MODE COOLING OUTPUT TEMP SETTING TEMP DEADBAND HUM & TEMP LOCK HUMIDITY MODE OUTPUT HUMIDITY OUTPUT ERROR LEDS SENSOR CORD POWER INPUT HUMIDITY SETTING FUNCTION KNOBS Click (press) knob, turn to set, click again to confirm STATUS Press both function knobs... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS PPM SETTINGS LEVELS: Click the CO2 PPM knob and turn to set the PPM target. Click again to confirm the setting. DEADBAND: Click the DEADBAND knob and turn to set the desired deadband setting. Click again to confirm the setting. Example: For CO increase mode, if setpoint=1000 PPM and deadband=50 PPM, the CO output will... -
Page 8: Humidity Settings
HIGH TEMPERATURE PROTECTION If when using a CO generator with this controller the environmental temperature exceeds the set limit, the ECLIPSE F90 will deactivate the CO outlet, regardless of whether the CO PPM level has reached the setpoint yet. The CO generator will become active again when the temperature returns to 10°F/5°C less than the high limit. -
Page 9: Daytime Mode Led/Error Leds/Error Display Messages
DAYTIME MODE LED/ERROR LEDs/ERROR DISPLAY MESSAGES The LED labeled DAYTIME MODE will illuminate when the controller is operating in daytime mode (i.e., the photocell is receiving light). S_SR: If this error message is being displayed, check the sensor’s connection to the controller. OUTP: If the controller does not detect even a slight change in humidity or temperature levels within a 2-hour period, the screen will flash this error code accompanied by illumination of either the COOLING ERROR, HEATING ERROR, or HUMIDITY ERROR LED. -
Page 10: Mounting Instructions
MOUNTING INSTRUCTIONS MOUNTING THE UNIT TO A WALL Secure the controller to the wall using the included mounting clips and screws. MOUNTING THE UNIT TO A GROW TENT Secure the controller to one of the grow tent’s vertical support rods with the included U-bolt brackets. -
Page 11: General Warnings
GENERAL WARNINGS 1. Save the instructions. These safety and operating instructions must be kept in a safe place for future reference. 2. All warnings on this product and in the instructions must be observed closely. 3. All operating instructions must be followed. 4. -
Page 12: Warranty
The purchase date is based on your original sales receipt. precise climate control precise climate control Thank you for choosing Autopilot by Hydrofarm. For further information about Autopilot products, videos, and technical information, please visit AutopilotControllers.com ADDITIONAL LANGUAGES OF THESE INSTRUCTIONS CAN BE FOUND AT Hydrofarm.com...
