Autopilot APBC1000 User Manual

Environmental controller, analog to digital conversion module

U S E R M A N UA L

A N A LO G TO D I G I TA L CO N V E R S I O N M O D U L E

APBC1000

Table of Contents

Need help?

Do you have a question about the APBC1000 and is the answer not in the manual?

Page 1 U S E R M A N UA L A N A LO G TO D I G I TA L CO N V E R S I O N M O D U L E APBC1000...

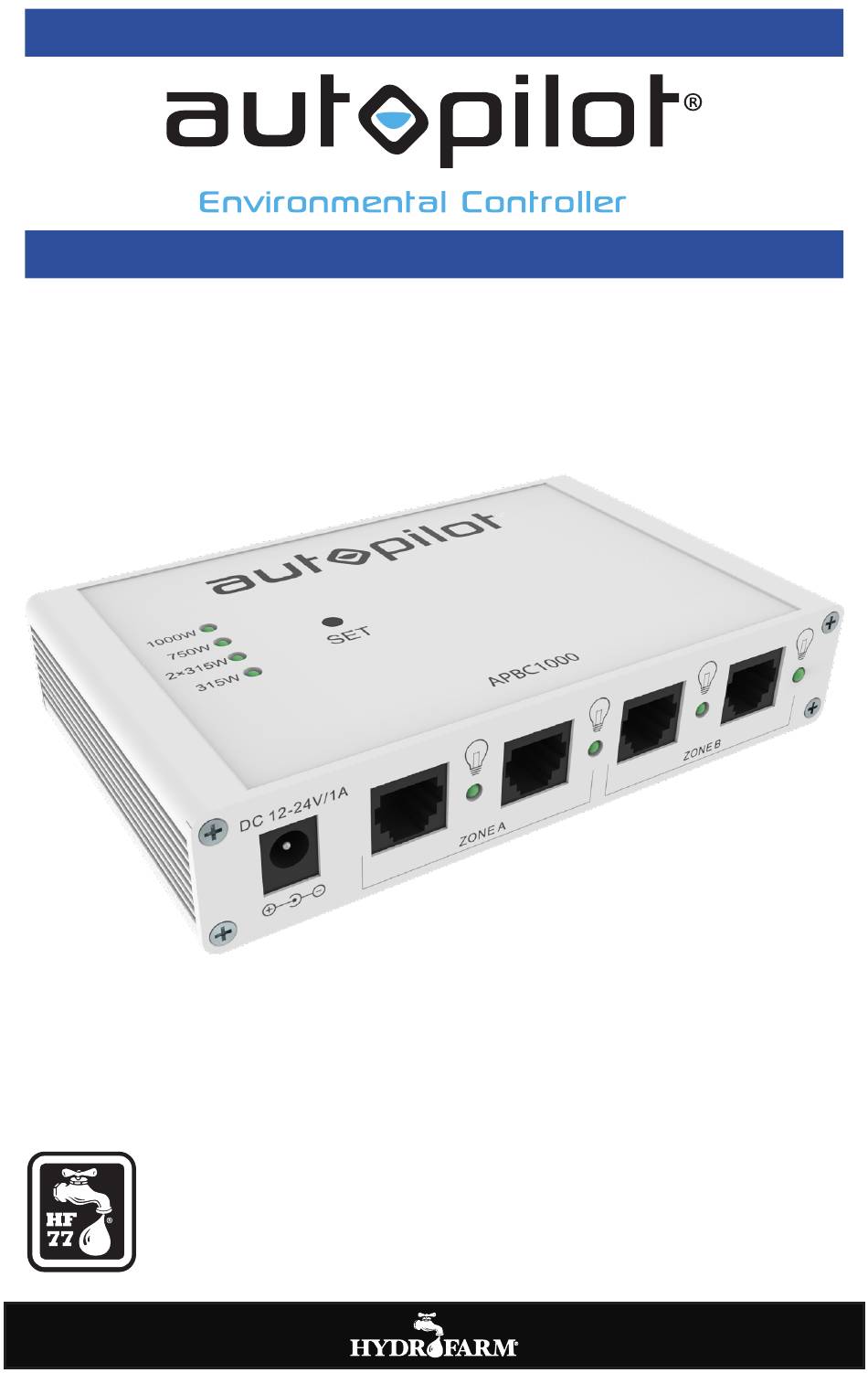

Page 2 APBC1000 - USER MANUAL OVERVIEW Autopilot has designed an intermediary box that will take the analog 0-10V signal input from commercial environmental controllers and will convert into the digital RS-485 Phantom brand lighting signal. The APBC1000 signal converter allows Phantom brand lighting products to adjust the light intensity based on what readings the quantum sensor is communicating back to the commercial environmental controller (greenhouse production facility).
Page 3 OPERATING INSTRUCTIONS Includes two 0-10v (-/+) terminal block connectors. Each 0-10v (-/+) input will control two digital RS-485 outputs. Signal <6V ≥6V ≥7V ≥8V ≥9V ≥10V Voltage 100% 115% Phantom Standby 1000W (600W) (750W) (825W) (1000W) (1150W) Phantom 100% 115% Standby (400W) (500W)
Page 4 Hydrofarm will, at our discretion, repair or replace the APBC1000 covered under this warranty if it is returned to the original place of purchase. To request warranty service, please return the APBC1000, with original sales receipt and original packaging, to your place of purchase.
