Page 1: Table Of Contents

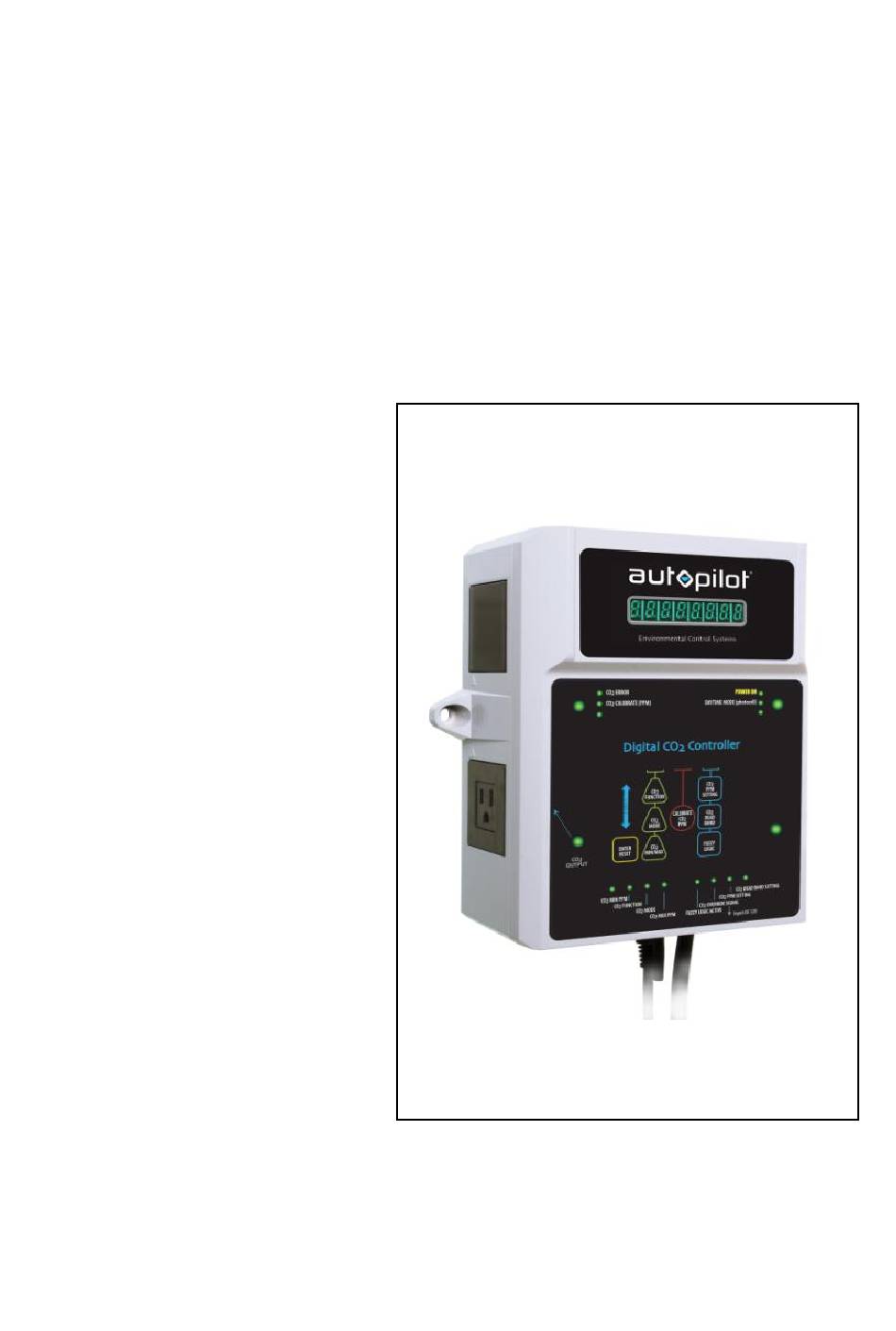

APCECOD Deluxe Digital controller Specs Basic Description Installation Button Functions Error LEDs Factory Settings Overview How to customize settings 6 Photocell sensitivity Fuzzy logic CO2 How to calibrate CO2 Sulfur vaporizer warning Q & A Warning 11-13 Warranty 14-15... -
Page 2: Specs
The remote sensor can be placed up to 15 feet from the controller. The APCECOD has a standard power receptacle to connect to your CO2 device. The APCECOD can be set to increase CO2, or to decrease CO2 levels. Note: An optional 15 ft extension cable can be purchased to allow the user to place the remote sensor up to 30ft from the controller. -
Page 3: Installation
Page 2 APCECOD Installation Secure the unit to a wall. Determine the best location for the remote probe. Place the probe in an area with good air movement preferably at plant height. Avoid placing the probe in direct sunlight or under direct HID Lighting. -
Page 4: Button Functions

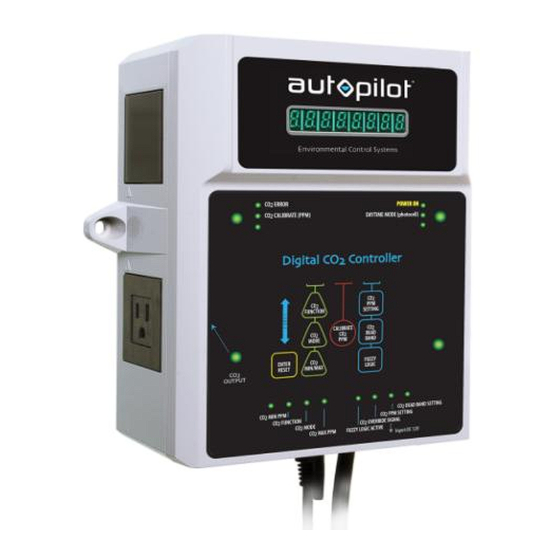

Page 3 APCECOD Button Functions There are Ten (10) buttons located on the front face that control the functions. Pressing each button will display a function and/or current setting(s) in the green LED window. Several small green LED lights or status indicators located on the front panel will light up to identify the selected setting. -
Page 5: Error Leds
Page 4 APCECOD Error LEDs The APCECOD is smart enough to monitor the CO2 conditions and to alert the user to a problem with the device connected to the APCECOD. Here is how it works. As the unit functions normally, the CO2 level will be slowly but steadily changing. -
Page 6: Factory Settings
Page 5 APCECOD Factory Settings The APCECOD comes pre-programmed with factory settings. These settings may be adjusted by the user. For best results verify any changes after adjusting settings. The controller can be easily reset to factory settings. (see below) -
Page 7: How To Customize Settings
Page 6 APCECOD How to customize settings... Up - Press button to increase setting Down - Press button to decrease setting Enter/reset – The Enter / reset button is used to accept new settings and to reset some errors. CO2 PPM setting - Press CO2 PPM, The current PPM setting will be displayed. -
Page 8: Photocell Sensitivity
Page 7 APCECOD Photocell Sensitivity The sensitivity of the photocell may be adjusted. * Press the Down button and hold for 3 seconds. The current photocell setting will be displayed. * Press Up to increase the number displayed and the sensitivity. -
Page 9: How To Calibrate Co2
Page 8 APCECOD “HOW TO calibrate” CO2 PPM 1) Place the controller outdoors in a shaded area. Do not place in direct sunlight. Keep away from people, animals and other CO2 emitting areas. Note: If calibration will be in a high traffic (vehicles) area or a highly populated area a slightly increased calibration to around 400-475 PPM is recommended. -
Page 10: Sulfur Vaporizer Warning
OFF and cover the remote sensor probe with a protective plastic bag. Remove the bag before turning the power back ON. APCECOD remote probe assembly Note: Failure to protect the sensor during Sulfur use will result in damage to the infrared CO2 sensor and... -
Page 11: Q & A
Page 10 APCECOD Q & A How can I tell if my CO2 reading is accurate? You can check the calibration of the CO2 sensor by placing the sensor outdoors for 30 minutes. It should read close to 380 PPM. *See the HOW TO calibrate section. -
Page 12: Warning
Page 11 APCECOD IMPORTANT MESSAGE 1. Save these instructions. These safety and operating instructions must be kept in a safe place for future reference. 2. Heed all warnings. All warnings on this product and in the instructions must be observed closely. - Page 13 Page 12 APCECOD 9. If the power cable insulation is broken, please stop using the product! Immediately unplug the unit and contact the retailer you purchased it from. 10. The product is equipped with a circuit breaker for short circuit or over current situations.
- Page 14 Page 13 APCECOD Le symbole sur le boîtier représente que le récipient à côté il peut avoir une tension de sortie, qui peut être dangereux. Les tensions de sortie sont les mêmes que la tension de tension d'entrée. Cette prise ne peut être inséré à la norme NEMA 1-15P et NEMA 5-15P bouchons.
- Page 15 Page 14 APCECOD Warranty and Liability 1.Limited Warranty Hydrofarm,Inc doing business as Hydrofarm, Inc (collectively HYDROFARM) warrants that for a period of three years from the date of purchase, this product will be free from defects in material and workmanship. HYDROFARM, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period.
-
Page 16: Warranty
Page 15 APCECOD What are the limits on HYDROFARM’s liability? HYDROFARM shall not be liable for any incidental or consequential damages cause by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied... - Page 17 This product conforms to USA and Canada standards as listed below. Made in China...
