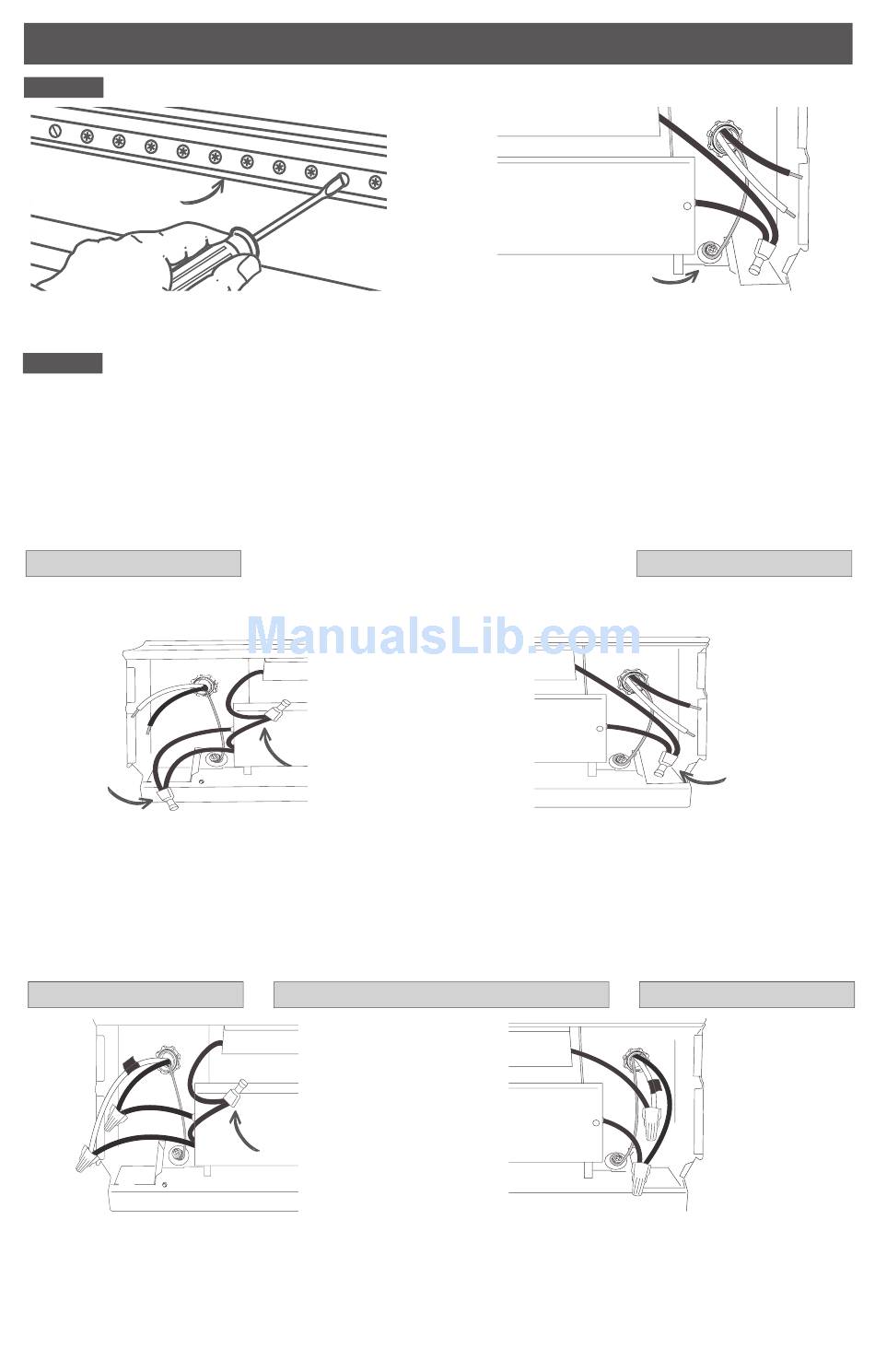

Cadet BASEBOARD Owner's Manual page 4

INSTALLATION INSTRUCTIONS
Mount heater to wall
STEP 2
star dimples are easy
to punch through with
either screws or nails
5. Mount the heater securely to two or three
wall studs.
Baseboard wiring
STEP 3
• KNOW YOUR VOLTAGE and CHECK YOUR BREAKER!
• All baseboard heaters require three supply wires. For 120 volt baseboard wiring you will have 1 hot,
1 neutral and 1 ground. For 240 and 208 volt baseboard wiring you will have 2 hots and 1 ground;
no neutral needed.
• If you're wiring a model 8F2025, go to page 5 now.
• Cut ONLY ONE factory connection and ONLY on the side you will be wiring! If your heater is a 120
volt model, cut ONLY the factory connection that has one black and one white wire!
LEFT SIDE WIRING
If you're wiring on the left side, CUT ONLY THE
ONE FACTORY CONNECTION SHOWN.
supply wires
CUT ONLY
THIS FACTORY
CONNECTION!
DO NOT CUT
BOTH!
If you're wiring a BUILT-IN model BTF or Smart-Base thermostat for your heater, go to those instruc-
tions now and follow that installation. When complete, proceed to OPERATING INSTRUCTIONS.
If you're wiring a WALL thermostat for your heater, follow the instructions and diagrams below or on
page 5, for your voltage and the side you're wiring. Route your electrical supply wires from the circuit
breaker to the wall thermostat, and then to the baseboard heater.
LEFT SIDE WIRING
supply wires
B
new
connection
A
new
connection
A. Connect one supply wire to one of the heater
wires with a wire connector (not included).
For 240 and 208 volts, it doesn't matter which
heater wire. Both supply wires (black and
white) are hot.
Wrap supply (white) wire with black tape to identify it as hot. Proceed to STEP 4 Finish installation.
Figure 7a
240 volt baseboard
DO NOT CUT!
240/208 or 240 VOLT ONLY
Figure 7b
240 volt baseboard
DO NOT CUT!
4
grounding
screw
6. Connect the grounding lead to the green
grounding screw on the side you're wiring.
If you're wiring on the right side, CUT ONLY THE
FACTORY CONNECTION ON THIS SIDE.
supply wires
new connection
B. Connect remaining supply wire to remaining
heater wire with a wire connector (not
included).
RIGHT SIDE WIRING
Figure 8a
supply wires
240 volt baseboard
CUT ONLY
THIS FACTORY
CONNECTION!
RIGHT SIDE WIRING
Figure 8b
240 volt baseboard
A
new connection
B
